Description
Brand: Stock Wire
Color: White
Features:

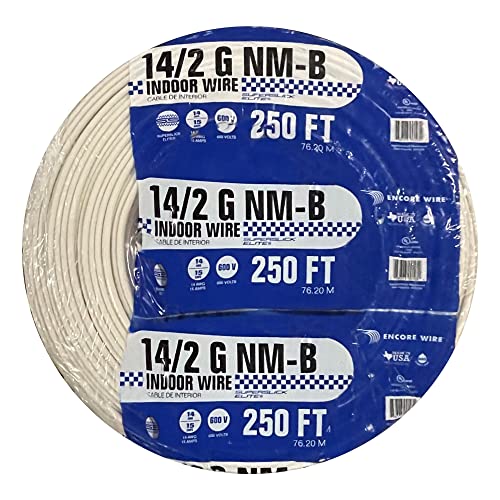

- #14 AWG Residential Wire for Outlets, Switches and Other Loads
- Copper (Cu) Conductors
- 600-Volt Maximum with an Allowable Ampacity of 15 Amps
- Equivalent to Romex NM-B - Color of Wire May not be the Same as the Picture Shown.
- Used for dry installations in residential applications
Details: Applications:
Non-metallic sheathed NM-B cable is used in normally dry installations in residential wiring, as branch circuits for outlets, lighting and other residential loads. NM-B is rated at 600 Volts and although is is rated at a conductor temperature of 90 Degrees Celcius dry, it's ampacity is limited to 60 Degrees Celcius. It may be fished through masonry or tile walls, where not exposed or subject to excessive moisture or dampness. NM-B cables are Lead Free and RoHS compliant. This is equivalent to Romex NM-B.
Standards:
Meets or exceeds all applicable ASTM specifications.
UL 83: Thermoplastic Insulated Wires and Cables.
UL 719: Non-Metallic Cables.
Federal Specification A-A-59544 and requirements of the NEC.
Voltage rating - 600 Volts
Construction:
Conductors:
Solid anealed soft bare copper per ASTM B3.
Insulation:
Color coded polyvinyl chloride (PVC) compound with a nylon covering meeting the required thickness of Type THHN. Conductor insulation is rated 90 Degrees Celsius.
Ground:
Soft, bare copper solid per ASTM B3 and stranded per ASTM B3 and B8
Sheath:
30 mil color coded PVC sheath rated 90 Degrees Celsius is applied over the completed assembly.
Specifications:
Size: 14 AWG
Number of Conductors: 2 + 1 Ground
PVC Insulation Thickness: 0.380 mm / 0.015 inches
Nylon Thickness: 0.100 mm / 0.004 inches
Nominal Cable Dimensions: 4.0 x 9.1 mm / 0.16 x 0.36 inches
Weight per foot: 0.057 lbs
Allowable Ampacity: 15 Amps
EAN: 0682550998909
Package Dimensions: 14.0 x 14.0 x 2.0 inches
Binding: Tools & Home Improvement
Part Number: 33948
model number: 33948
