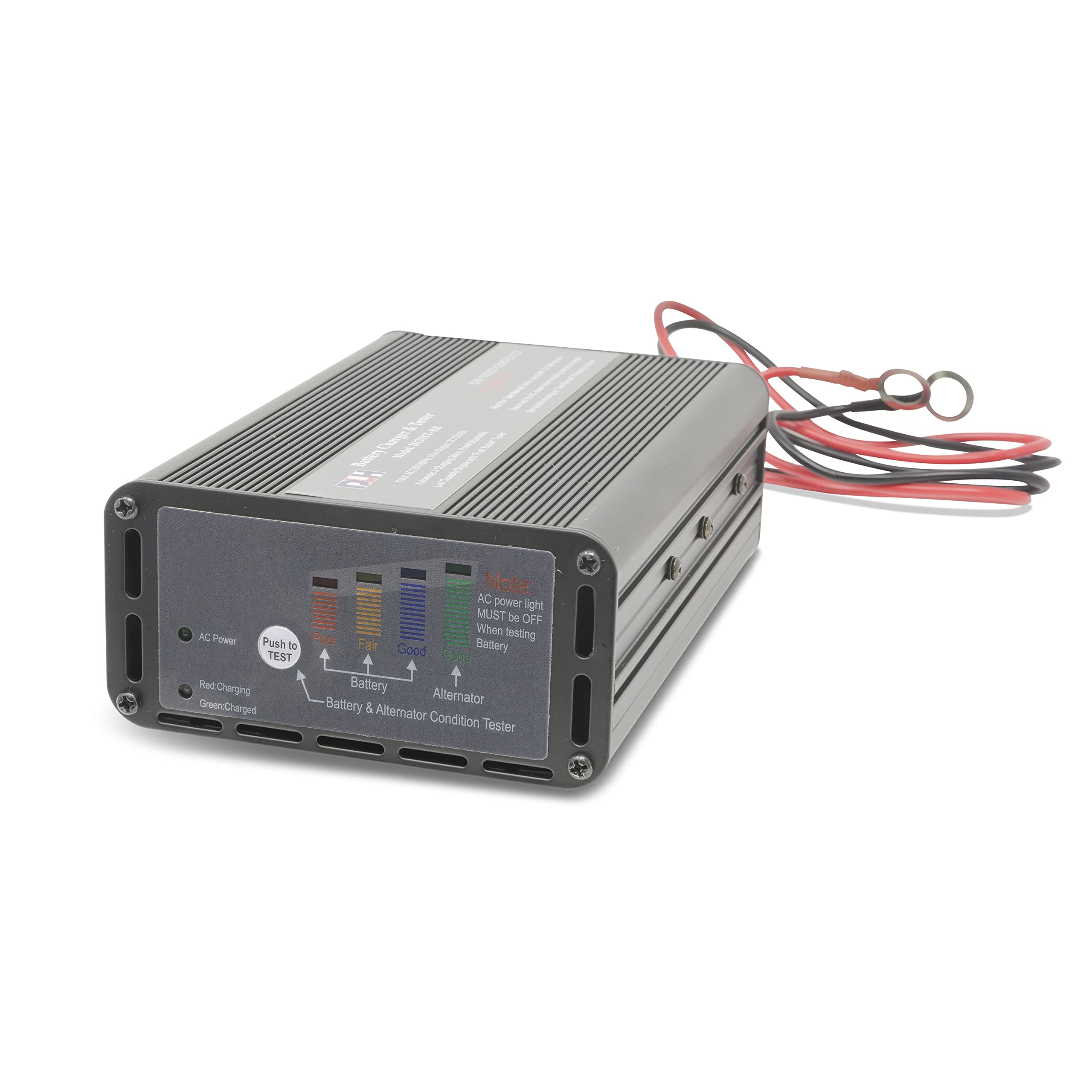

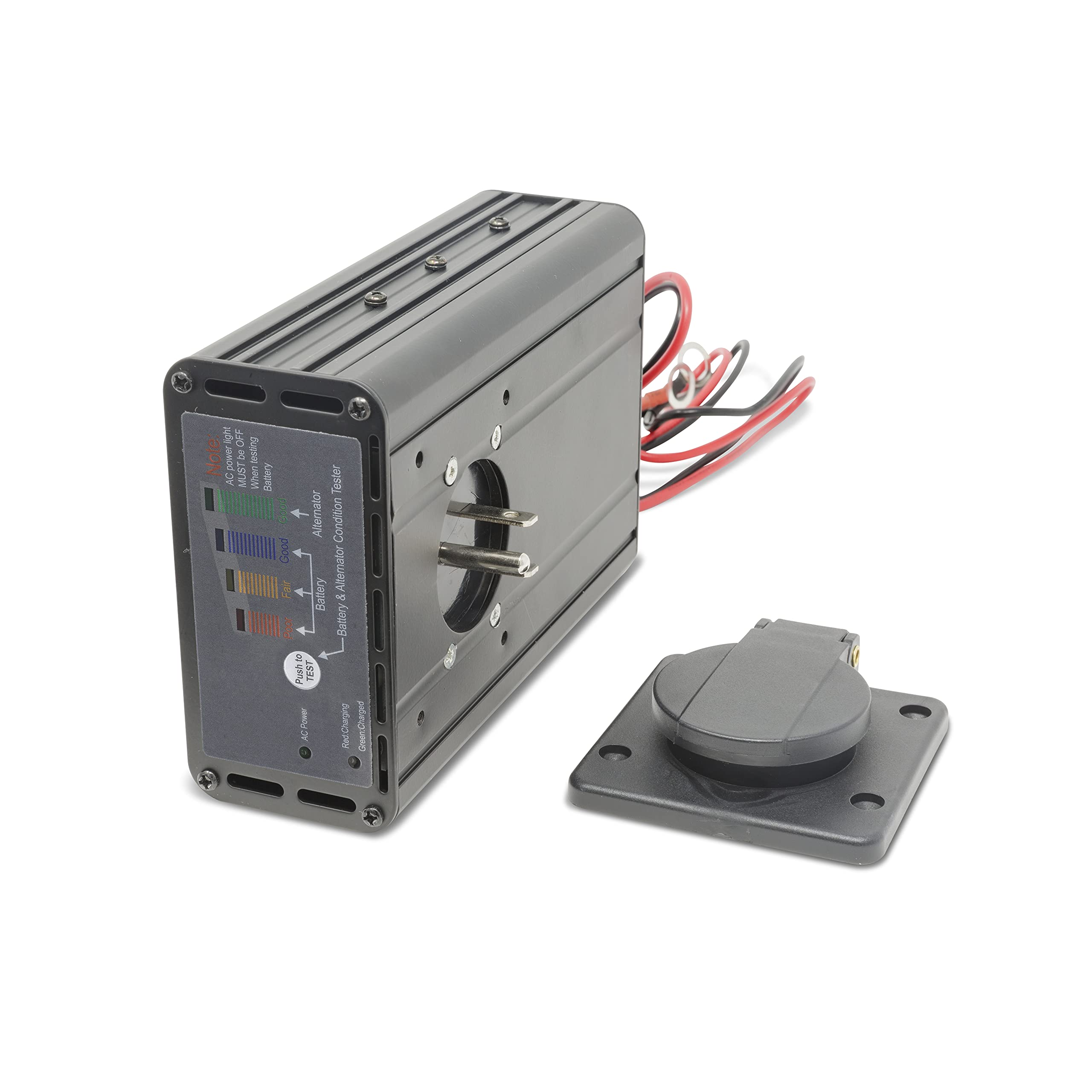

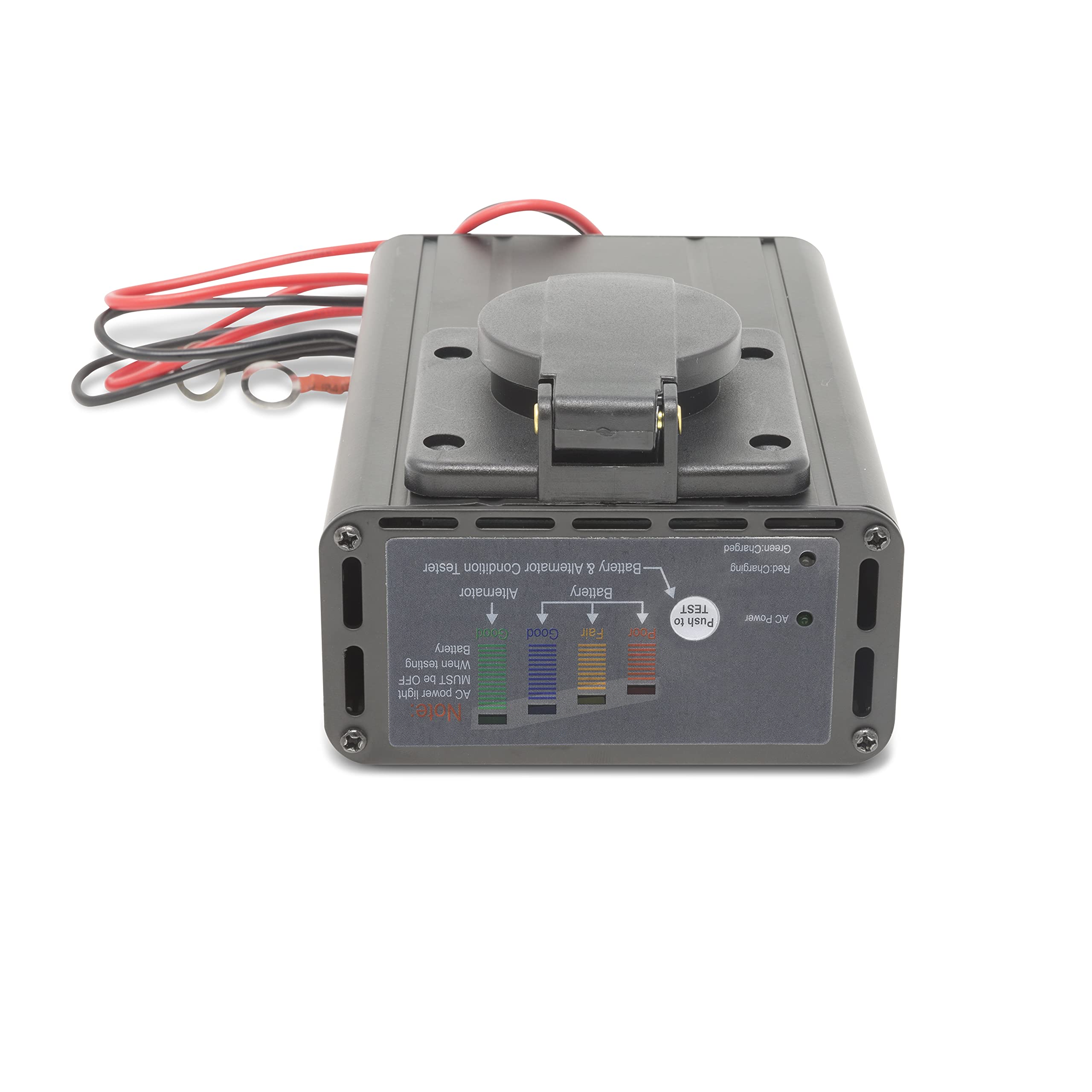

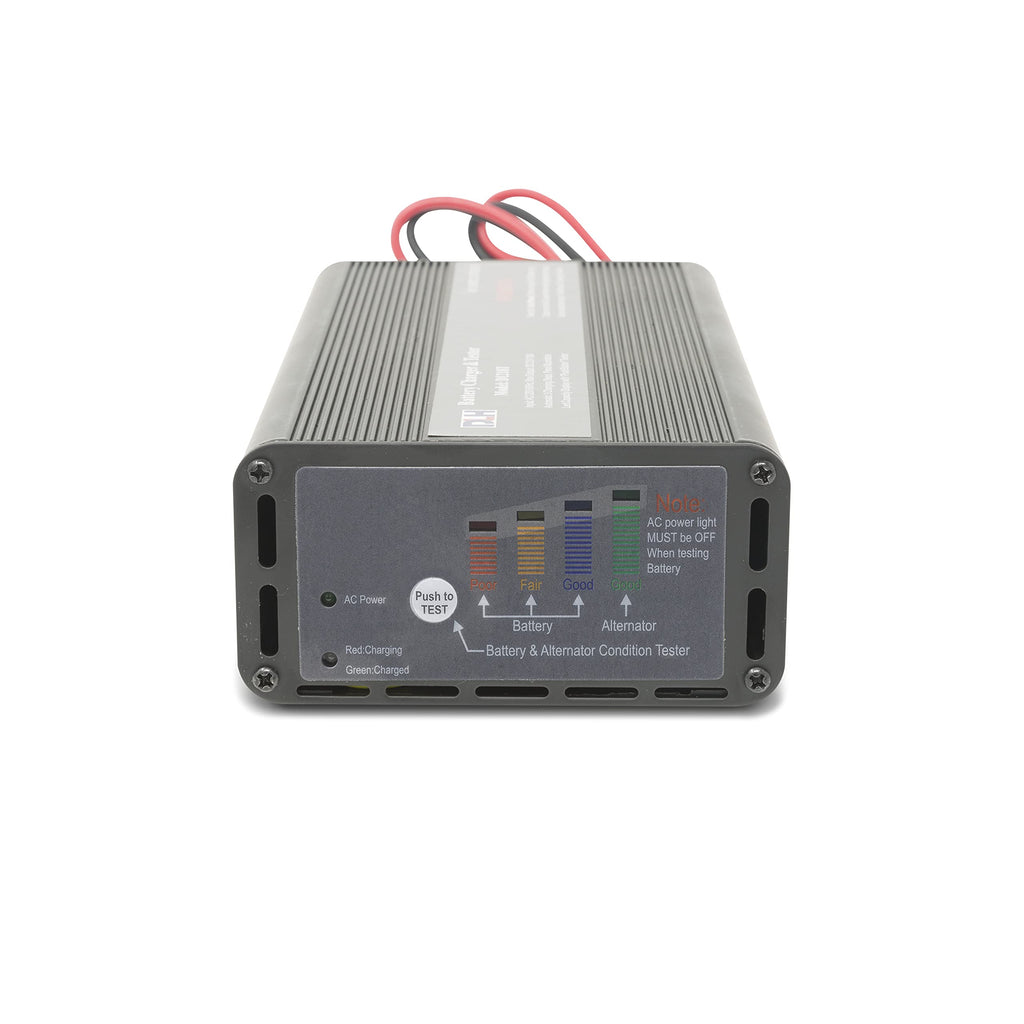

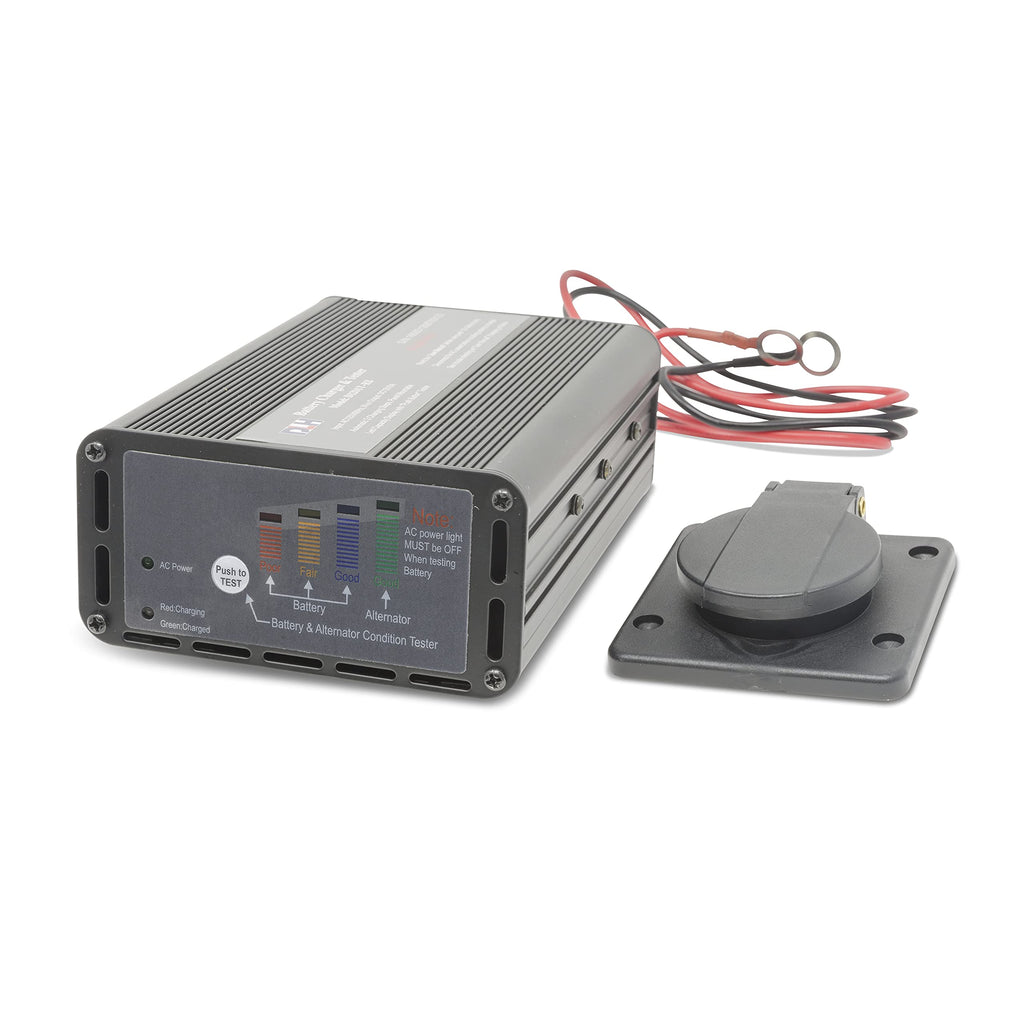

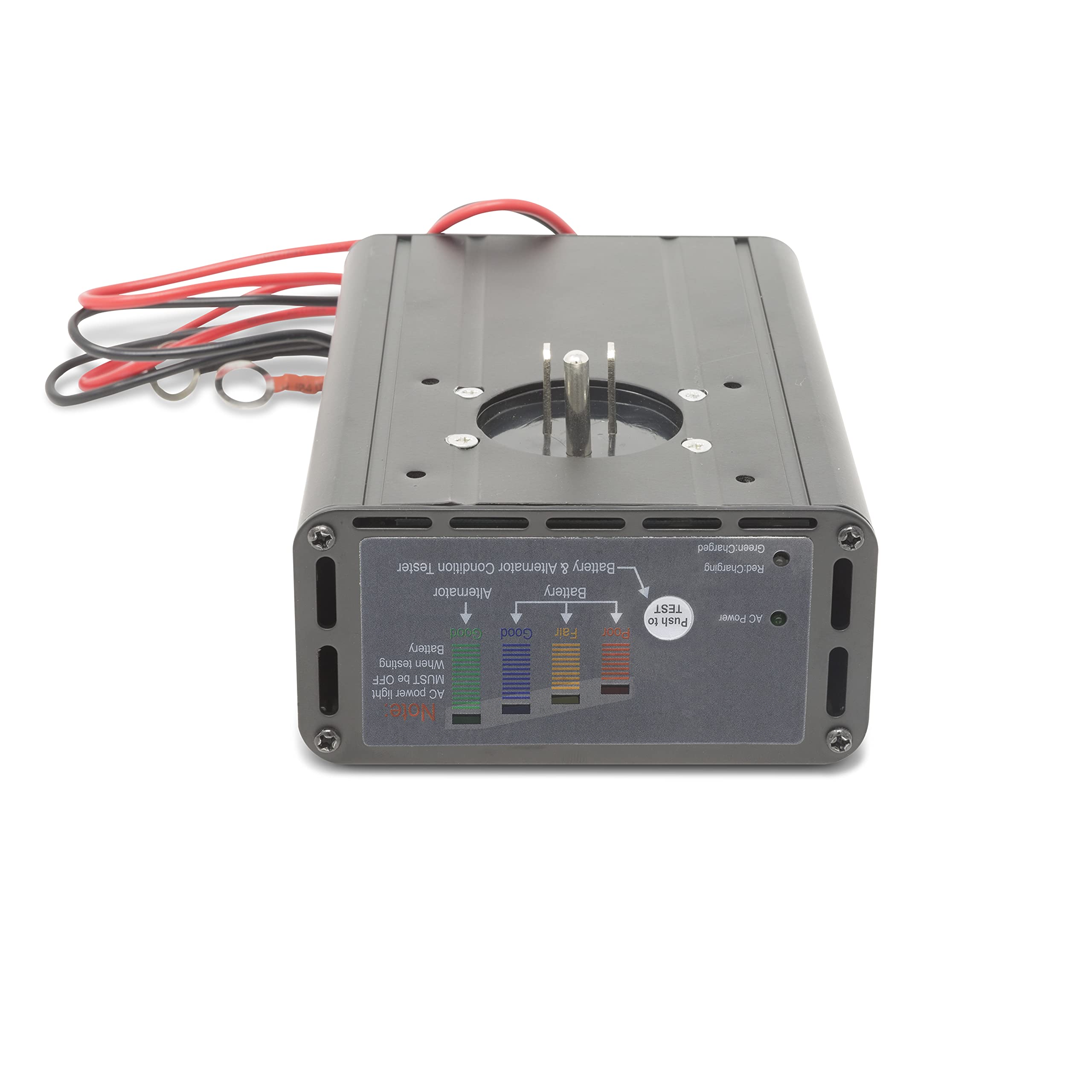

8 Amp Panel Mount Battery Charger & Tester for 12V Trailer Batteries

Brand: Battery life solution

Color: Silver

Features:

• Input: AC 120V, 60Hz
• Output: DC 12V
• Charge Current: Max 8 Amps
• Efficiency: >90%
• Battery Cables: 24-inch, 16 AWG

Details: The 8 amp panel mountable battery charger is complete with a button-activated battery and alternator tester for 12V lead-acid batteries and features a 3-step charging process.

3-Step Charging Process:
Constant-Current Charge -- when the battery voltage is lower than set point, it will charge the battery at the max. current which is called quick charging.
Constant-Voltage Charge -- when the battery is almost been fully charged, the charger will limit the current automatically.
Float Charge -- when the battery voltage reaches the settled float voltage of 13.5V, it will automatically switch to the float charging condition with the current of 0.1A~0.3A.

EAN: 0765829428014

Package Dimensions: 6.9 x 3.7 x 3.1 inches

Part Number: D1208T

model number: D1208T
