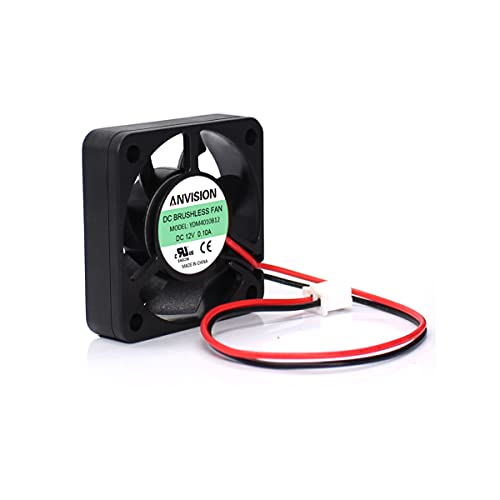

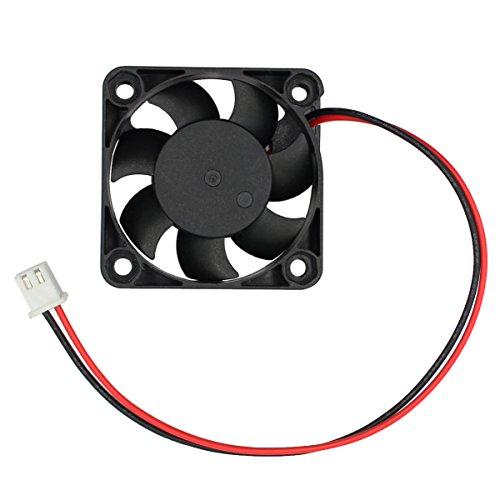

ANVISION 2-Pack 40mm x 10mm DC 12V Brushless Cooling Fan, Dual Ball Bearing, YDM4010B12

Brand: ANVISION

Color: Black ( 12V 40mm 2-PIN FAN )

Features:

• Rated Voltage: 12V DC, Current: 0.1A
• Airflow: 7.56CFM, Speed: 6200RPM, Noise: 27.50dBA
• Bearing Type: Dual Ball Bearing

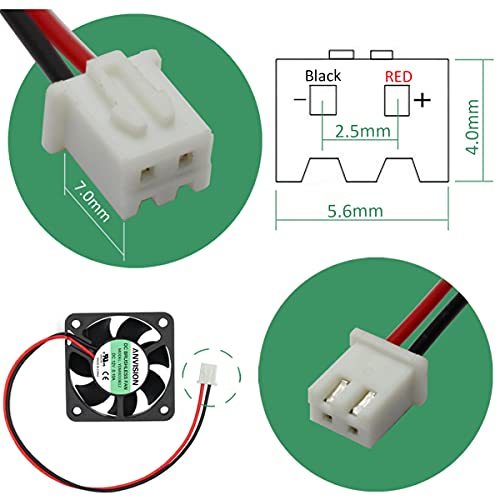

• Lead Wire: 2-pin-2.5mm connector, length: 150mm / 5.90inch

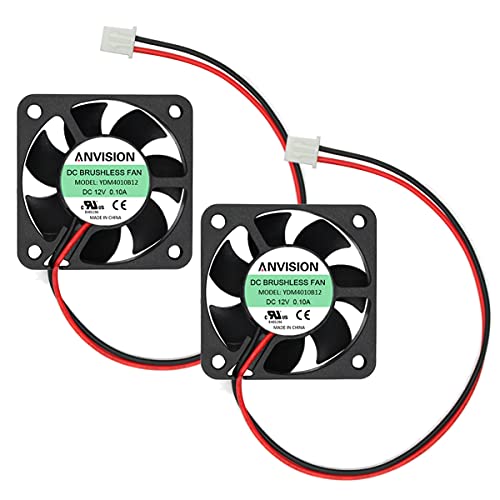

• Warranty: two years, Package: 2x DC brushless fans

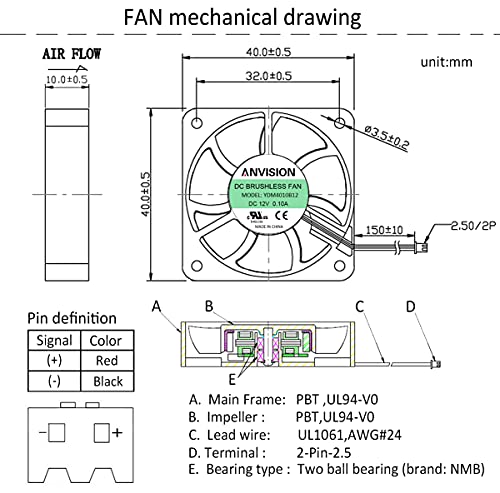

Details: Dimension: 40*40*10mm
Housing: Black PBT (UL94V-0)
Fan Blade: 7 Blades, Black PBT (UL94V-0)

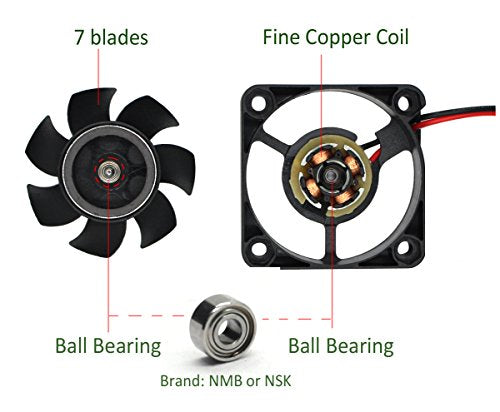

Bearing System: Two Ball Bearings
Net Weight: 13.7g

Rated Voltage: 12V DC
Operating Voltage Range: 10.8-13.2V DC
Start-up Voltage: 6.0V DC
Rated Current: 0.04A (0.10A Max.)
Rated Power: 0.48W (1.2W Max.)

Rated Speed: 6200PRM
Air Flow: 7.56CFM
Air Pressure: 3.19mmH2O
*Noise Level: 27.50dB(A)
Lift Expectancy: 50000H at 25degree test

*Acoustical Noise Testing Condition: Fan is hanged in anechoic chamber, noise is measured at rated voltage in anechoic chamber with microphone at a distance of 1 meter formthe air intake.

EAN: 0611434680760

Package Dimensions: 5.0 x 4.2 x 0.6 inches

Part Number: AN-YDM4010B12

model number: AN-YDM4010B12
