ARC HDMI Extender 4K@60Hz 4:4:4 HDR10 Over Cat5e/6/6a/7 Cable, 4K HDBaseT Extender, Audio Return Channel, S/PDIF Audio Pass Through, HDMI 2.0, HDCP2.2, CEC, PoE & Dual IR, RS232, Atmos & DTS:X

Brand: v AV Access

Color: Black

Features:

• 【Audio Return Channel】Audio DIP switch control on receiver: ARC & S/PDIF allows ARC function or Audio pass through accordingly. Fully supports audio formats in HDMI ARC & S/PDIF specification, DD/DTS 5.1CH and PCM 2.0 via ARC or S/PDIF.
• 【HDBaseT 2.0 & HDMI 2.0】Signals without degradation. HDMI Extender Supports 4K@60Hz 4:4:4 8-bit and 4K@60Hz 4:2:2 10/12-bit and 4K@60Hz 4:2:0 10/12-bit up to 40m(130ft) or 1080p up tp 70m(230ft) over Cat5e/6/7 cable. HDCP2.2 compliant and with 18Gbps bandwidth can supports HDR10.
• 【Advanced PoE/CEC/IR & RS-232 extension】Bi-directional POWER OVER ETHERNET (PoE) - Allows one power adapter to power both the transmitter and receiver. Bi-directional IR Extends IR signal from receiver to transmitter or from transmitter to receiver. CEC (Consumer Electronics Control) and RS232 pass-through.
• 【Great Compatibility】4K HDMI Extender works perfectly with Xbox One X, PS4 Pro, Roku 4, Amazon Fire TV 4K, Cisco cable box, Comcast, Vizio TV, SkyQ etc.

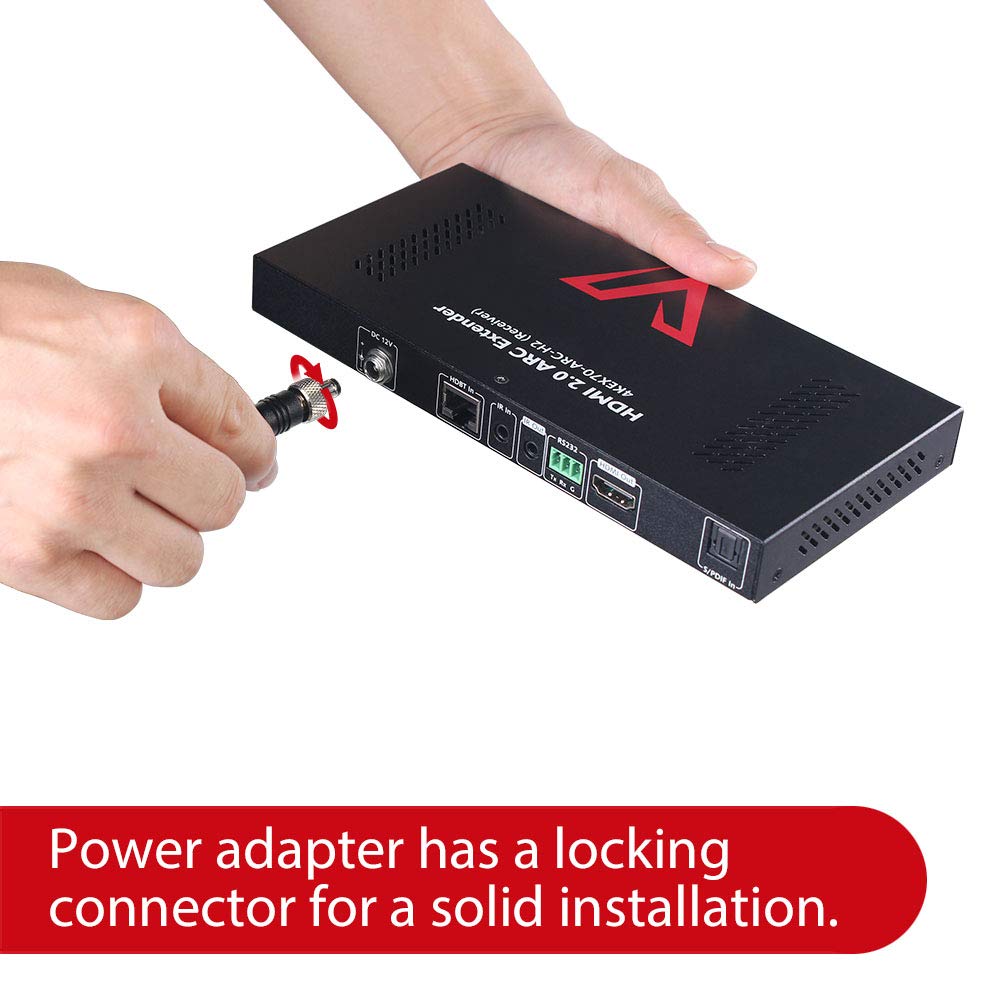

• 【Safe and Durable】Power adapter has a locking connector for a solid installation. Built-in Surge Protection; Superior ESD (Electro-Static Discharge) Protection: +/- 8KV (Air-gap discharge ) +/- 4KV (contact discharge ), preventing thunder strikes. All components are made by fireproof material with 1-Year-Warranty for all customers and 3-Year-Warranty for business customers and lifetime support.

Details: Overview

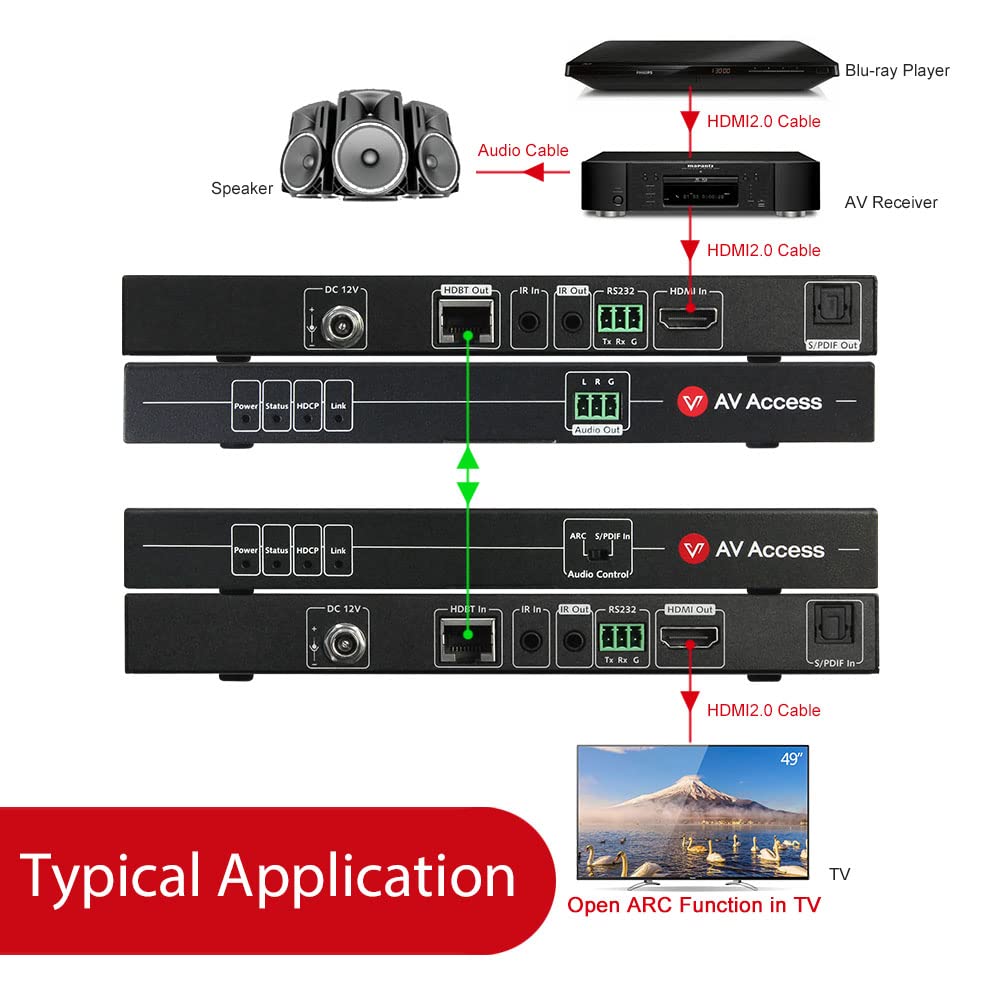

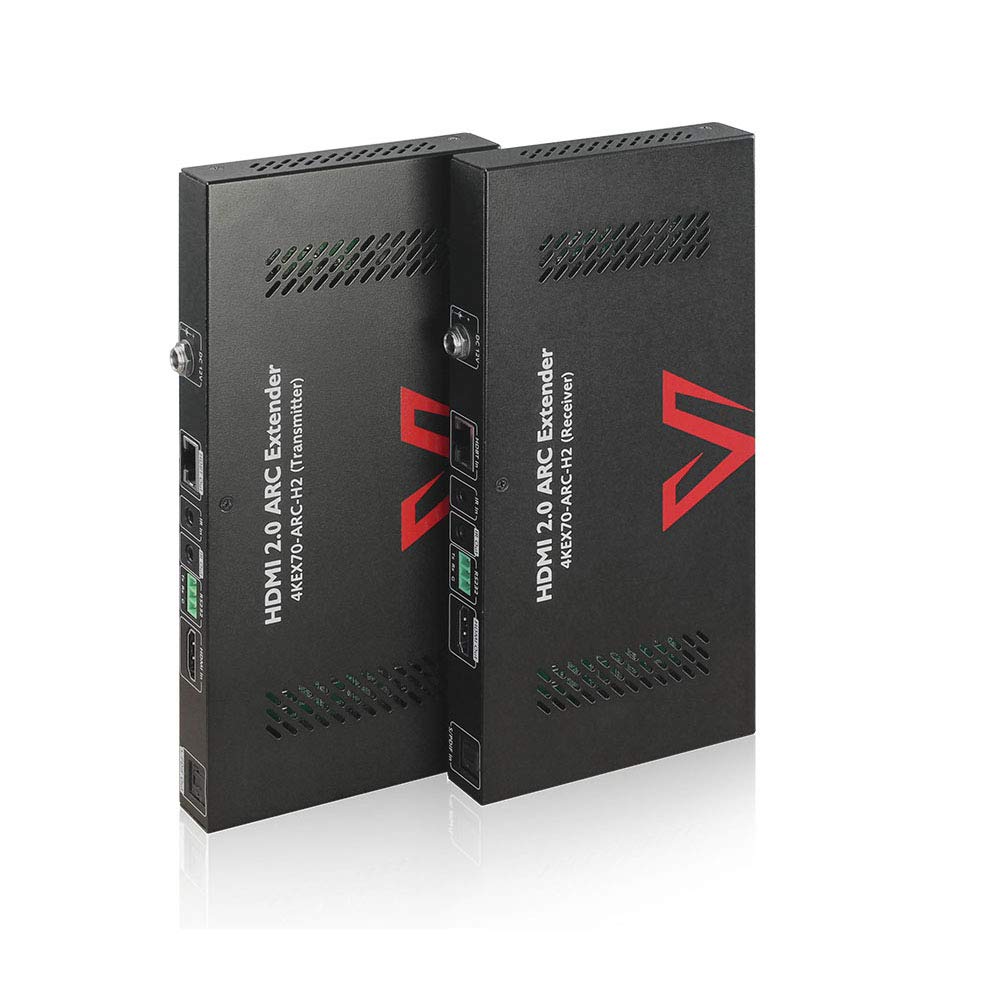

4KEX70-ARC-H2 is an HDBaseT Extender. It supports 4K@60 4:4:4 with HDR and HDCP 2.2 compliant, offers the distribution of uncompressed UHD video, audio, power, and IR together up to 40m/131ft over a single Cat X cable.

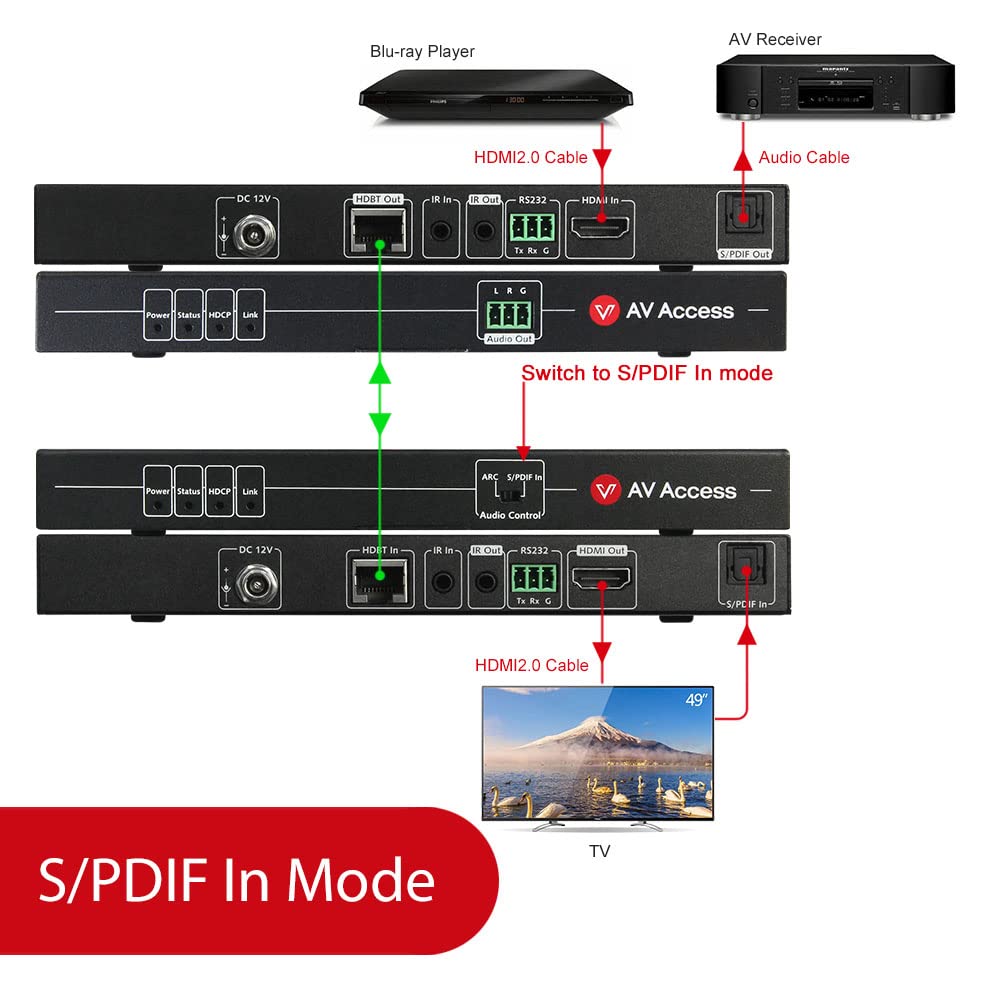

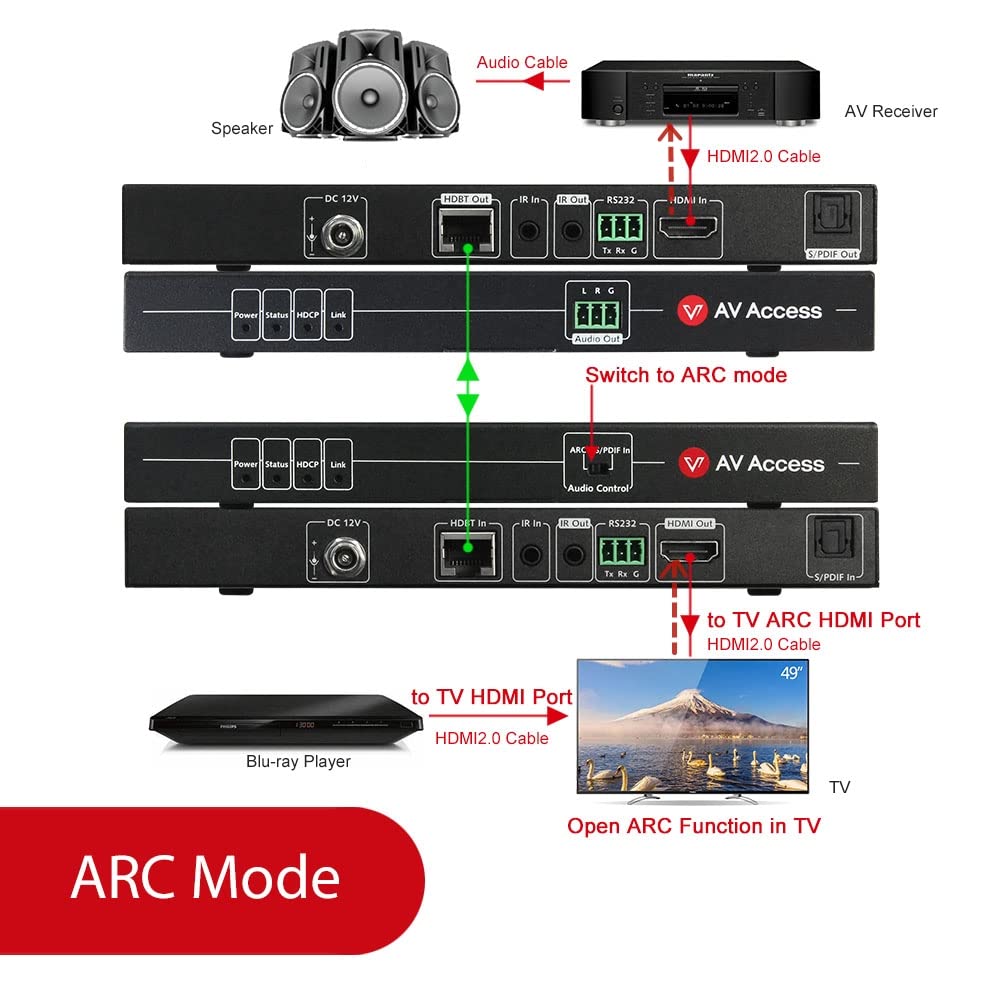

By the DIP switch of Audio Output on the receiver, it's able to configure the ARC channel feed by TV (with ARC support), or auxiliary S/PDIF Input port. This suit also provides an HDMI audio de-embedding with phoenix analog connector.
Two way PoC technology, with LED indication for visual power supply to units and signal status to show established connection between connected devices.
Features
√4K/UHD capability @60 Hz with 4:4:4 Chroma sampling, plus support for HDR formats.
√HDCP 2.2 compliant.
√Supports HD signal transmission up to 60 meters (1080p) and 35 meters (4K@60Hz YUV 4:4:4) via a single Cat 5e/6 cable.
√Supports HD signal transmission up to 70 meters (1080p) and 40 meters (4K@60Hz YUV 4:4:4) via a single Cat 6a/7 cable.
√HDMI audio de-embedding with phoenix analog connector.
√Extends RS232, IR control signals.

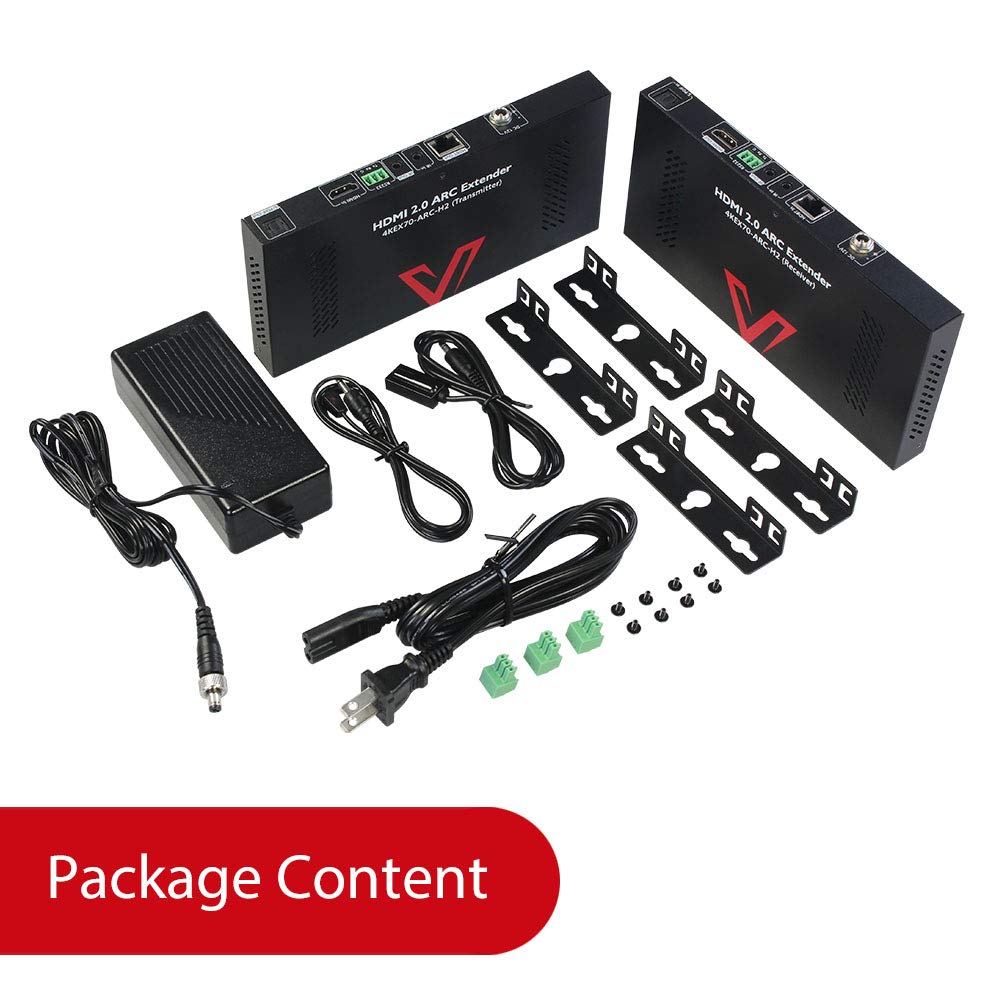

Package Contents
1 x Transmitter
1 x Receiver
1 x Power Adapter (DC 12V 3A)
3 x Phoenix Male Connector (3.5mm 3 Pin)
1 x IR Emitter Cable
1 x IR Broadband Receiver Cable (30KHz~50KHz)
4 x Mounting Brackets (with Screws)
1 x User Manual

EAN: 0634923852769

Package Dimensions: 12.2 x 7.2 x 3.1 inches

Binding: Wireless Phone Accessory

Part Number: 4KEX70-ARC-H2

model number: 4KEX70-ARC-H2
