Description
Brand: AstroAI
Color: Red
Features:

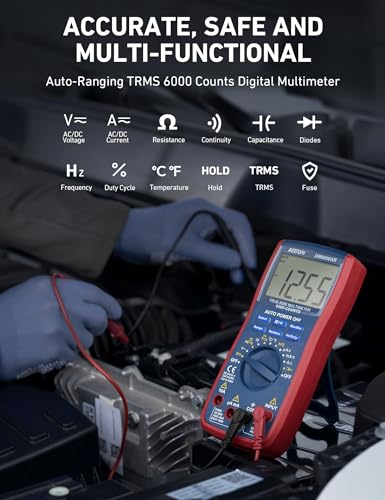

- Versatile Digital Multimeter - Accurately measures AC/DC Current, AC/DC Voltage, Capacitance, Frequency, Duty Cycle, Resistance, Diode, Continuity and Temperature.

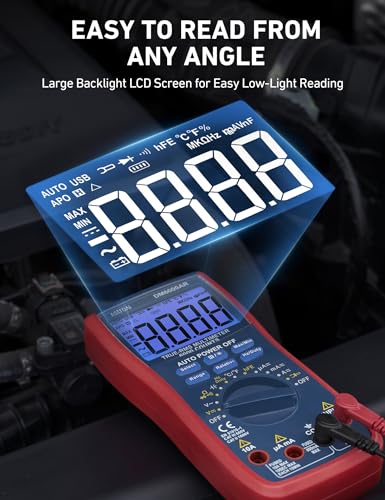

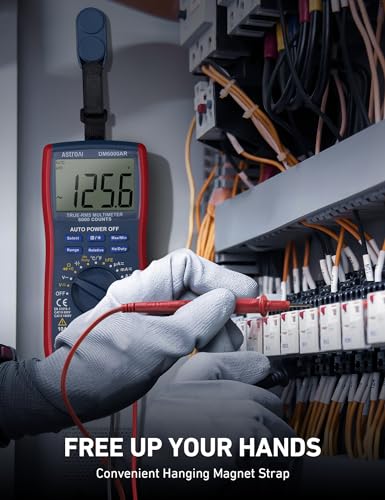

- Thoughtful Design - Support Data Hold, Large LCD Backlit Screen, Auto Shut-off and Hanging Magnet, and Kickstand make the process of measurements easier. Professional level is reflected in some features include Auto-Ranging capability, and True RMS for measuring both AC Current and Voltage.
- Suitable For Many Occasions - This Multimeter is a golden partner to help to troubleshoot a variety of automotive and household electrical problems safely and accurately.

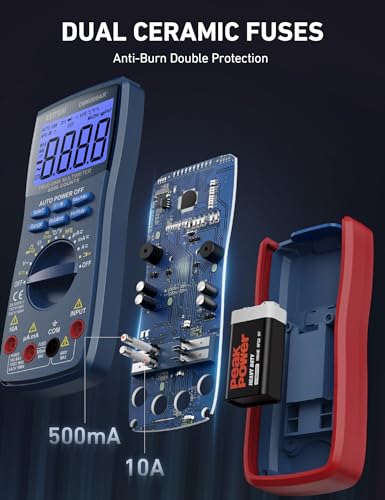

- Ensure Safety - Double ceramic fuse is anti-burn and protects from overloading，and it will be more secure and reliable； F400mA/600V and F10A/600V explosion-proof ceramic fuse tubes can protect the multimeter effectively.

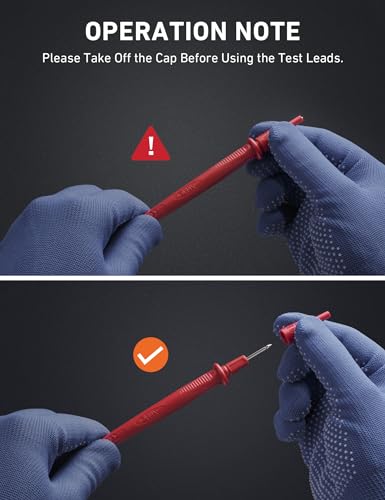

- Additional Tips - Please take off the cap before using the test leads.
Details: The AstroAI True RMS Multimeter is designed to be safely and accurately used by professionals in a commercial setting or weekend DIYer's that need a little more power utility from their standard digital multimeter. It's easy and safe to operate with advanced features built for measuring seemingly everything. Run tests on diodes and transistors while being able to measure voltage, current, resistance, continuity, capacitance, and frequency, all on one device. This multimeter is designed to be used in commercial settings, but can also be brought home to use with automotive or household electrical problems.
Specifications
Digital Display: 5 ¾ , 6000
Sampling Speed: 2 times per second

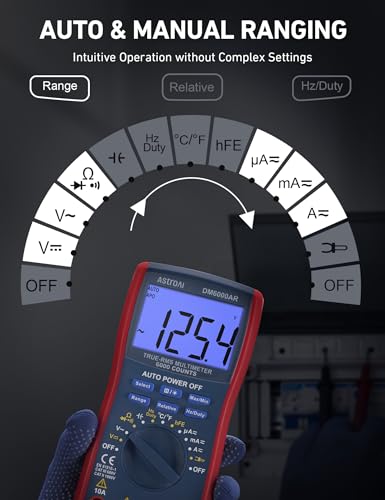

Range Selection: Auto or Manual
Polarity Indication
Overload Indication
Low Battery Indication
Power: 1 x 9V 6F22 Battery Included
Temperature Test: Yes
Transistor Test: Yes
Diode Test: Yes
Continuity Test: Yes
External Current Test: Yes
Capacitance: Yes
Frequency: Yes
Safety/Compliances: EN61010-1 CAT III 600V, CATII 1000V
DC Voltage: 600mV/6V/60V/600V ±(0.8%+3), 1000V (1%+5)
AC Voltage: 600mV ±(1.2%+8); 6V/60V/600V ±(1.2%+6); 750V ±(1.2%+8)
Temperature: -40°C~1370°C; -40°F~2000°F (1-5%+4 depending on temp)
DC Current: 600μA/6000μA/60mA/600mA ±(0.8%+5); 6A/10A ±(1.5%+3)
Transistor hFE: PNP & NPN (lb≈2μA; Vce≈1V)
Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ ±(1.5%+3); 60MΩ ±(1.5%+5)
Capacitance: 60nF/600nF/6μF/60μF/600μF/60mF
Frequency: 0~60MHz ±(1%+5)

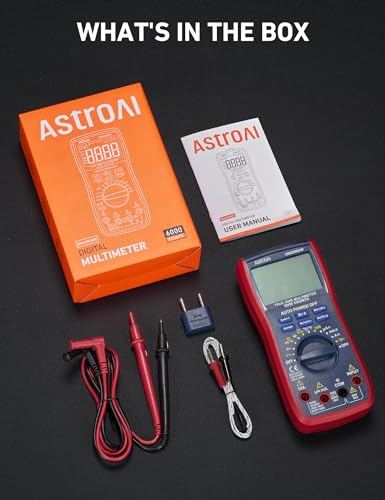

Package Includes
1 x AstroAI DM6000AR True RMS Digital Multimeter
1 x Test Leads (Pair)
1 x K-Type Thermocouple
1 x Multi-Function Socket
1 x User Manual
EAN: 0759974998225
Package Dimensions: 8.6 x 6.7 x 2.3 inches
Binding: Tools & Home Improvement
Part Number: ASIMT5000A-JP1
model number: AST-6000-D
