Description
Brand: BougeRV
Color: Black
Features:

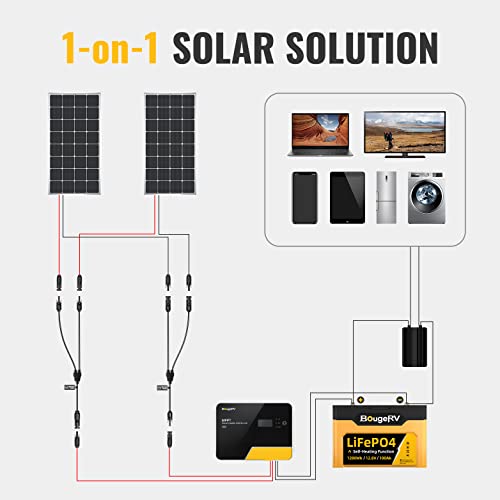

- 【Y Branch Parallel Connector】1 male to 2 female (M/FF) and 1 female to 2 male (F/MM) solar connectors, which can connect 2 solar panels in parallel.

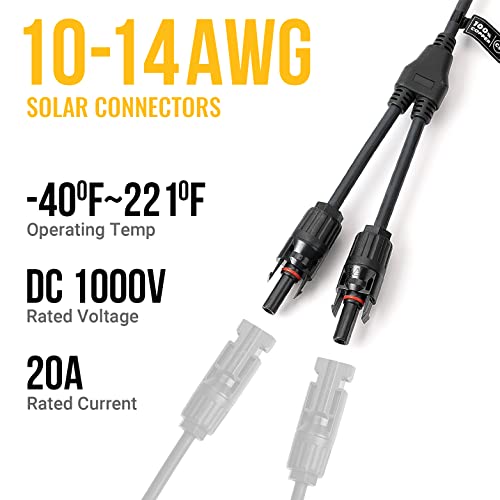

- 【Main Technical Specification】Rated Current: 20A, Rated Voltage: DC1000V.
- 【Wide Application】The solar y connector is compatible with various solar cables:14-10AWG (1.5mm² - 6mm²).

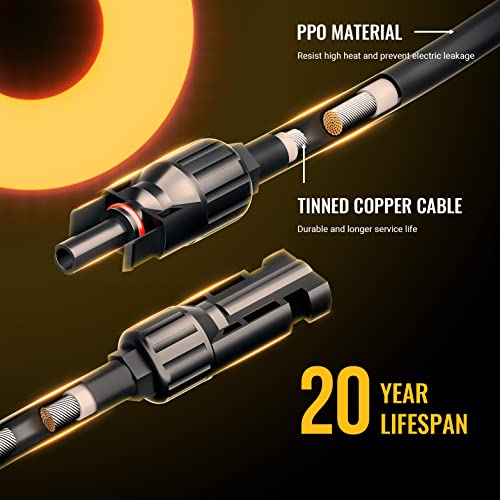

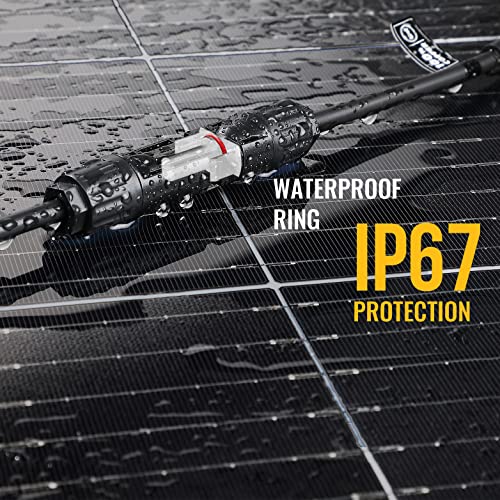

- 【IP67 Waterproof】The waterproof ring in the male connector is designed to prevent water and dust. With high-quality PPO material, solar connectors can resist ultraviolet rays and high temperatures.

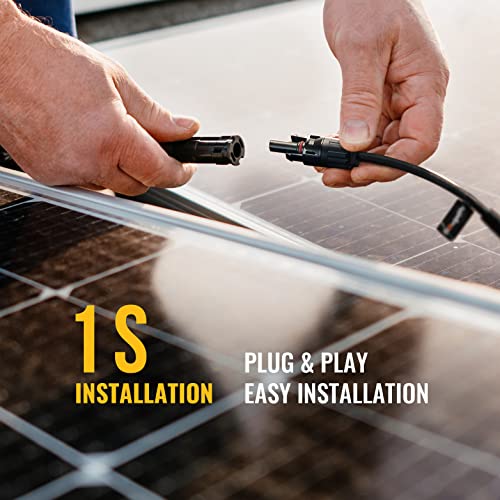

- 【Plug and Play】You can assemble solar y connectors quickly and simply. Just press the built-in lock on the male connector to disconnect.

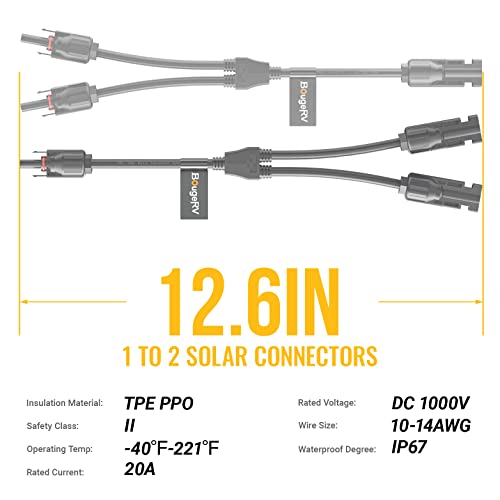

Details: Specifications: Insulation Material: PPO Rated Current: 20A(4mm²) Rated Voltage: DC1000V Contact Resistance: ≤5mΩ Insulation Resistance: >500mΩ Operating Temperature range: -40℉ -- 194℉ Waterproof Degree: IP67 Flame Class: UL94-V0 Safety Degree: Ⅱ Suitable Solar Cables: 14-10AWG(1.5mm² -- 6mm² ) Package included: 1 Pair of Y Branch Solar Panel Cable Connectors
EAN: 0720562897190
Package Dimensions: 13.1 x 3.6 x 1.2 inches
Binding: Lawn & Patio
Part Number: m-2
model number: ISE002FBM
