Bundle - 18" BLUM TANDEM Drawer Slides with BLUMOTION. Includes Slides 563H, Locking Devices, Rear Mounting Brackets, Screws and Instructions.

Brand: Blum

Color: Zinc and Orange

Features:

• The new TANDEM plus BLUMOTION brings together all of the features, innovations and benefits that BLUM has developed since first manufacturing drawer runners in the early 1960s.
• The first time you open and close a fully loaded drawer, you will quickly realize that TANDEM plus BLUMOTION is a runner system that is unmatched in quality, style and running action.
• BLUM TANDEM plus BLUMOTION, 563H series Drawer slides for 1/2" - 5/8" drawer thickness, complete pair.

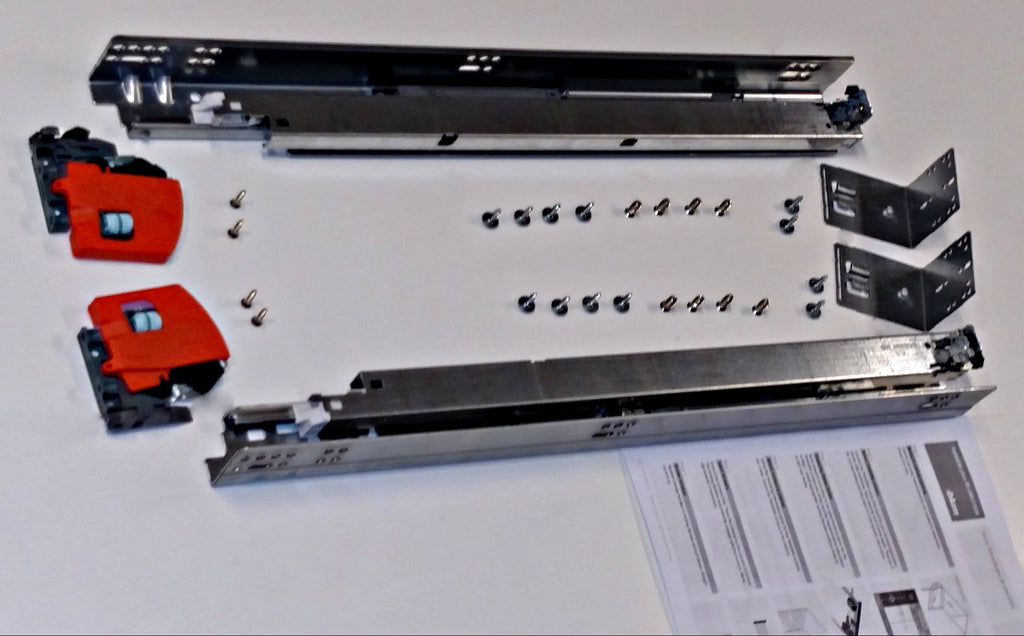

• One complete pair of slides also includes right and left adjustable locking devices (T51.1901 Right and Left), two rear mounting brackets, (295.3750) and enough 6 x 5/8" screws to mount the slides, locking devices and rear mounting brackets.
• Note: rear mount brackets can-not be used on the 9" slides and will not be included. We buy these by the pallet to save you money!

Details: The 563H series are the newest series of Tandem Slides by BLUM.
They have replaced the 562H series Slides with BLUMOTION.
■ Four-dimensional adjustment
■ Elongated holes for depth adjustment
■ Bottom mount holes
■ 100 lb static load capacity
■ Full extension concealed drawer runners
■ Face Frame or Panel cabinets
■ BLUMOTION soft closing
■ TANDEM smooth running action
■ Available in 9" to 21" lengths
■ 13 (1/2") to 16 (5/8") drawer thickness
■ Made in the USA

EAN: 0748971075305

Package Dimensions: 26.0 x 3.3 x 3.3 inches

Part Number: 563H

model number: 563H
