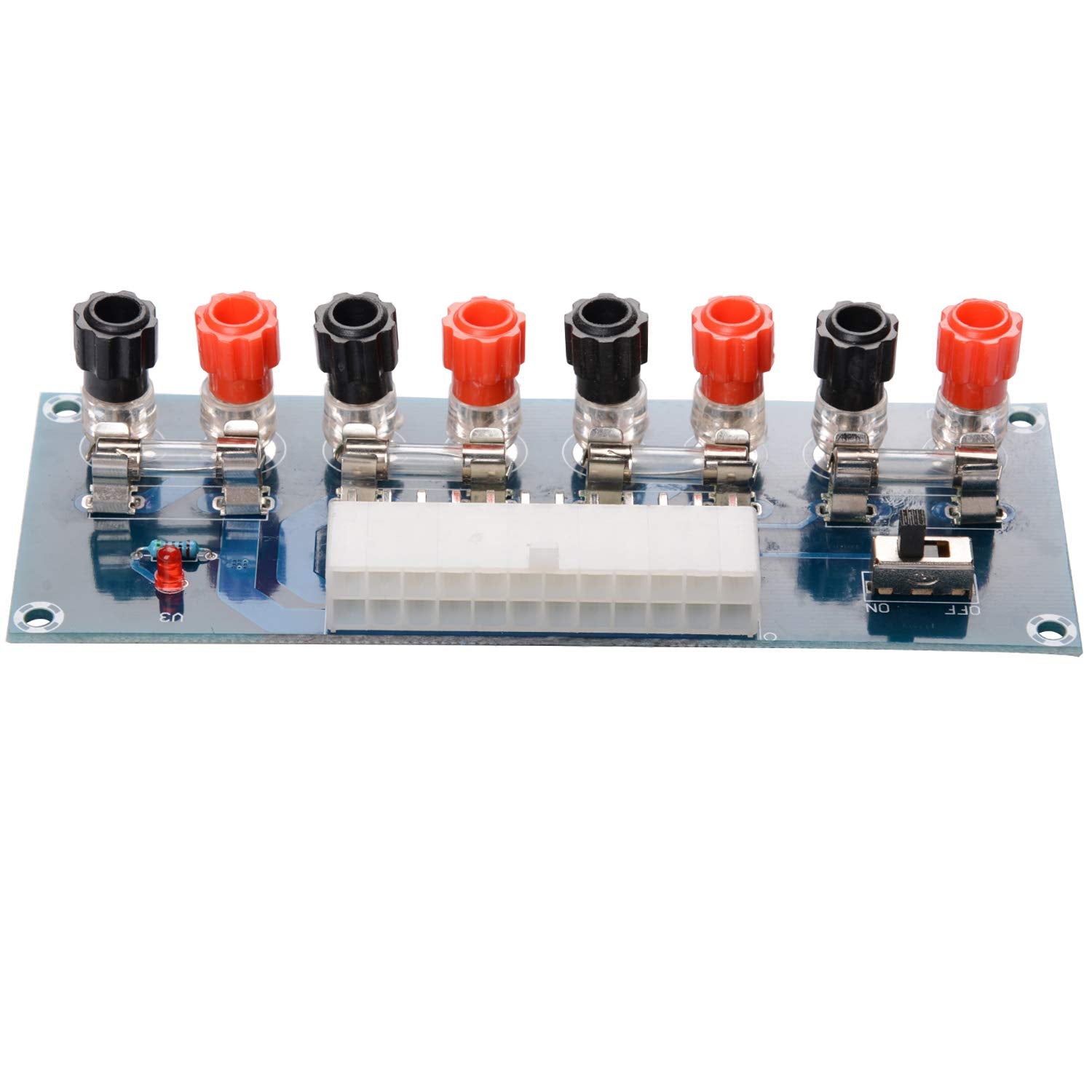

CHENBO 2pcs 24 Pins ATX Power Board Computer PC Power Supply Breakout Module Adapter 12V 5V 3.3V

Brand: CHENBO

Features:

• ✿Designed to use your power supply to create a desktop power supply with four-channel voltages that can run almost any embedded electronic project.
• ✿Fast access to the typical voltage required, including 3.3V, 5V, 12V and -12V
• ✿Each output channel has replaceable 5A fuse and corresponding grounding connection, and the terminals are easy to connect.

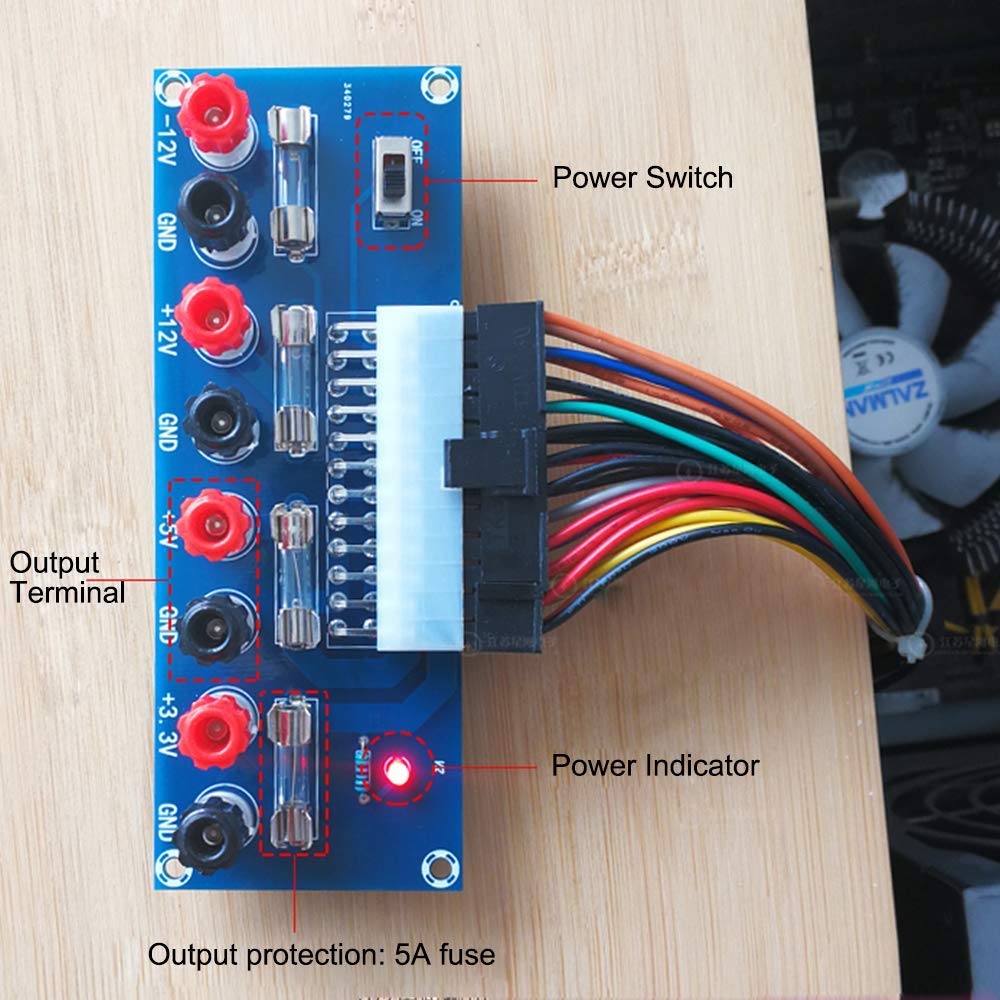

• ✿On board standard 24 pin ATX port, power indicator and power switch are ideal for easy control of DIY low voltage power supply for developing physical computing projects (embedded systems).
• ✿PCB plastic gasket design to prevent short circuit.

Details: Specification:
Size: 128x48x30mm/5.03x1.88x1.18''

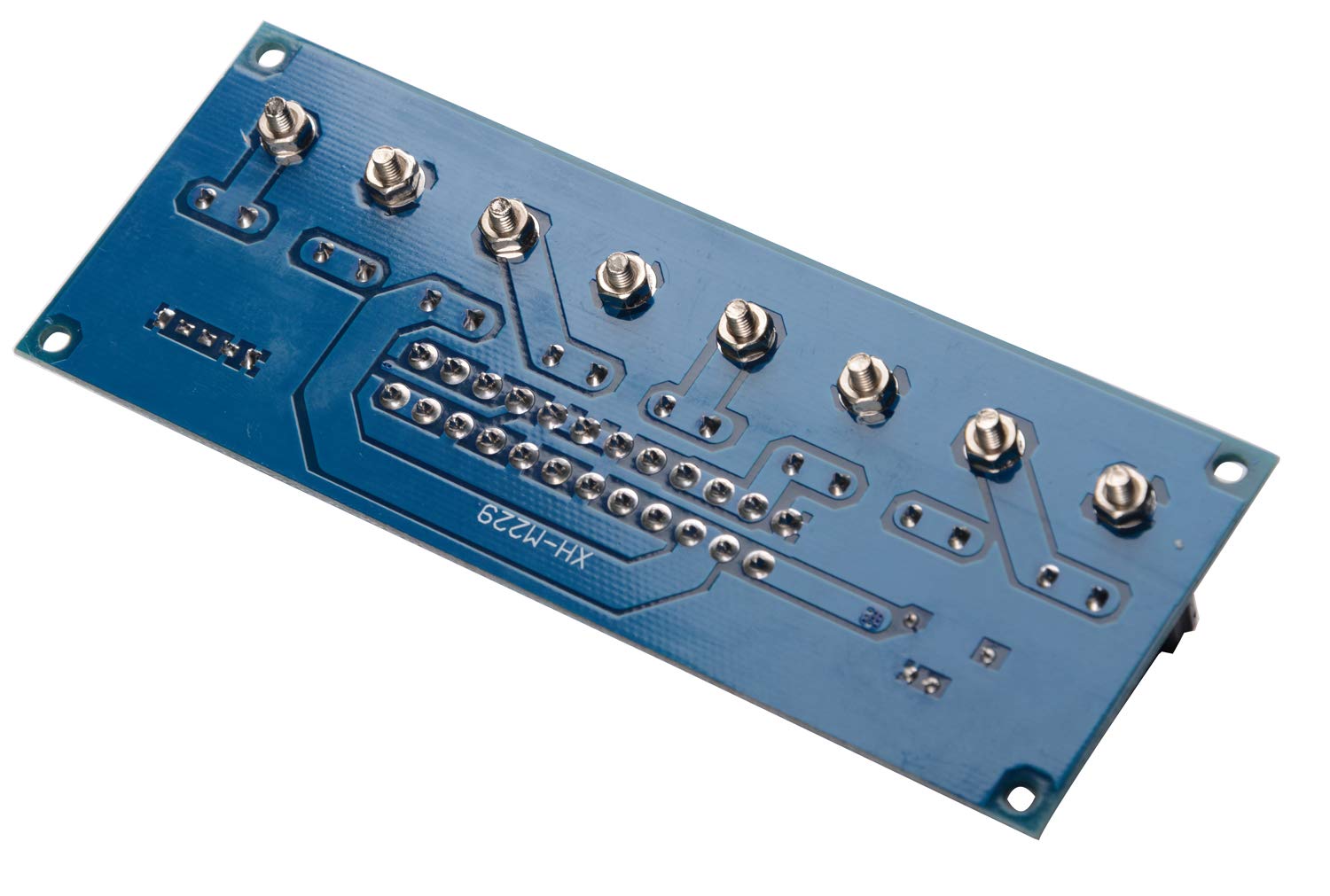

Model: XH - M229
Compatible with the port: ATX (compatible with partial BTX type)

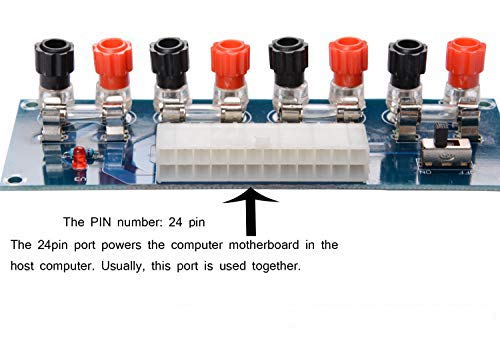

The PIN number: 24 pin
The output terminal can pass the maximum current.

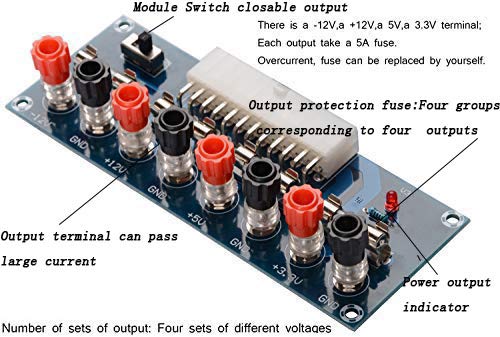

With output protection fuse,four groups correspond to four road output.

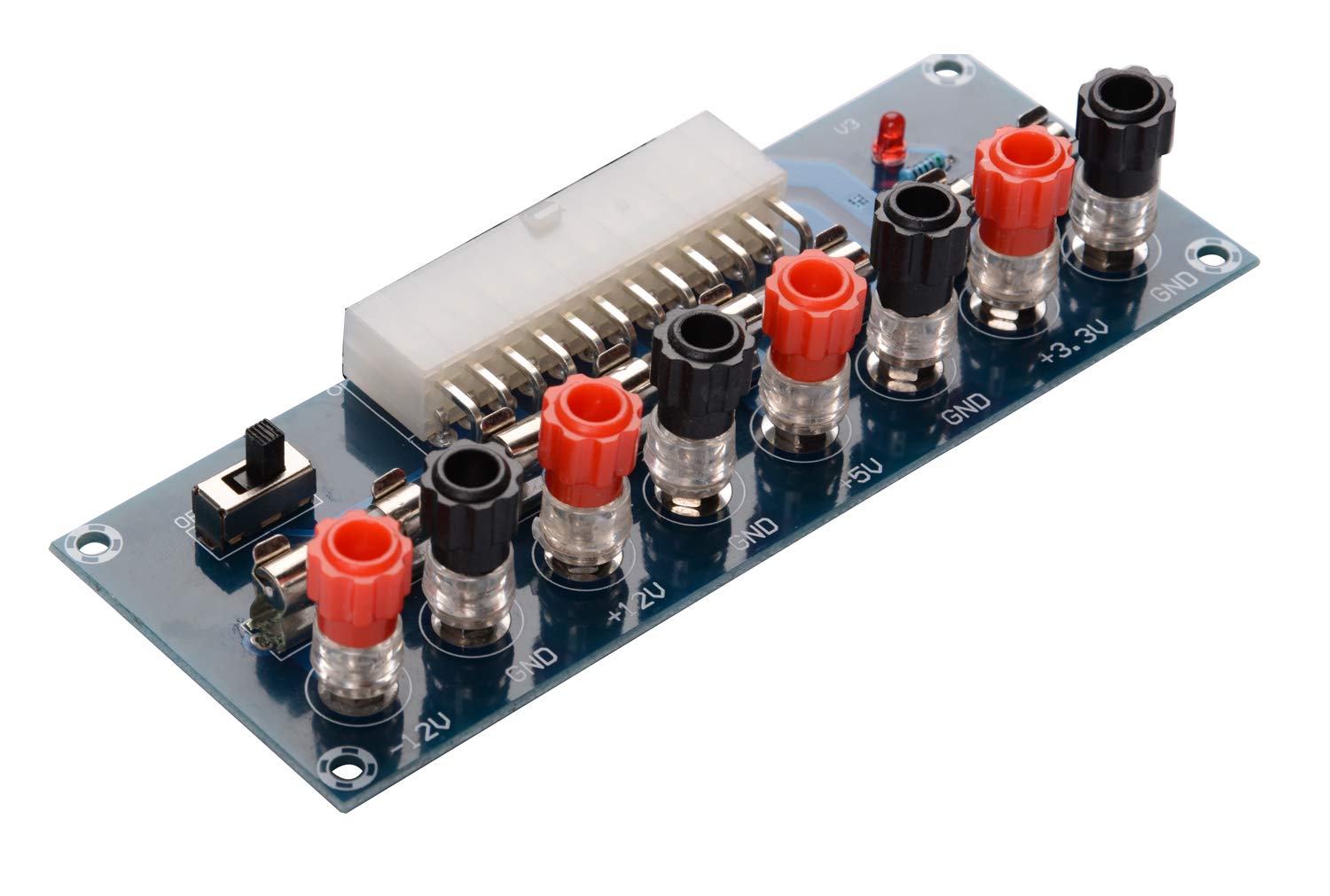

There is a -12V,a +12V,a 5V,a 3.3V terminal.
Each output take a 5A fuse. Overcurrent ,fuse can be replaced by yourself.
Each power rail has a corresponding ground connection; all of the power rails are brought out to a binding post.

Package including

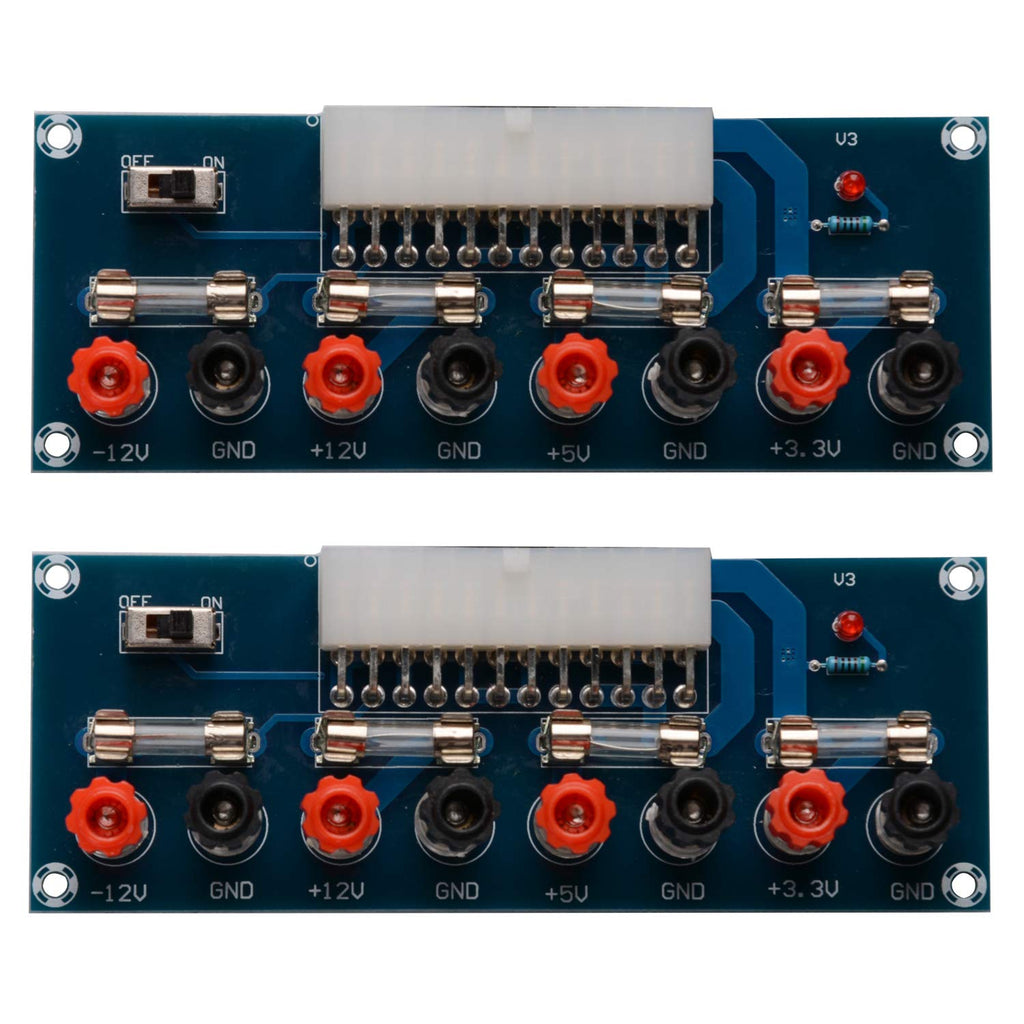

2 X 24Pins ATX PC Power Breakout Module Adapter

EAN: 6934596032289

Package Dimensions: 6.3 x 4.6 x 1.2 inches

Binding: Personal Computers

Part Number: fxjbjkl-839

model number: fxjbjkl-839
