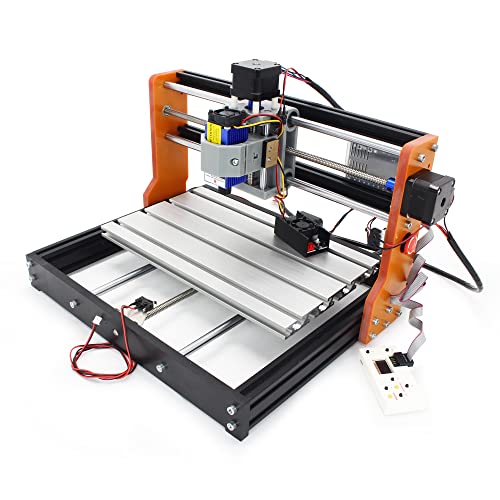

CNCTOPBAOS 3018-PRO 2 in 1 CNC Router Mini Engraver Machine with Module, XYZ Limit Switches and E-Stop, GRBL Control 3-Axis DIY Engraving Milling Cutting Wood PVC PCB Acrylic with Offline Controller

Brand: CNCTOPBAOS

Features:

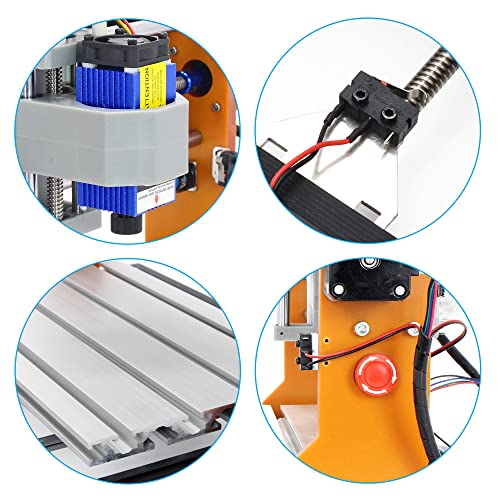

• Type: Upgraded CNC 3018-PRO with 5.5 W Module; We have added E-Stop button and XYZ limit switches; The two sides of the Y-axis have been replaced by orange electric wood resin boards,the sturdy outer frame is made of resin,the workbench is made of aluminum alloy,and the screw material is made of stainless steel,making the machine more lightweight,delicate and durable,and is highly favored by CNC beginners and enthusiasts

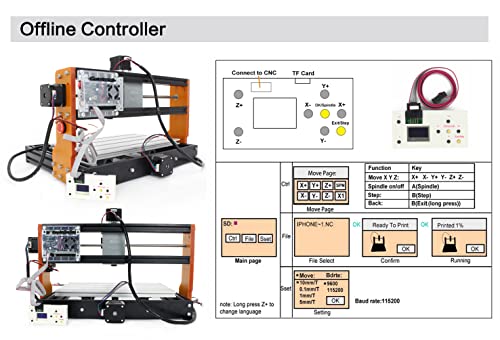

• With offline controller: You can operate this machine without connect to the computer; offline controller included a SD card reader to write into the root directory G-code files or NC file; Support manually adjust X, Y, Z axis location as engraving starting point,manually open or close spindle

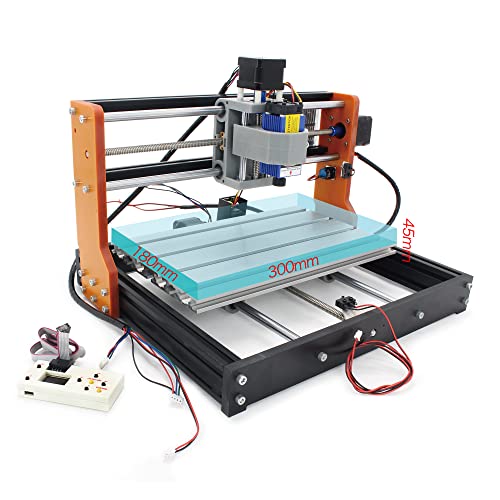

• Parameters: Working area: 300x180x45 mm / 11.8 x 7.1 x 1.8 inches;Frame size: 420x350x270 mm / 16.53x13.78x10.63 inches; Spindle: 775 spindle motor 120W 12-36V,24V is 10000 rpm; Stepper Motor: Nema17 stepper motor 1.33A,42x42x34 mm,0.3N.m,43 oz-in; Engraver Module: 5.5 W 12V PWM/TTL 3-pin engraver module
• GRBL Software: Our parcel include 4G USB flash drive,pls download the installation instructions,user manual and GRBL software from the USB flash drive; System requirements: Windows XP SP3,Win 7,Win 8,Win 10 32/64 can be and Linux
• Widely Applications: Can be engraved plastic, leather, acrylic, pvc, pcb, wood and the like material,also can work on soft metal like copper,brass,aluminum and other similar metal materials; If you use the engraver module,then you can also use it to carve the kraft paper, wood, leather and rubber etc

Package Dimensions: 17.4 x 9.8 x 6.9 inches

Part Number: Upgraded-3018-PRO

model number: LS-3018P-J-5.5W
