DB Electrical 430-22084 Tilt & Trim Motor Compatible with/Replacement for Mercury Marine All Models All 14336A20, 14336A8, 88183A12, T1088M, T1088M-OE, 67-1720, 4-6769, P525N, RN10822, 10822N

Brand: DB Electrical

Features:

• HIGH-QUALITY DESIGN: This outboard trim motor is designed with high-quality materials that ensure its durability and long-lasting performance. Its smooth operation enables effortless adjustments to your engine's trim angle while on water.
• PRECISE TRIMMING: The motor offers a trim function for angle adjustment, enhancing control and stability. Fine-tune the trim angle for optimal performance, fuel efficiency, and a comfortable ride on water.
• EASY INSTALLATION: Installing this trim motor is a breeze, and you won't need to hire a professional to do it for you. The motor comes with all the necessary hardware, making it easy to install yourself.
• COMPATIBILITY: The DB Electrical 430-22084 tilt trim motor is compatible with/replacement for Mercury Marine All Models
• REPLACEMENT: This replaces the following part numbers: Mercury Marine 14336A20, 14336A8, 88183A12, MPA Small Motor P525N, NAPA Small Motor RN10822, Remy Small Motor RT05017, Wilson 94-35-1015, Wilson Small Engine 74-35-10822, Lester 10822, PIC 107-122

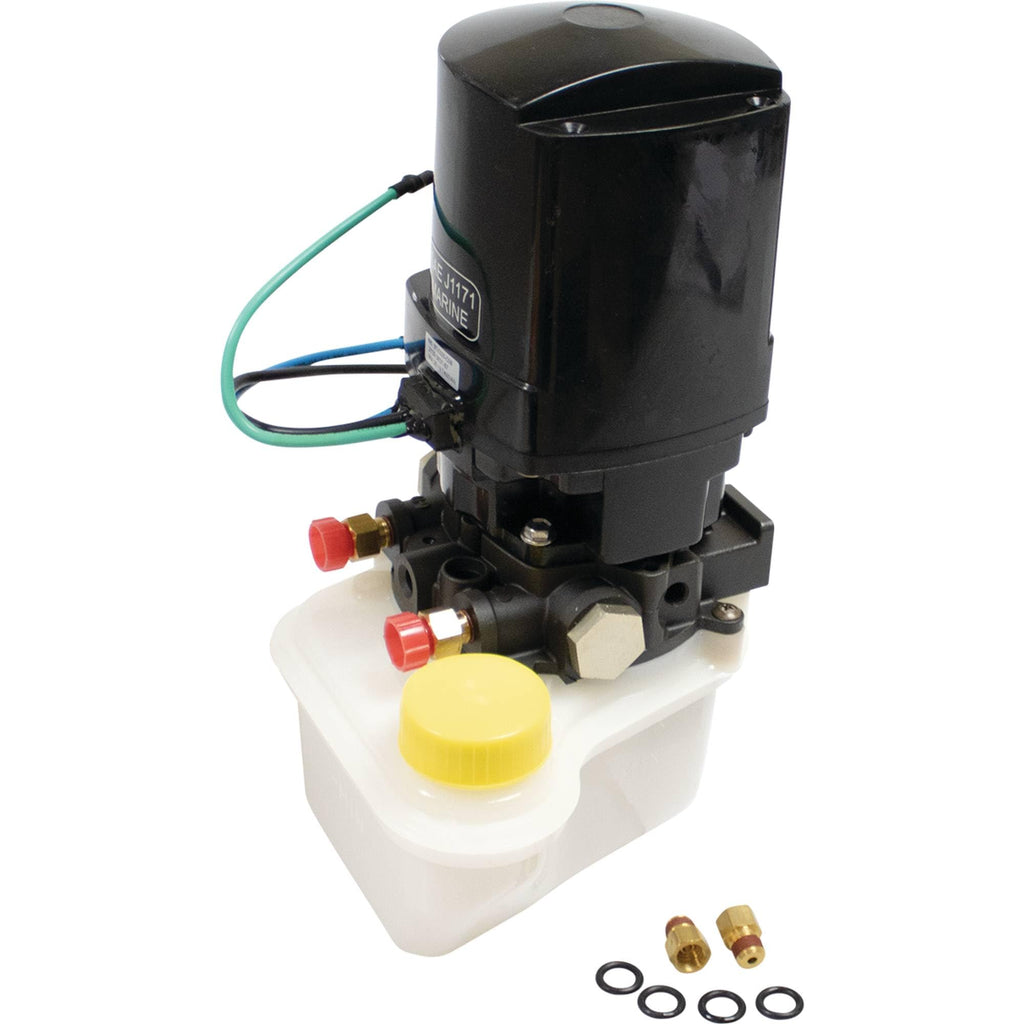

Details: **Verify part fits before purchasing** Specs: Unit Type: Tilt & Trim Motor Voltage: 12 Rotation: RE Dimension: Replacement Unit:, OD: 92mm, Shaft OD: 0.378in / 9.6mm, Length: 6.732in / 171mm, Shaft: 3.8mm Thick Tang, Note: Includes (3) 175mm Long Leads w/Ring Terminals, Note: Motor is Late Style - Will Replace Early Style, Note: Includes Pump & Reservoir, Replaces OEM Numbers: Mercury Marine 14336A20, 14336A8, 88183A12, MPA Small Motor P525N, NAPA Small Motor RN10822, Remy Small Motor RT05017, Wilson 94-35-1015, Wilson Small Engine 74-35-10822, Lester 10822, PIC 107-122, API Marine PT500N-2, ARCO Marine 6275, Barsanco 540-10822, BBB Small Motor 22-10822, Cargo 112152, Dixie TM-516, EMP Parts 4-6274, EMS 49-8025, MES Motorcycle & Marine T1088M, T1088M-OE, MINNPAR 67-1720, SIERRA MARINE 18-6769-1, WAI 10822N, 10822N-OE, 82-7864-2 Compatible With/Replacement For: Mercury Marine All Models

EAN: 0701485537776

Package Dimensions: 10.9 x 8.9 x 7.7 inches

Binding: Lawn & Patio

Part Number: 430-22084

model number: 430-22084
