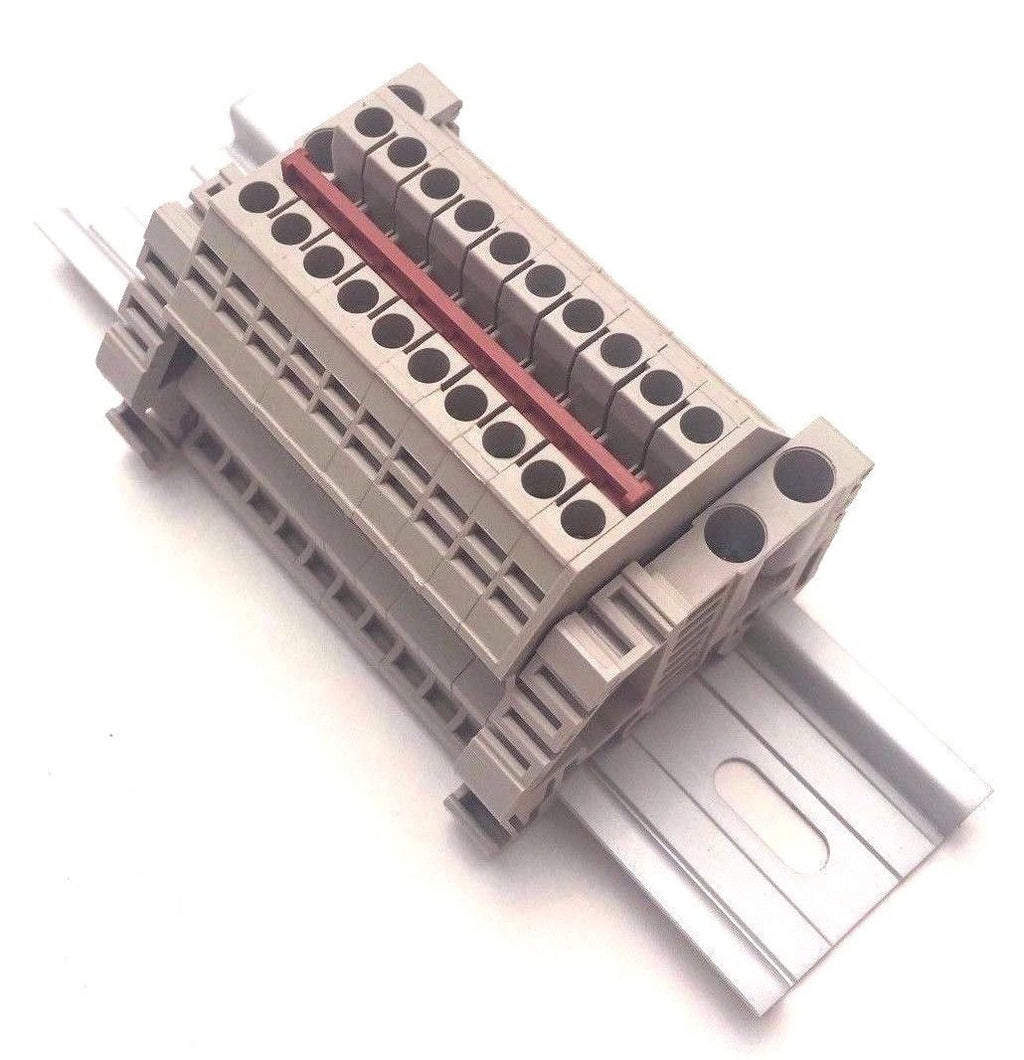

Dinkle Power Distribution DK2.5N 10 Gang Box Connector DIN Rail Terminal Blocks, 12-22 AWG, 20 Amp, 600 Volt Solar Combiner Beige

Brand: International Connector

Features:

• Assembly for Solar Combiner or Power Distribution
• UL 600V Rating
• UL 12-22 AWG Rating
• UL 20A Rating
• All terminals in common

Details: Technical data (UL) rated Voltage: 600V rate current: 20a conductor cross-section, solid (AWG): 22-12 conductor cross-section, flexible (AWG): 22-12 rated impulse withstand Voltage: 6KV torque (n-m): 0.4 screw: M2.5 wire strip length: 9-11mm insulating Material: PA txhxw (mm): 5.1 x 39.6 x 40.5 (individual blocks) DIN rail (mm): 35, 32 jumper/bridge: press-fit/insertion. This assembly includes 10 DK2.5N Dinkle terminal blocks, 2 SS2 end brackets, 1 dk4nc end cover, and a DSS2.5N-10p press-fit jumper, all mounted on a 5 inch piece of aluminum RoHS rail. The 12 gauge inputs are all in common.

EAN: 0737123110940

Package Dimensions: 5.2 x 3.1 x 3.1 inches

Part Number: Combiner DK2.5N 10 Gang

model number: Combiner DK2.5N 10 Gang
