Diode LED -DI-12V-SE-40W - Switchex Dimmer/Driver Combo - 40 Watts - 120VAC Input Voltage - 12VDC Output Voltage

Brand: Diode LED

Color: White

Features:

• LED Driver and In-Wall Dimmer Switch in one unit, Simplifies LED installation by eliminating compatibility issues between driver and dimmer; Fits in a standard recessed electrical box

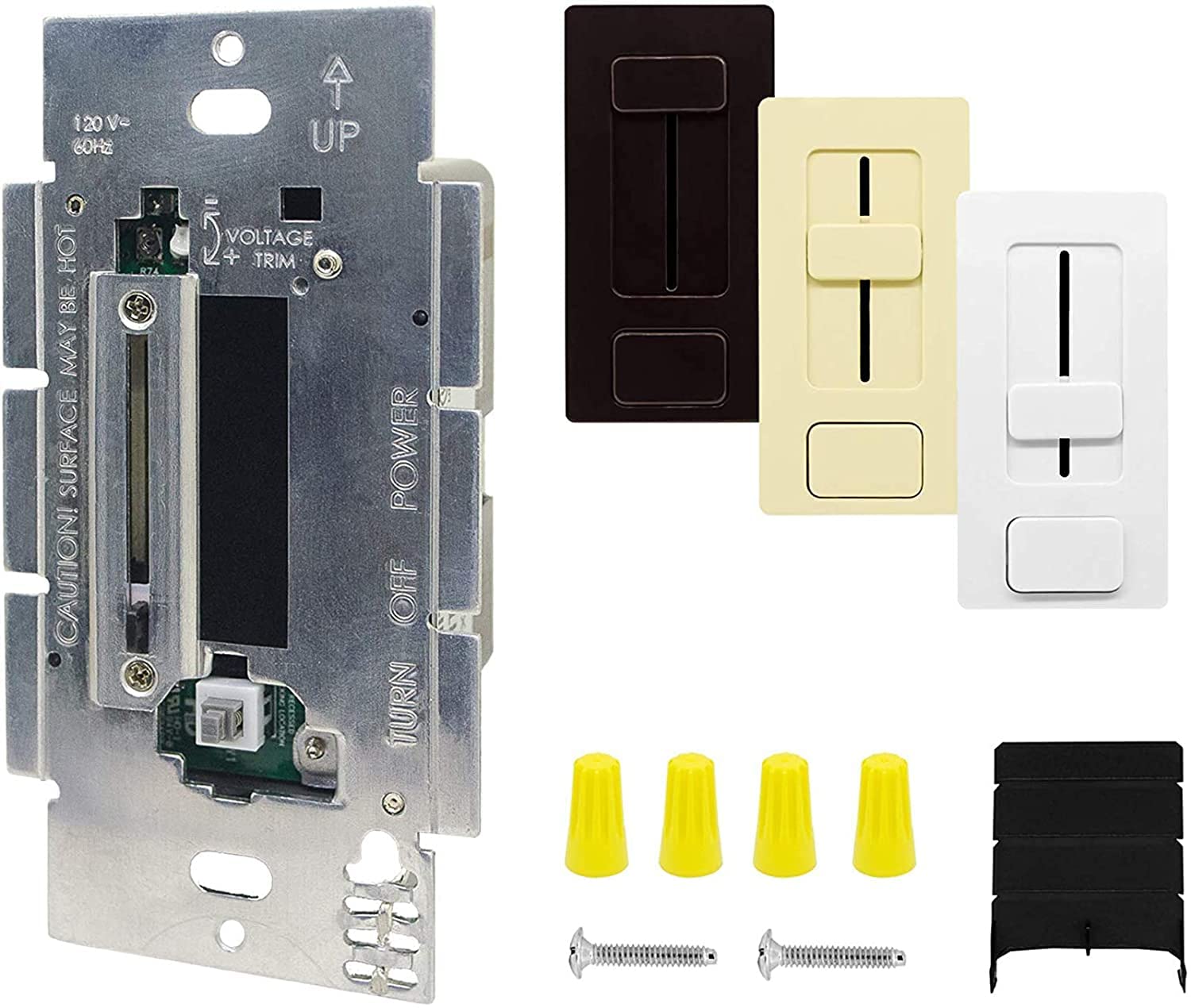

• Included in box: 3 interchangeable face plate colors in glossy white, glossy light almond, and glossy brown (trim plate not included)
• Saves labor and time by eliminating the need for additional wiring and installation
• Saves space by eliminating the need to setup a driver in a separate location
• 100% - 5% SMOOTHING DIMMING - Output voltage is adjustable via sliding lever

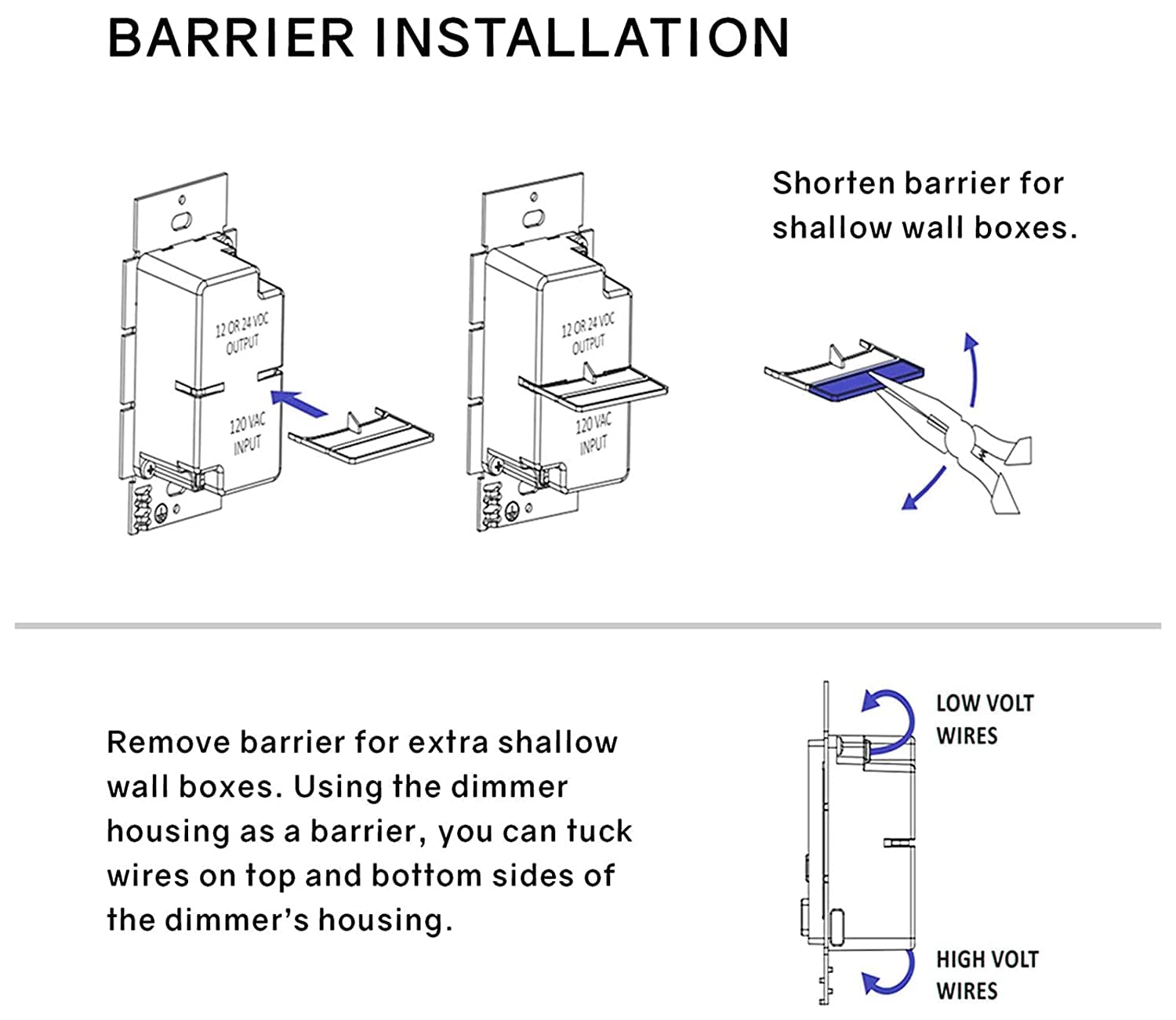

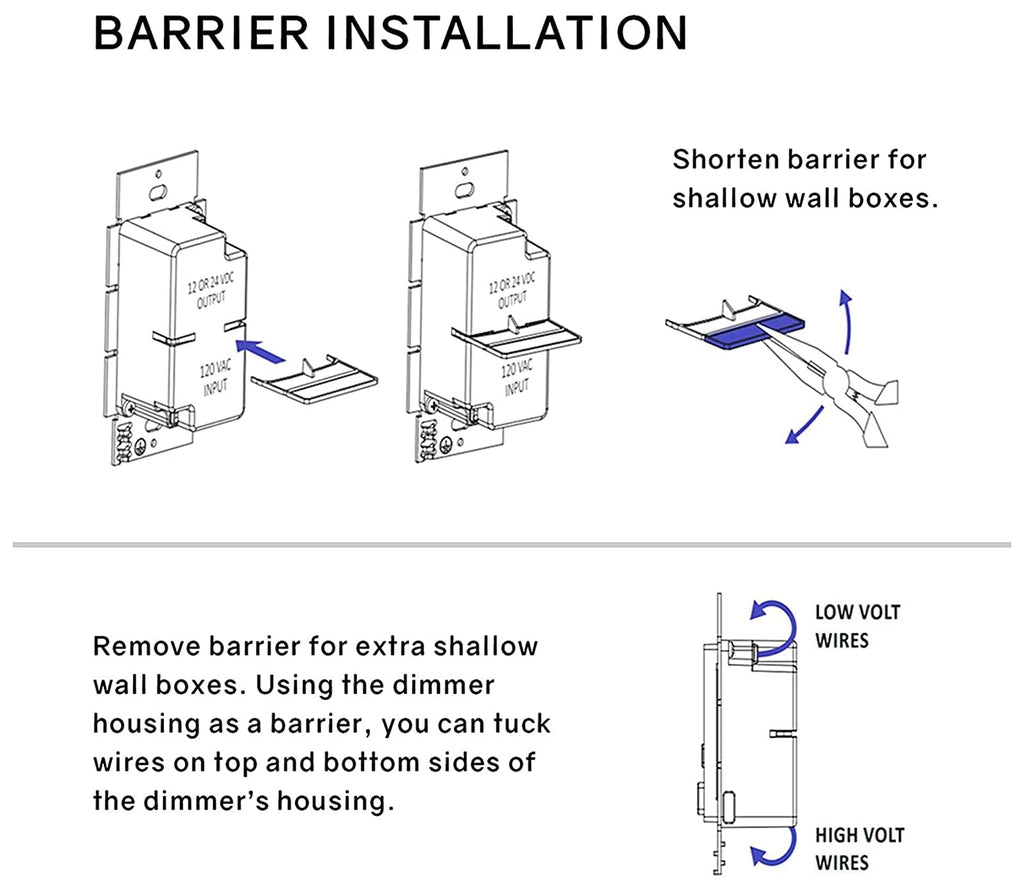

• No minimum load. Includes voltage barrier partition to install high and low voltage circuit in same switch box.
• Power failure memory - If power is interrupted, SWITCHEX will return to setting prior to interruption; No derating required when ganging units
• Input Voltage - 120VAC (108 ~ 132VAC), 50/60Hz (47 ~ 63Hz), Stand-by Power: ≤0.5W; Input Current: <1.0A @ 120VAC max load

Details: SWITCHEX combines an LED in-wall dimmer switch and low-voltage LED driver power supply into a single integrated unit. The SWITCHEX Dimmer and Driver accept 120 VAC and converts it to low-voltage DC, all within a standard electrical box. That means this is all you need between your line voltage and low voltage lighting. Best of all, it all fits in a single gang box.
Three interchangeable face plate colors are included in each SWITCHEX box allowing customers to choose the look that matches their installation decor. Included face plates are; glossy white, glossy light almond and glossy brown (trim plate not included).
Switchex is the winner of the Product Innovation Award in the Components & Light Source Category for Architectural SSL Magazine. The decision was made from a panel of judges, including lighting designers, lighting consultants and architects. See for yourself what professionals agree is true innovation in LED lighting.

EAN: 0848333004933

Package Dimensions: 4.4 x 2.8 x 2.8 inches

Part Number: DI-12V-SE-40W

model number: DI-12V-SE-40W
