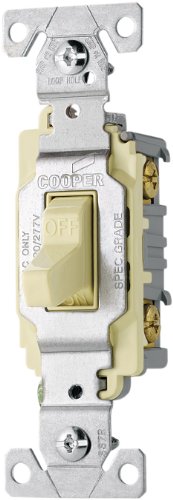

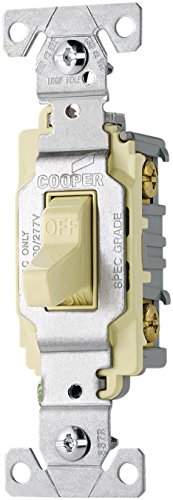

EATON CS120A Arrow Hart Eagle Cs Toggle Switch, 120/277 Vac, 20 A, 1 P, Almond

Brand: Eaton

Color: Almond

Features:

• Rated For 20-Amps And 120/277-Volts, For Switching One Light From One Location
• Heavy-Duty Cam Action Mechanism Insures Quiet Switch Action
• Ground Screw Terminal Standard
• From The Brand Name: Eaton

Details: Arrow Hart eagle toggle switch, series: cs, 120/277 vac, 20 a, 1 poles, cam actuator, wall mounting, -40 to 65 deg c, 3.28 in overall length, 1.13 in overall width, 0.87 in overall depth, Almond, zinc plated, CSA C22.2, Nom certified, UL listed, side wiring, 1 hp motor, for fluorescent lighting fixtures typical in commercial applications. The Eaton CS120A commercial grade single pole compact toggle switch is engineered for reliable performance and ideal for use with fluorescent lighting fixtures. This switch is made for commercial applications and features a heavy-duty cam action mechanism for quiet switch action. Side wire terminals accept up to no. 10 solid or stranded wire. This toggle switch is rated for 20-Amps, 120/277-volts and has color-coded strap markings to identify amperage. Blue markings indicate 15-amps and red markings indicate 20-Amps. This toggle switch comes in an Almond finish.The Eaton CS120A commercial grade single pole compact toggle switch comes with a 10-year limited warranty that protects against defects in material and workmanship. Eaton offers innovative wiring solutions that increase productivity, energy efficiency and safety on the jobsite and at home. Their expansive offering includes code Compliant devices for single and multi-family homes or residential development projects. Eaton has been a trusted name in electrical products for over 175-years and is headquartered in peachtree, ga and has international manufacturing and distribution facilities.

EAN: 0032664554995

Package Dimensions: 2.9 x 1.1 x 0.4 inches

Binding: Tools & Home Improvement

Part Number: CS120A

model number: CS120A
