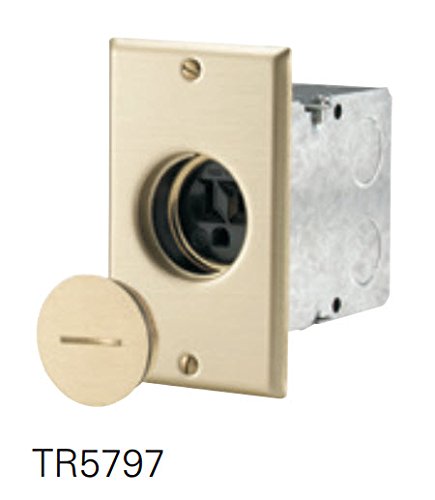

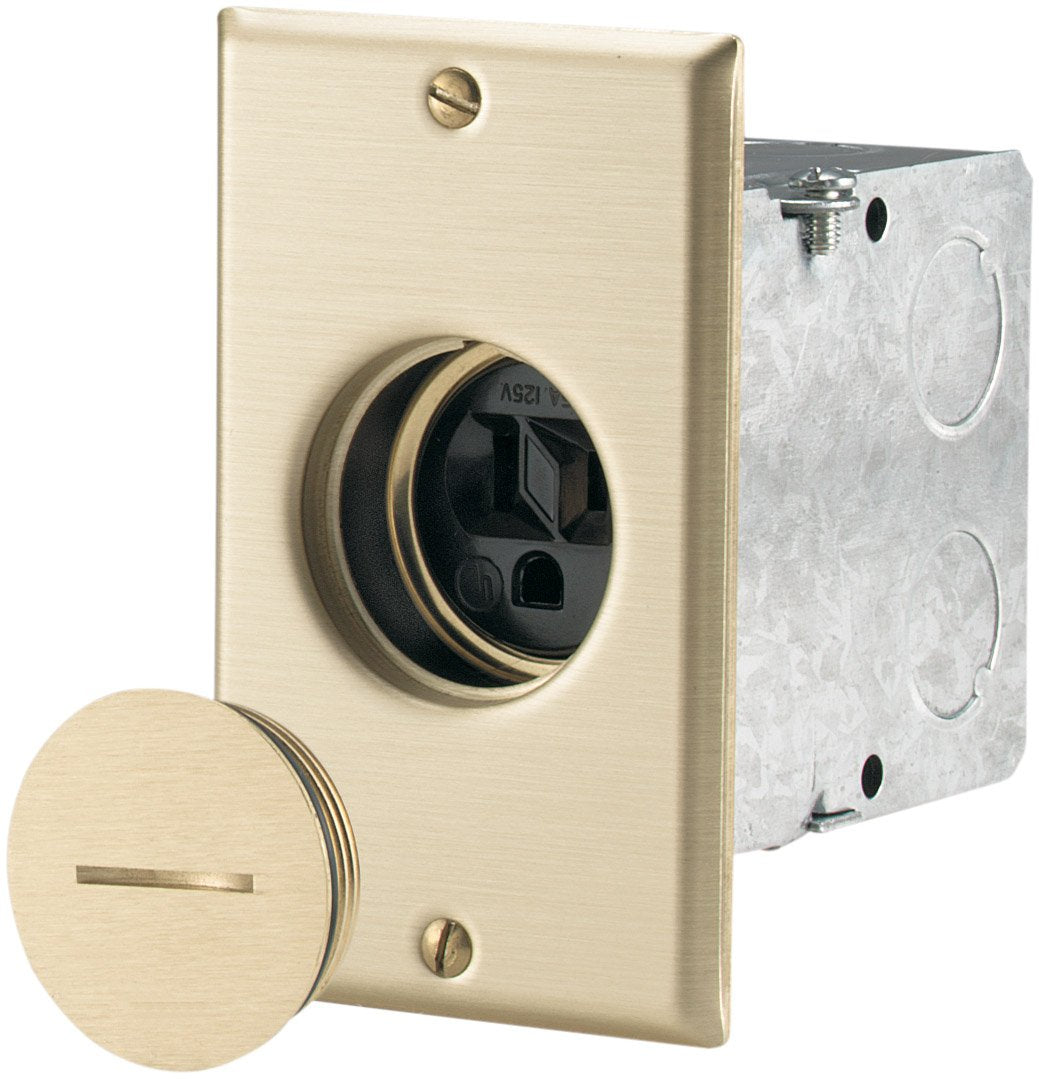

EATON TR5797 Tamper Resistant Floor Box Receptacle, 125 V, 15 A, 2 Pole, 3 Wire, Black and Brass

Brand: Eaton

Color: Black And Brass

Features:

• Eliminates need for bonding jumper in grounded metal enclosure
• Side in terminals accept up to number 10-solid wire or stranded wire and push in terminals accept number 14-solid wire
• Black and Brass finish is impact-resistant thermoplastic face and back body is virtually unbreakable
• Compliant with 2011 NEC Articles 406.12 – 406.14 for Tamper Resistant Receptacles
• Comes with a limited warranty

Details: Cooper floor box receptacle, tamper resistant, 2 poles, 3 wires, 14 - 10 AWG wire, 15 a, 125 V, NEMA 5-15r, 4-1/2 in overall length, 2-3/4 in overall width, 3-1/2 in overall depth, nylon/thermoplastic, Black, -20 to 70 deg c, cul listed, side wire, brass cover. The Eaton TR5797 tamper resistant commercial single floor box assembly is an automatic Grounding system, which eliminates need for bonding jumper in grounded metal enclosure. This receptacle also provides redundant measure of ground continuity where jumped is used. The floor box assembly is Compliant with 2011 NEC articles 406.12 – 406.14 for tamper resistant receptacles. The side wire terminals accept up to number 10-solid or stranded wire. The push in terminals accepts a number 14-solid wire. The durable impact-resistant thermoplastic face and back body is virtually unbreakable. The TR5797 tamper resistant commercial single floor box assembly measures 4.5-Inch long by 2.75-Inch wide by 3.5-Inch deep. Whether a home's style is traditional, modern, casual, cozy or Rustic, it will demand more from wiring devices than in years past. Eaton is dedicated to providing the up-to-date wiring device solutions; solutions that increase energy efficiency, increase productivity, promote safety at work and in the home and produce reliable performance. Eaton is a trusted name in electrical products for over 175-years.

EAN: 0032664726040

Package Dimensions: 6.7 x 4.3 x 3.8 inches

Binding: Tools & Home Improvement

Part Number: TR5797

model number: TR5797
