ECO-WORTHY Adjustable Multi-Pieces Solar Panel Mounting Brackets Kit System for 1-4pcs Solar Panels Solar Ground Mount

Brand: ECO-WORTHY

Color: sliver

Features:

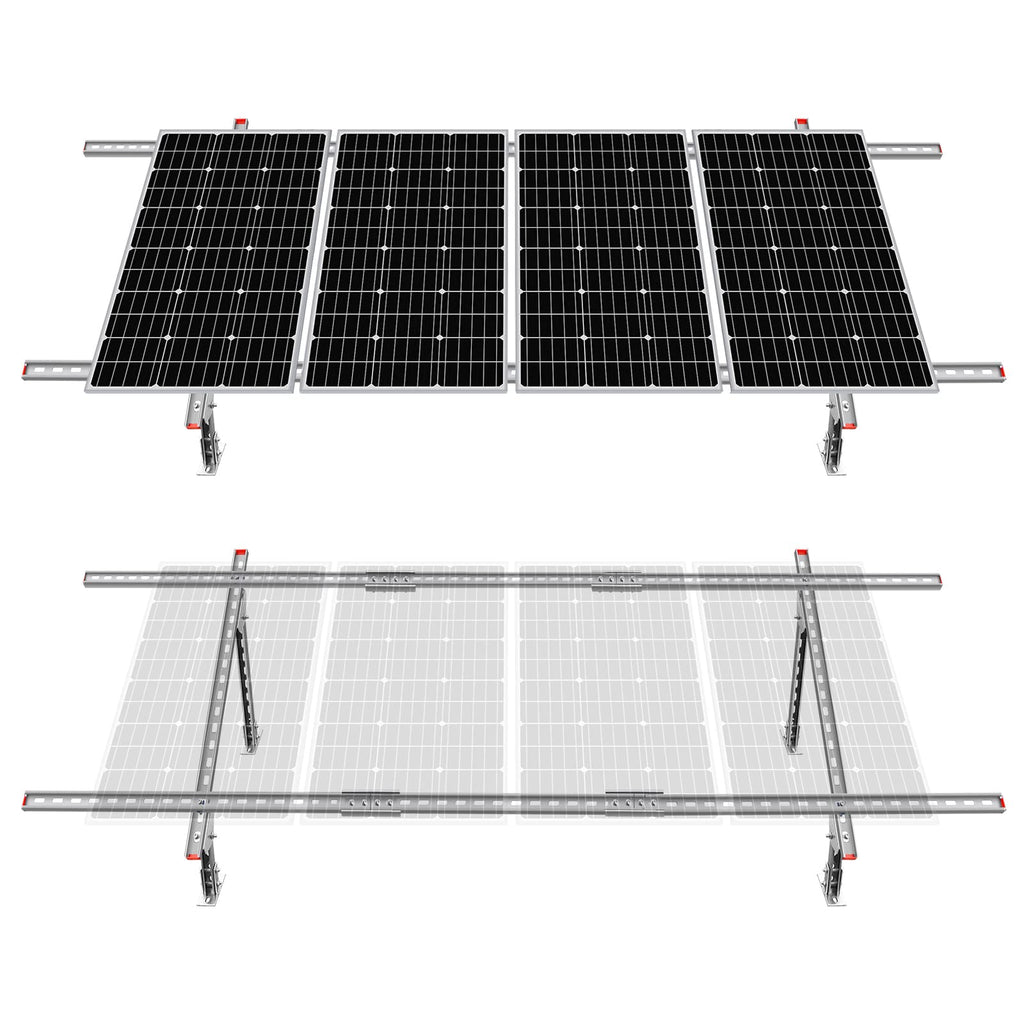

• [Strong Adaptability] -ECO-WORTHY Multi-Panels Mount has the capability to fit 1-4pcs different size ECO-WORTHY panels(100W 195W) or other brands standard panels
• [Durability and Convenient] -Galvanized Steel construction, sturdy and durable. You can put battery, controller, inverter at backside of the mounting system. It can save lots of room and use solar power system easier
• [Versatile Application] -It’s ideal for larger installations, such as ground, open space, cabins and backyard sheds.Anywhere roof mounting is not a possibility, this solar panel mount can be applied

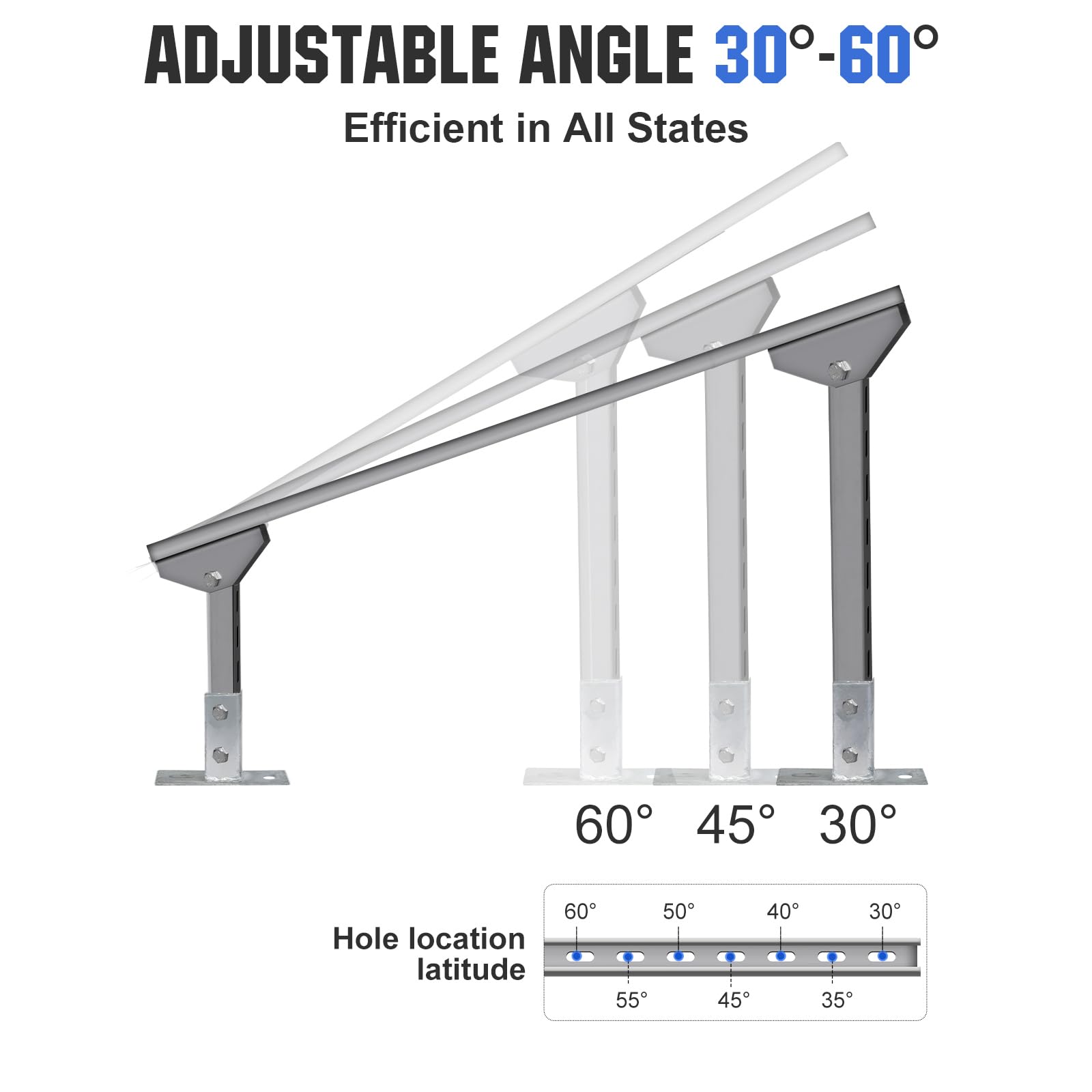

• [More Efficiency] -The angle of the Multi-Panels Mount can be adjusted from 30 ° to 60 °, so you can adjust the optimal placement of solar panels according to your environment. We suggest that you use cement injection to fix the bracket on the ground, which can effectively prevent wind and rain, protect the solar panel, and generate higher efficiency

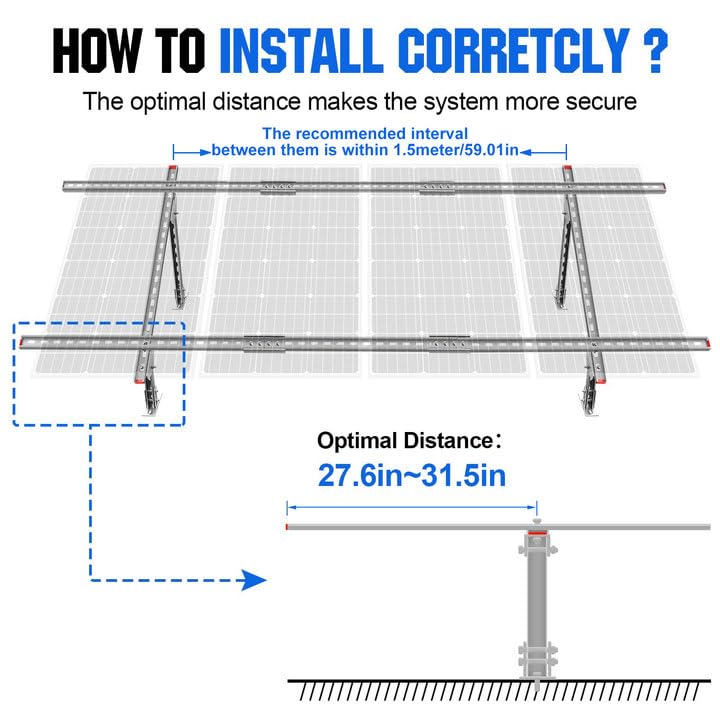

• [Installation Attention] -During the installation process of the four panel bracket, it is recommended to control the spacing between the vertical columns to about 1.5 meters to prevent the depression of the middle panel caused by excessive spacing, which can more effectively reflect the stability of the bracket

Details: Warm Tips

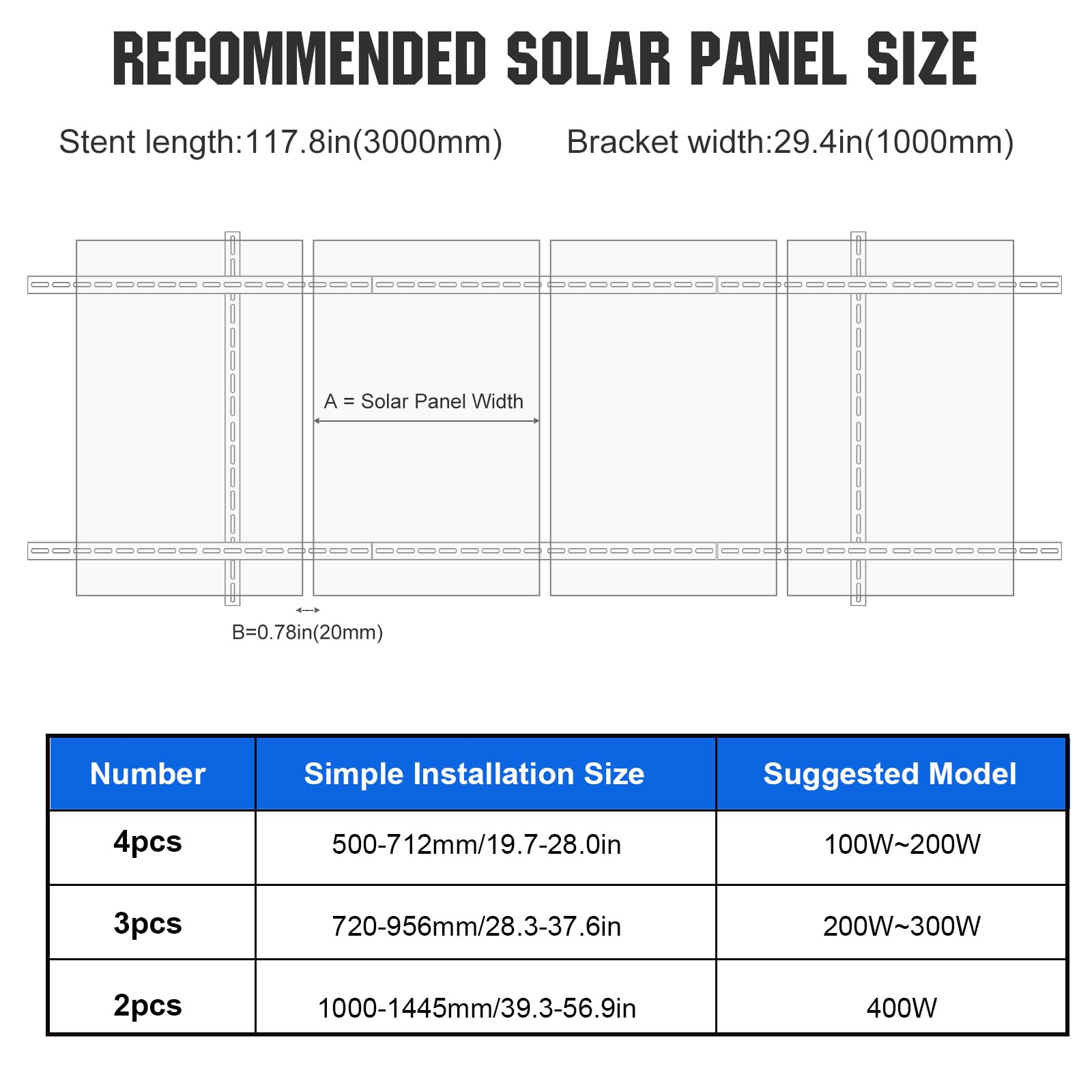

Please check your solar panel size before purchasing
About mounting total solar panel width is 107 inches
Installation angle: 30°degree Solar Panel length size max. is 55 inches.
25°degree Solar Panel length size max. length is 65 inches.
18°degree Solar Panel length size max. is 89 inches
Widely Use
You can put battery, controller, inverter at backside of the mounting system. It can save lots of room and use solar power system easier.

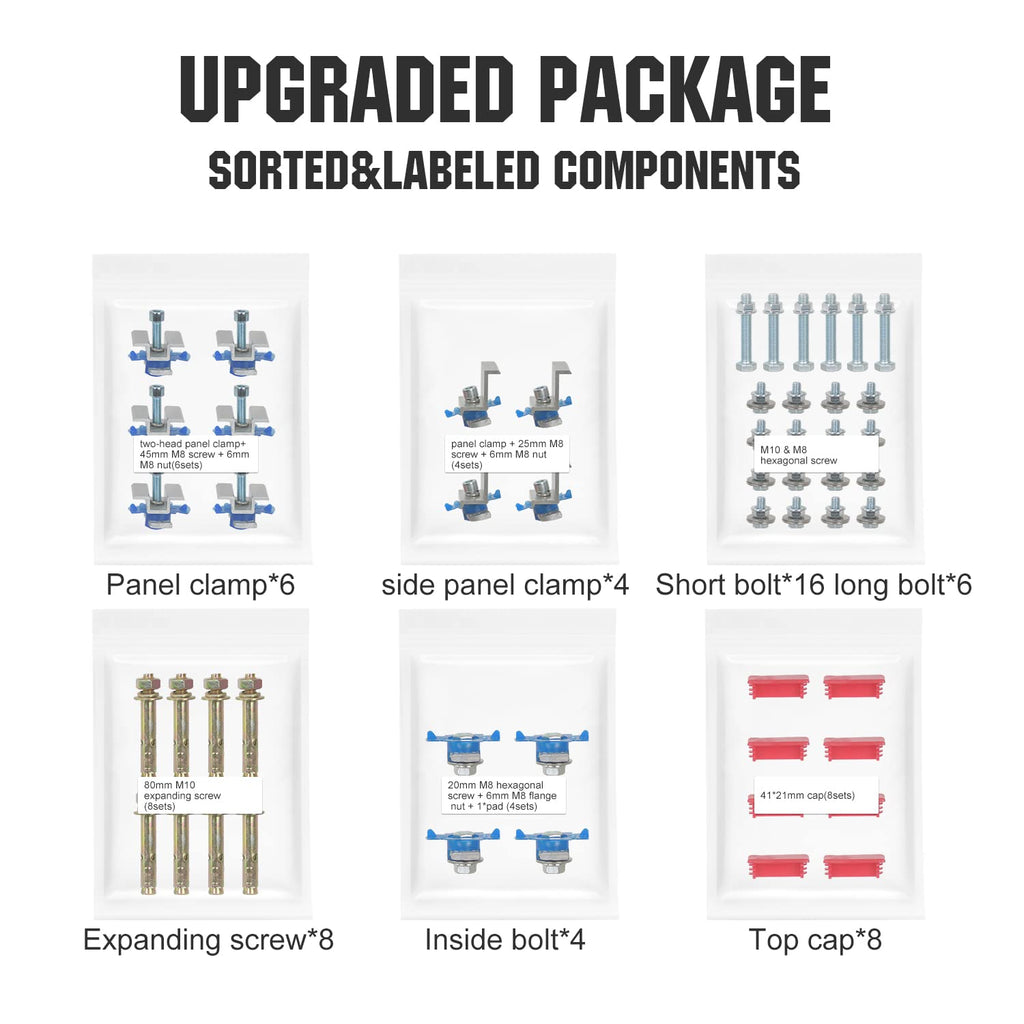

Add concrete/pole can make a solar power store house to in store things and use free solar power energy Package Includes
7.84 inches C T-type Steel*2pcs
19.68 inches C T-type Steel*2pcs
39.37 inches C T-type Steel*2pcs
12.79 inches C T-type Steel*2pcs
57.08 inches C T-type Steel*4pcs
Connecting Bolt*4pcs
Edge Pressure*4pcs
Base*4pcs
Universal Joint*4pcs
Middle Pressure*6pcs
Inscribed Bolt*8pcs
Short Bolts*8pcs
End Cap*8pcs
Expansion Screw*8pcs
Long Bolts*12pcs

EAN: 0810127132535

Package Dimensions: 41.3 x 10.7 x 4.3 inches

Binding: Sports

Part Number: 1

model number: L03SPBZJTZ-1
