Fujifilm Prescale Super Low Pressure LLW (2LW) Pressure Range 70-350 PSI; 19.7 ft. x 10.6 in. Film Roll - Best Practices Guide Included

Brand: Fujifilm

Features:

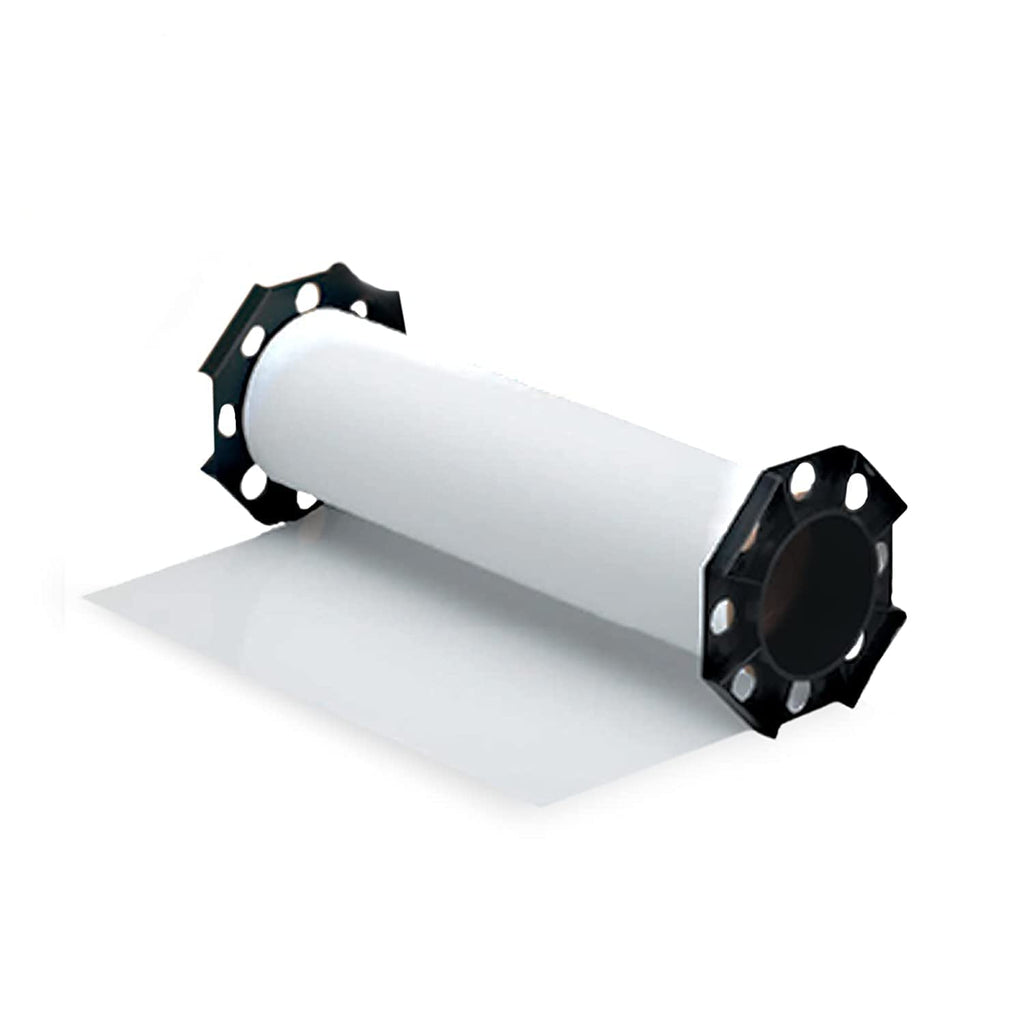

• Characterize surface pressure between any two mating, touching, or impacting surfaces. The dimensions of this film are 19.7 ft x 10.6 in (6m x 270mm).

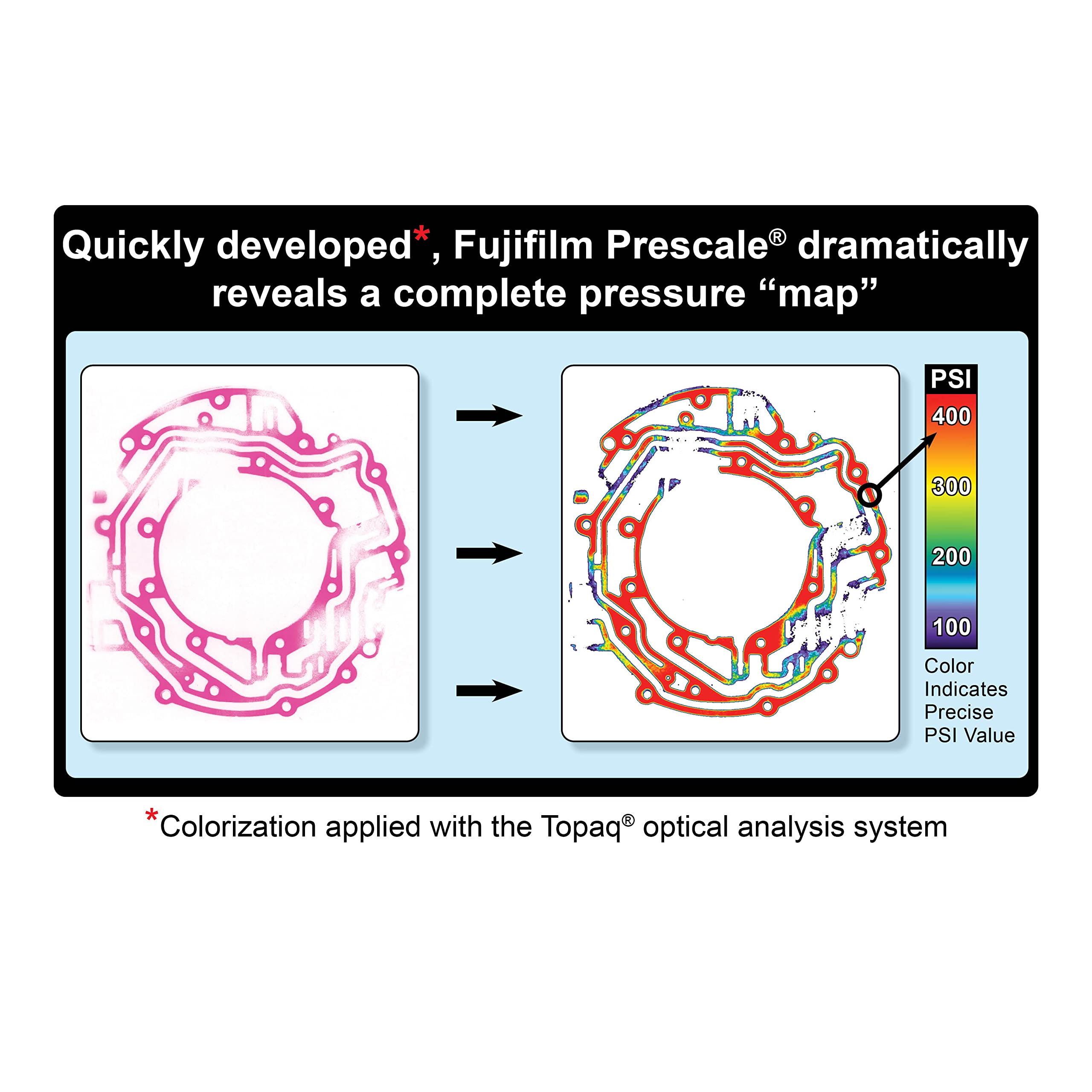

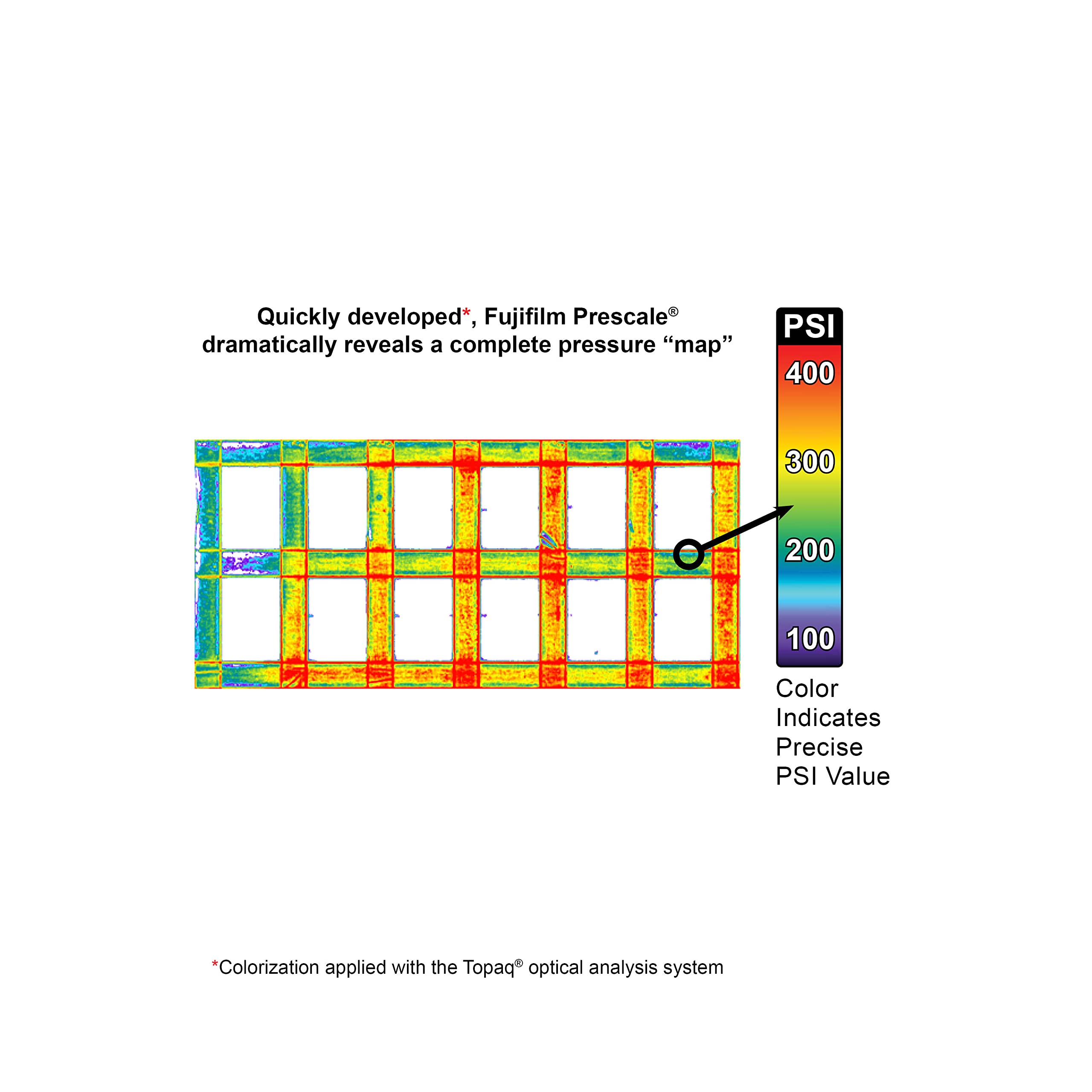

• Prescale provides a surface pressure “map” that illuminates actual pressure magnitude (in precise PSI or kg/cm^2) and distribution between your two surfaces. The pressure range of this film is 70 - 350 PSI (5 - 25 kg/cm²).
• Prescale reveals the contact surface pressure by virtue of a color change. This color change is instantaneous (less than a millisecond) and permanent
• Prescale comes on a roll, is super thin, and can easily be cut from the supplied roll with scissor or laser to your precise application requirement
• The color intensity of the film is directly related to the amount of pressure applied to it
• Included at no cost is the revised and updated Best Practices Guide to Handling and Applying Fujifilm Prescale . This booklet offers expert advice on storage, film preparation, use, and interpretation of results.

Details: Prescale is a unique pressure indicating sensor film that illuminates what is occurring between any two mating, contacting, or impacting surfaces.

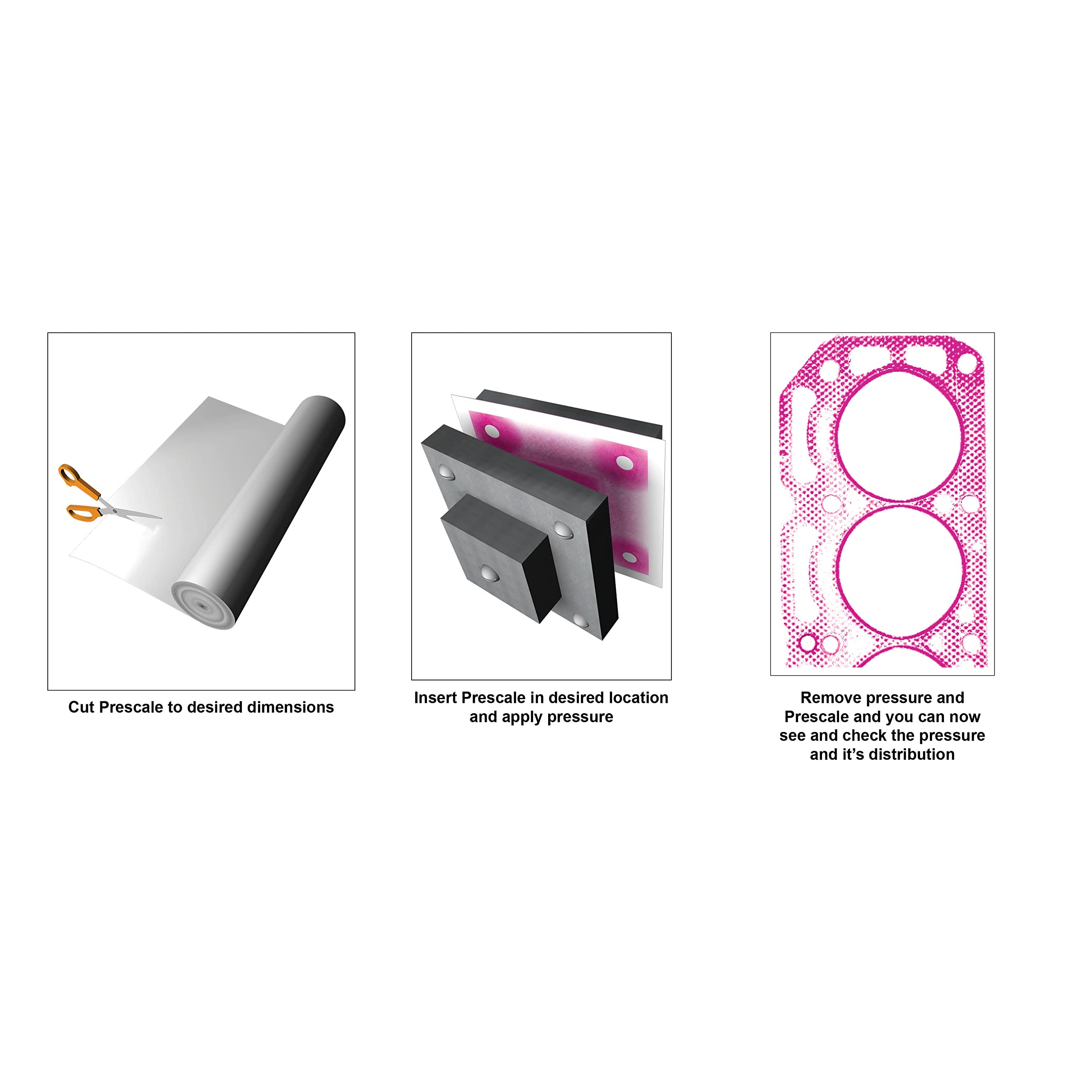

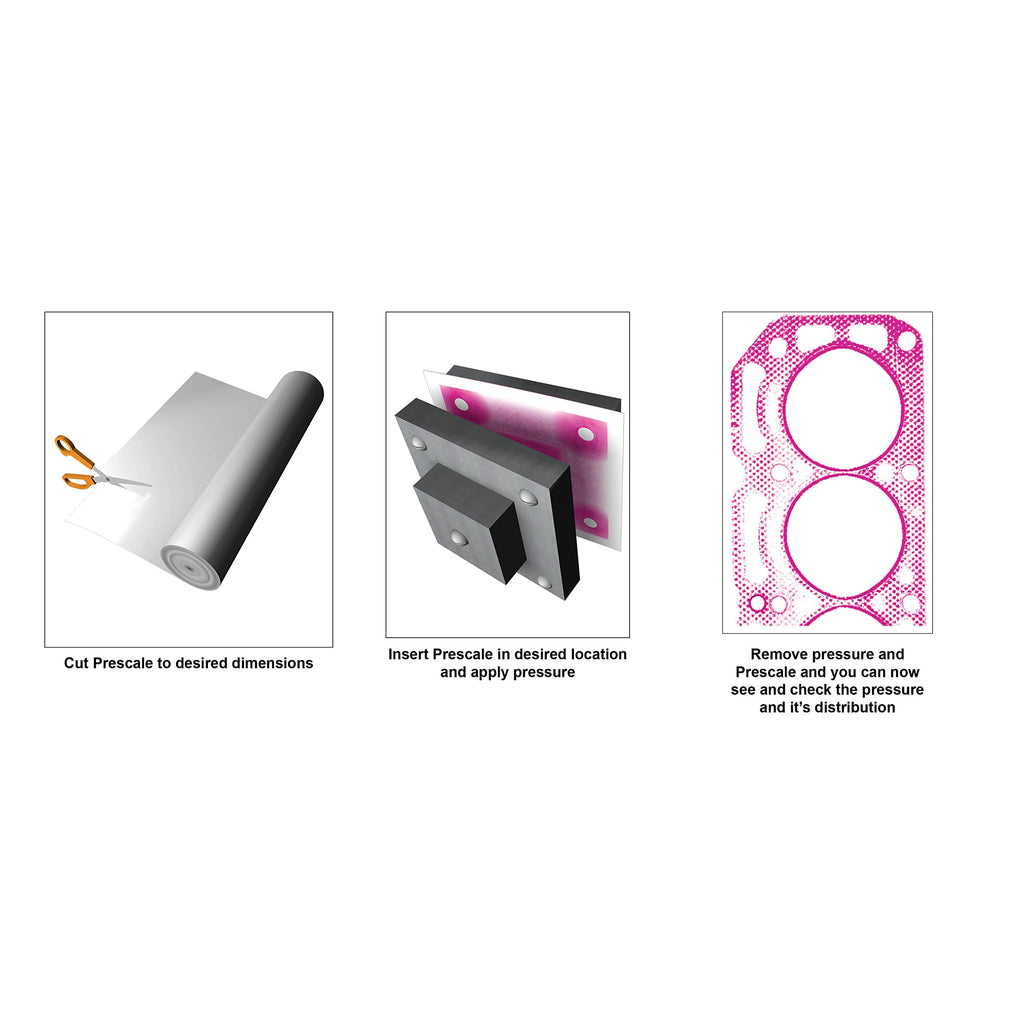

Simply place the paper-thin pressure indicating film between your two surfaces, whether in your product, process, or R&D environment and the film instantaneously and permanently changes color to capture a “snapshot” in time of the maximum compressive load that has occurred between the two surfaces and the magnitude of that pressure (in PSI or Kg/cm^2).

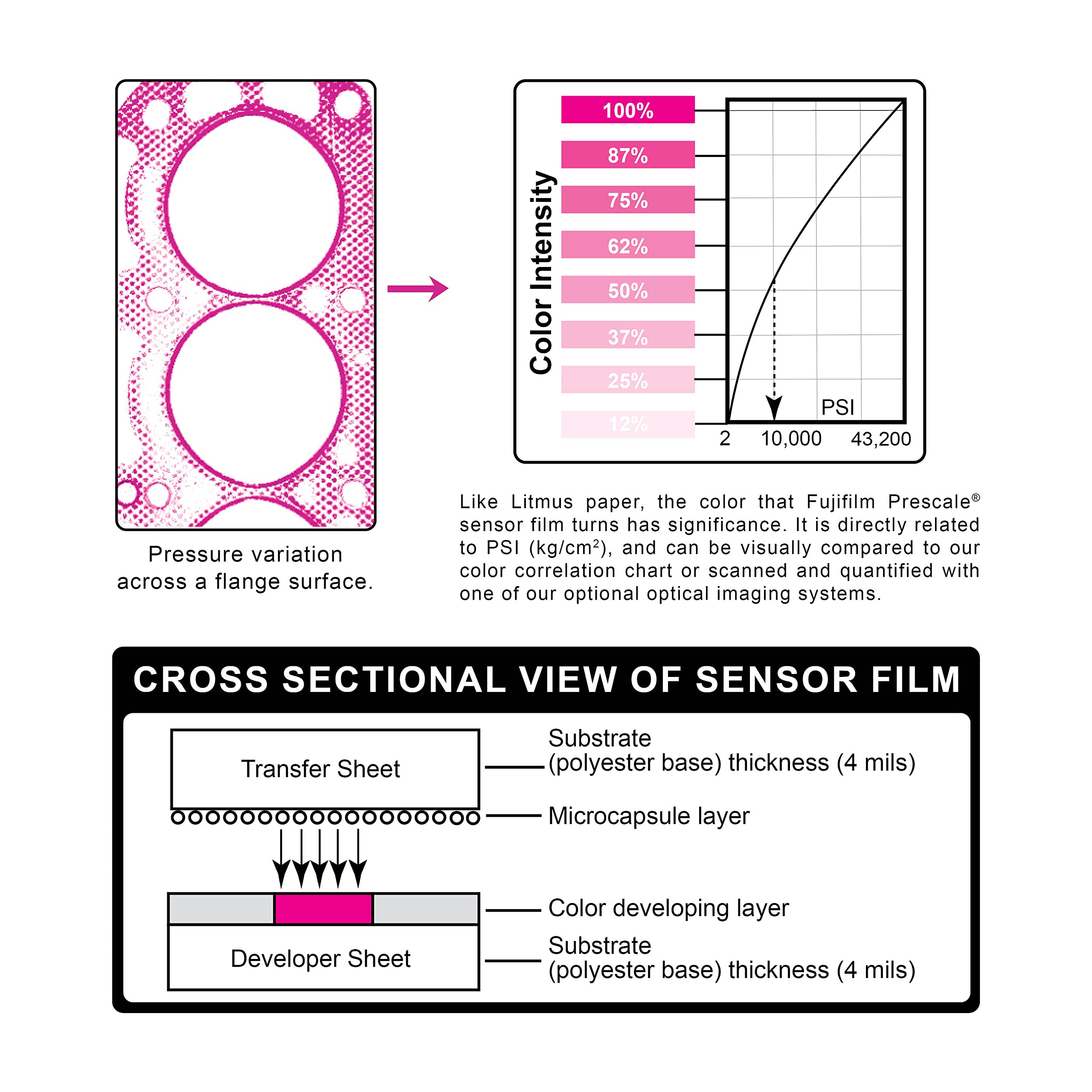

The pressure film immediately develops to a shade of magenta whose intensity is tightly correlated to a precise level of pressure (in PSI or Kg/cm^2).

Conceptually similar to Litmus paper, the color intensity (ie pressure magnitude) that the film captured when under compressive load can readily be translated into a precise pressure level (in PSI or kg/cm^2) by visually comparing the pressure film to a color correlation chart that is included with the purchase).

Additionally finer interpretation may be resolved by using an optical scanner product that digitally analyzes the pressure indicating film.

Common applications include heat seal planarity, roller set parallelism (nip impressions), object impact, lamination press, heat sink pressure, bolted interface pressure and clamping forces.

Prescale permanently retains the color image it captures after being subjected to pressure which is valuable for archiving purposes, especially for ISO and FDA audits. There are 8 distinct film types offered. Ranging from about 2 PSI (0.14 kg/cm^2) up to 43,200 PSI (3,000 kg/cm^2).

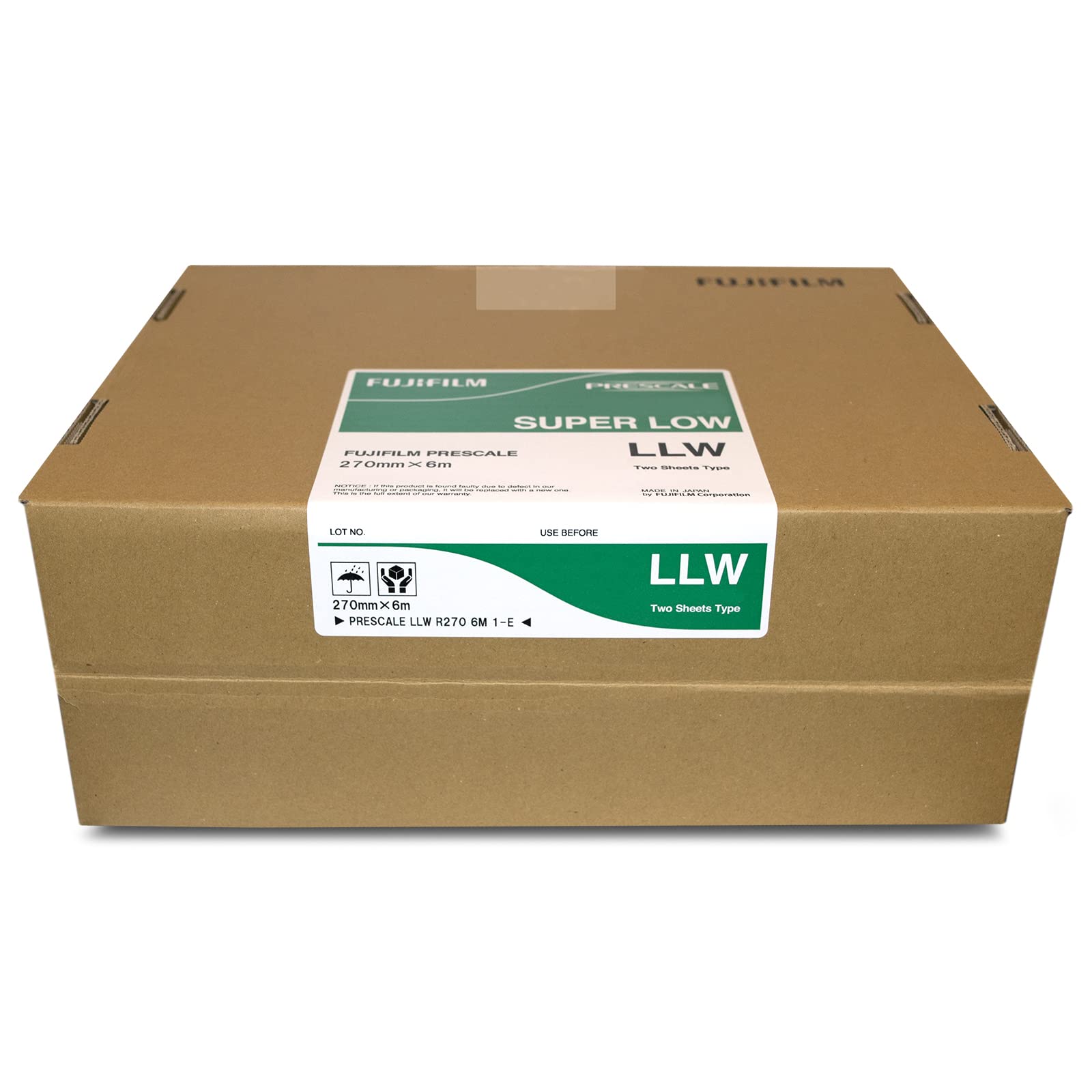

Package Dimensions: 12.8 x 10.1 x 5.0 inches

Part Number: LLW R270 6M 1-E

model number: LYSB004UBB9E6-ELECTRNCS
