GELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 Connector
GELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 Connector
GELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 Connector
GELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 Connector
GELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 Connector
GELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 Connector
GELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 Connector
Roll over image to zoom in Click on image to zoom
GELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 ConnectorGELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 ConnectorGELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 ConnectorGELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 ConnectorGELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 ConnectorGELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 ConnectorGELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 Connector

GELRHONR IEEE 1394 SM-6P Plug, 55100-0670 Male Connector JZSP-CMP9-1-E 6-Pin Encoder Plug, Suitable for 54280-0609 Yaskawa Panasonic Servo CN3 Connector

Save $2.00
GELRHONR
Price:
$3.99 $5.99
Shop now at Amazon.com
Content provided by Amazon.com under terms of Amazon Associates Program




Report an issue with this product or seller

Description

Brand: GELRHONR

Color: Grey

Features:

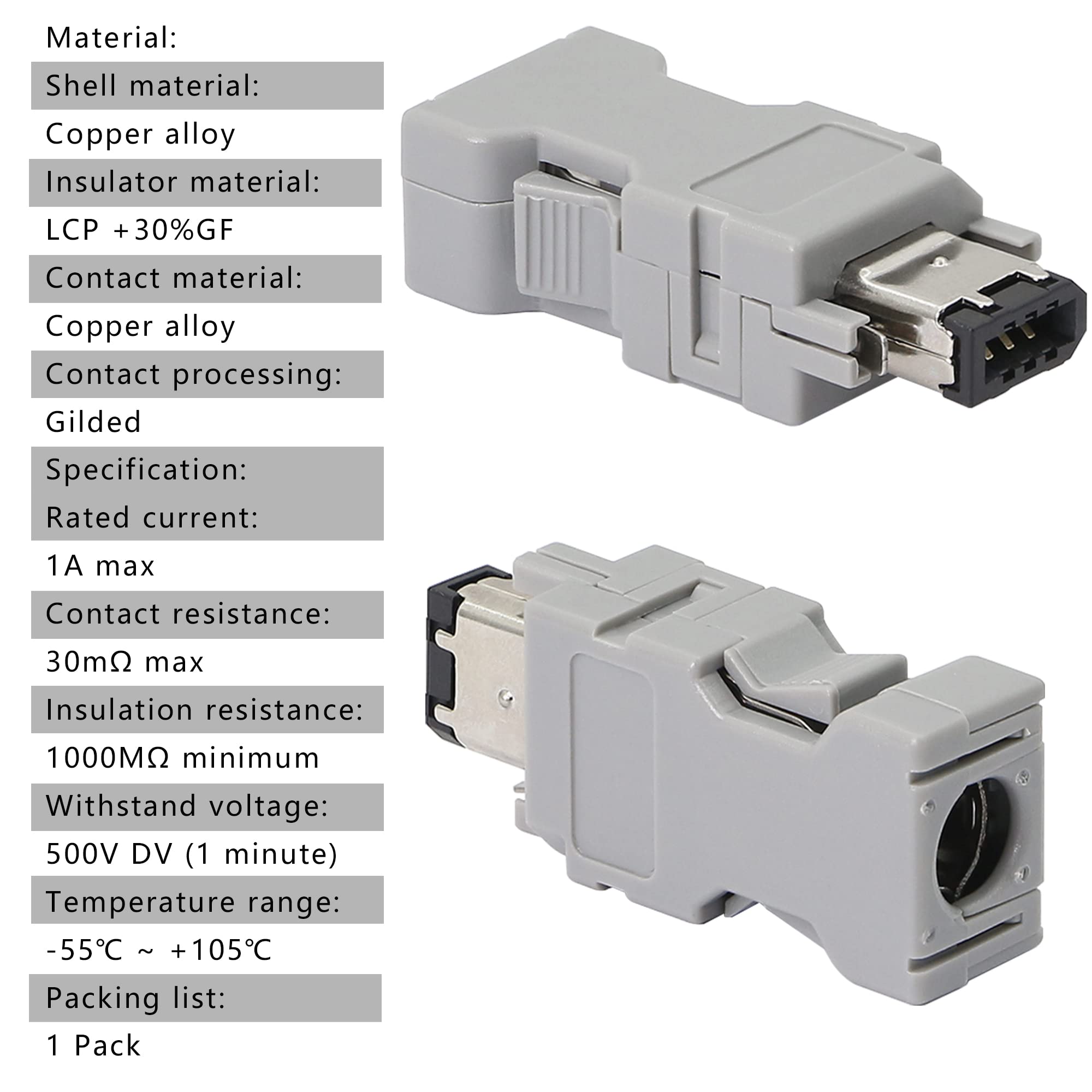

  • Product name:IEEE 1394 SM-6P solder joint plug
  • Material: Shell material:Copper alloy Insulator material:LCP +30%GF Contact material:Copper alloy Contact processing:Gilded
  • Specification: Rated current:1A max Contact resistance:30mΩ max Insulation resistance:1000MΩ minimum Withstand voltage:500V DV (1 minute) Temperature range:-55℃ ~ +105℃
  • Packing list:1 Pack

Details: Product name: IEEE 1394 SM-6P solder joint plug
Material:
Shell material:
Copper alloy
Insulator material:
LCP +30%GF
Contact material:
Copper alloy
Contact processing:
Gilded
Specification:
Rated current:
1A max
Contact resistance:
30mΩ max
Insulation resistance:
1000MΩ minimum
Withstand voltage:
500V DV (1 minute)
Temperature range:
-55℃ ~ +105℃
Packing list: 1 Pack

Package Dimensions: 5.4 x 3.5 x 0.7 inches

Part Number: LH-291
