Gustard R26 Discrete R2R DAC, DSD512 PCM768kHz K2 Clock R2R-1Bit Balanced Preamp Digital-Analog Audio Converter Streamer with Remote Control (Black)

Brand: AOSHIDA

Color: Black

Features:

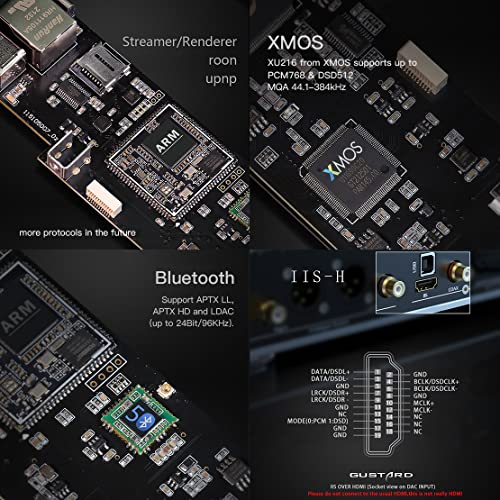

• 【Discrete R2R DAC】R-2R ladder DAC converts the digital signal to analog signal by switching resistor's array. 【XMOS XU216】DAC-R26 using 2nd XMOS XU216, supports up to PCM768 & DSD512.
• 【1Bit DAC Native】1 Bit DAC, supports DSD 512 ( via USB ) and DSD 1024( via IIS ) .The DSD stream is decoded by the independent 1 Bit DAC without DSD to PCM converting.

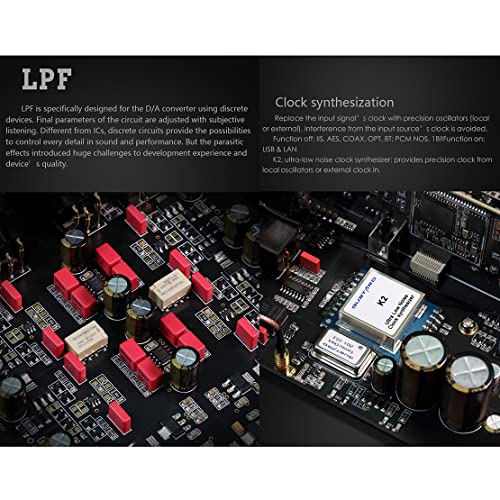

• 【Clock Synthesis】DAC-R26 adopts ultra-low noise clock synthesizer K2 clock . Provide an accurate clock from the local oscillator or external clock input. The interference from the input source clock is avoided.
• 【LPF Of DAC-R26】The discrete circuits of the DAC-R26 control every detail of sound and performance. LPF is specifically designed for the D/A converter using discrete devices.
• 【Full MQA decoding】The DAC-R26's USB/OPT/COAX/AES/IIS inputs all support full MQA decoding, PCM44.1kHz-384kHz. Presenting you with a complete and rich music scene.

Details: Gustard DAC- R26 Discrete R2R MQA DAC R2R+1Bit DSD512 PCM768kHz Native Balanced Decoder

Functions
★Dual architecture: Independent R2R & 1Bit, support native PCM native DSD and DSD to PCM.
★Native 1 Bit DAC, support DSD 512 (via USB) and DSD 1024 {via IIS). The DSD stream decoded by the independent 1 bit converter without DSD to PCM converting. *Volume is fixed under this mode.
★Replace the input signal' s clock with precision oscillators (local or external) Interference from the input source' s clock is avoided. Function off: IIS, AES, COAX, OPT; PCM NOS, I Bit.
★Discrete LPF with specific parameters provide best performance.

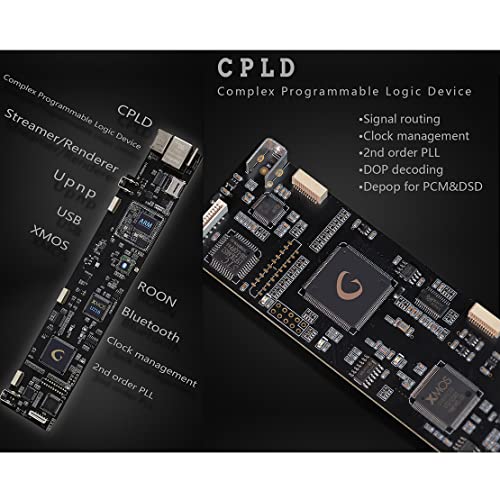

★CPLD - Complex Programmable Logic Device Exclusive technology over CPLD: Signal routing, Clock management, 2nd order PLL, DOP decoding, Depopfor PCM&DSD.

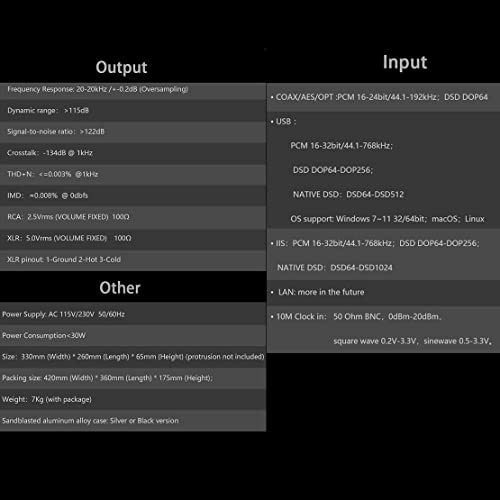

Specification:

Power Supply: AC 115V/230V 50/60Hz
Power Consumption: <30W
Size: 330mm (Width) * 260mm (Length) * 65mm (Height) (Protrusion not included)
Weight: 7KG (with package)
Sandblasted aluminum alloy case: Silver / Black

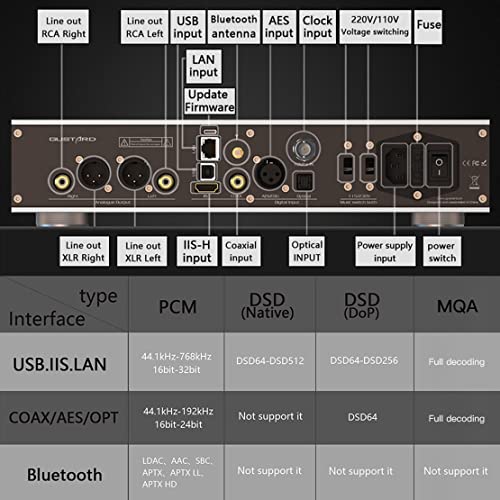

Input:
COAX/AES/OPT :PCM 16- 24bit/44.1-192kHz; DSD DOP64
USB: PCM 16-32bit/44. 1-768kHz; DSD DOP64-DOP256; NATIVE DSD: DSD64-DSD512 OS support: Windows 7~11 32/64bit; IOS; Linux
IIS: PCM 16-32bit/44.1-768kHz; DSD DOP64-DOP256;
NATIVE DSD: DSD64-DSD1024
10M Clock in: 50 Ohm BNC, 0dBm-20dBm,
Square Wave 0.2V-3.3V, sinewave 0.5-3.3V.

Output:
Frequency Response: 20 -20kHz /+ -0.2dB (Oversampling)
Dynamic range: > 115dB
Signal-to- noise ratio: >122dB
Crosstalk: -134dB @ 1kHz
THD+N: <=0.003% @1kHz
IMD: ≈0.008% @ Odbfs
RCA: 2.5Vrms (VOLUME FIXED) 1002
XLR: 5.0Vrms (VOLUME FIXED) 1002
XLR Pinout: 1-Ground 2-Hot 3-Cold
MQA: USB/OPT/COAX/AES/IIS: PCM44.1-384kHz

Package list:
1 x R26
1 x Gustard Card
1 x AC cable
1 x antenna
1 x USB cable
1x Remote control

Package Dimensions: 17.0 x 13.3 x 7.0 inches

Part Number: R26

model number: R26 Nero
