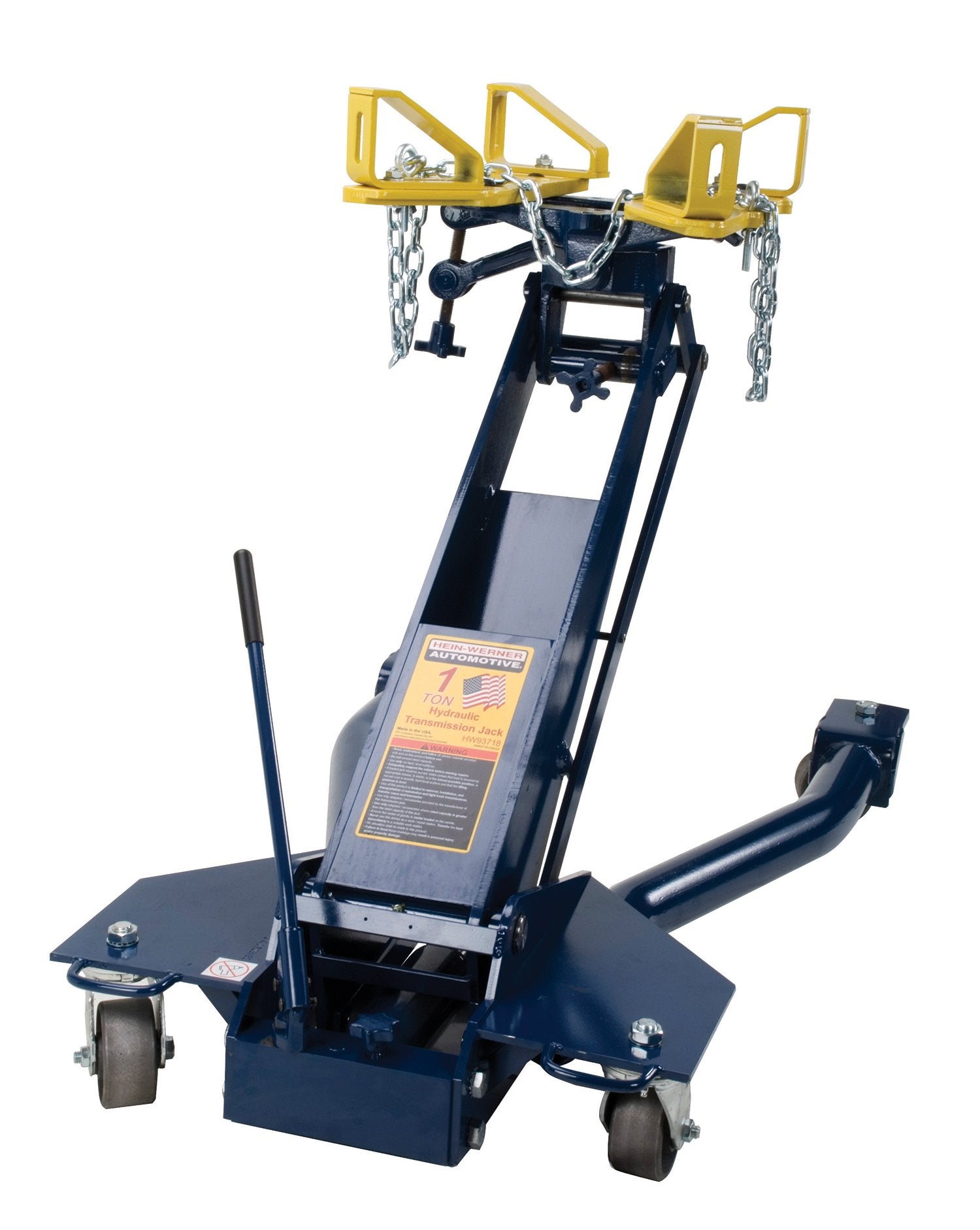

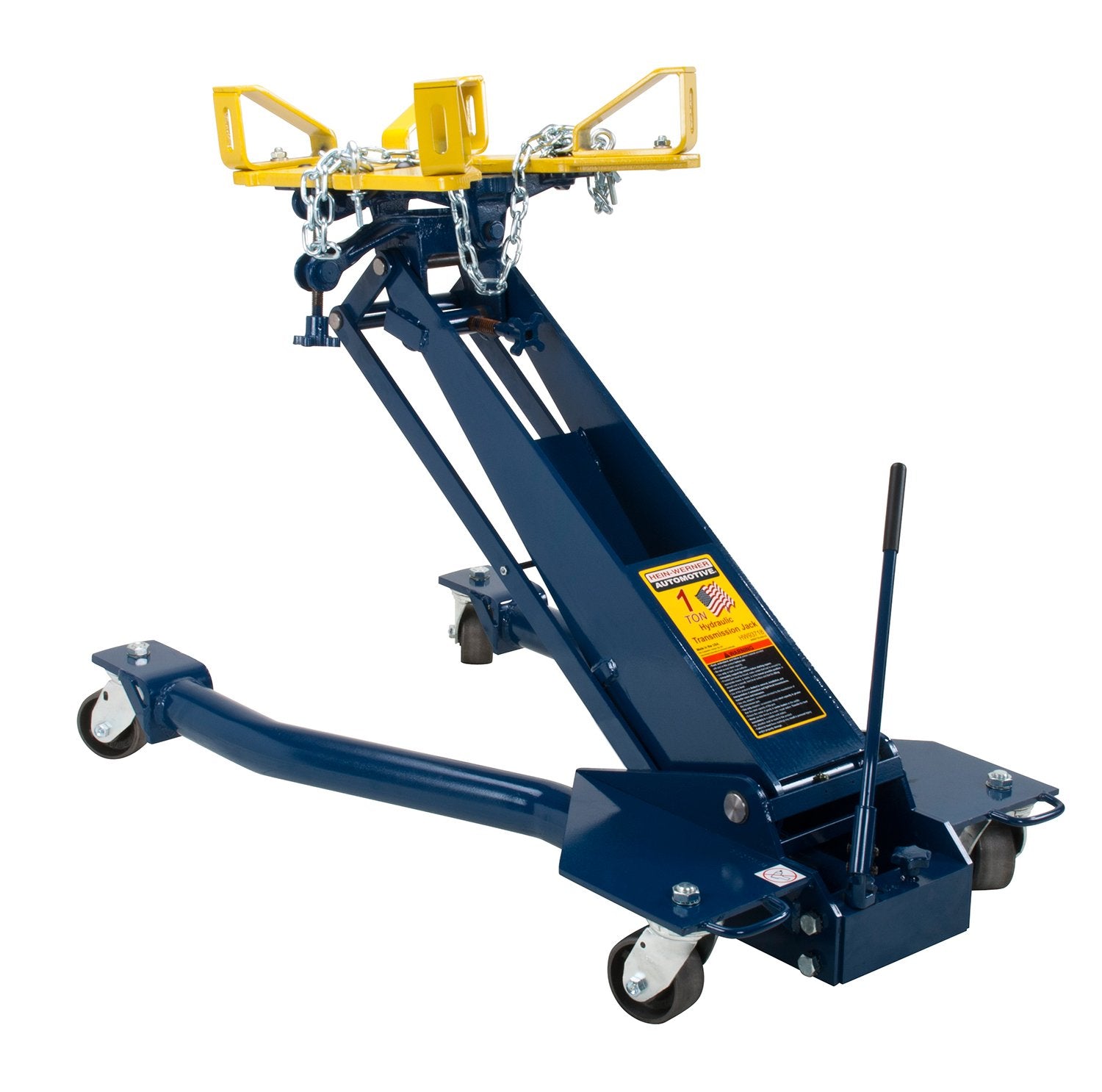

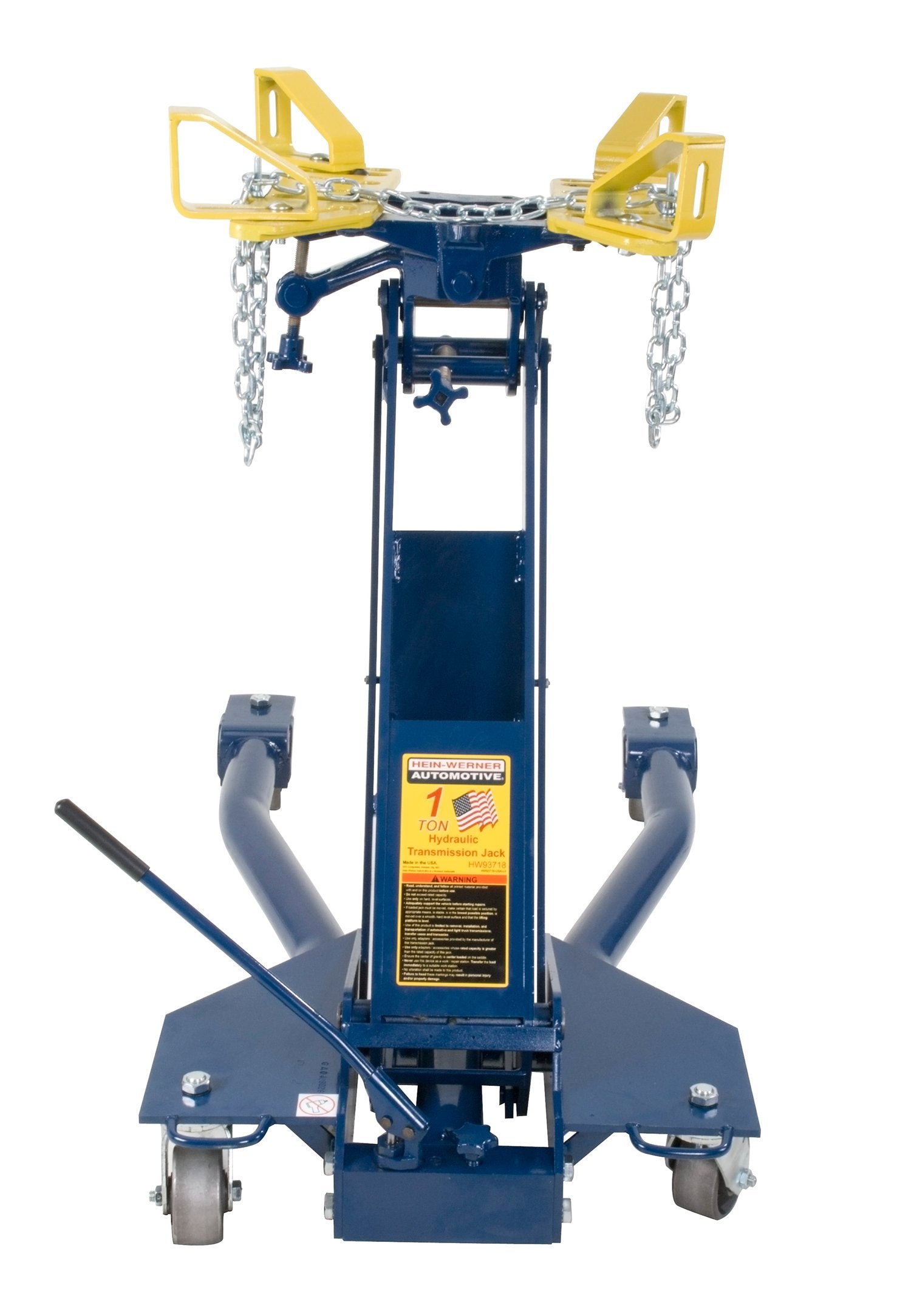

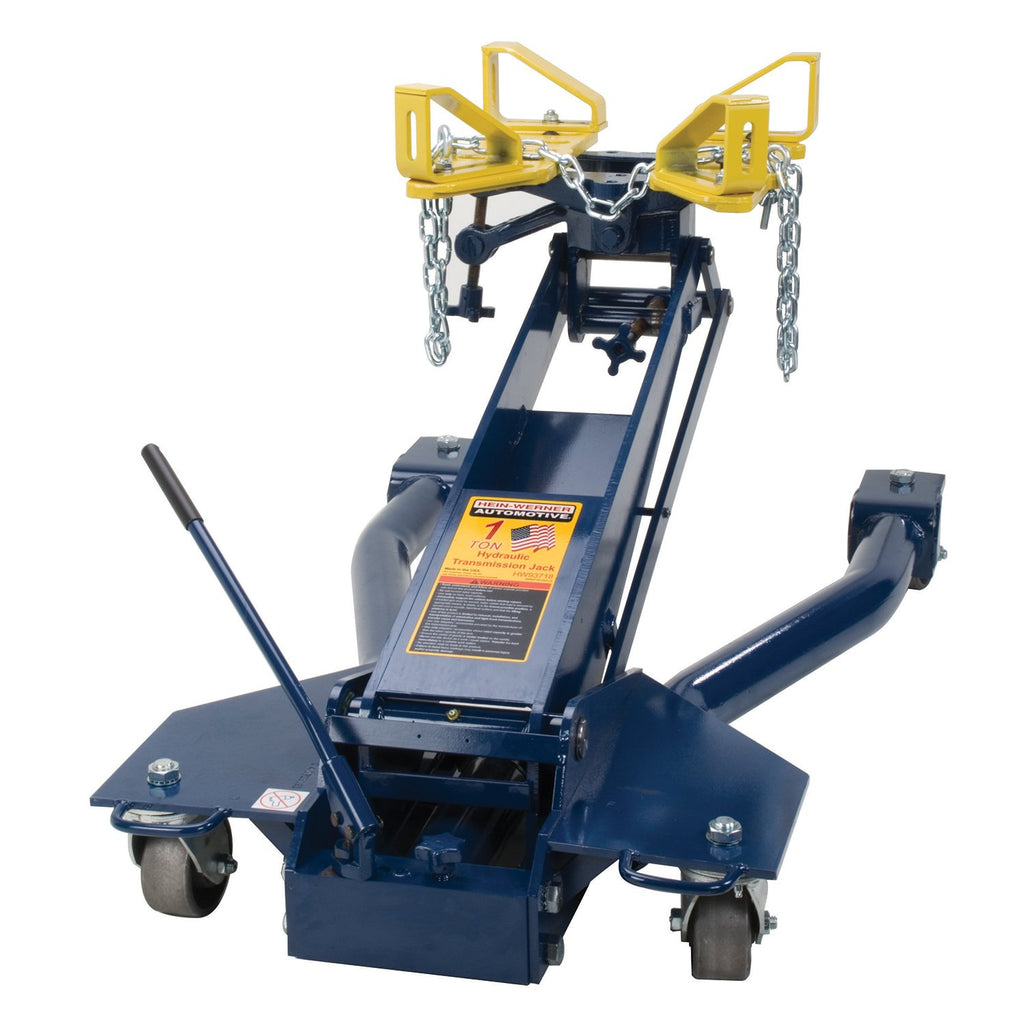

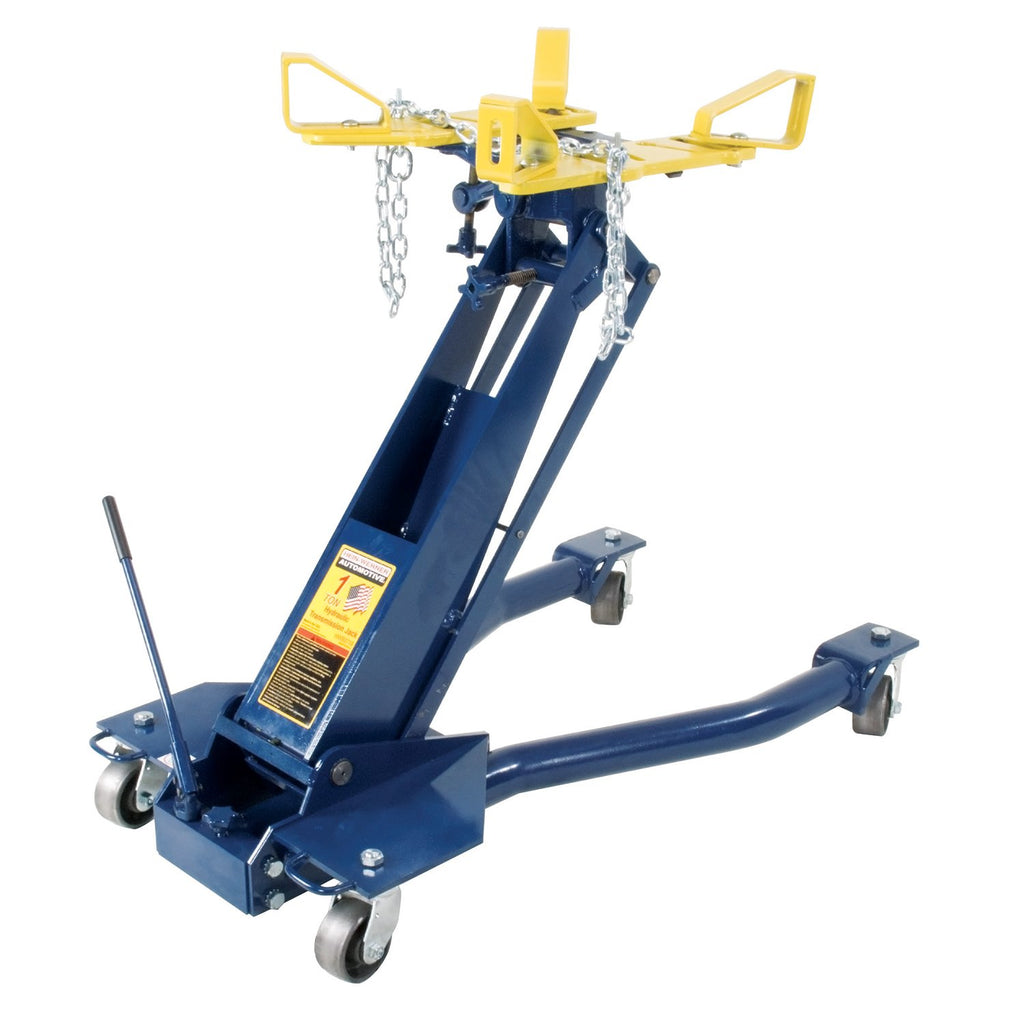

Hein-Werner Floor Style Transmission Jack, 2000 Lb, Blue (HW93718)

Author: Hein-Werner Automotive

Brand: Hein-Werner

Color: Blue

Features:

• Made in the USA
• Adjustable head for pan configurations
• Load restraint chain
• Wishbone design with tubular steel frame
• 360 degree swivel casters

Details: Hein-Werner HW93718 Transmission Jack is 1 Ton transmission jack assembled in US. It is designed to be used vertically with the ability to raise from 10-1/4 inch to 44-3/4 inch.
It is designed to be used as an aid in the removal and installation of automotive and light truck transmission, transfer cases and transaxles.
The frame is built with the tubular steel to enhance the stability. The wishbone design allows the jack more mobility. At the same time, the 360 degree swivel casters give you the maneuverability needed to position the load.
The saddle is featured with the adjustable head for pan configuration. And, the saddle can be adjusted with 1/2 inch drive to different positions. At the same time, you will find the load restraint chain to secure the load while seating on the saddle.
- Tubular Steel Frame
- Wishbone Design and 360 Degree Swivel Casters for More Mobility
- Adjustable Head for Pan Configurations
- Load Restraint Chain for Securing the Load
Specifications
- Capacity: 1 Ton
- Min Height: 10-1/4 inch; Max Height: 44-3/4 inch;
- Chassis Length & Width: 47-1/2 x 28-1/2 inch
- Forward Tilt: 44 Degree; Rear Tilt: 39 Degree; Sideway Tilt: 13 Degree (Left and Right)
- GW: 310 Lbs
Hein Werner HW93718 Transmission Jack is backed by 2 Years warranty from the date of the purchase.

EAN: 0047077050361

Release Date: 08-08-2013

Package Dimensions: 52.0 x 31.0 x 12.0 inches

Binding: Automotive

Part Number: HW93718

model number: HW93718
