Description
Brand: HHIP
Color: Black
Features:
- Boring Bar Style S05 SCLCR06; Shank 5/16"; Minimum Bore .315"; Length 4.00"
- Neck Diameter .236"; Neck Length .985"; Use Insert CCMT-21.5; Screw M2.5x6
- Torx T-8
- Use CCMT Inserts, 7 degrees Relief
- Torx T-8

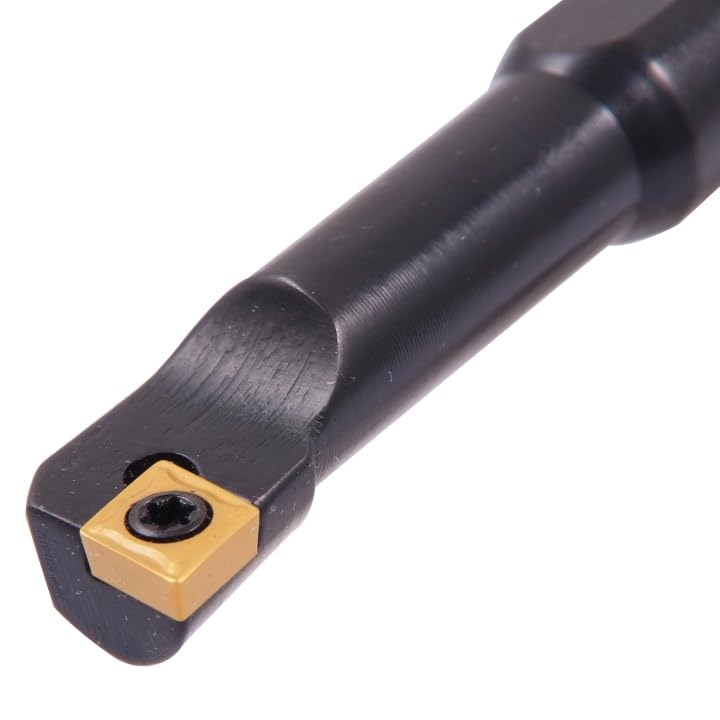

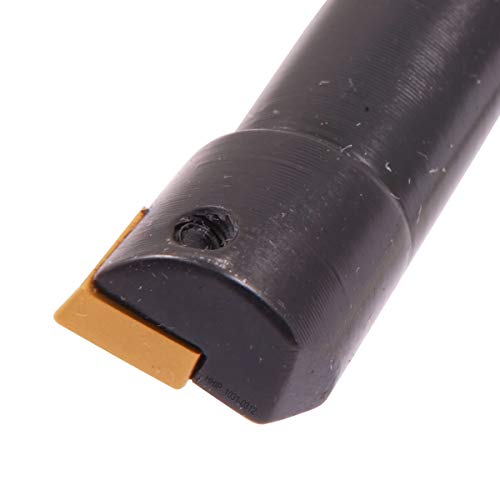

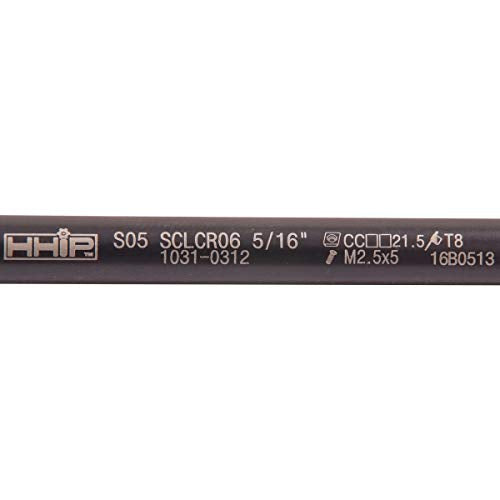

Details: S05 SCLCR06 Mini Indexable Boring Bar ~ Shank size is 5/16". ~ Minimum bore is .315". ~ Overall length is 4". ~ Neck diameter is .236". ~ Neck length is .985". ~ Suitable inserts are CCMT-21.5. ~ The insert screw is M2.5 X 6 (#2100-0070). ~ Torx wrench is a T-8 (#2100-0092).
EAN: 0769053003849
Package Dimensions: 6.2 x 4.8 x 0.9 inches
Part Number: 1031-0312
model number: 1031-0312
