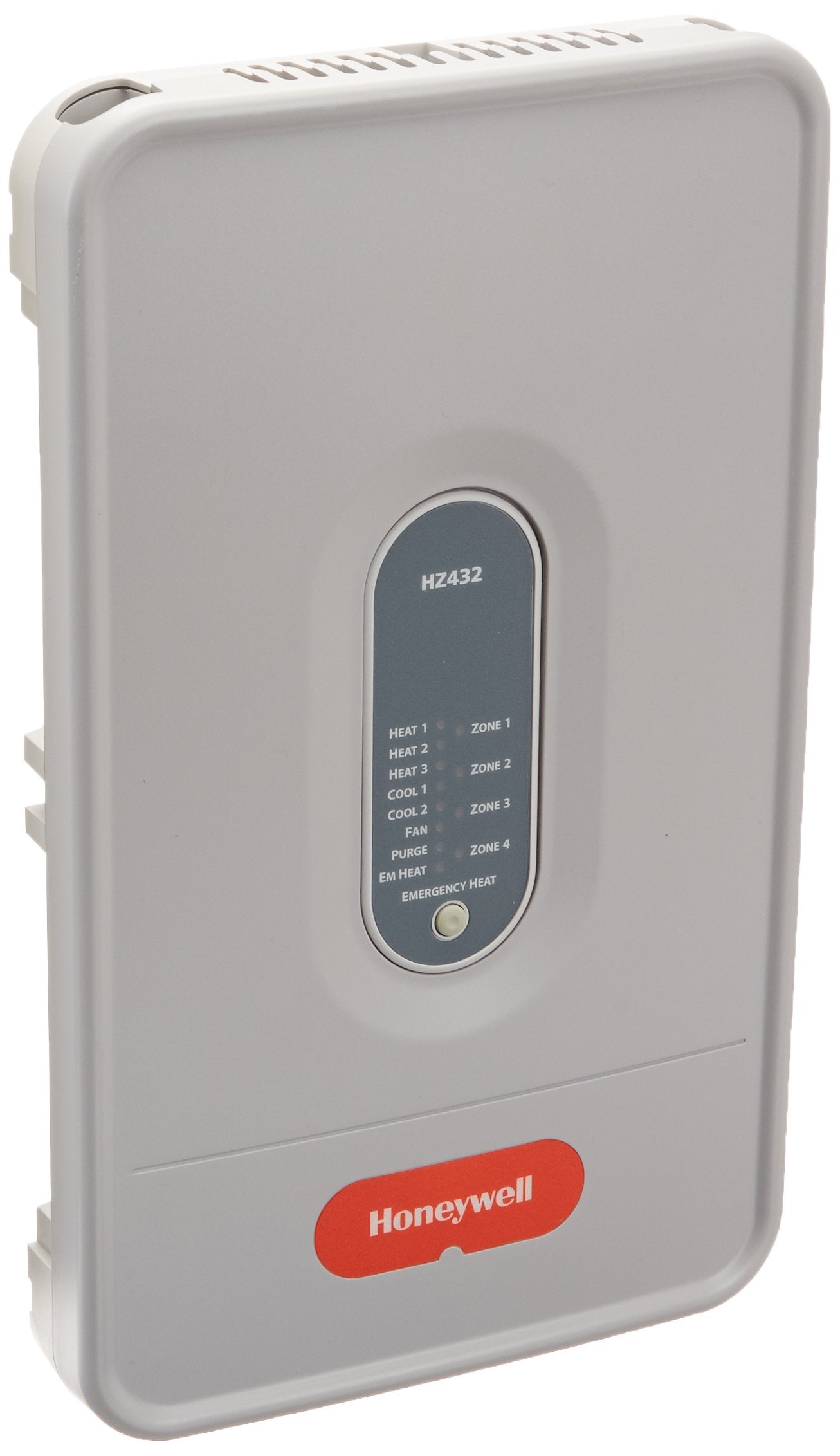

Honeywell HZ432K Truezone Kit, 4 Piece Set, Gray

Brand: Honeywell

Color: Gray

Features:

• Easy-to-follow, digital display uses real language to guide installer through four easy steps
• Advanced Dual-Fuel Operation
• Discharge Air Temperature Staging
• Variable-Speed Fan Control
• User Manual

Details: Product Description

TrueZONE(R) Control Kit, Panel for Conventional, Heat Pump or Dual Fuel Applications, Applications for 4 Zone, Voltage (AC) 24, Height (In.) 13 1/2 in, Width (In.) 8 in, Depth (In.) 2 in, Output Amps 10 VA, Inrush Amps -, Connection Push-Button Terminals, Terminal Designations Four Of M1, M4, M6, R, C, W1/E, W2, W3, Y1, Y2, G, O/B, L; One Of RH, RC, W1/E, W2, W3, Y1, Y2, G, O, B, DS/BK, R, C, AZ1, AZ2, OT, DATS, Rotation Angle (Deg.) -, Torque (In.-Lbs.) -, Timing (Sec.) -

From the Manufacturer

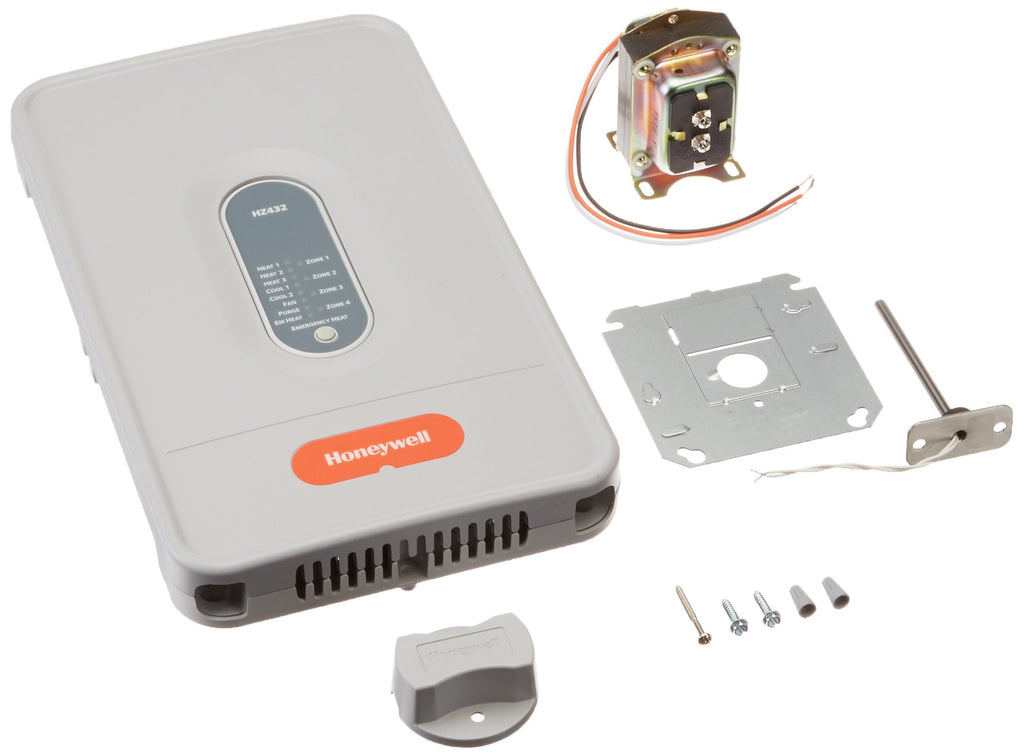

Honeywell HZ432K Truezone Kit. 4 Zone, Three-Stage Heat/ Two-Stage Cool Zone Control Panel w/ Discharge Air Sensor and Transformer, Heat Pump and Duel-Fuel System Compatible. TrueZONE HZ432 Panel for conventional, heatpump or dual fuel applications expandable up to 32 zones (3 Heat /2 Cool). This kit includes one HZ432 Panel, one C7735A1000 DATS, and one AT140A Transformer. This product should be purchased & installed by a qualified contractor.

EAN: 0696335219608

Package Dimensions: 14.6 x 8.9 x 7.9 inches

Binding: Tools & Home Improvement

Part Number: HZ432K

model number: HZ432K
