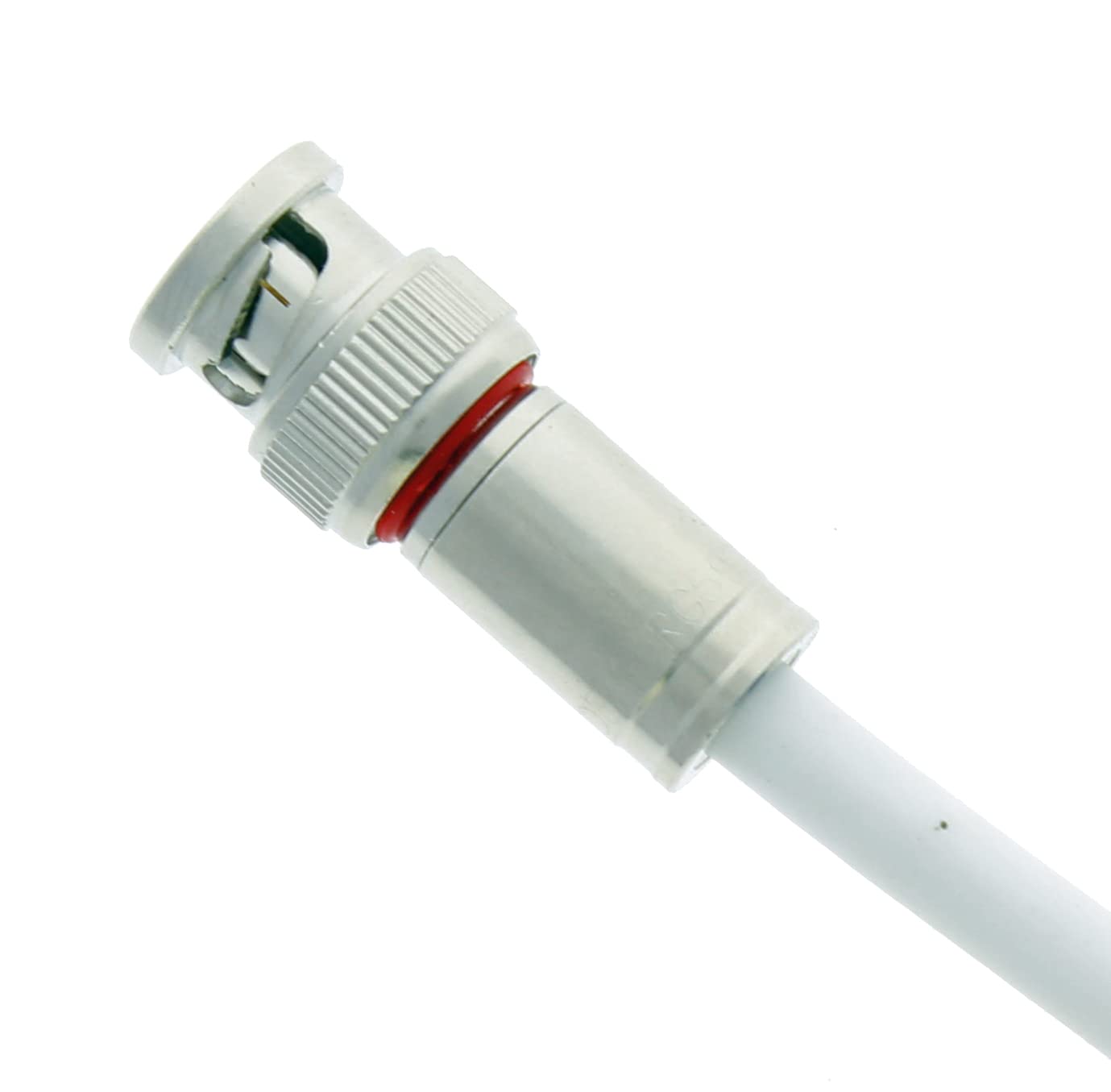

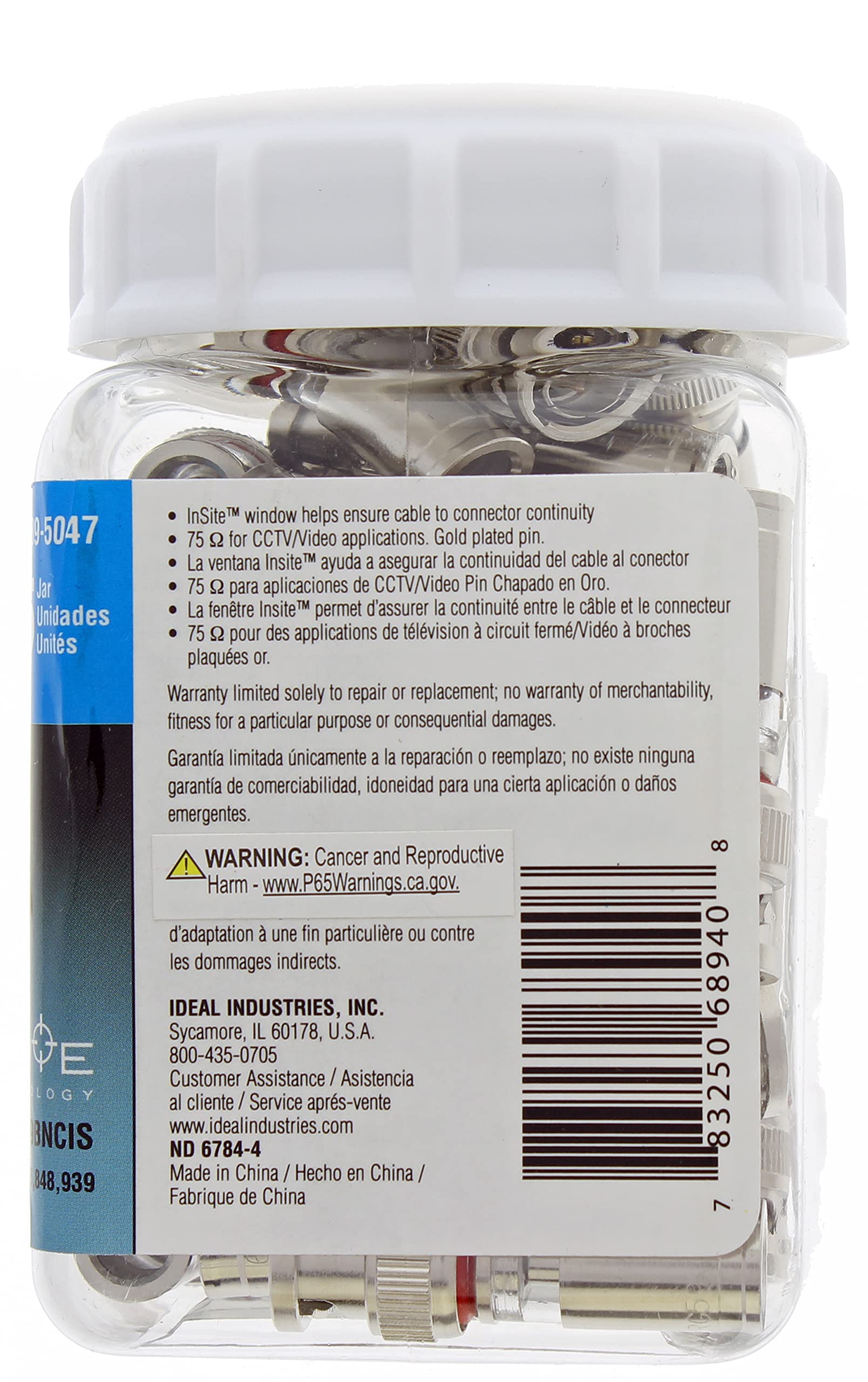

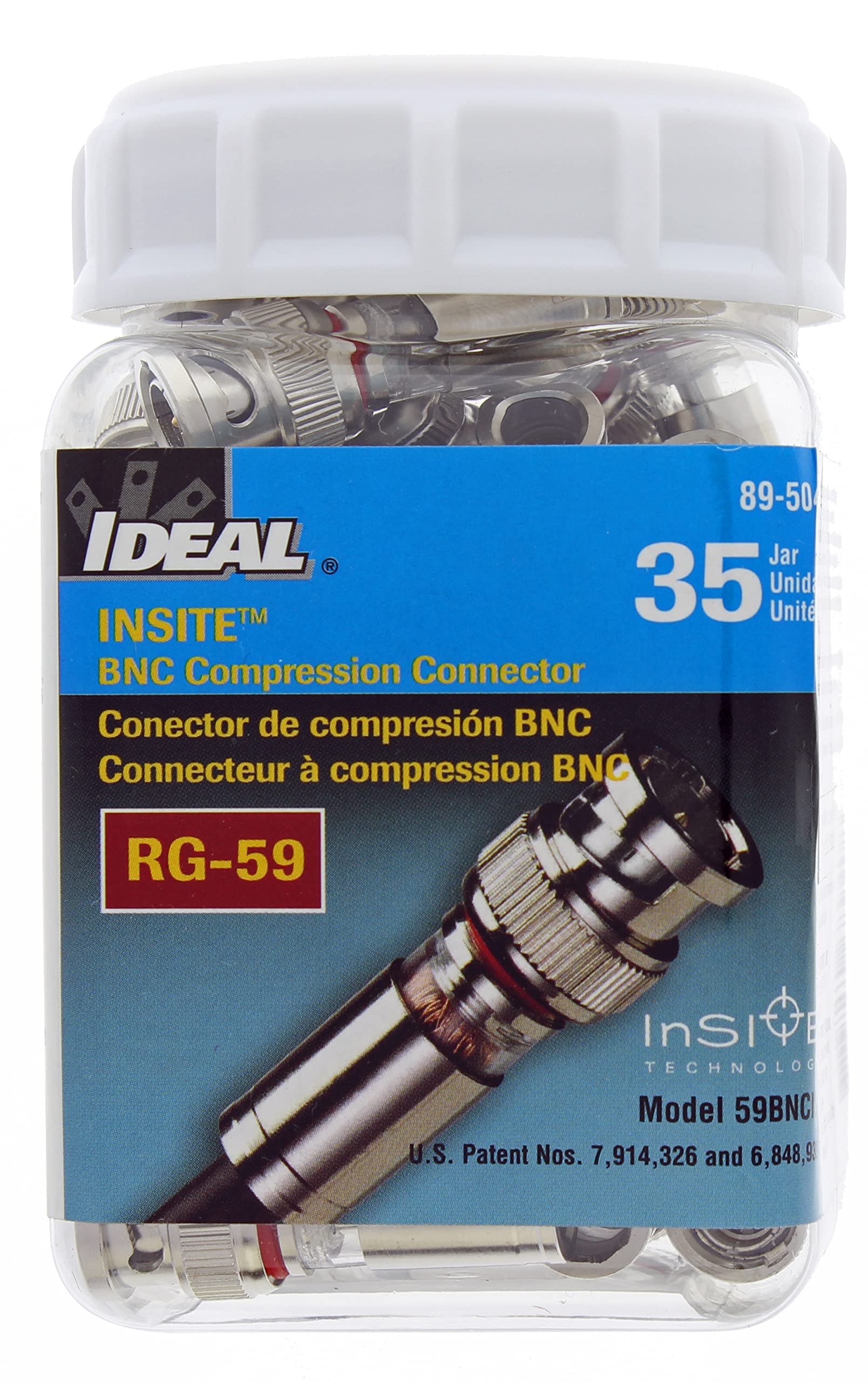

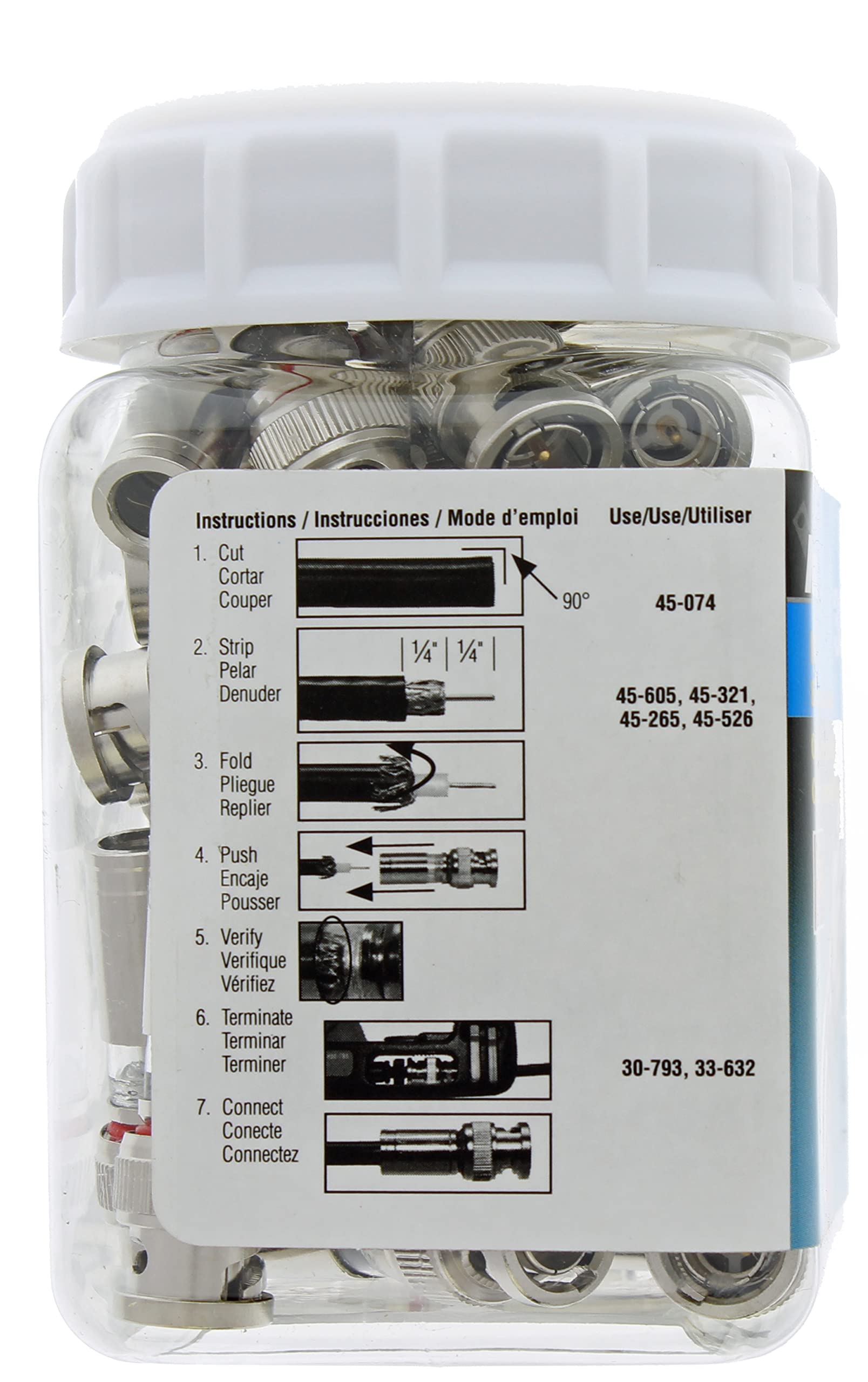

IDEAL Electrical 89-5047 BNC Compression Connectors, Coax Compression Connector for RG-59 Cable, 35 Connectors, Jar

Brand: Ideal Industries

Color: Silver

Features:

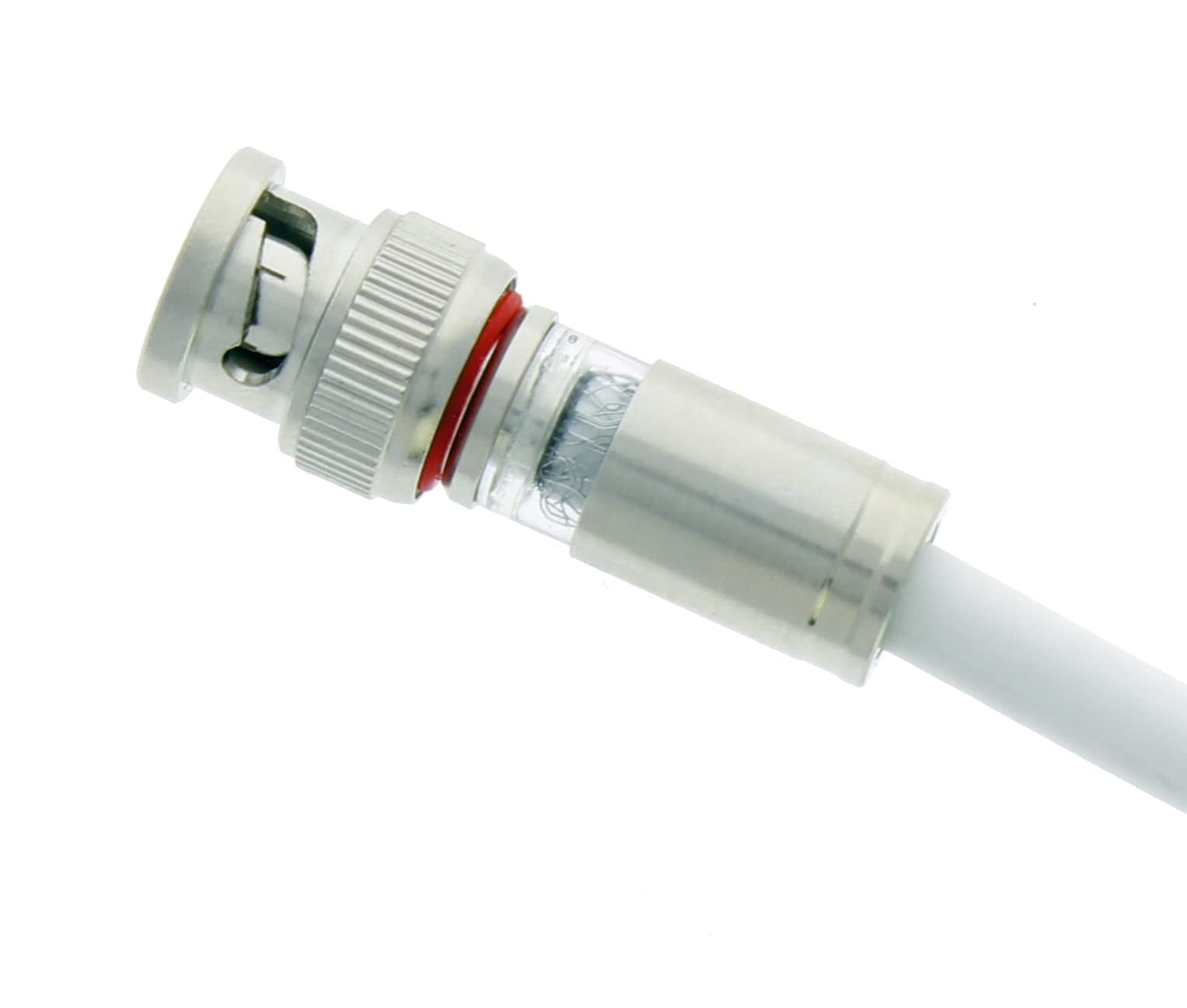

• ADVANCED TECHNOLOGY: InSITE technology features a 360 clear window to enable the installer to verify the connection before the connector is compressed. It allows for a confident connection every time. Gold-plated fixed pin contact area and pin won’t come lose or pop out of the connector

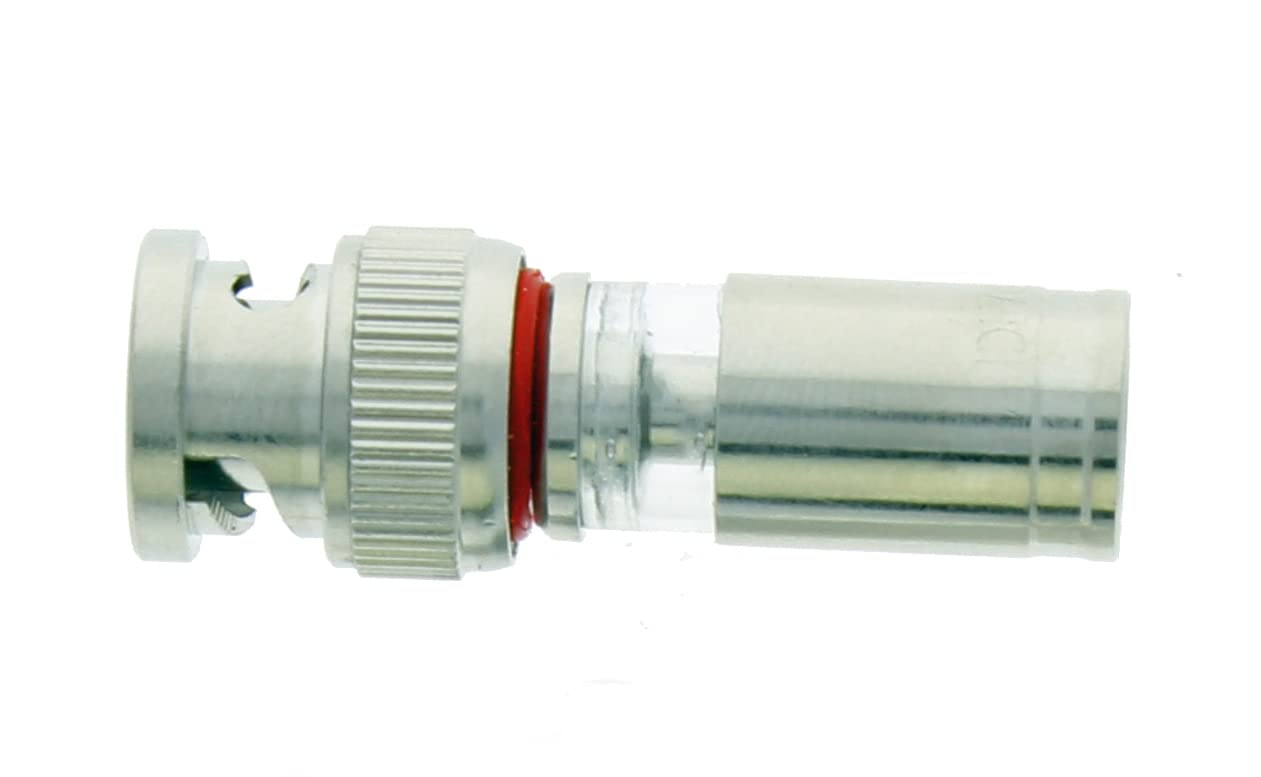

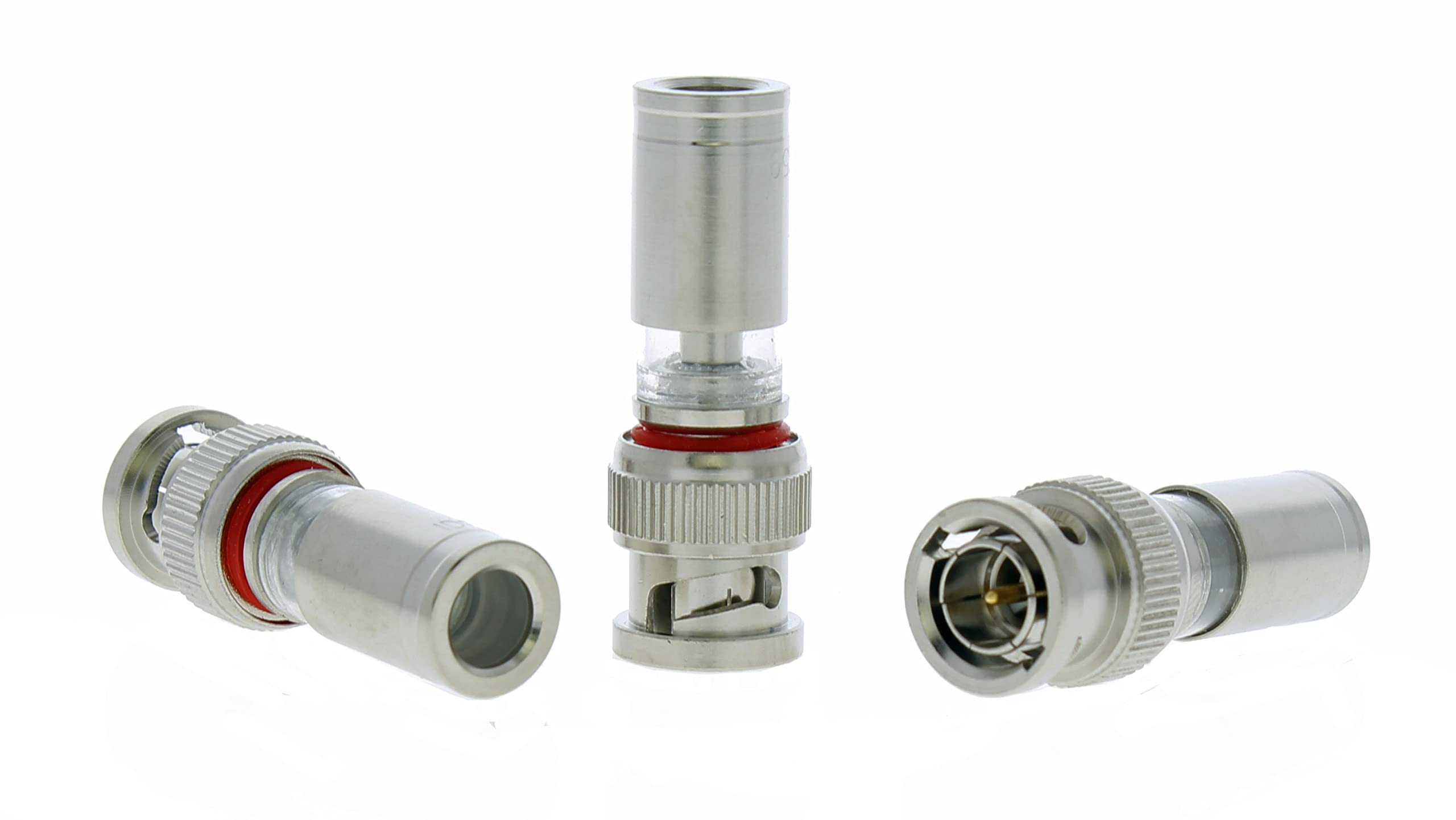

• CONSTRUCTION: One piece connectors feature plastic and nickel-plated brass bodies that offer excellent corrosion resistance. The gold-plated fixed center pin accepts 23-18 AWG solid center conductors. A redesigned funneled pin entry - centers angled pins, reduces pin collapsing

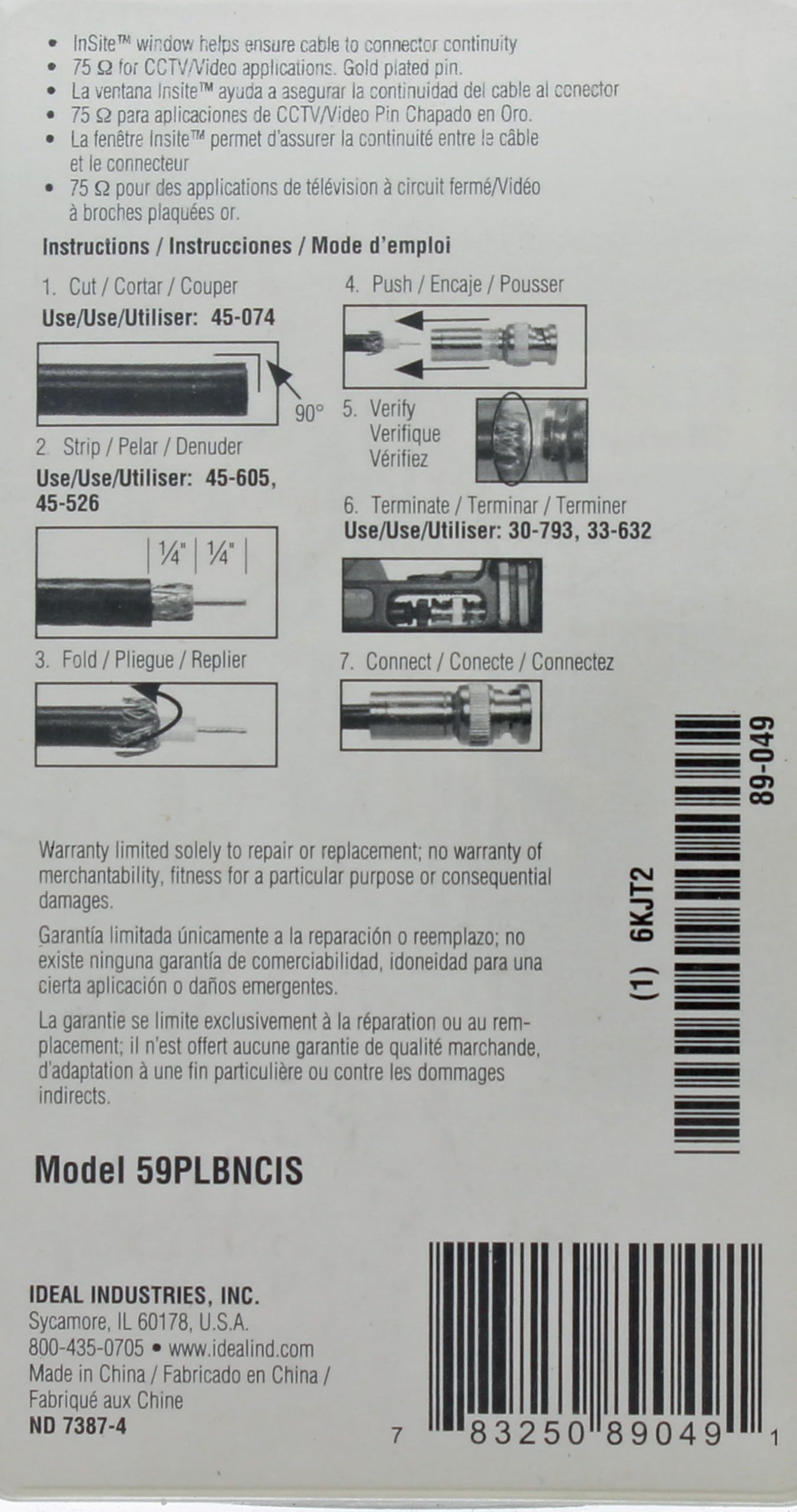

• COAX COMPRESSION CONNECTOR: Designed for optimal performance on 75 coaxial cables. These cable specific BNC connectors utilize standard 1/4 x 1/4 in. cable preparation and a smoother and easier mating with sockets through increased BNC head travel rangehave a
• APPLICATIONS: These BNC connectors are used in security, CCTV, and analog camera installations. These can alo be used in other intrumentation and video based installations.
• SPECIFICATIONS: Package includes [35] RG-59 BNC Compression Connectors. Compatible with cables that have a .142 - .148 in. dielectric diameter range, outer jacket diameter range of .230 - .250 in., 75-Ohm nominal impedance, frequency range: 0 MHz to 3 GHz

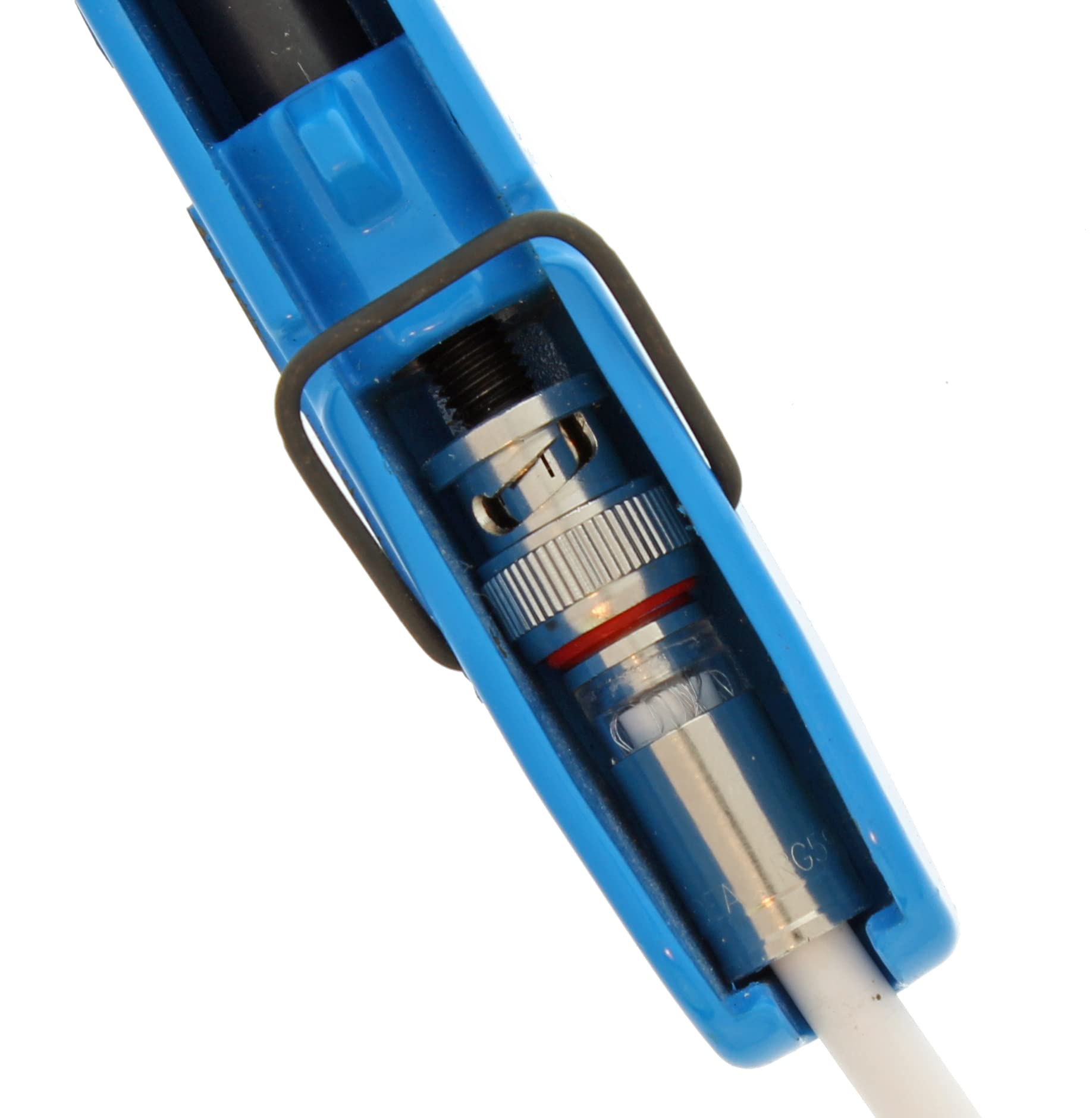

Details: IDEAL RG59 inSITE Compression Connectors, 35 pack, are all single piece designs that are manufactured to meet the demands and expectations of the satellite and cable TV industry. All series of connectors are effortlessly positioned onto properly stripped coax and are permanently connected when terminated with an IDEAL OmniSeal Compression Tool. All IDEAL compression F-connectors use a standard 1/40, 1/40 strip. Multiple package quantities and connector features ensure that you will have the right connector for your application.

EAN: 0694756330070

Release Date: 01-10-2020

Package Dimensions: 4.2 x 2.6 x 2.6 inches

Languages: English

Binding: Electronics

Part Number: 89-5047

model number: 89-5047
