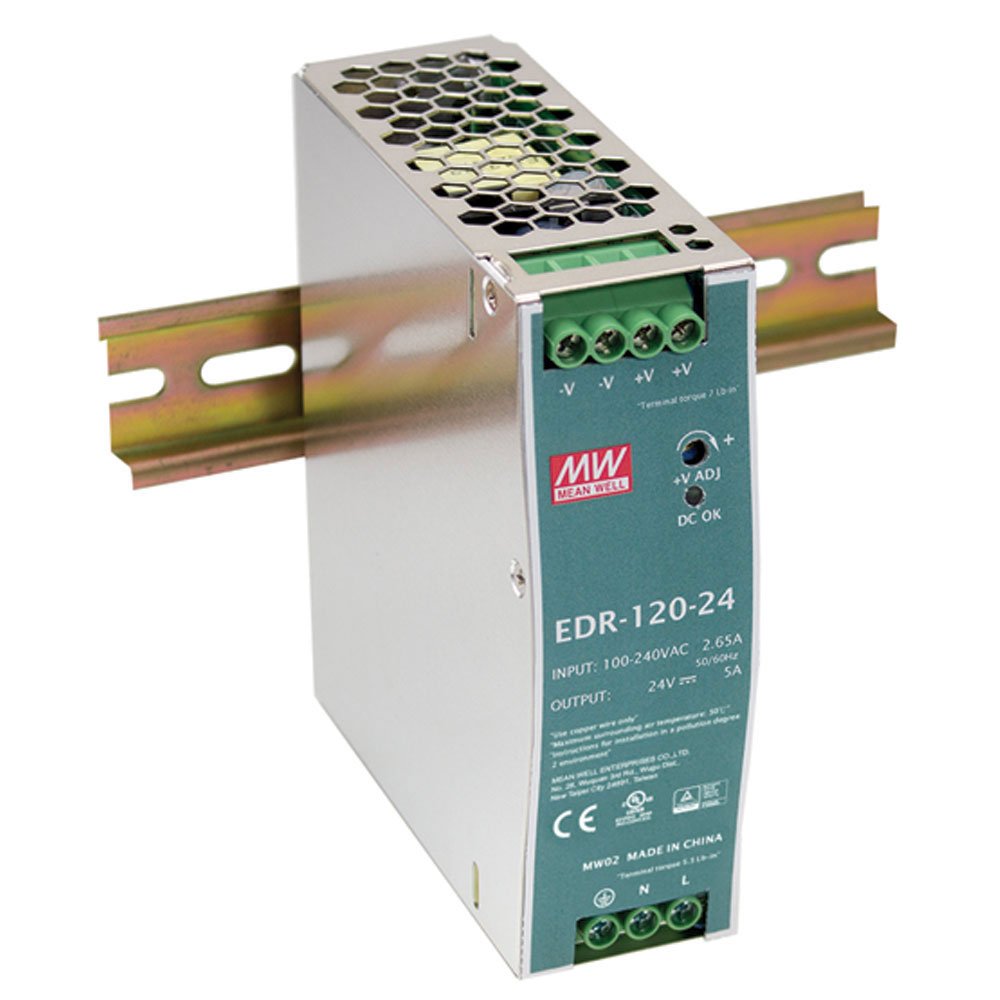

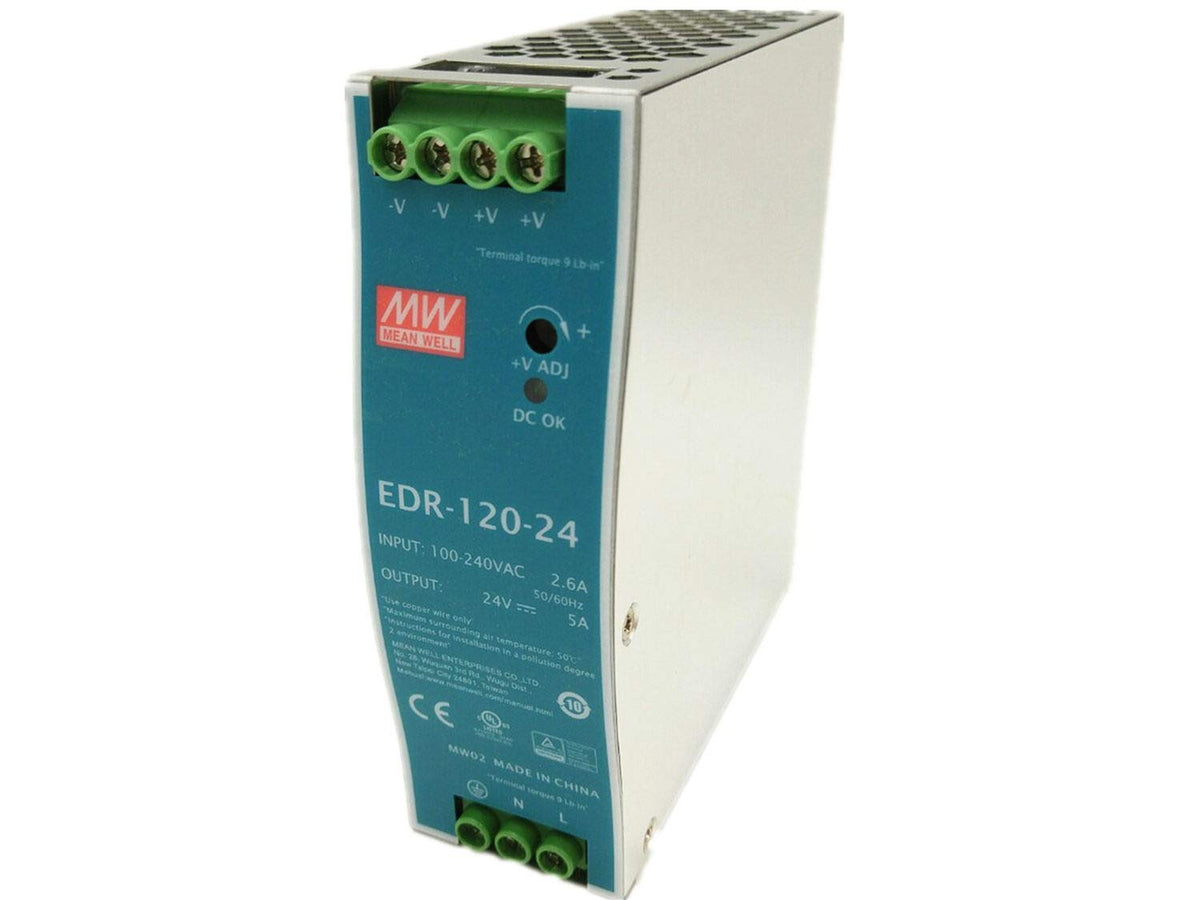

MEAN WELL EDR-120-24 Single Output DIN Rail Power Supply 24V 5 Amp 120W

Brand: MeanWell

Features:

• Primary output voltage (vdc): 24
• Output current (a): 5
• Maximum output power (w): 120
• Family: edr-120
• Input voltage (vac): 90 to 264

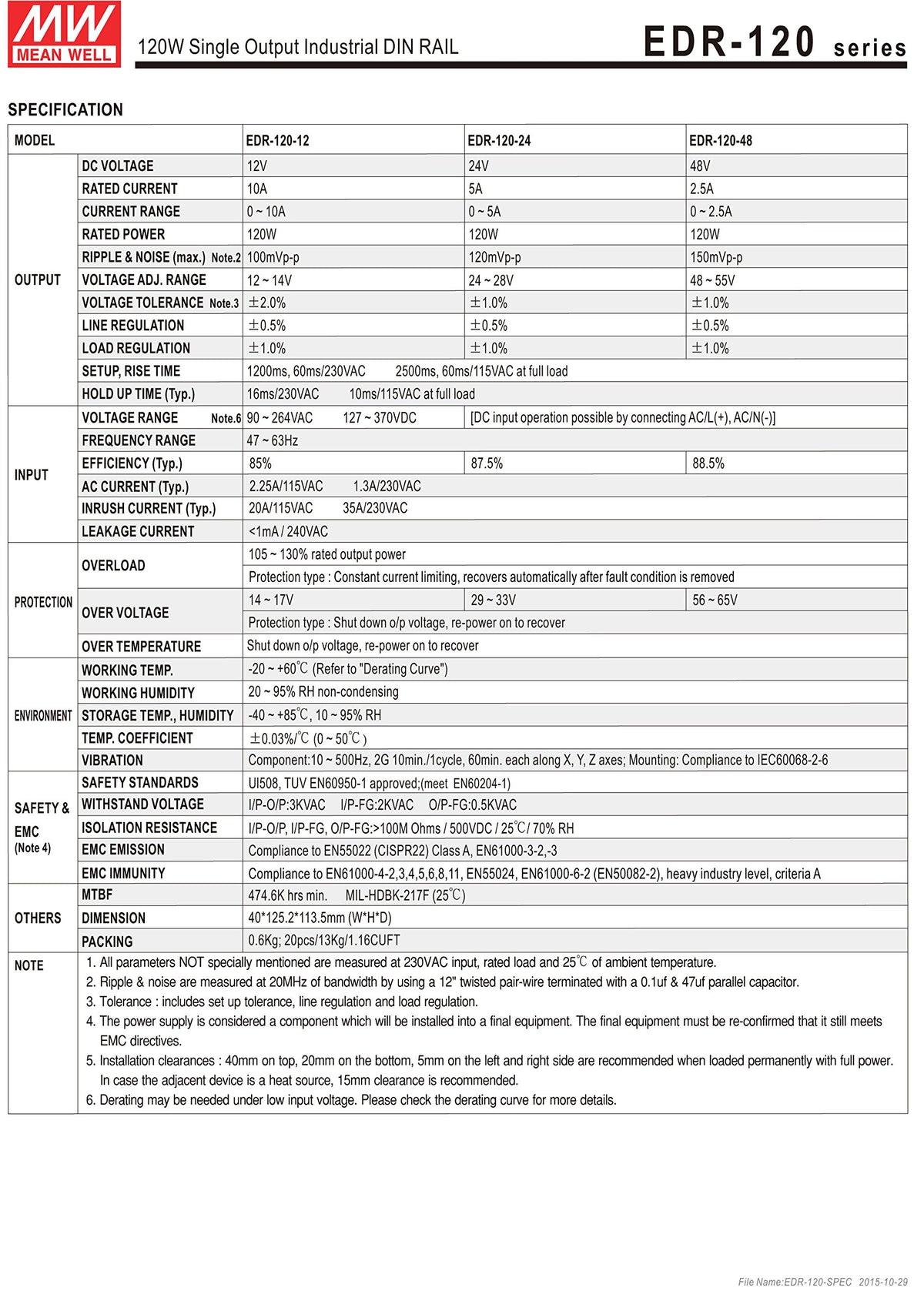

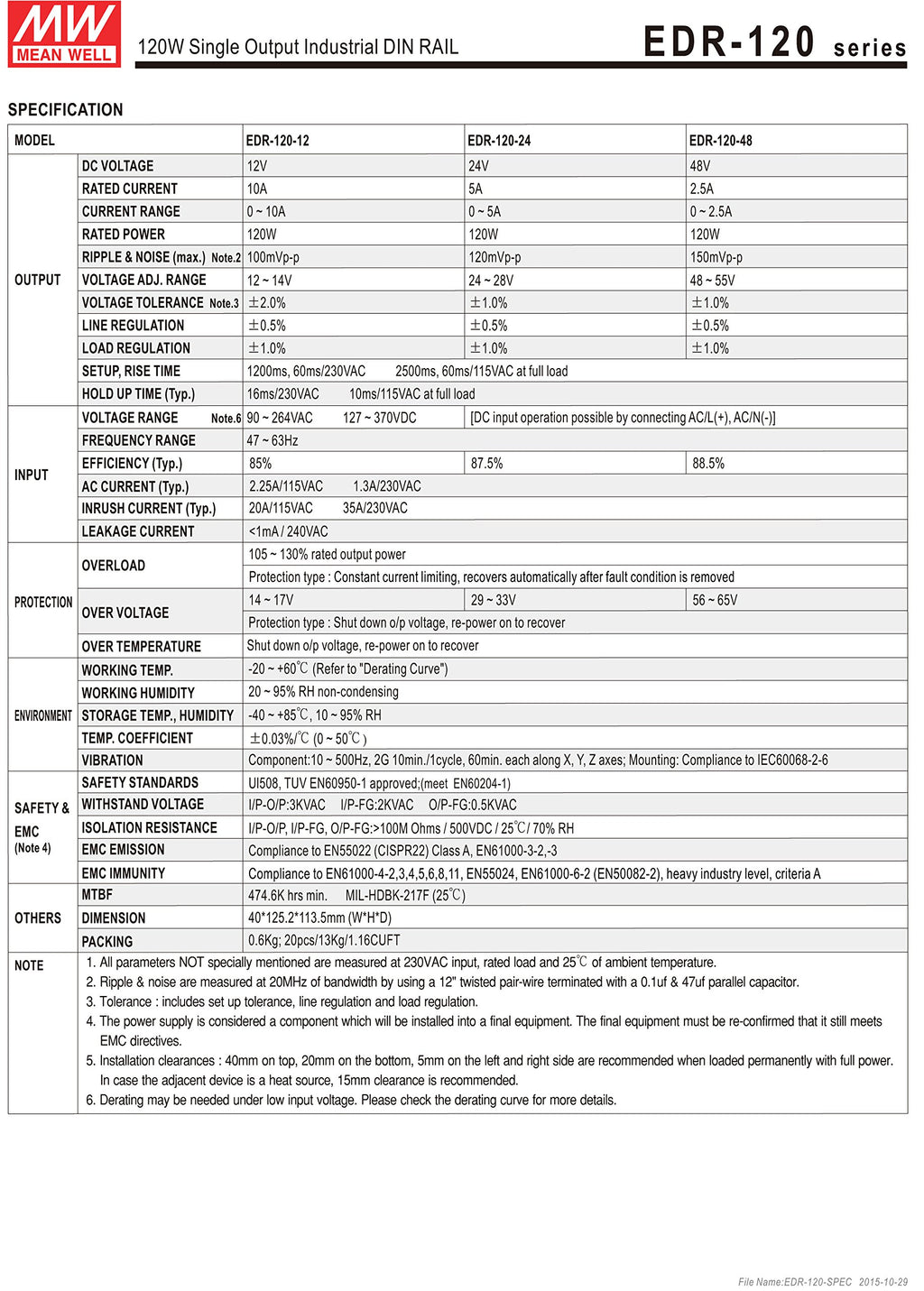

Details: Single output DIN rail power supply 24 Volts 5 Amps 120 Watts 24 Volts 5 Amps specifications output power (W): 120 ripple & noise (mV p-p): 100 load regulation (): 1 percent line regulation (): 0.5 percent efficiency: 87.5 percent size (L x W x H) inches: 4.5 x 1.6 x 4.9 universal AC input/full range built-in active PFC function protections: short circuit, over voltage, overload, over temperature cooling by free air convection 100 percent full load burn-in Test 2 year warranty detailed specifications: primary output voltage (VDC): 24 output current (a): 5 maximum output power (W): 120 family: edr-120 input voltage (VAC): 90 to 264 input frequency: 47 to 63 maximum input current (a): 2.25 output connector Type: screw terminal efficiency ( percent ): 87.5 operating temperature-min (CEL): -20 operating temperature-max (CEL): 60 Length (inch): 1.57 width (inch): 4.93 height (inch): 4.47 agency approvals: UL/cul/TUV/CB/CE color: silver style: DIN.

EAN: 0608754594808

Release Date: 15-02-2018

Package Dimensions: 5.7 x 5.6 x 2.4 inches

Part Number: EDR-120-24

model number: EDR-120-24
