MEAN WELL LPV-100-12 Enclosed Switching LED Power Supply 12V 8.5 Amp 102W

Brand: MeanWell

Color: White

Features:

• Primary output voltage (vdc): 12
• Output current (a): 8.5
• Maximum output power (w): 102
• Family: lpv-100
• Input voltage (vac): 90 to 264

Details: 102W single output switching power supply 12 Volts 8.5 Amps features: universal AC input input voltage: 90264VAC 4763Hz, or 127-370vdc constant voltage design able to withstand 300VAC surge input for 5 seconds short-circuit/overload/over-voltage protection 100 percent full load burn-in Test ripple and noise: 120mvp-p line regulation: 1.0 percent load regulation: 2.0 percent size: 7.48L x 2.05"W x 1.46"H weight: 1.39 lbs. For more 12V power supplies. Detailed specifications: primary output voltage (VDC): 12 output current (a): 8.5 maximum output power (W): 102 family: lpv-100 input voltage (VAC): 90 to 264 input frequency: 47 to 63 maximum input current (a): 2.2 output connector Type: stripped and tinned number of outputs: 1 product Type: AC to DC power supply efficiency ( percent ): 85 minimum isolation voltage: 3000V operating temperature-min (CEL): -25 operating temperature-max (CEL): 70 Length (inch): 7.48 width (inch): 2.04 height (inch): 1.45 style: enclosed".

EAN: 0701622367556

Release Date: 15-02-2018

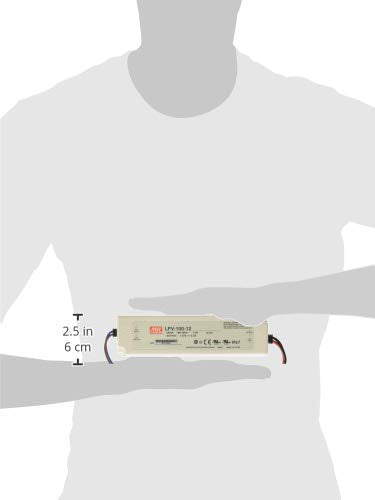

Package Dimensions: 9.1 x 2.6 x 1.7 inches

Part Number: LPV-100-12

model number: LPV-100-12
