Description
Brand: NDS
Color: Black
Features:
- PROTECT DRAINAGE SYSTEM: Block debris from entering and potentially clogging the pipeline by using a grate on top of a drain pipe, while still letting excess surface water flow through
- IDEAL FOR MODERATE FLOWS: This drain grate will drain moderate flows from mulched landscape beds, natural areas and window wells

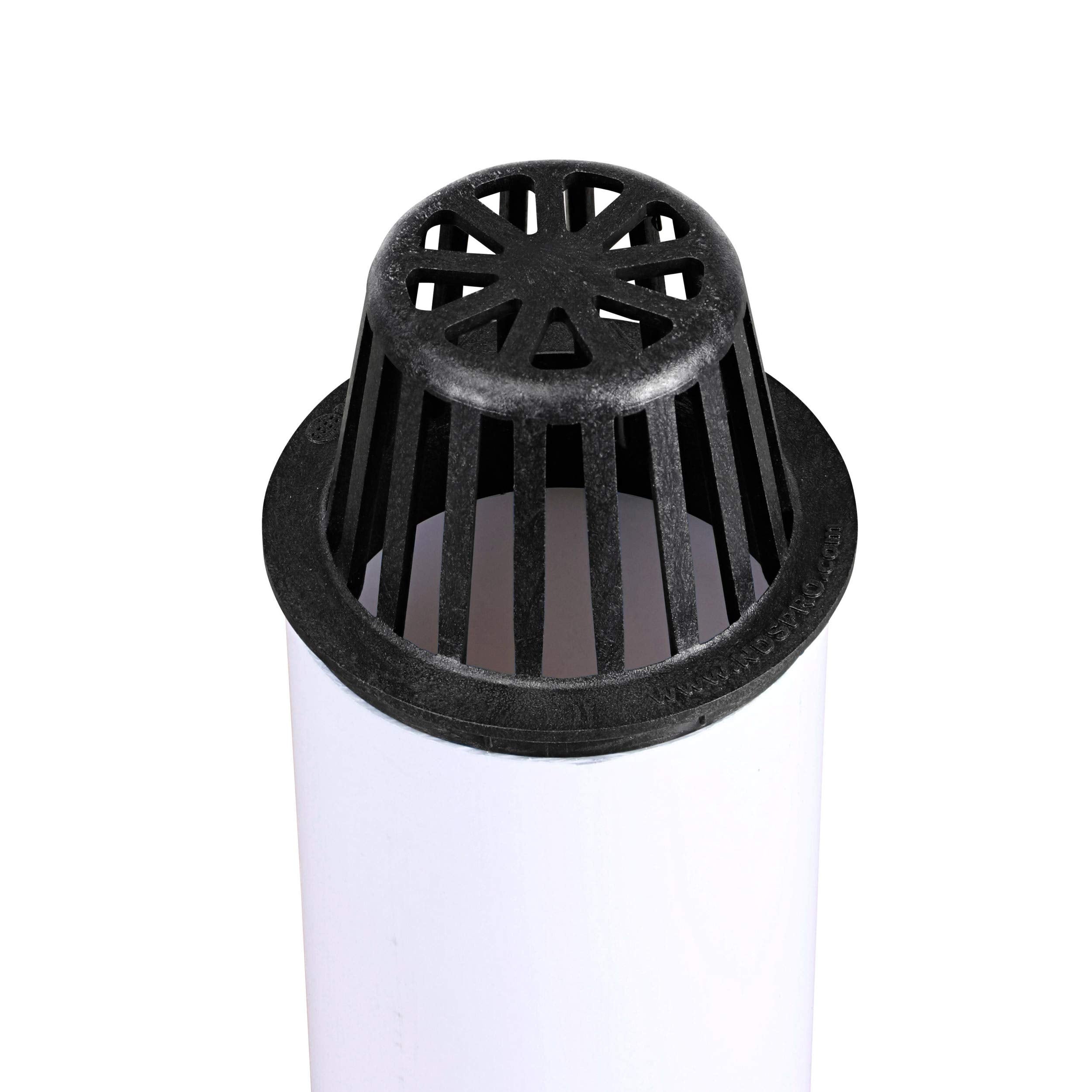

- QUICK, EASY INSTALL: Place on top of a drain pipe or drain pipe fitting for a soil-tight fit; our atrium grates are available in a variety of colors and materials to blend seamlessly with your landscape
- BUILT TO LAST: Made of polyvinyl chloride, the atrium drain grate will withstand weather and temperatures, resistant to cracking and fading
- SPECS: Grate is 4-7/16 in. high; top is 2-3/4 in. diameter; grate openings are ¼ in. wide

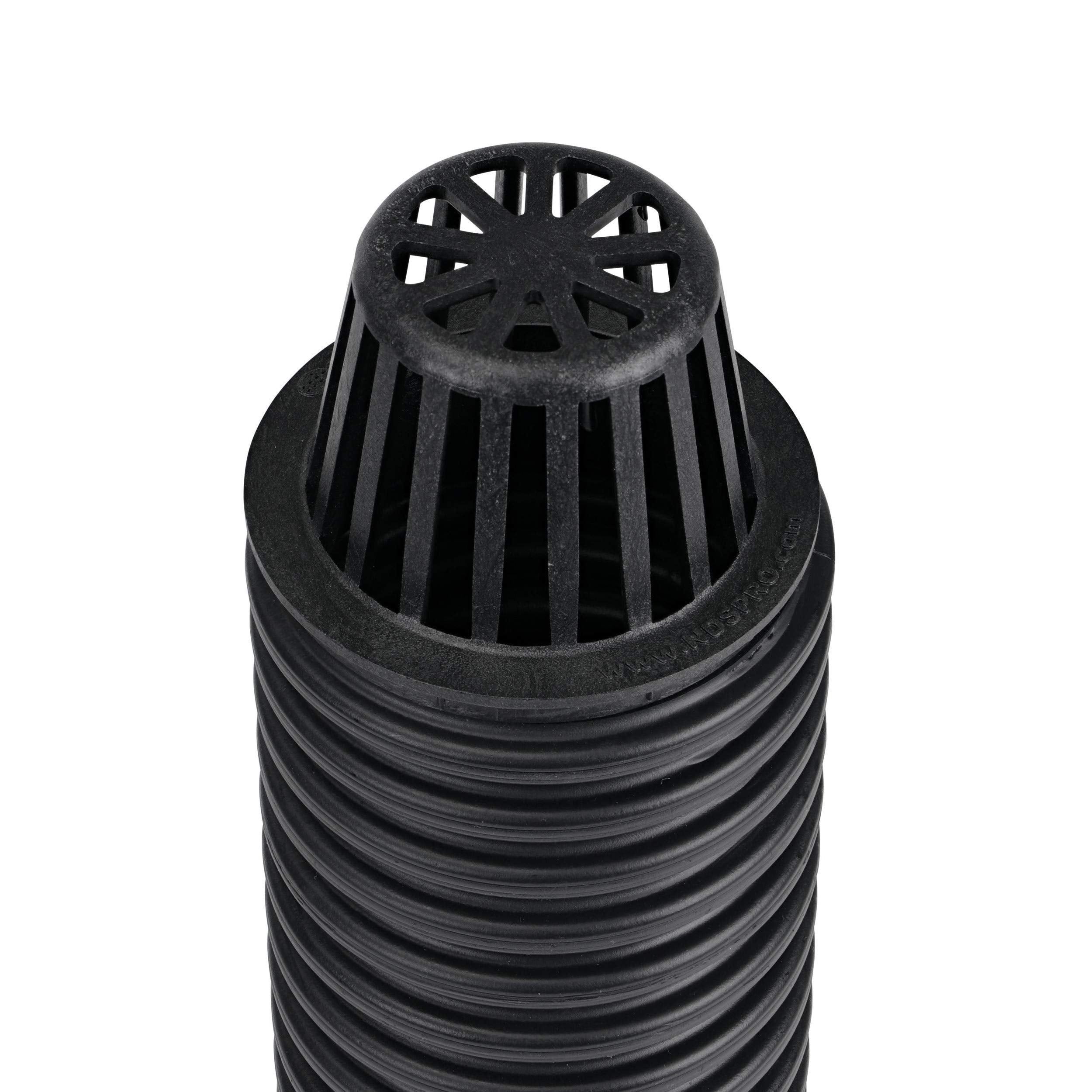

Details: When draining moderate stormwater flows from mulched landscape beds, natural areas, window wells, and areas prone to debris, the atrium drain grate rises to the challenge. Unlike a flat grate that lies flush with the surface, the 4 in. Atrium Grate has a raised dome design that blocks leaves, mulch, and other debris near the base, while continuously allowing water to flow through the top. The 4 in. atrium dome drain grate has an open surface area of 21.5 sq. in. and a flow rate of 66 GPM. Connect to 3 in. & 4 in. sewer and drain pipe & fittings, 3 in. & 4 in. single-wall corrugated pipe, and 3 in. & 4 in. triple-wall pipe for a soil-tight fit. Built to stand up to the elements, the drain grate (or drain cover) is made of polyethylene, a type of plastic, using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking from the sun. As part of a complete drainage system, the grate drains water entering drain pipes. The pipes carry the water to a discharge point downstream such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. Start now and find the right drainage grate for your project with the free NDS Home Drainage Center tool at ndspro.com/home-drainage. NDS, founded in 1972, is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.
EAN: 0520634007850
Package Dimensions: 6.0 x 5.3 x 4.9 inches
Binding: Kitchen
Part Number: NDS - 78
model number: NDS - 78
