Description
Brand: Neewer
Color: Black
Features:

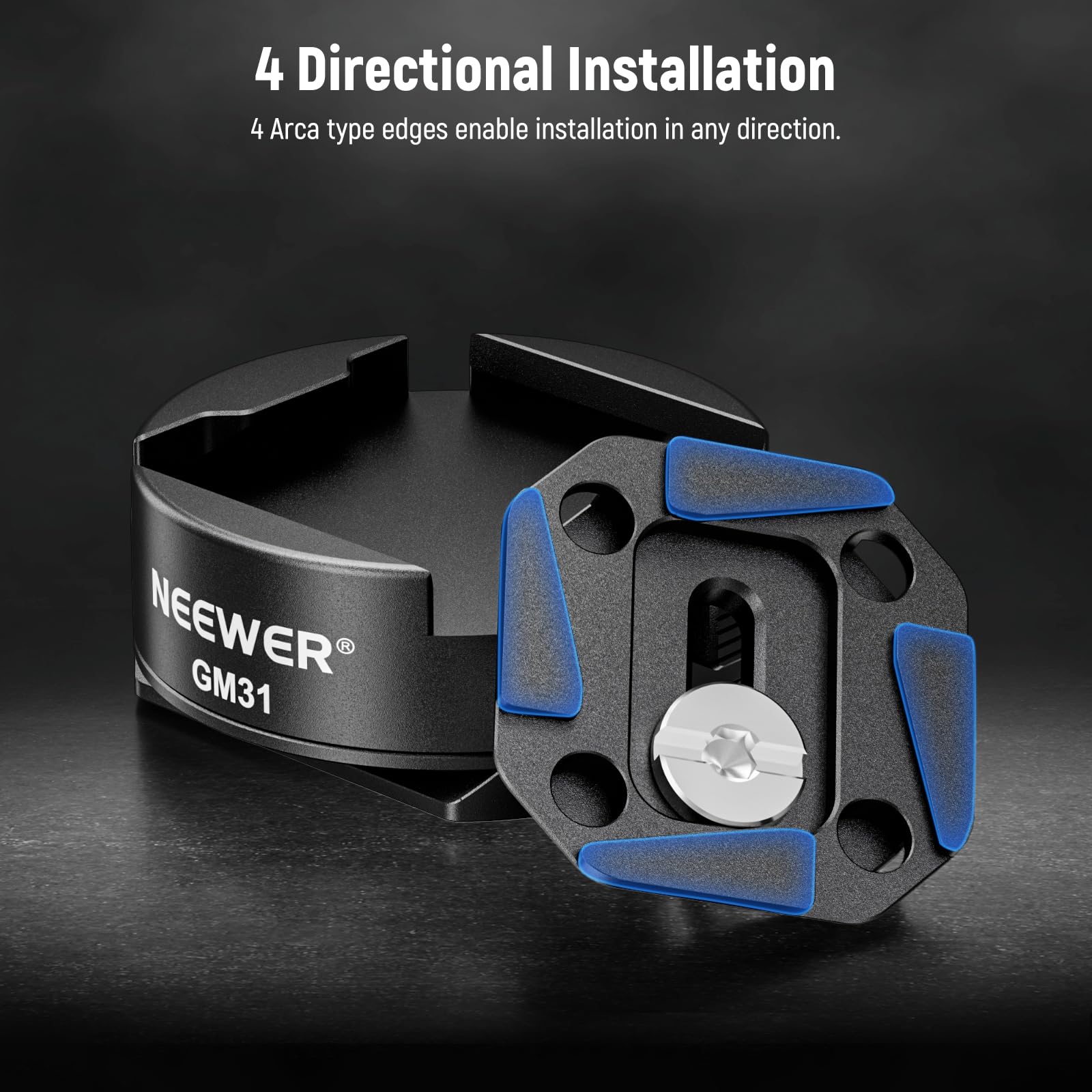

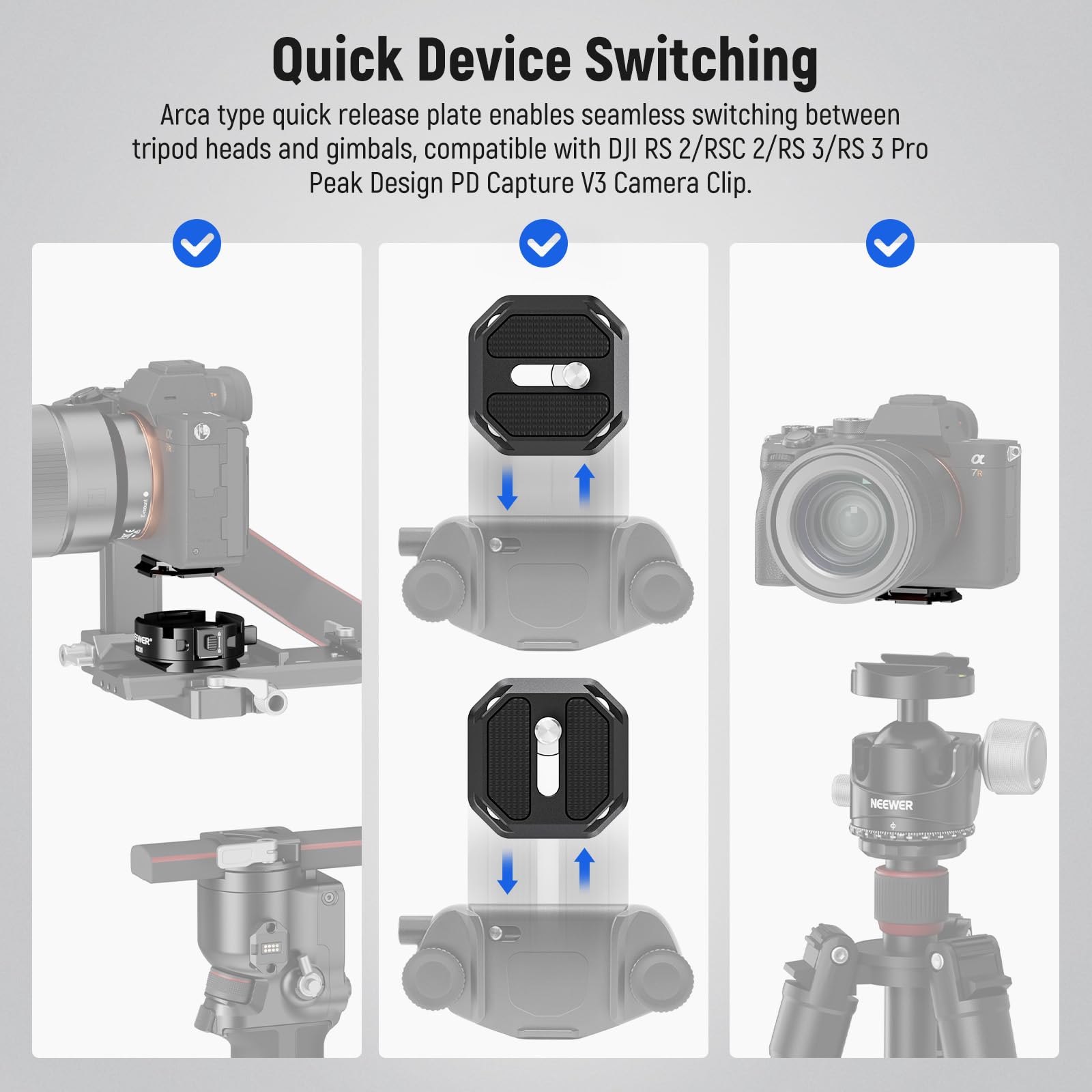

- 【Quick Switch Between Different Devices】 Compatible with Arca Swiss, our square quick release plate enables 1 second switching between the clamp base, Arca type tripod head, or camera clip using the unlock toggle. The square shape allows installation in any orientation. NOTE: Only the QR plate (excludes the clamp base) is compatible with Peak Design Capture Camera Clip.

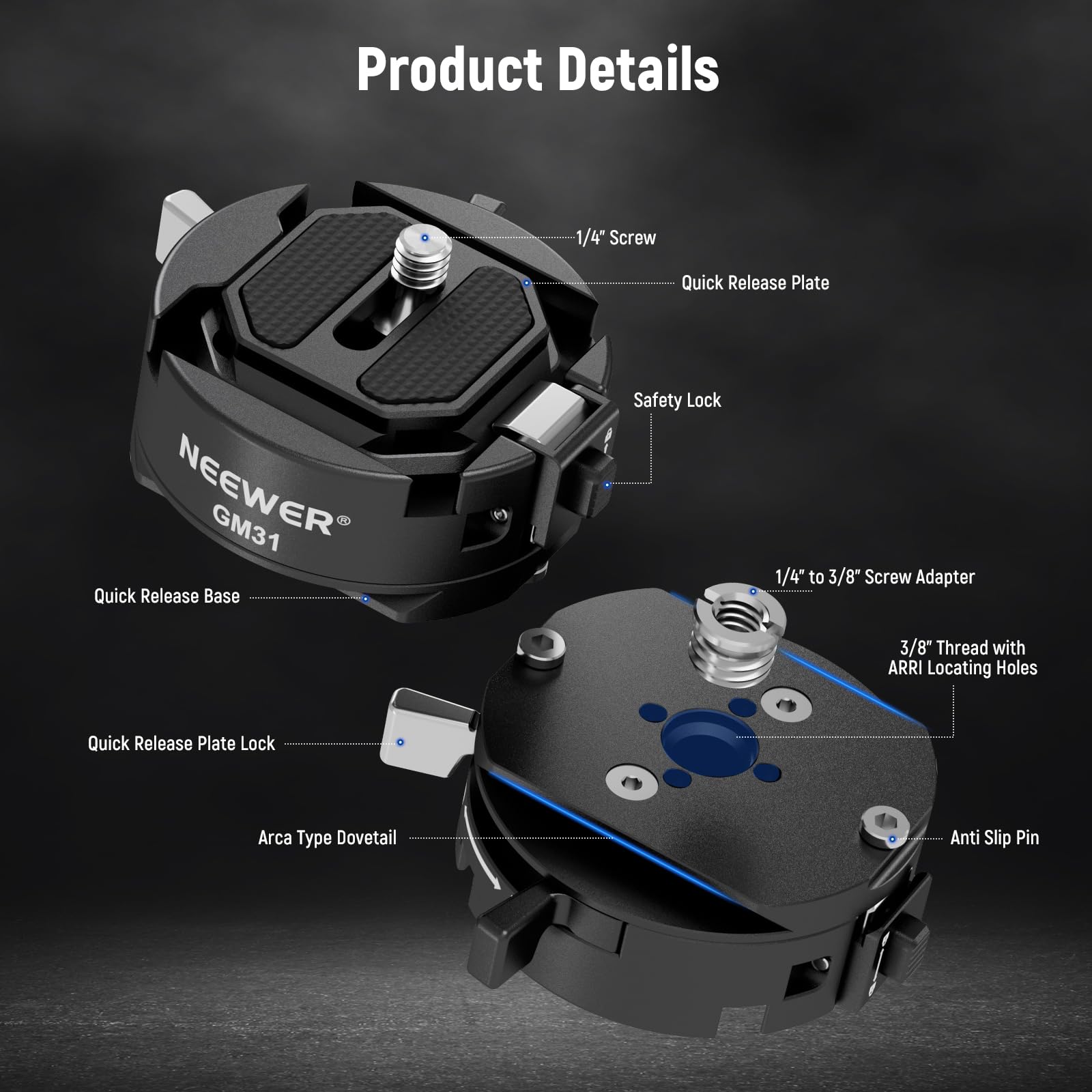

- 【Arca Type Quick Release Clamp Base】 The Arca type dovetails under the clamp base are compatible with Arca Swiss tripod heads. Includes a 3/8" bottom thread and a 1/4" to 3/8" adapter for attaching to the QR plate of gimbal stabilizers, monopods, and sliders. Enables seamless transitions between tripod and handheld shooting

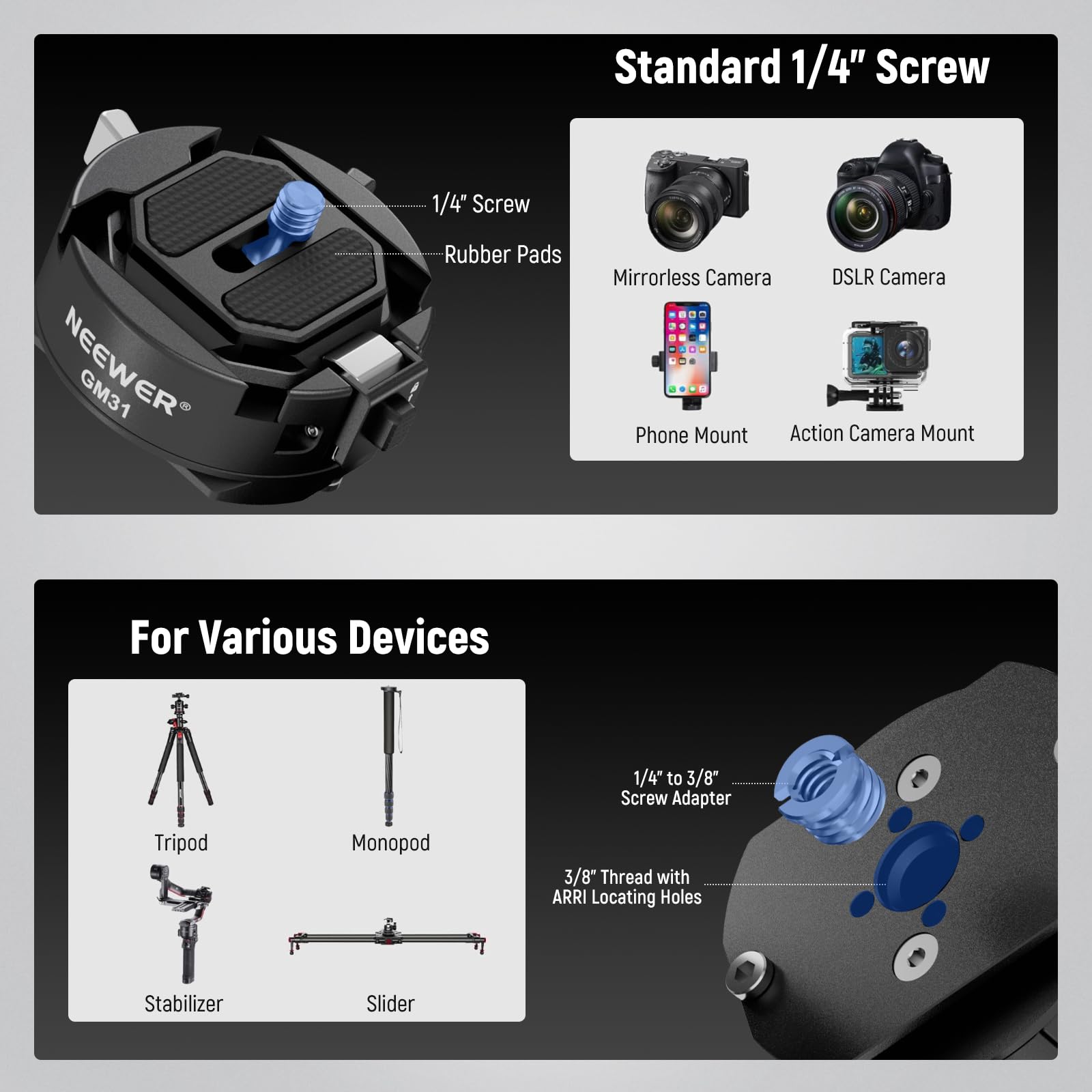

- 【Standard 1/4" Mounting Screw】 Thread the 1/4" mounting screw into your camera's 1/4" screw hole, then use the included L shaped hex key to tighten the screw with security

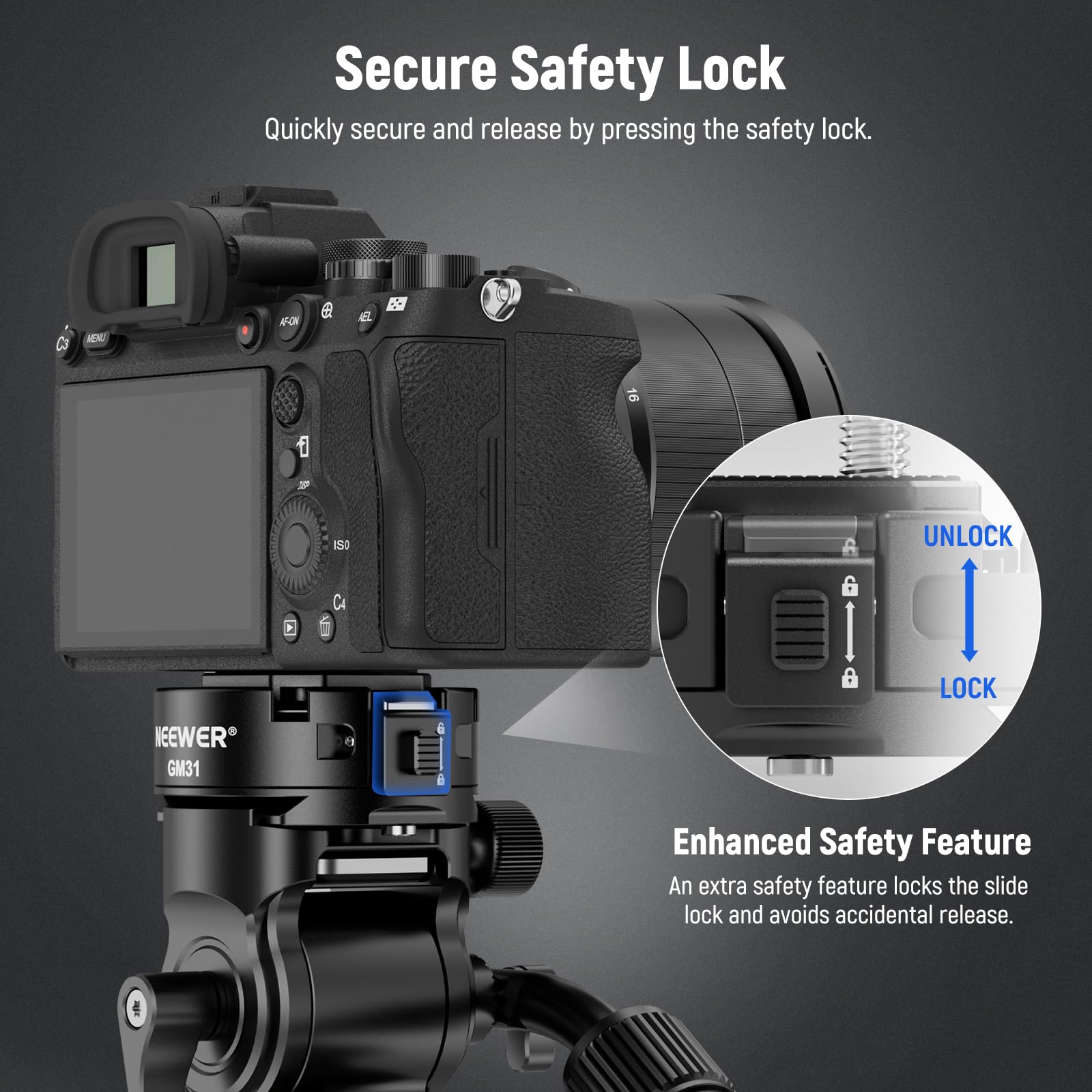

- 【Automatic Locking Mechanism】 Press the camera mounted quick release plate into the clamp by force, then the quick release plate lock will automatically snap to the “lock" position and secure the camera in place

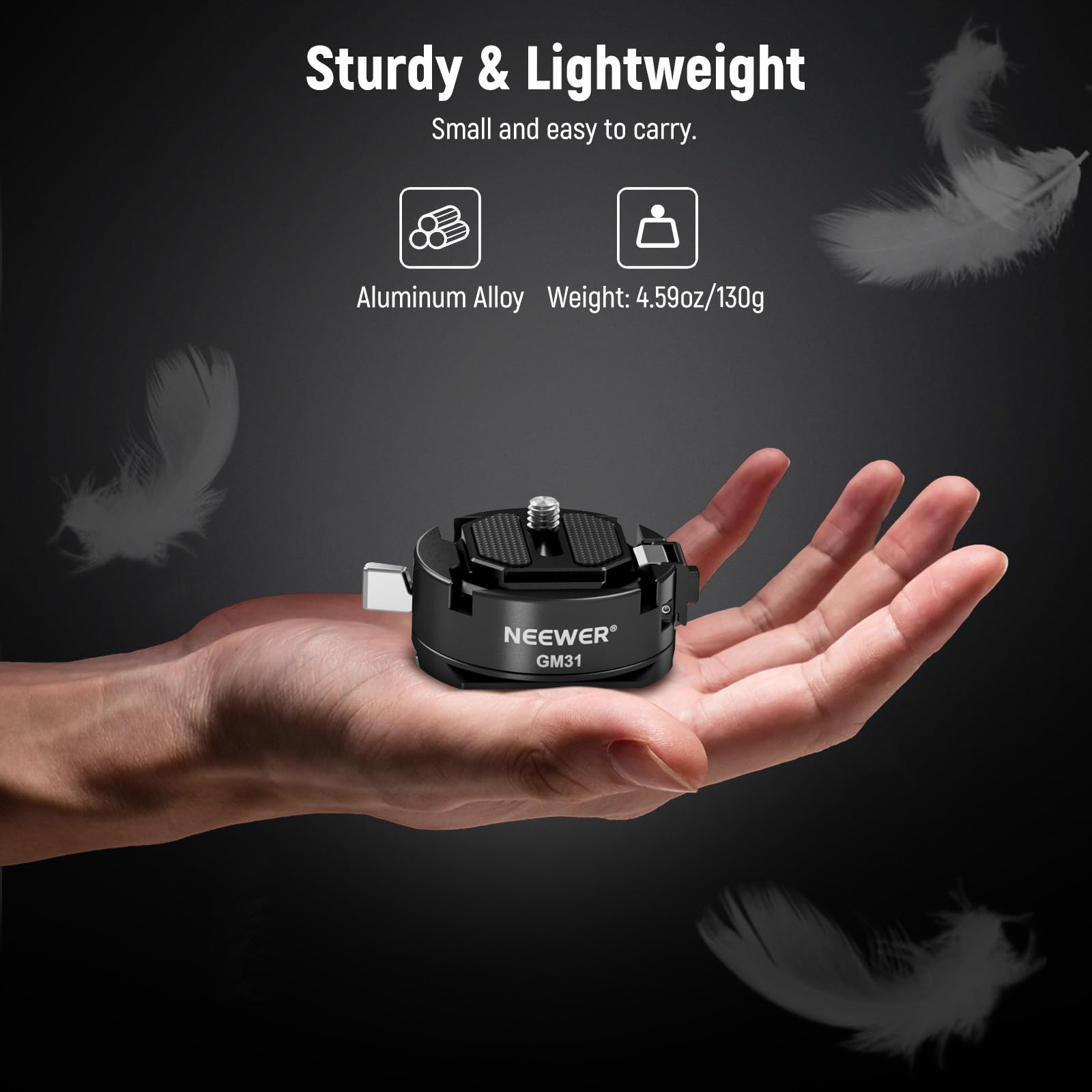

- 【Sturdy & Lightweight Structure】 Made of black anodized aluminum alloy, this quick release plate + clamp set is robust, lightweight, and portable for outdoor shooting. Load capacity: 11lb/5kg
Details: NEEWER GM31 is a quick setup kit that combines a quick release plate and a clamp. Its base is compatible with Arca tripod heads and fluid heads as well as DJI RS 2 RSC 2 RS 3 RS 3 Pro gimbals. A 3/8" socket at the bottom and a 1/4" to 3/8" screw adapter suits most tripods, monopods, and camera sliders. Engineered with black anodized aluminum alloy, this unit is solid yet lightweight, ideal for photography and video recording outdoors and indoors.

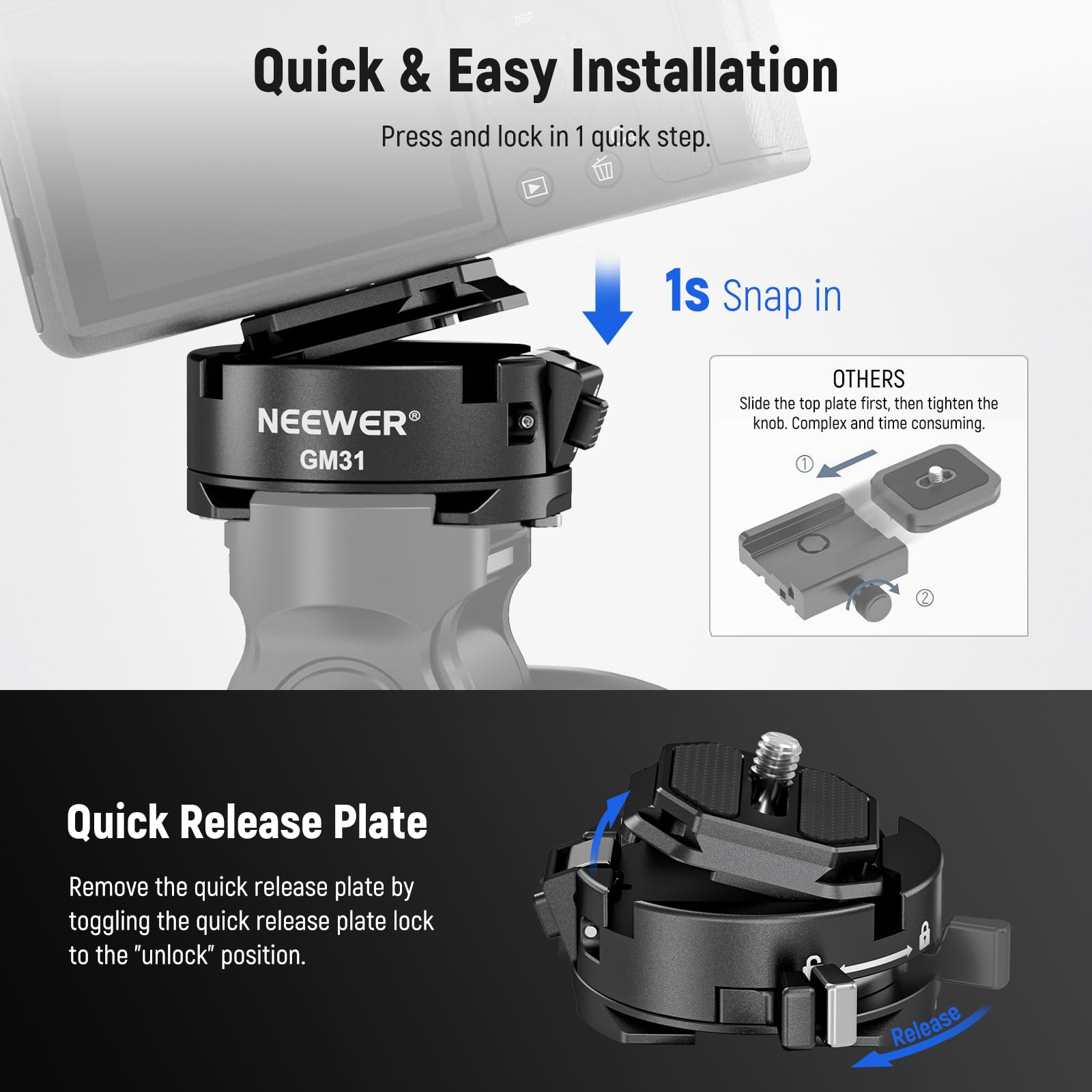

How to use it?
1) Remove the quick release plate by flickering the quick release plate lock is flicked to the “unlock" position.
2) Attach the quick release plate to your camera via the 1/4" screw and use the included L shaped hex key to tighten the screw.
3) Press the quick release plate into the clamp by force, the quick release plate lock will automatically snap to the “lock" position and secure the camera in place.
Specifications
Model: GM31
Material: Aluminum alloy
Load Capacity: 11lb/5kg
Dimensions: 7.1"x3.1"x3"/180x80x75mm
Weight: 4.2oz/120g
Package Contents
1 x Arca Type Rotate Quick Setup Kit
1 x L Shaped Hex Key
Package Dimensions: 2.8 x 2.3 x 1.5 inches
Part Number: 10102709
model number: 10102709
