Nema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe Route
Nema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe Route
Nema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe Route
Nema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe Route
Nema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe Route
Nema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe Route
Roll over image to zoom in Click on image to zoom
Nema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe RouteNema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe RouteNema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe RouteNema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe RouteNema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe RouteNema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe Route

Nema 23 Stepper Motor 2.8A 1.9Nm (269oz.in) 76mm Length with 8mm Shaft for CNC Mill Lathe Route

Save $2.00
HobbyUnlimited*
Price:
$28.00 USD $30.00 USD
Sold via Amazon.com
(paid link)
Note: You will be redirected to Amazon.com to make the purchase. An Amazon.com account is required. Content provided by Amazon.com under terms of Amazon Associates Program.
*Zomdo has no business association with HobbyUnlimited





Report an issue with this product or HobbyUnlimited

Description

Brand: HobbyUnlimited

Features:

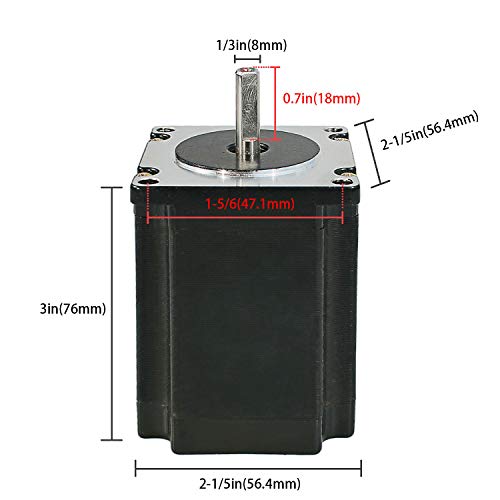

  • Nema 23 stepper motor 76mm length.
  • 2.8A 1.9Nm (269oz.in) torque.
  • 8mm shaft.
  • Recommend using stepper motor driver with voltage of 24-50VDC and at least 3.5A current.
  • Weight: 1.1kg (2.4 lb).

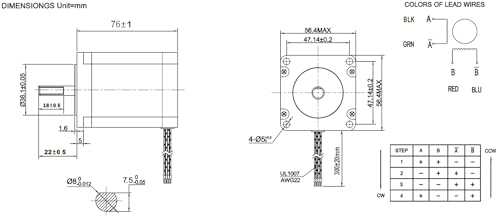

Details: Specifications: Shaft Diameter: 8mm Step Angle: 1.8° Step Accuracy: 5% Holding Torque: 1.9Nm(269oz.in) Rated Current/phase: 2.8A Phase Resistance: 1.13ohms Voltage: 3.2V Inductance: 5.4mH±20%(1KHz) Weight: 1.1kg

Package Dimensions: 7.2 x 3.7 x 3.4 inches
