Nilight 5PCS Automotive General Purpose Relay 4Pin SPNO 20A Micro Cooling Fan Sealed Relay Plug & Play Direct Replacement for Polaris RZR 570 900 1000 SxS Slingshot Ranger Sportsman, 2 Year Warranty

Brand: Nilight

Color: 4Pin Relay

Features:

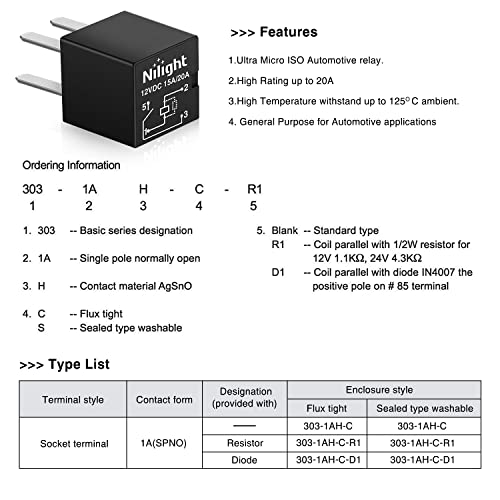

• Compatibility: Direct Replacement for the old or corroded ones in 2012-2015 RZR 570; 2010-2014 RZR 800 All models; 2011-2016 RZR 900 All models; 2014-16 RZR 1000. Please confirm that your relay matches the same model number of 303-1AH-C-R1-U01.
• Type: 4Pin SPNO Relay, High Rating up to 20A. 12 VDC (Sealed Washable). Power consumption: 960 mW. Replace your blown relay with this exact replacement. This relay is located in the fuse panel and most machines use them to control different functions.
• General purpose applications: General purpose for automotive applications in power. Contact Form: SPST (1 Form A), normally open, 20A micro relay that fits right into 4 Pin metripack 280 sockets. It handles 20A but only draws about 1 watt to keep closed. That's ideal for many applications where space is limited and the triggering circuit cannot tolerate much additional load (where relays that draw more trigger power aren't suitable).
• Premium Quality：Nilight premium voltage regulator rectifier is 100% brand new aftermarket unit built to meet OEM specifications. Made by high-grade materials to ensure superior quality and long lifespan. High Temperature withstand up to 125°C ambient.
• Package Includes: 5 PCS Automotive Purpose Relay.

Details: Nilight Automotive Purpose Relays
Nominal Coil Voltage: 12 VDC
Current Rating:20 Amps
Contact Form: SPNO

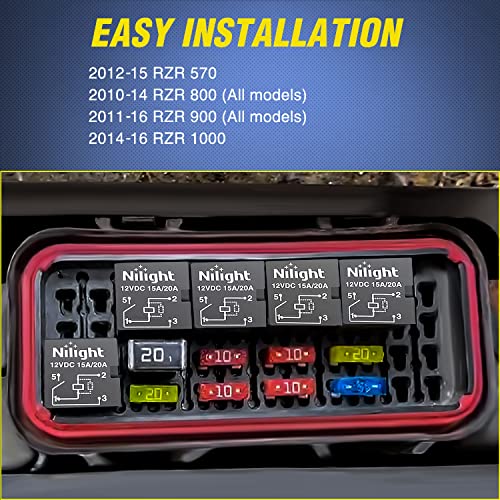

Perfect Fitment：
2012-2015 RZR 570
2010-2014 RZR 800 (All models)
2011-2016 RZR 900 (All models)
2014-2016 RZR 1000
Don't be fooled by other versions that are not sealed for Powersports off-road applications. On ATV's and Side by Sides, the last thing you want is moisture getting in your electrical connections. This is a direct OEM replacement relay for Polaris OEM Part numbers 4011283, and 4016819. The number on the relay reads 303-1AH-C-R1-U01-12VDC. These units are also sealed; so, in combination with a sealed base, are good for motorcycle, marine, and rugged automotive applications where components are predicted to get wet (not immersed, but exposed).This relay powers the cooling fan on many Polaris ATV's and Side by Sides from 2010 to current year models.

EAN: 0840323901666

Package Dimensions: 3.7 x 1.7 x 1.0 inches

Part Number: 50077D

model number: 50077D
