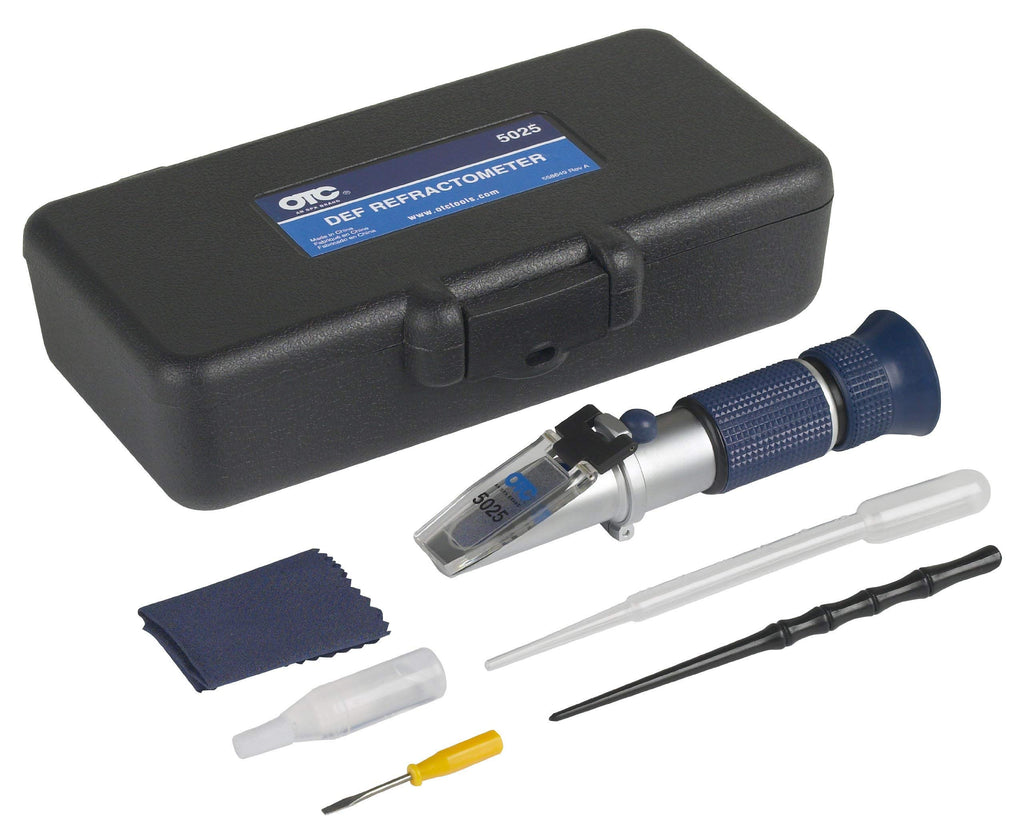

OTC 5025 Diesel Exhaust Fluid (DEF) Refractometer

Brand: OTC

Features:

• The refractometer is a portable precision optical instrument used for measuring the diesel exhaust fluid concentration
• When a liquid sample is placed on the prism the light passing through it is bent and the more concentrated the liquid the more the light will bend
• The refractometer contains a reticle or scale that is enlarged through the eyepiece to measure this light and the values on the scale have been established to evaluate the DEF condition
• EPA regulations require all diesel engines manufactured on or after January 1 2010 to meet lowered NOx emissions standards
• Most heavy duty engine manufacturers have chosen to utilize SCR including Detroit Diesel DD13 DD15 DD16 Cummins ISX line PACCAR and Volvo-Mack

Details: The Refractometer is a portable, precision, optical instrument used for measuring the Diesel Exhaust Fluid (DEF) concentration. When a liquid sample is placed on the prism, the light passing through it is bent. The more concentrated the liquid, the more the light will bend. The Refractometer contains a reticle, or scale, that is enlarged through the eyepiece to measure this light. The values on the scale have been established to evaluate the DEF condition. EPA regulations require all diesel engines manufactured on or after January 1, 2010 to meet lowered NOx emissions standards. Most heavy duty engine (Class 7-8 trucks) manufacturers, have chosen to utilize SCR. This Includes Detroit Diesel (DD13, DD15, and DD16 models), Cummins (ISX line), PACCAR, and Volvo/Mack. SCR-equipped engines require the periodic addition of Diesel Exhaust Fluid (DEF, a urea solution) to enable the process. DEF is available in a bottle from most truck stops, and some have installed bulk DEF dispensers near the Diesel Fuel pumps. However, to ensure the proper operation of the SCR system, operators must ensure the DEF in their vehicle consists of a 32.5 percentage Urea/Water solution. It makes this a simple and quick process for an operator or technician. Scale: 0.5 percentage, line graduations 32.5 percentage, indicated scale 15-40 percentage, waterline, and 20 degree Celsius kit includes Refractometer, dropper, lens wipe cloth, instructions and quick guide, screwdriver and case.

EAN: 0731413559846

Release Date: 02-08-2011

Package Dimensions: 12.3 x 5.8 x 2.8 inches

Binding: Automotive

Part Number: 5025

model number: 5025
