Pair of 5-Bolt On 4-1/2 Inch Hub Assembly (AKSQ-2200545) Includes (2) Square Shaft 1-1/16 Inch Straight Spindles & Bearings

Brand: RIGID HITCH INCORPORATED

Color: Black

Features:

• Pair of 1-1/16" straight spindles includes castle nuts and cotter pins.
• Bearings included - (4) L-44649 1-1/16" inside dimension.
• Hubs have pre-installed pressed in races.

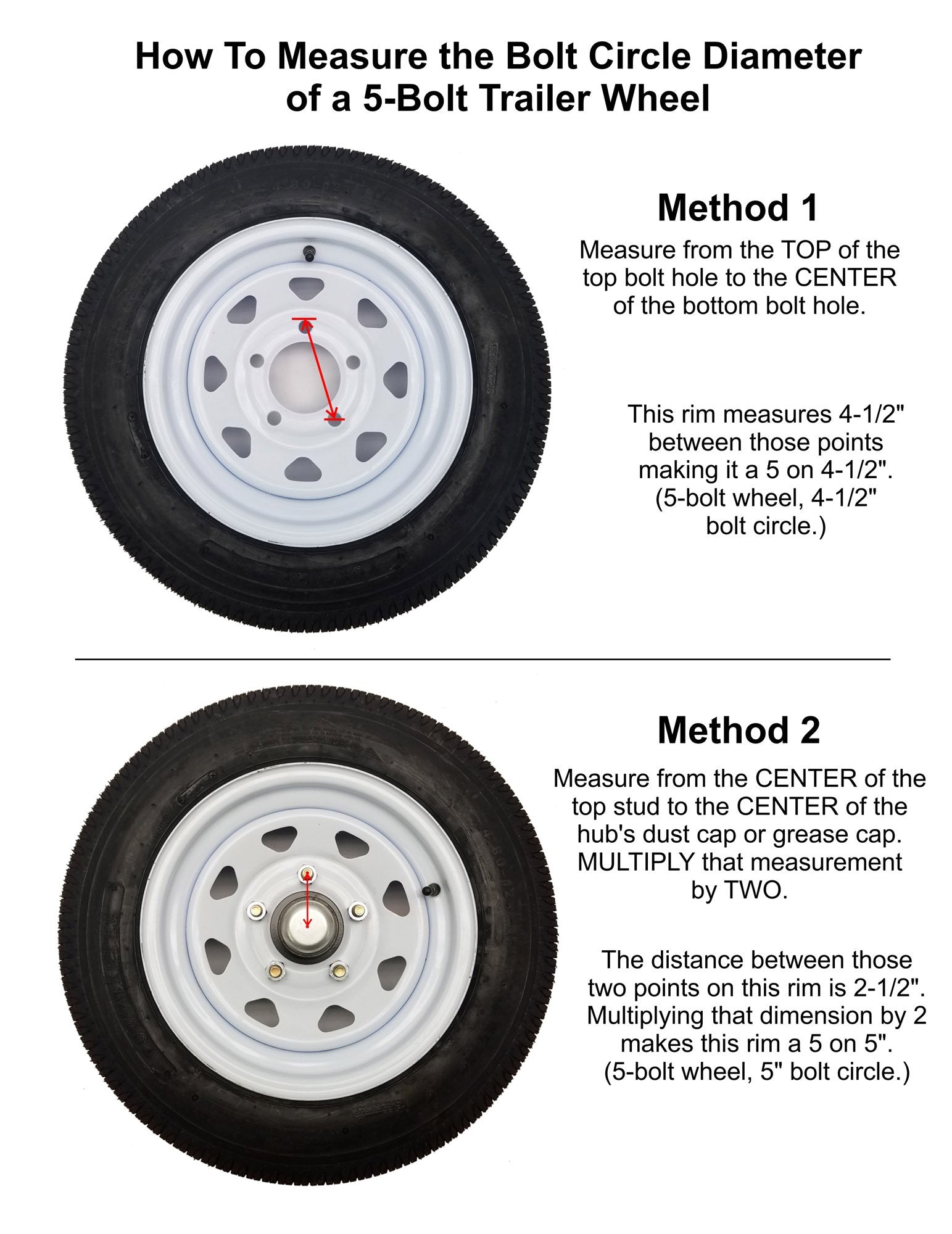

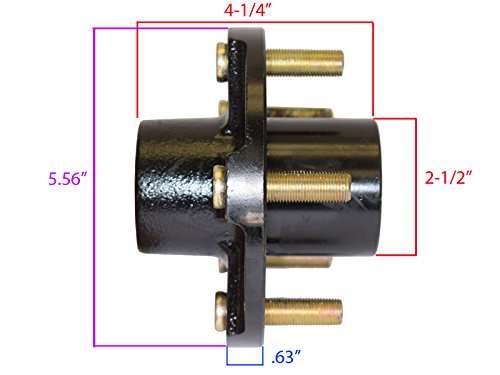

• Hub has a 5-bolt pattern on 4-1/2" bolt circle. Pilot diameter 2-1/2", flange diameter 5.56" and measures 4-1/4" tall (through center of hub)

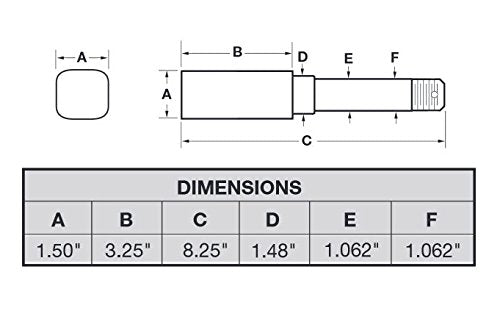

• Spindles feature a 1-1/2" SQUARE stock diameter with a bearing surface of 1-1/16 inch.

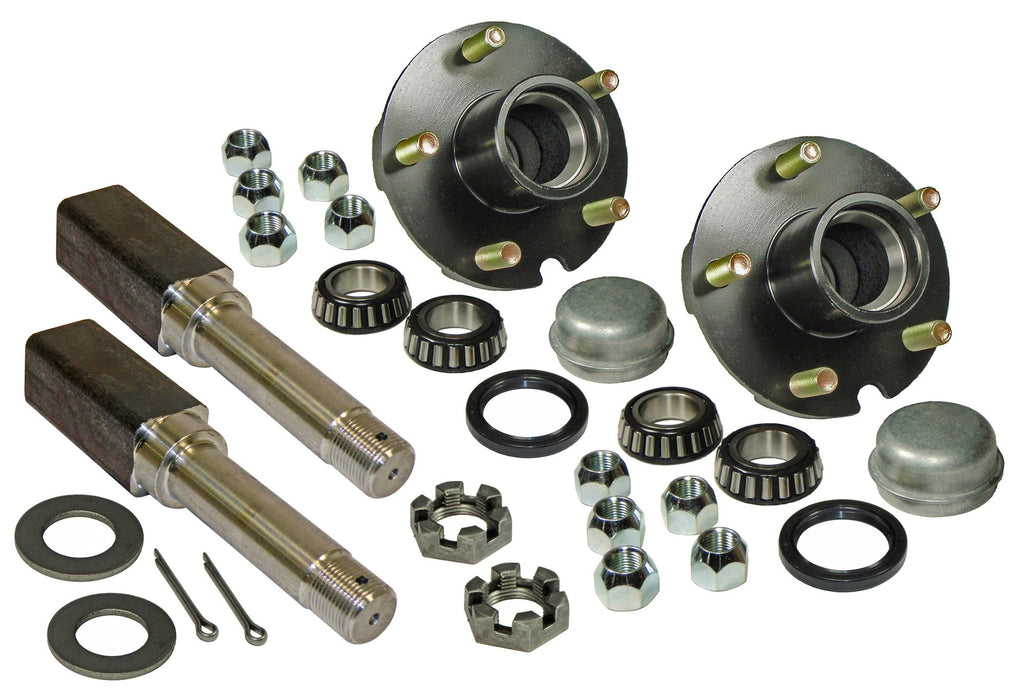

Details: Easily build your own axle with this 2,200 lb rated hub assembly. This kit includes (2) - 5-Bolt on 4-1/2 inch bolt center hubs for 2,200 lb axles, (2) - 1-1/16" straight spindles, (2) castle nuts, (2) cotter pins, (10) 1/2-20 lug nuts, (2) 1.987 O.D - 1.50 I.D double lipped grease seals, (4) L-44649 1-1/16" I.D inner/outer bearings and (2) 1.986 O.D - 1.16" depth, dust caps. PLEASE NOTE: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.

Package Dimensions: 11.5 x 8.3 x 4.8 inches

Binding: Toy

Part Number: AKSQ-2200545

model number: 4332989139
