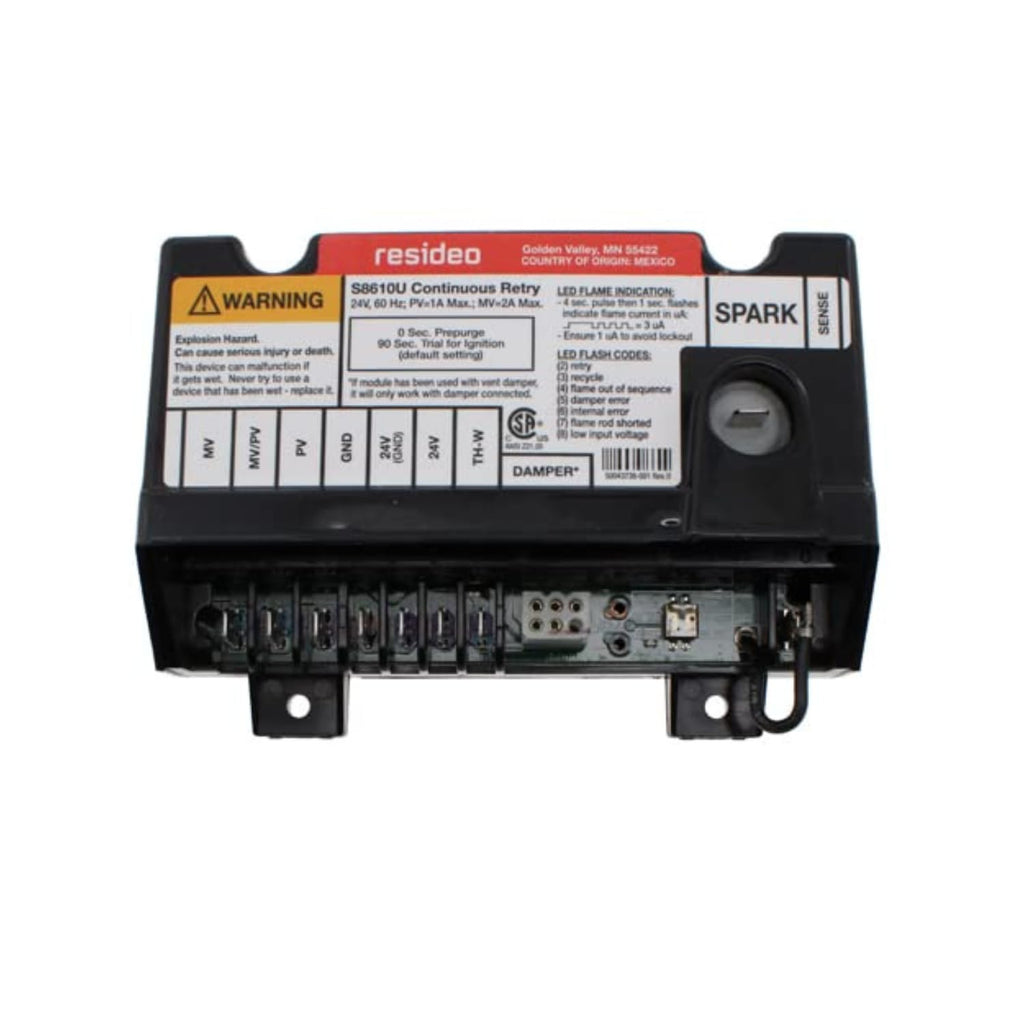

Replacement for Honeywell Furnace Integrated Pilot Module Ignition Control Circuit Board S8610U

Brand: Honeywell

Features:

• Resideo (Honeywell spun off it's residential division in 2018. Newer units are labeled Resideo)
• This controller provides ignition sequence, flame monitoring, and safety shutoff for intermittent pilot central furnaces, residential boilers, and other heating appliances
• This control module is NOT designed to replace controls in applications with: Flame Sensing other than by flame rectification, standing pilot appliances, direct main burner ignition
• On this model, unlike previous Honeywell S86XXXX models, the transformer secondary hot (switched leg- call for heat from thermostat) goes to terminal TH-W and NOT to terminal 24V in most cases, if there is not automatic vent damper. See accompanying documentation for details

Details: This is a Brand New Upgraded Furnace Pilot Ignition Control Circuit Board.

Package Dimensions: 6.3 x 4.5 x 3.1 inches

Part Number: Replaces part # S8610U

model number: S8610U3009
