RKURCK 125-250V AC 50V DC Push Button Circuit Breaker 10Amp Thermal Overload Protector L1 Series Manual Reset Thermal Circuit Breaker 10A

Brand: RKURCK

Color: 10A

Features:

• Compact, single pole, push-to-reset thermal circuit breakers
• Manual Reset 125-250V AC 50V DC Push Button Switch Thermal Circuit Breaker
• Operating Temperature: -10oC (14oF) to 60oC (140oF)
• Interrupt Capacity:1,000 Amps

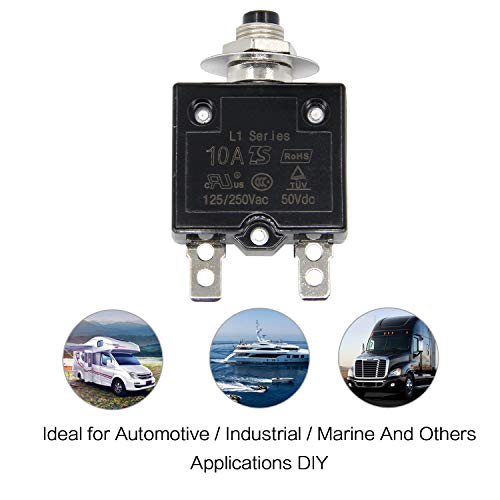

• Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, and power supplies

Details: Product description:
It is a compact, single pole, push-to-reset thermal circuit breakers
Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, and power supplies

Specifications:
Item Type: Push-button Thermal Circuit Breakers
Series: L1
Weight：0.25 ounces

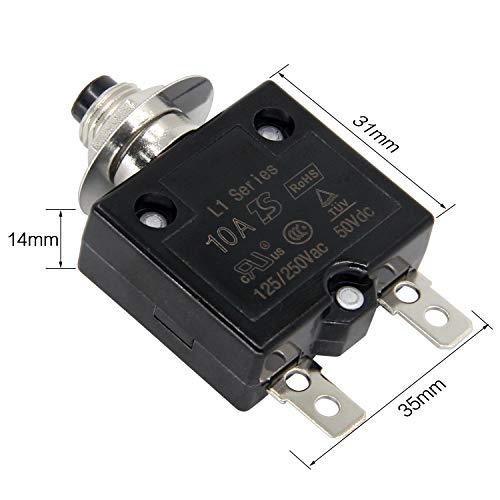

Size: 35 x 31 x 14mm/1.38 x 1.22 x 0.55"
Voltage: 125-250V AC; 50V DC
Current: 3A -50A
Rated current: 10A
Reset type: Manual reset
Operating temperature: -10℃ (14℉)~ 60℃ (140℉)
Interrupt capacity: 1000 amps
Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, and power supplies

Package inckuded:
1 x Manual Reset Thermal Circuit Breaker 10A
1* Hex Nut
1* Grip Nut Ring

Package Dimensions: 5.5 x 4.0 x 0.6 inches

Binding: Tools & Home Improvement

Part Number: L1BLACKMAO10

model number: L1BLACKMAO10
