Description
Brand: Rockville
Color: White
Features:
- . (1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth. (3) Pair of JBL LCT 81C/T Commercial Drop Ceiling Tile Speakers For Office/Restaurant/Cafe. (2) Pair of JBL CONTROL 16C/T 6.5" 30w 70v Commercial Ceiling Speakers For Restaurant/Bar. Includes: Amplifier. Remote. Rack mount ears. Power Cable. FM Radio antenna. Owner's manual. Warranty. Applications: Restaurant. Bar. Cafe. School. Lounge. Home (Multi-zone, Multi-room). Office. Warehouse. Features:

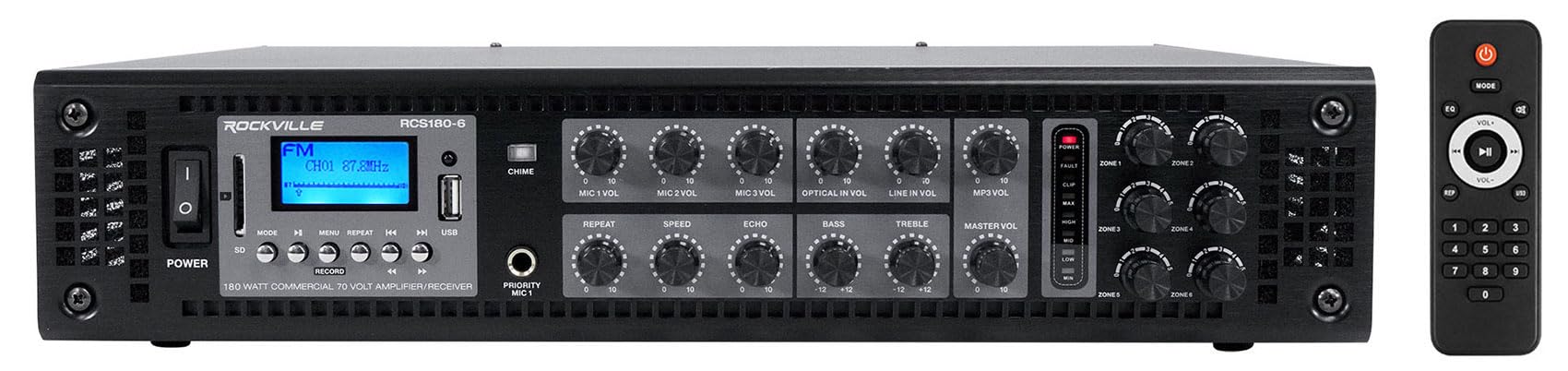

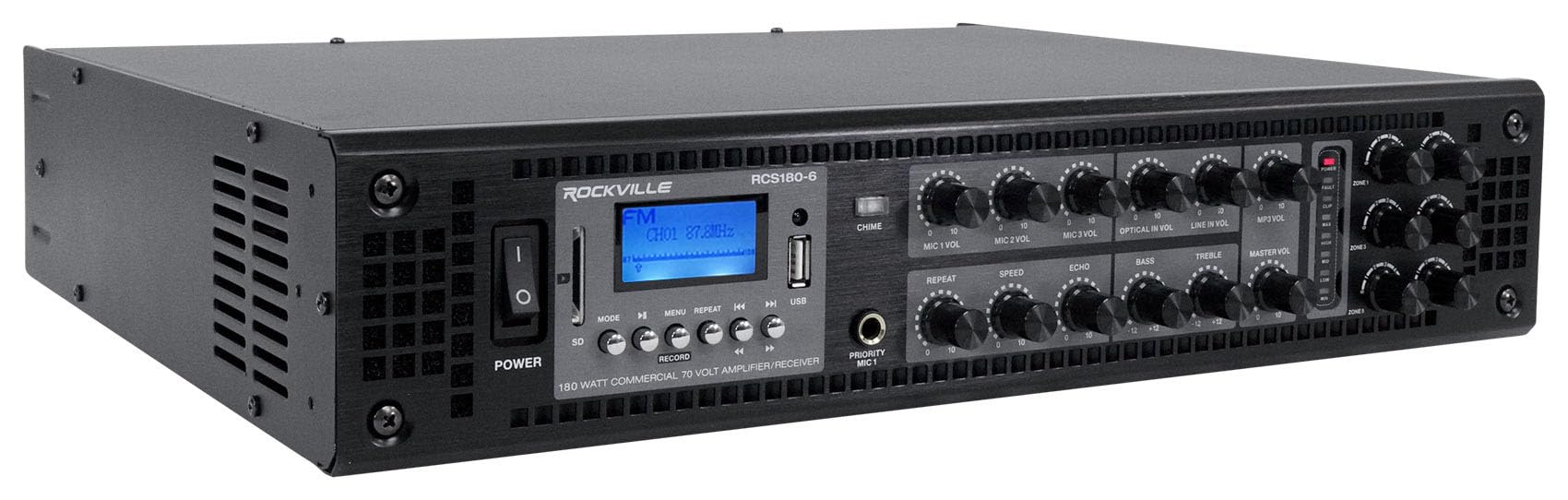

- Rockville RCS180-6350 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver. Capable of 70 volt, 100 volt, 8ohm, and 4 ohm. 70/100 volt RMS Power: 184 Watts. 4-16 ohm binding post speaker output. 6-Zones of speaker outputs - each zone has a separate volume control. 70 and 100 volt binding post outputs for single zone playback of all 180 watts. Built in Bluetooth audio streaming. FM radio tuner
- USB input to play audio stored on a thumb drive (32gb max). SD card slot to play music stored on an SD Card (32gb max). Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3. Echo control for the mic inputs with speed and repeat adjustments. Built in clipping limiter to protect the amp and speakers. BASS and Treble control. Detachable euro-block speaker output terminals for easy installation. Chime button for making announcements

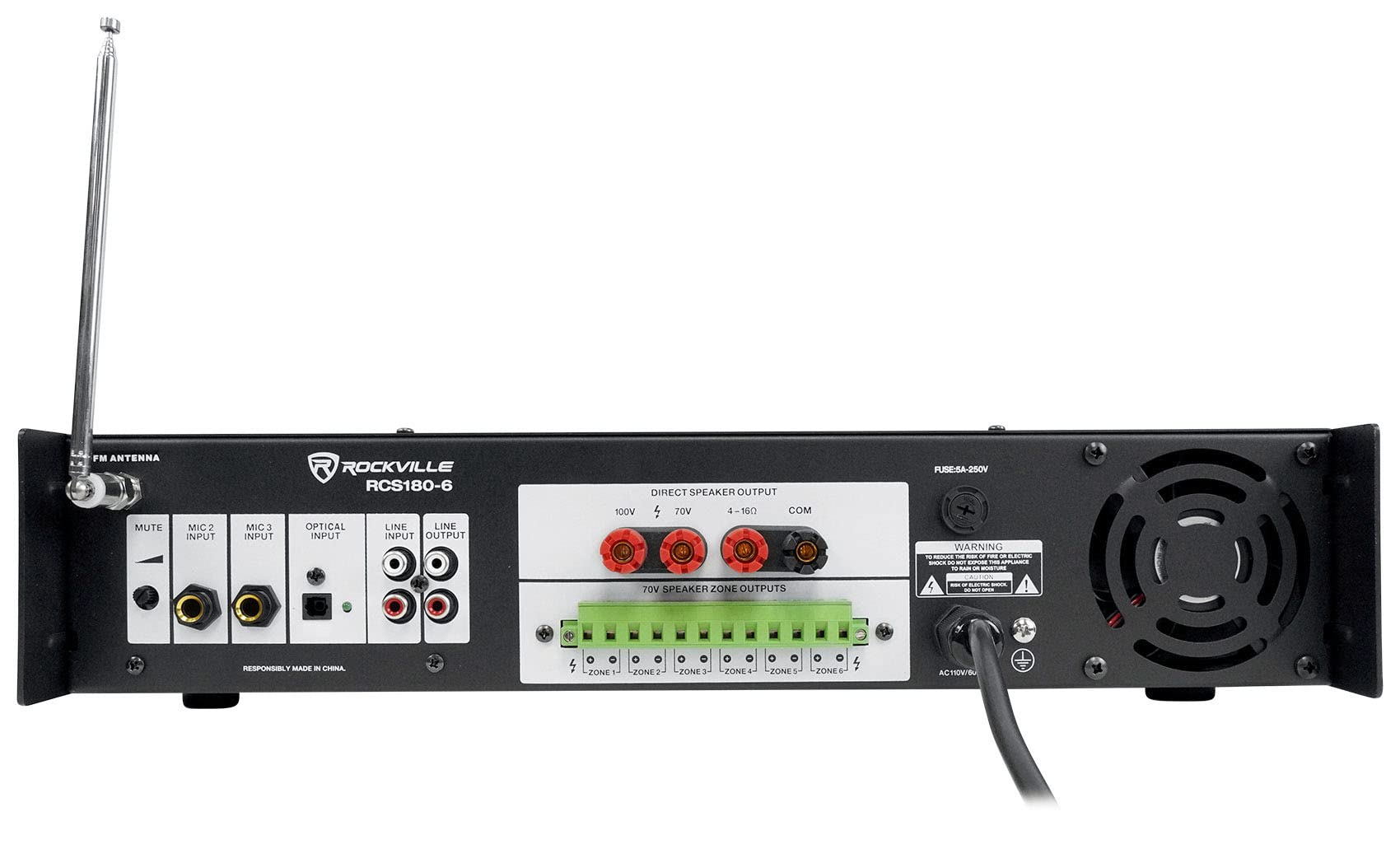

- Top quality aluminum panel with industrial grade knobs. 5 segments signal level indication. Built in cooling system keeps component cool at all times. Inputs and Outputs: (2) Sets RCA AUX inputs. (3) Mic inputs. RCA Line output. Optical input. Detachable euro-block speaker output terminals for easy installation. 100V speaker red positive speaker output terminal. 70V speaker red positive speaker output terminal. 8 Ohm red positive speaker output terminal. Shared negative speaker output terminal
- Specifications: Power Requirements: 120V / 50-60Hz. A Weighted Signal to Noise (@ 1W) -68.1dBA. A Weighted Signal to Noise (referenced to full 4 ohm power) -89.2dBA. Frequency response: 49Hz to 14.9 Khz. Frequency Response VS THD+M (worst case across normal bandwidth 1W @ 8 Ohms: 0.89%. Weight: 22.7lbs. Dimensions: 19" x 16" x 4" inches. . High efficiency 200 mm (8 in) dual-cone driver.

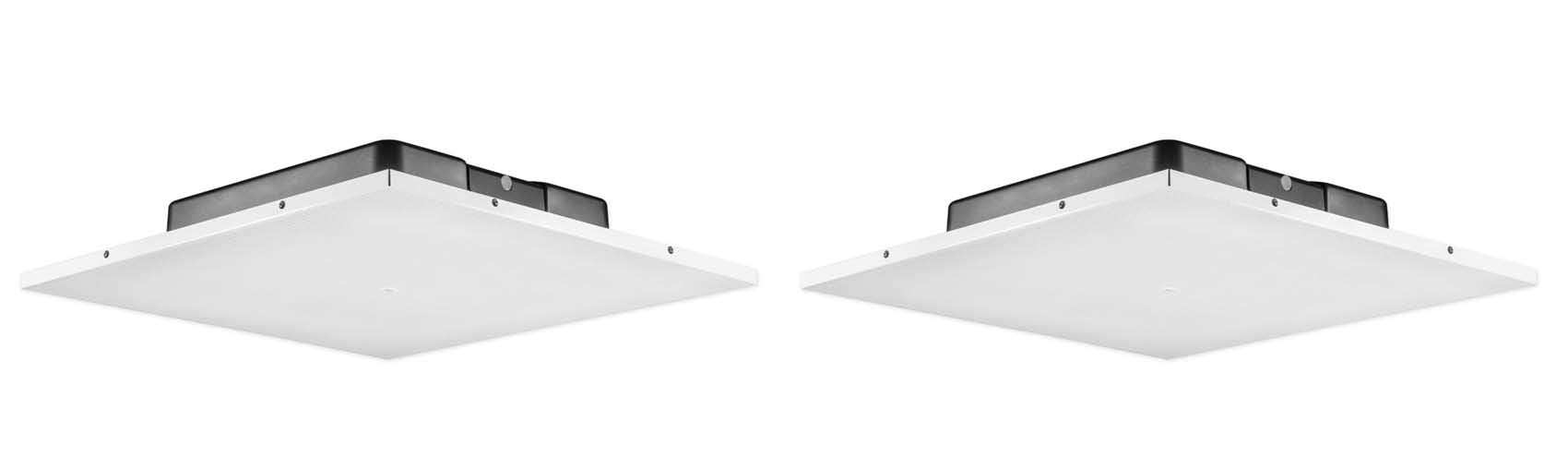

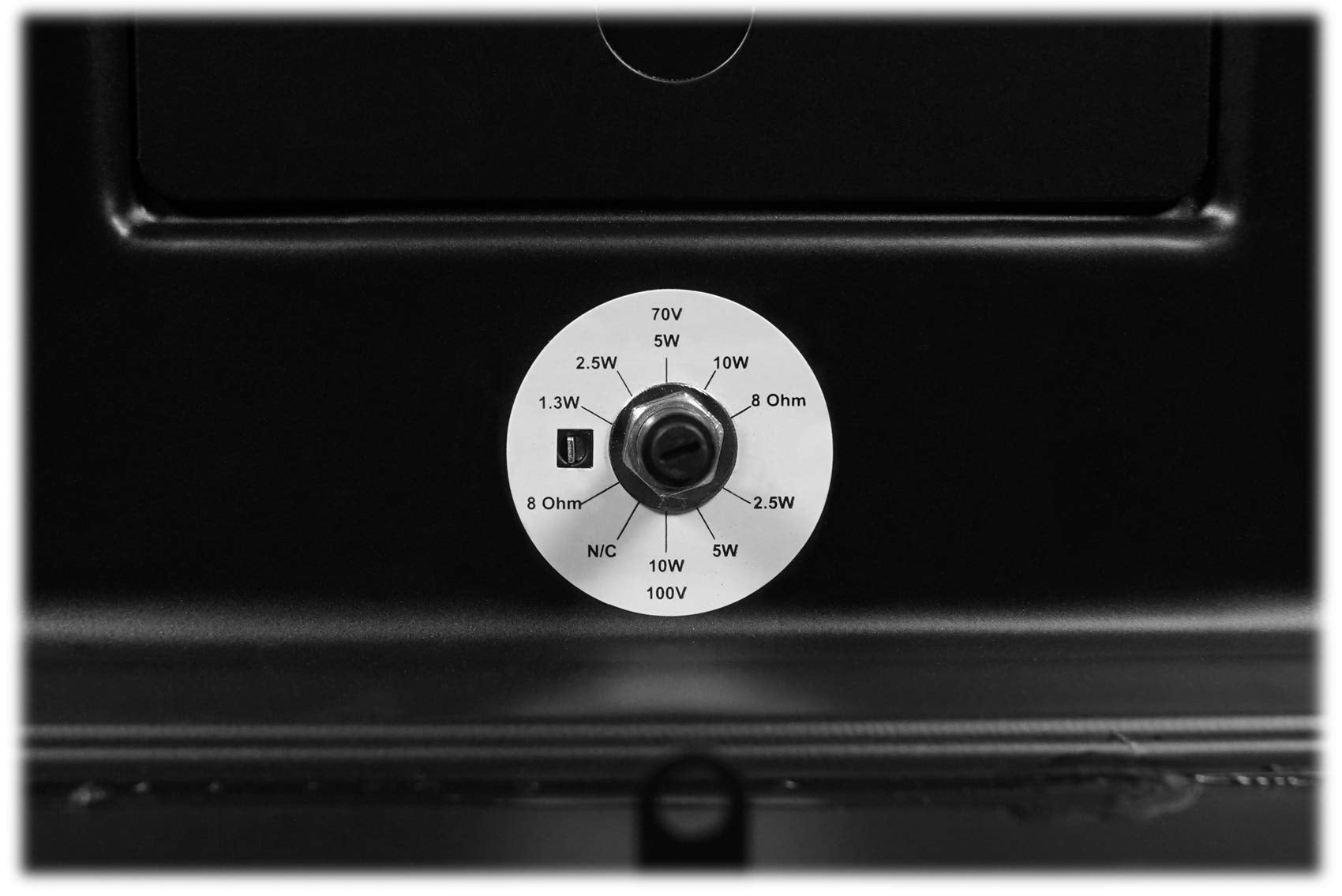

Details: Easy lay-in installation into 2' x 2' US-style suspended grid ceilings. No cutting of ceiling tiles is necessary.. Perforated metal grille included.. Combined 70V/100V and low impedance direct operation.. 20 Watts at 8O (low-impedance) direct setting.. 10 Watt multi-tap at 70V/100V with taps at 10W, 5W, 2.5W (and 1.3W for 70V only). Very low-profile at just 103 mm (4.1 in) deep, to fit into ceilings that are shallow or that contain obstructions.. Easy bare-wire connection in protected compartment. Wire entrance from either top or side via knock-out.. Very high 96 dB sensitivity turns power from small amplifiers into maximum sound level for listeners.. Designed for high speech intelligibility.. 100 degree coverage pattern (conical).. UL1480A and UL2043 certifications for use in ceiling plenum spaces.. . Transducer:High-efficiency 200 mm (8 inch) dual-cone driver with 25 mm (1 in) diameter voice coil, Kapton coil former, and high-temperature voice coil wire.. Frequency Range (-10 dB):100 Hz - 16 kHz. Nominal Sensitivity:96 dB. Nominal Coverage Angle:100 degree conical coverage (ave. 1 kHz - 4 kHz). Rated Maximum SPL:108 dB @ 1 m (3.3 ft) average, 108 dB peak (at 8O setting). Nominal Impedance:8 ohms (in Direct/Thru 8O setting). Transformer Taps:10 W, 5 W, 2.5 W @ 70V or 100V (plus 1.3 W @ 70V only). Recommended Protective High Pass:90 Hz high-pass (24 dB/oct) for 8O direct or any 70V or 100V tap setting. Power Capacity (at low-Z): 40 Watts Continuous Program Power. 20 Watts Continuous Pink Noise. Input Connector:Bare wire inside protected in touch-proof wiringcompartment.. Tap Selector:Rotary switch accessible from side of backcan. Materials:Steel rear enclosure, front baffle, and perforated grille. Grille Color:White. Safety Agency:Suitable for use in air handling spaces certified per UL1480A, Speakers for Commercial and Professional Use; UL2043, Standard for Fire Test for Heat and Visible Smoke Release for Discrete Products Installed in Air Handling Spaces
Package Dimensions: 21.0 x 18.9 x 7.1 inches
Binding: Electronics
Part Number: RCS180-6+(3)LCT 81CT+(2)CONTROL 16C-T-AM
model number: RCS180-6+(3)LCT 81CT+(2)CONTROL 16C-T-AM
