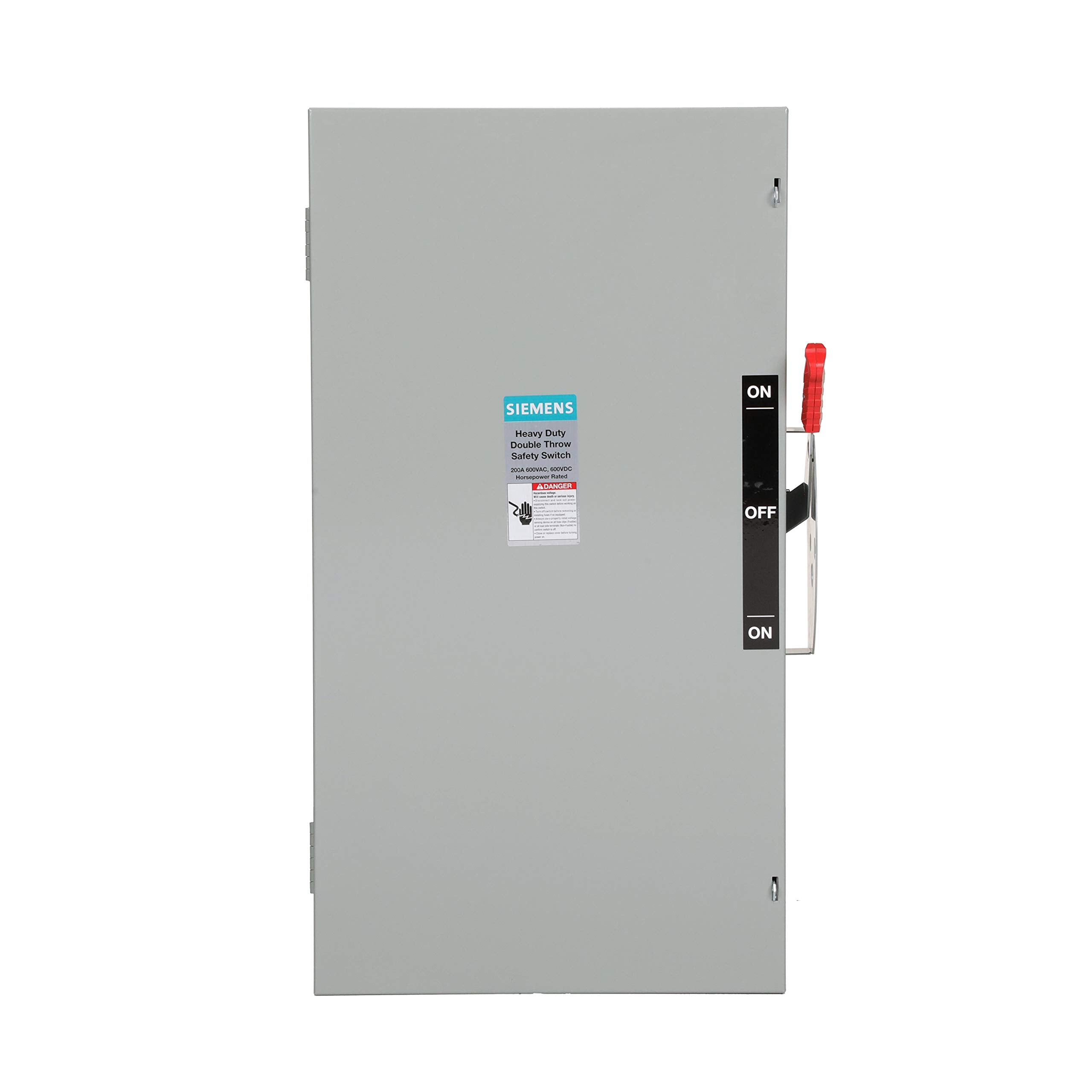

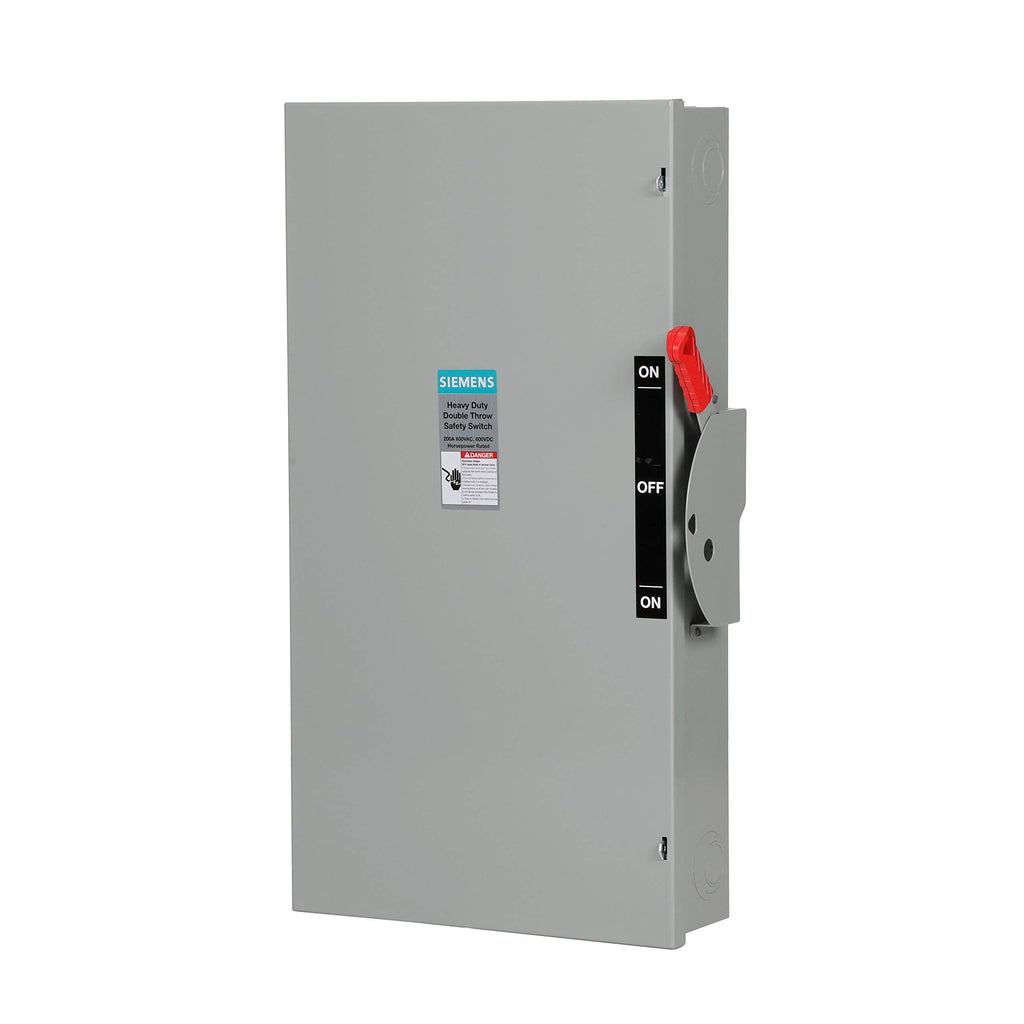

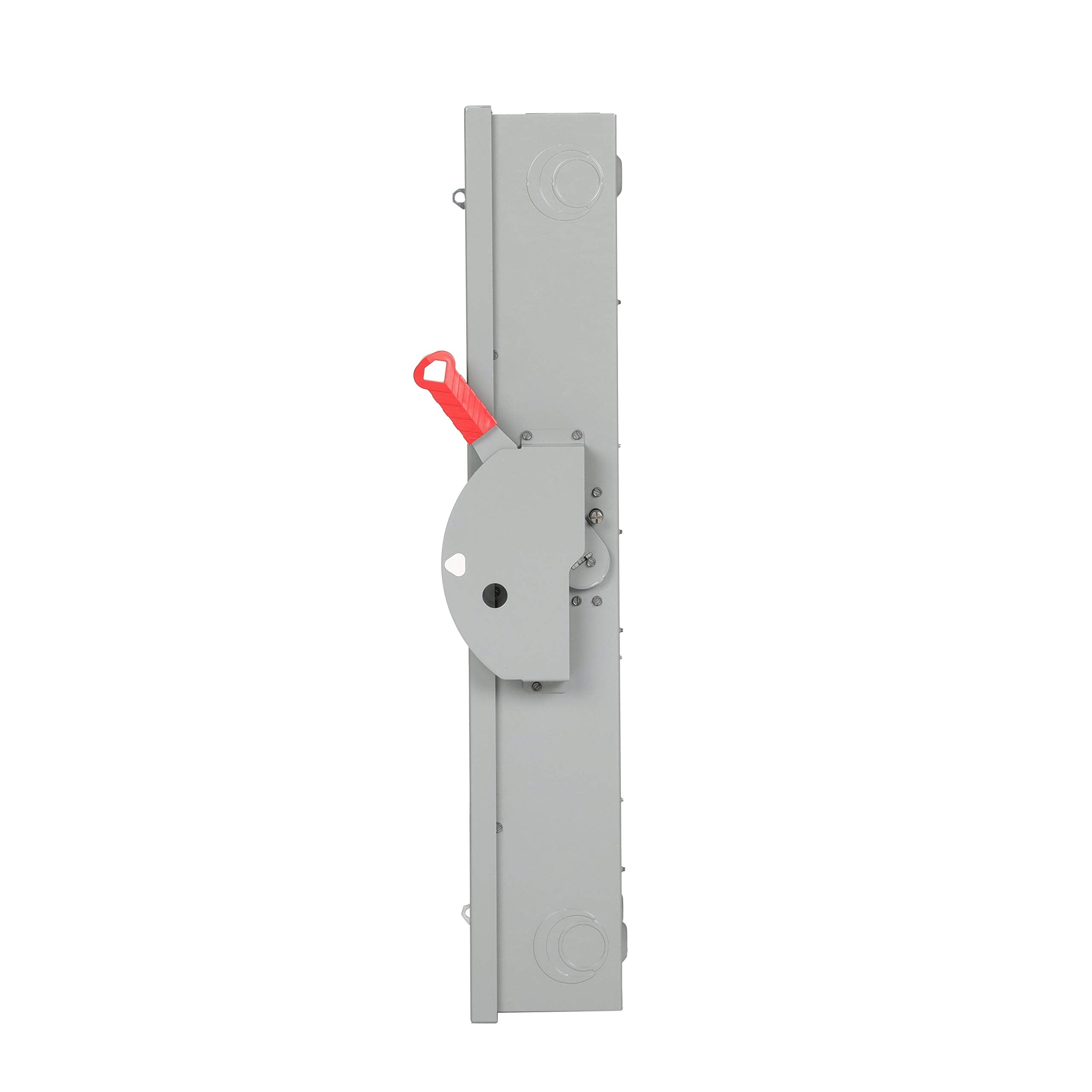

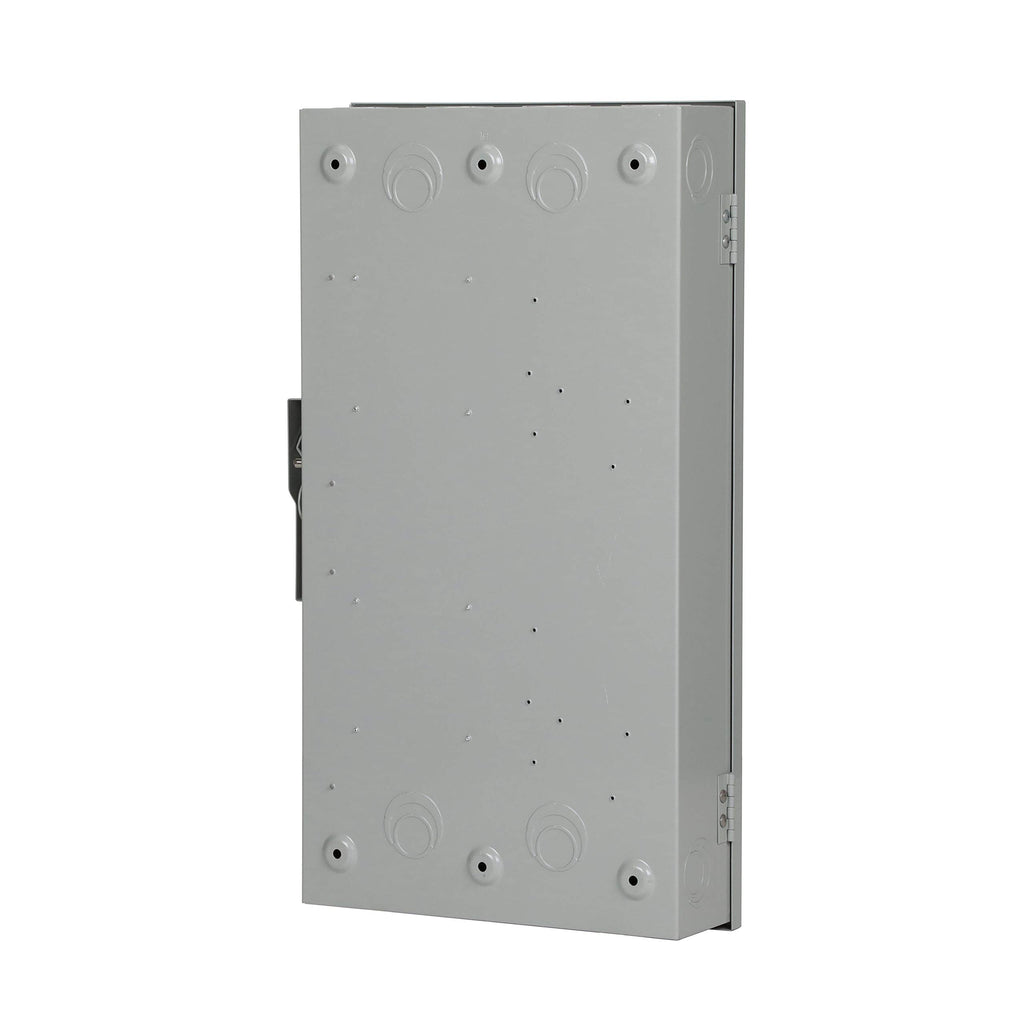

Siemens DTNF364 200-Amp, 3 Pole, 600-volt, 3 Wire, Non-Fused Double Throw, Type 1

Brand: SIEMENS

Features:

• This is a 200 Amp, 3 Pole, 600V, 3 Wire, Non-Fused DT, Type 1
• Quick-make and break switching action
• Double break visible blade design
• Front removable lugs which can easily be converted to copper body or compression type lugs

Details: Siemens double throw switches are intended to transfer loads from one power source to another. All 2 & 3-pole double throw switches are suitable for use as service equipment including non-fusible versions when used in combination with a UL listed circuit breaker or fusible switch. All are UL Listed and both horsepower and load break rated. Switches are rated for use on systems up to 10,000A when protected with Class H fuses or 100,000A when protected with Class R or Class T fuses. They can also be used to connect a single source of power to either of two loads.

EAN: 0783643454330

Package Dimensions: 41.0 x 24.0 x 11.0 inches

Binding: Tools & Home Improvement

Part Number: DTNF364

model number: DTNF364
