Siemens MC2040B1200EFC 20 Space 40 Circuit 200 Amp Flush Mount Meter Load Center Combination with Ring Type Cover

Brand: SIEMENS

Features:

• Uses Electric enter HC type hubs for underground feed
• For overhead or underground feed applications
• Check with local utility for approval before installing
• UL Listed Panel

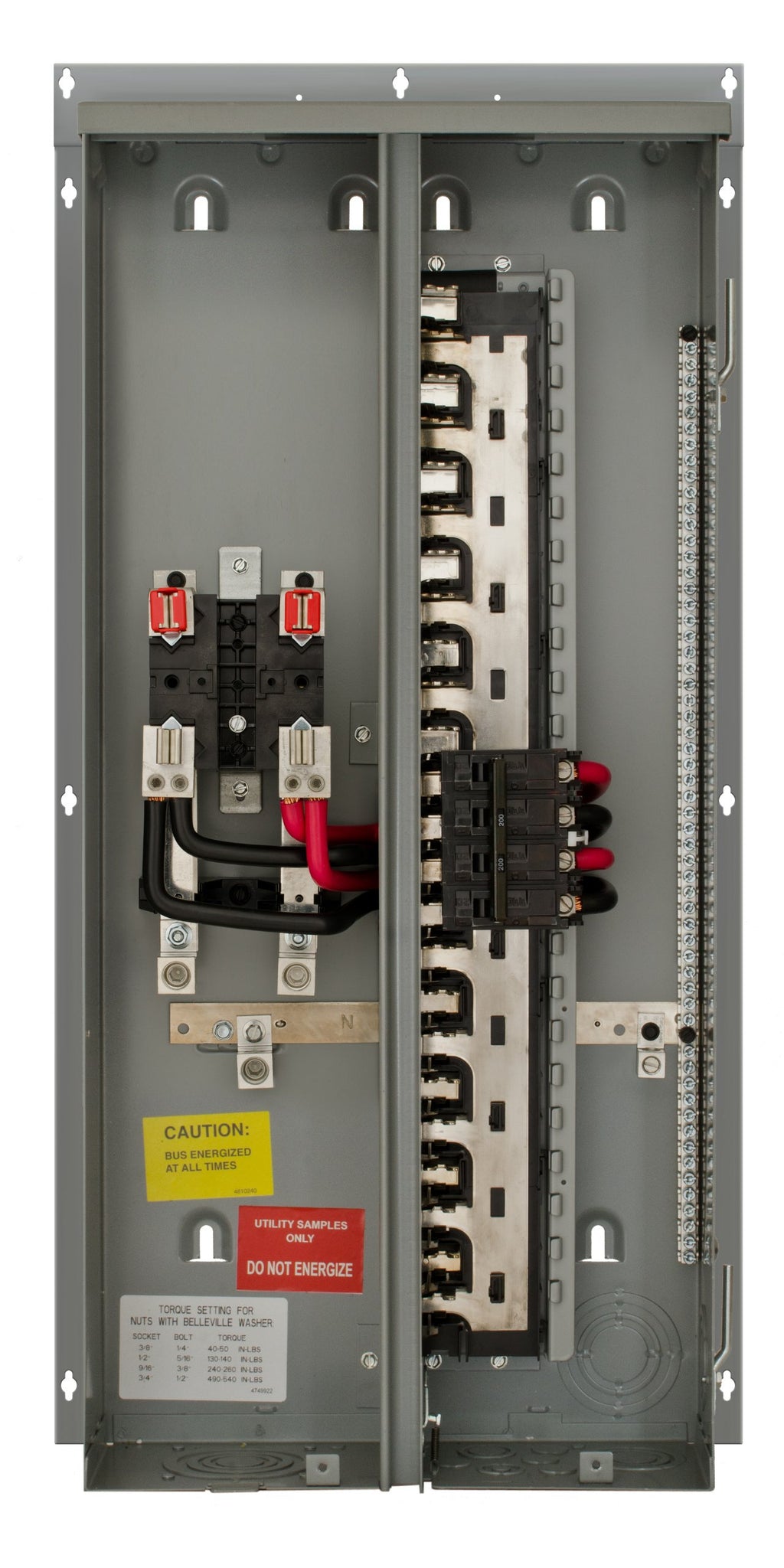

Details: The MC2040B1200EFC is a 200 Amp rated meter-load center combination rated for use in utility areas that require the EUSERC standards be followed. A 200 Amp main breaker is installed along with a 20 space, 40 circuit interior. The enclosure is flush mount, NEMA 3R (outdoor) rated and is fabricated from Galvanized steel with a baked on polyester powder coating finish. The enclosure is designed to fit between standard 16" centered studs. The meter cover is ring type and the ring is provided. For bottom feed applications, use Electric enter "HC" class of hubs (ECHC200, ECHC250, ECHC300).

EAN: 0040892996838

Package Dimensions: 33.5 x 18.0 x 8.3 inches

Binding: Tools & Home Improvement

Part Number: MC2040B1200EFC

model number: MC2040B1200EFC
