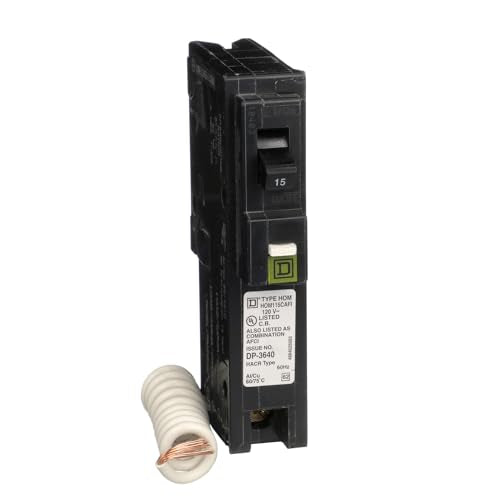

Square D by Schneider Electric Homeline 15 Amp Mini Circuit Breaker, 1 Pole, 120V AC, 10kA Breaking Capacity, Plug in Mount, CAFI/CAFCI, Pigtail Neutral Residential Use (HOM115CAFIC)

Brand: Schneider Electric

Color: Black

Features:

• RESIDENTIAL CIRCUIT PROTECTION: Square D Homeline Miniature Circuit Breakers are engineered and designed for fast installation and superior circuit protection; This Combination Arc Fault Circuit Interrupter protect against overloads and short-circuits
• EASY TO INSTALL: Pigtail neutral design connects the breaker's internal components to the neutral bar, facilitating power-up in Square D Homeline load centers with one space; Breaker can also be used in plug on neutral load centers
• 15 AMP ONE-POLE CIRCUIT BREAKER: This circuit breaker occupies one space in the load center and is used for single 120 Vac circuits; A typical residential service contains branch circuits supplying wall receptacles, lighting fixtures, dishwashers and disposals

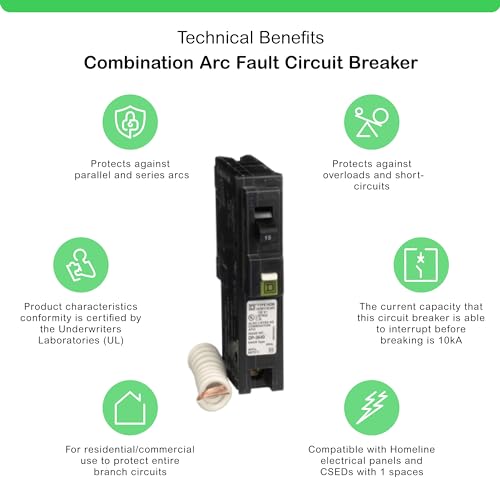

• CAFCI CIRCUIT PROTECTION: CAFCI circuit breaker provides the highest level of arc fault protection; It protects against both serial and parallel arcs for the entire circuit; The circuit breaker provides an individual switching and tripping action

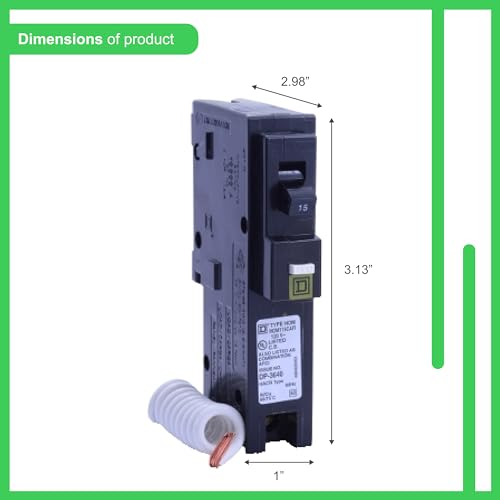

• SPECIFICATIONS AND RATINGS: Dimensions - Height: 3.13 in (79.50 mm); Width: 1 in (25.44 mm); Depth: 2.98 in (75.69 mm); Current Rating - 15A; Voltage - 120V AC; Breaking Capacity - 10kA; 1 Pole; Certifications - UL-listed

Details: The Square D Homeline 15 Amp CAFCI Circuit Breaker offers reliable residential circuit protection, safeguarding against overloads and short circuits. Designed for fast and easy installation, its pigtail neutral design connects the internal components to the neutral bar, allowing for quick power-up in Homeline load centers while also being compatible with plug-on neutral load centers. This single-pole breaker operates on 120V AC circuits, commonly used for wall receptacles, lighting fixtures, dishwashers, and disposals. Providing advanced CAFCI protection, it detects and prevents both serial and parallel arc faults, ensuring enhanced safety for the entire circuit. Compact yet powerful, it features a 15A current rating, 10kA breaking capacity, and a space-saving design, occupying just one space in the load center. UL-listed for safety and reliability, this circuit breaker is an essential addition to any residential electrical system. Dimensions: 3.13" H x 1" W x 2.98" D.

EAN: 0733353648826

Package Dimensions: 7.0 x 3.6 x 1.1 inches

Binding: Tools & Home Improvement

Part Number: HOM115CAFIC

model number: HOM115CAFIC
