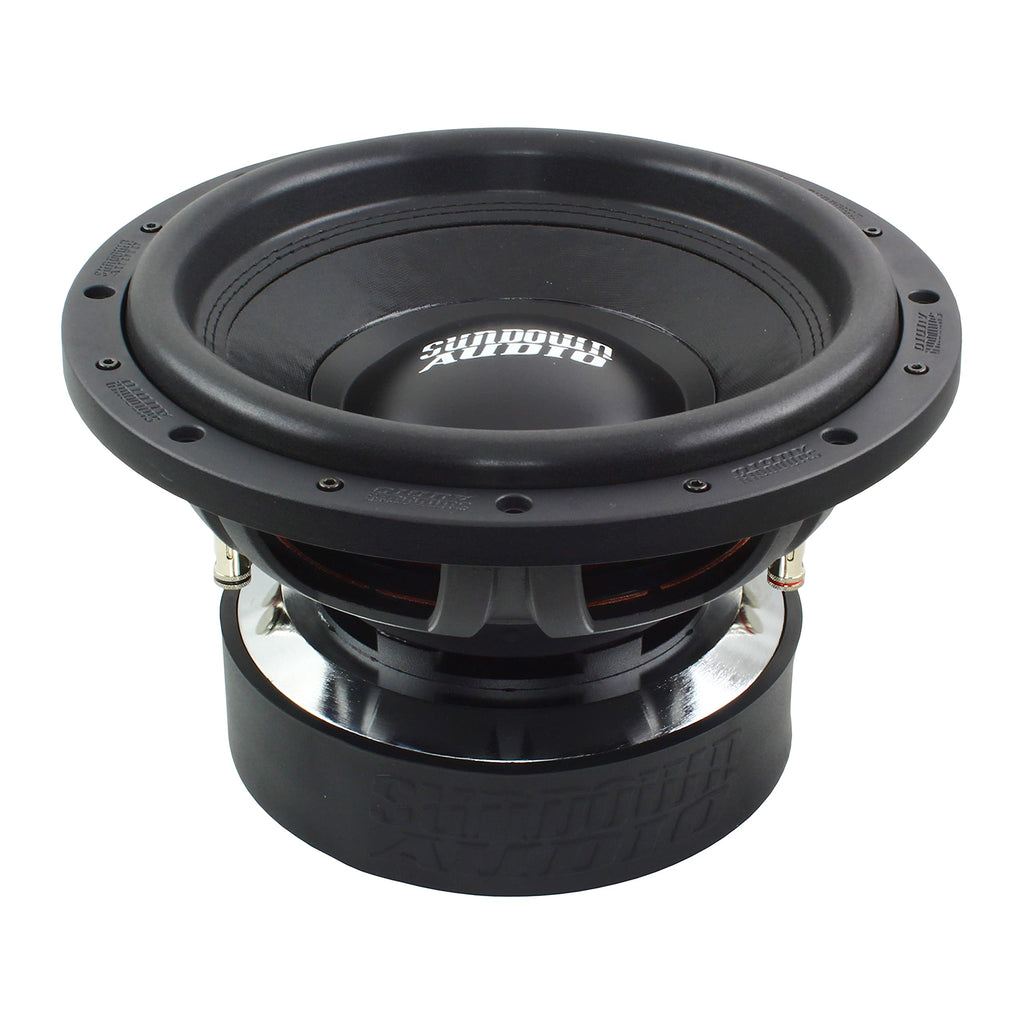

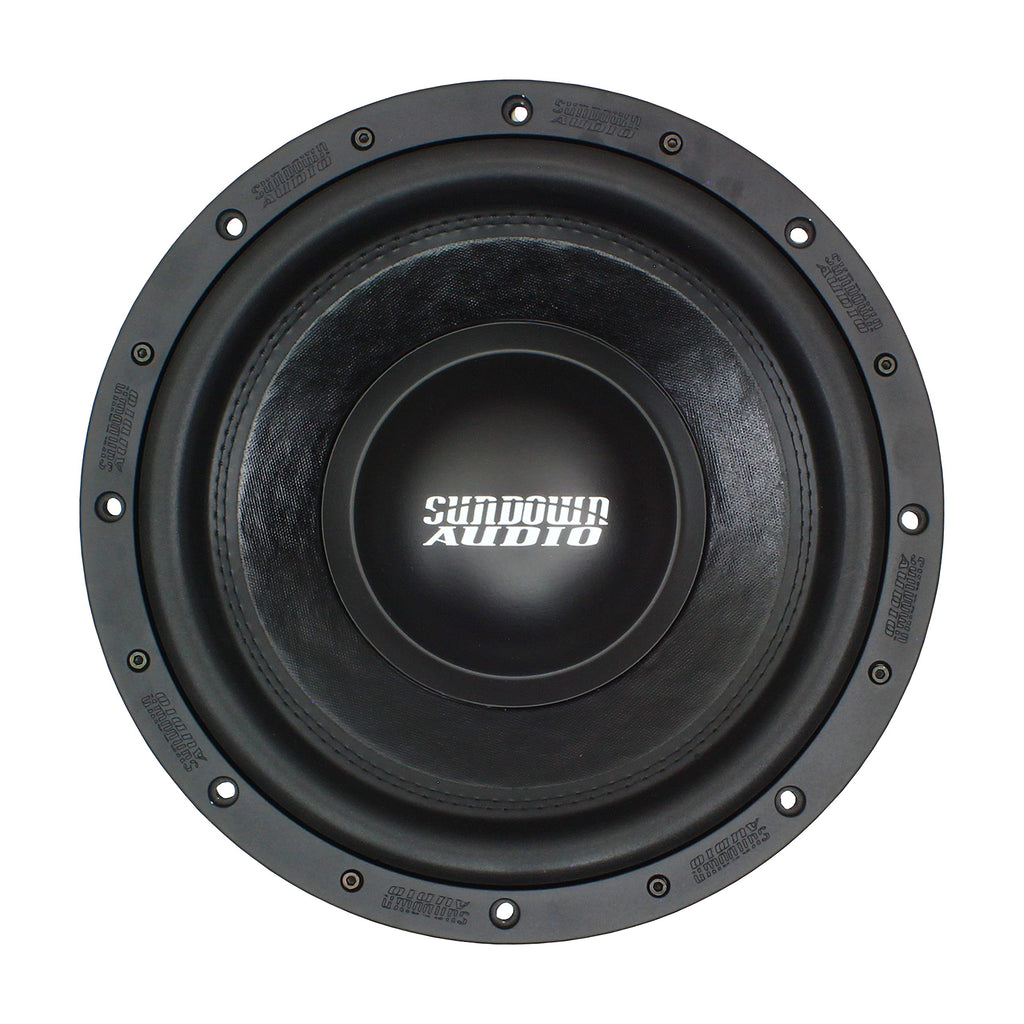

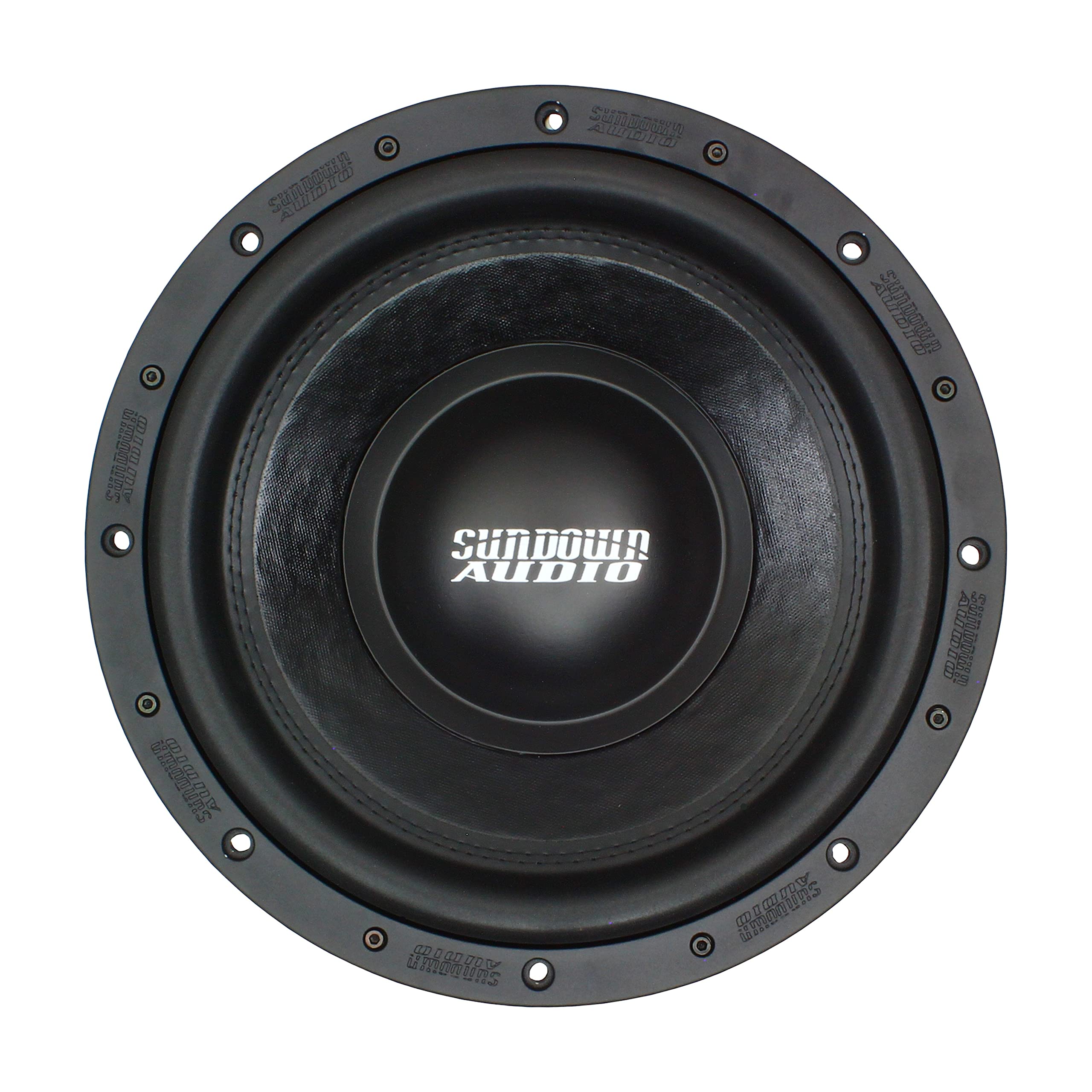

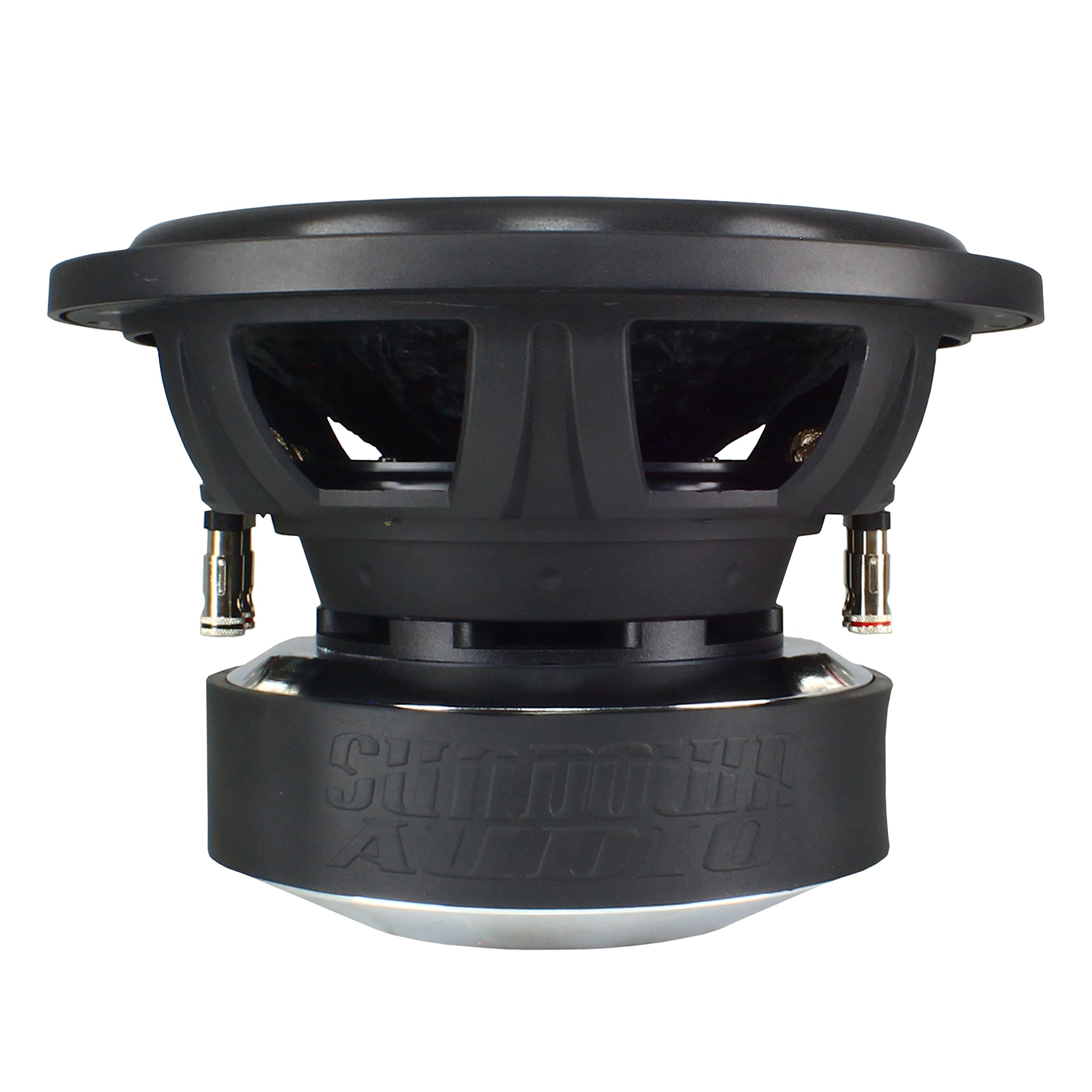

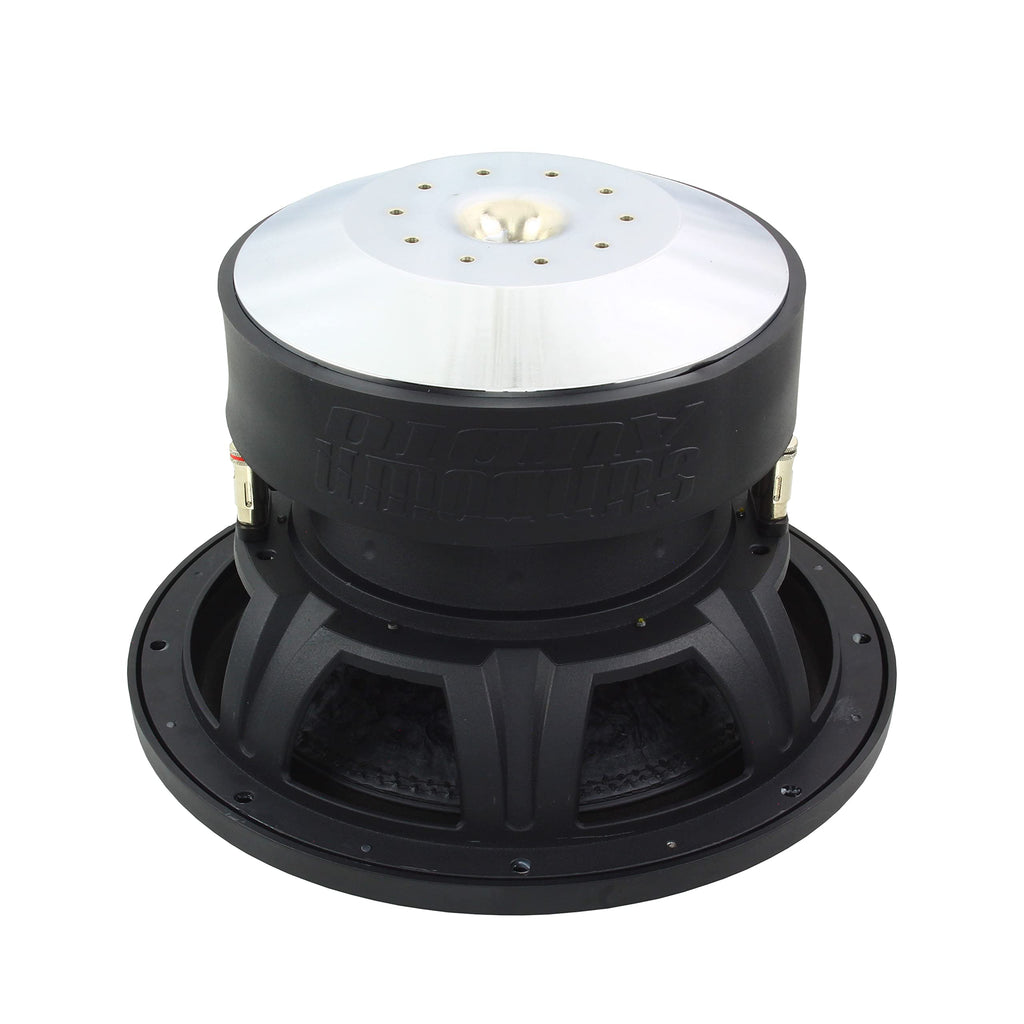

Sundown Audio U-12 D4 12" 1500W RMS Dual 4-Ohm U-Series Subwoofer

Brand: Sundown Audio

Features:

• The Sundown Audio U-12 is a 12-inch subwoofer with a 1500 watt RMS power rating. It has a frequency of 42.2 Hz and a DC resistance of 3.8 Ω. It also has a sealed and ported enclosure.

Details: U-12 D4 - Sundown Audio 12" Dual 4-Ohm 1500W RMS U-Series Subwoofer
SPECIFICATIONS:

DC Resistance (Re): 6.1 Ω
Resonance Frequency (Fs): 40.0 Hz
Equivalent Volume (Vas): 12.3 L
Electrical Q Factor (Qes): 0.38
Mechanical Q Factor (Qms): 2.93
Total Q Factor (Qts): 0.34
Voice Coil Inductance (Le): 3.67 mH
Force Factor (BL): 33.7 NA
Moving Mass (incl. Air Load) (Mms): 284.5 g
Suspension Compliance (Cms): 0.06 mm/N
Sensitivity: 85.0 dB 1w / 1m
Box Recommendations:

Sealed: 1.0 cu. ft.
Ported: 2.0 cu. ft.
Displacement: 0.21 cu. ft.
Depth: 7.75 in
Outside Diameter: 12.83 in
Cutout Diameter: 11.01 in
Recommended Tuning: 32 Hz
Recommended Port Area: 32 sq. in

EAN: 0796516055138

Package Dimensions: 15.5 x 15.5 x 13.5 inches

Binding: Electronics

Part Number: U-12 D4

model number: U-12
