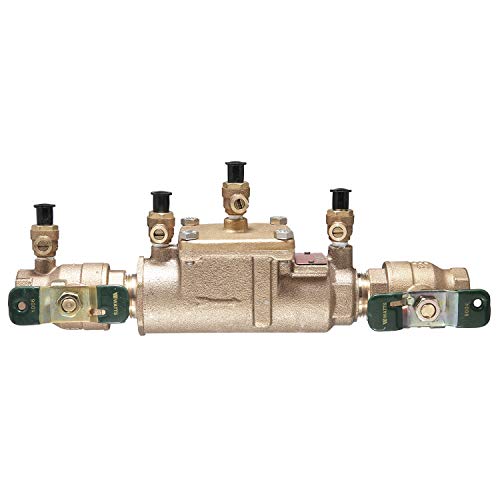

Watts 00063234 LF007M2-QT Double Check Valve Assembly Quarter Turn, 1 1/2 Inch

Brand: Watts

Color: 1 1/2 Inch

Features:

• Lead Free bronze construction for durability and compliance
• The check seats and discs are replaceable so repairs are economical
• Modular compact construction is easy to install and maintain and no special tools are required
• One cover design for ease of maintenance
• Test cocks are top mounted for easy access

Details: The Watts 00063234 1 1/2" Lead Free Double Check Valve Assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to back siphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a lead free body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.

EAN: 0098268209761

Package Dimensions: 18.4 x 10.4 x 8.2 inches

Binding: Tools & Home Improvement

Part Number: 63234

model number: LF007M2-QT
