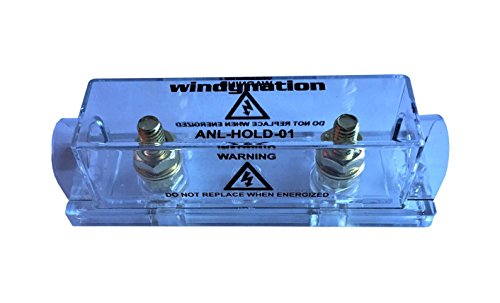

WindyNation ANL Fuse Holder + ANL Fuse (2pcs 30A Fuse)

Brand: WindyNation

Features:

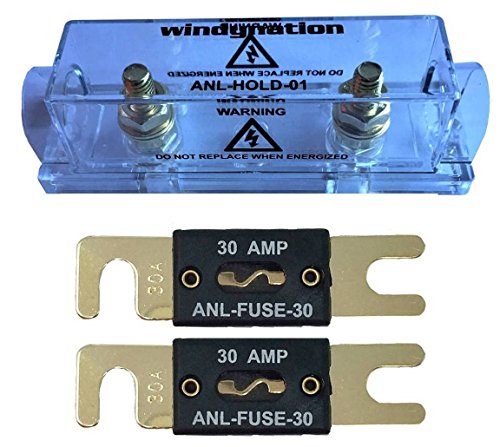

• Includes 1 pc WindyNation ANL Fuse Holder + 2 pcs ANL 30A Fuses

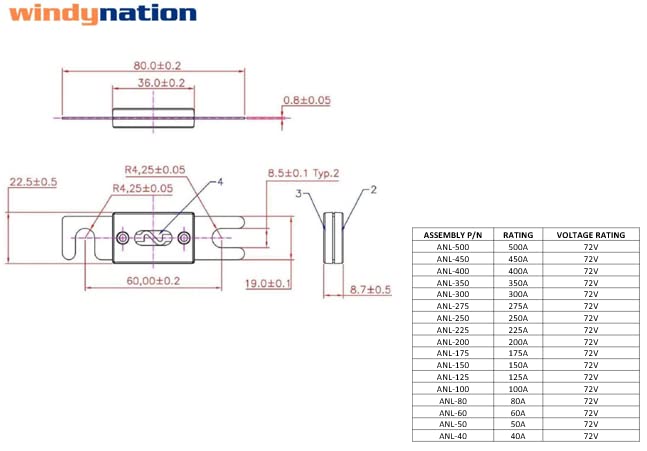

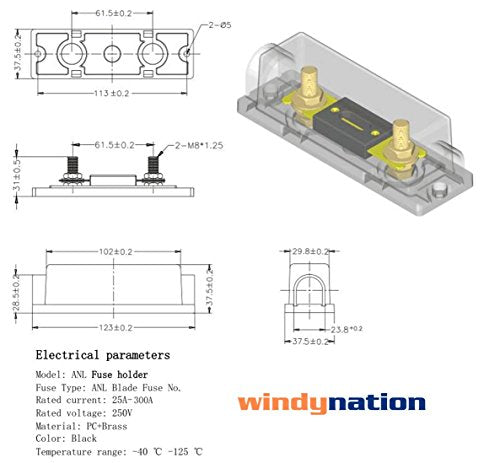

• See Images in photo gallery for technical specifications and dimensional drawings

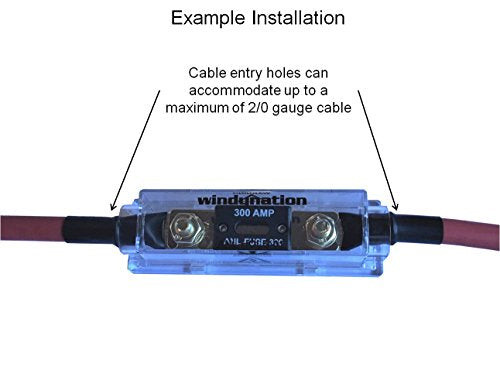

• ANL fuse holder will accept up to a maximum of 2/0 gauge cable
• For most applications, the fuse should be sized at approximately 1.30 times the rated power of the device being protected by the fuse

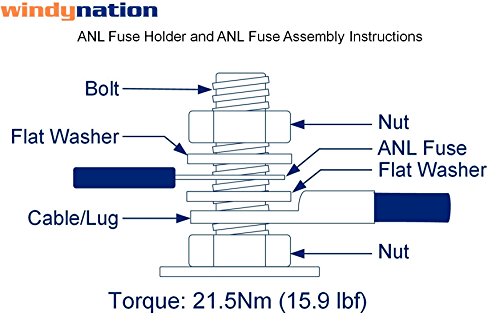

• ANL Fuse Holder mounting bolts are 8 mm in diameter. Use cable terminals with a 5/16" diameter or 8 mm diameter mounting hole to achieve a proper connection to the the ANL Fuse Holder mounting bolts

Details: The WindyNation ANL Fuse Holder with fuses are used in electrical systems in which the fuse is designed to burn out when the current exceeds the safe limit for the device being protected by the fuse. It is the end user's responsibility to determine the appropriate fuse size for the electrical circuit. In general, the fuse should be sized at approximately 1.30 times the rated power of the device being protected by the fuse.

EAN: 0819172020507

Package Dimensions: 5.2 x 1.7 x 1.5 inches

Part Number: ANL-FH-30-2

model number: ANL-FH-30-2
