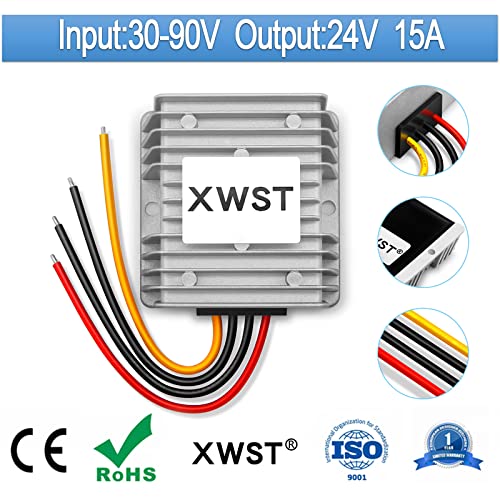

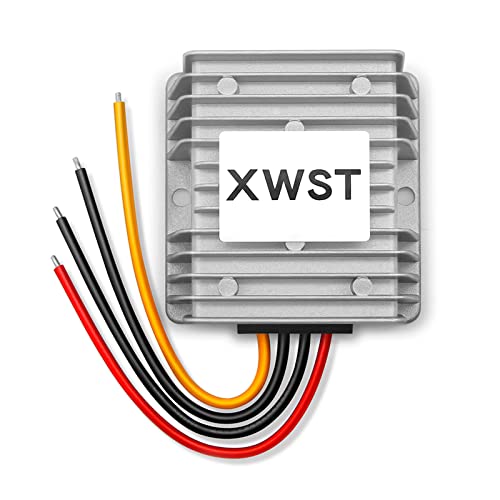

XWST DC DC Converter Reducer 30-90v 24v 48v 60v 72v to 24v DC Converter Step Down Buck 15A 360W dc Voltage Regulator for Golf Cart Car Device

Brand: XWST

Color: 30-90V to 24V-15A

Features:

• PARAMETER --- XWST DC-DC converter input voltage range is DC 30~90V (24V 36V 48V 72V); output voltage is DC 24V; output current is 15A; output power is 360W.
• APPLICATION --- the 24v buck converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc.
• PROTECTION --- this BUCK voltage comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc.

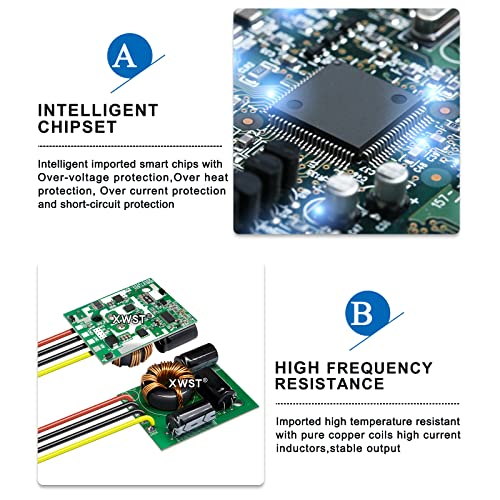

• FEATURE --- the BUCK power module adopts high-integrated chip, stable and reliable; synchronous rectification technology, with conversion efficiency of over 93% and low heat generated.
• NOTE --- Leave a margin for the power supply to ensure it can long-term stably working.

Details: XWST DCDC Power Supply Step Down Buck Module Technical Specification:
Input Voltage: DC 30V~90V (24V 36V 48V 60v 72v)
Output Voltage: DC 24V
Output Current: 15A
Output Power: 360W
Conversion Efficiency: >93%
No Load Voltage Range: Set voltage ±3%
Load Regulation: ±3%
Quiescent Power Dissipation: <10mA
Operating Temperature: -25~65℃
Storage Temprature: -40~80℃
Operating Humidity: 10%~90%
Waterproofing Grade: IP67
Over-current Protection: Yes
Over-temperature Protection: Yes
Short-circuit Protection: No

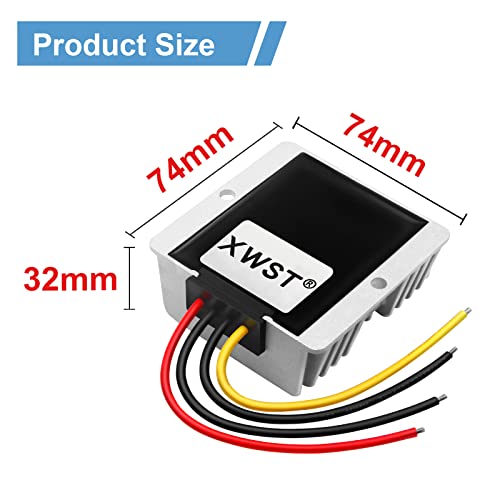

Dimension: 74mm x74mm x 32mm
Material:Aluminum shell
Note:

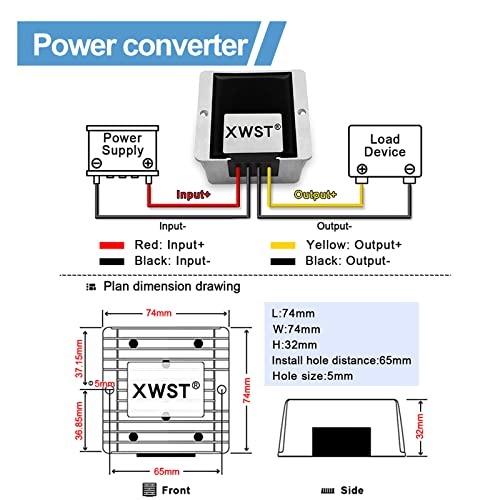

1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included:
1x Step Down Buck Module

EAN: 0755621742616

Package Dimensions: 4.0 x 3.4 x 1.5 inches

Binding: Electronics
