Description
Brand: CHINS
Features:
- 【Lithium Iron Battery】: The lifespan of LiFePO4 (lithium) batteries is 8 to 10 times longer than that of regular lead-acid batteries (6000~9000 cycles vs 300-500 cycles). The usable capacity also doubles compared to that of a lead-acid battery while the weight is 30% less thanks to its significantly higher energy density.Without any memory effect, the lithium battery can hold a charge better while not in use and will not lose capacity due to the previous discharge state.
- 【Built-In BMS & Convenience & Maintenance Free】: The built-in BMS (Battery Management System) protects the battery from overcharge, over-discharge, over-current, and short circuits with excellent self-discharge rate. Built-in high temp cut-off prevents charging over 122 °F (50 °C). Plus, Li-Ion batteries can be safer than lead Acid batteries, which have no protection against ground faults. This BMS includes a Low Temperature Cut-off Function.
- 【Capacity Expansion】: Our lithium batteries can be connected in parallel and in series for larger capacity and voltage. Max connection in series: Up to four identical batteries for up to 48V.Max connection in parallel: Up to four identical batteries up to 1200AH.Batteries can also be connected in parallel and series at the same time for up to 48V 1200AH. Only batteries with the exact same voltage and capacity purchased within a six-month window can be used in parallel or series.

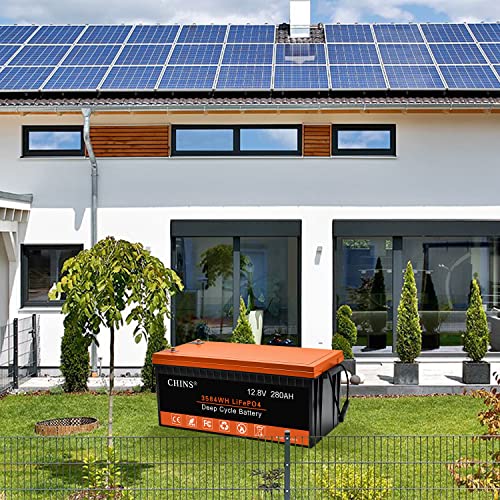

- 【Wide Application】: Our lithium batteries can be used in the following areas: Home energy storage systems, UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, electric vehicles, DIY speakers, 12V routers, air pumps, fish finder, golf cart, trolling motor, motorhome/RV & camper, Houseboat, Travel Trailer, Dump Trailer and more.
Details: About CHINS Battery
CHINS has its own factory, are mainly engaged in LiFePO4 and lithium-ion battery business,
which is very suitable for RV, Caravan, Solar, Marine, Home Storage and Off-Grid.
CHINS’s team keep strive to maintain a green life on the way of continuing to explore the
new energry, in order to provide a better low-carbon life for people.
CHINS is equipped with the most advanced R&D team and equipment, and our products
have obtained CE, ROHS, WEEE and PSE quality system certification. We also set up our own
warehouse in California, USA.
Specifications
Rated Capacity (0.2C): 280Ah / 3584Wh
Cycle life: 2000~5000 cycles at 80% discharge depth
Rated voltage: 12.8V
Charge voltage: 14.2 - 14.4V
Depth of Discharge (DoD): 100%
Standard charge current: 50A
Charging time: Approximately 7 hours
Max continuous charge current: 100A
Max continuous discharge current: 200A
Peak discharge current: 600A (Duration: less than 3 seconds)
Operating temperatures: Charge 0°C~50°C(32°F~122°F),
Discharge -20°C~60°C(-4°F~140°F), Storage -10°C~50°C(14°F~122°F)
Impedance: ≤ 15Ω
Brand:CHINS

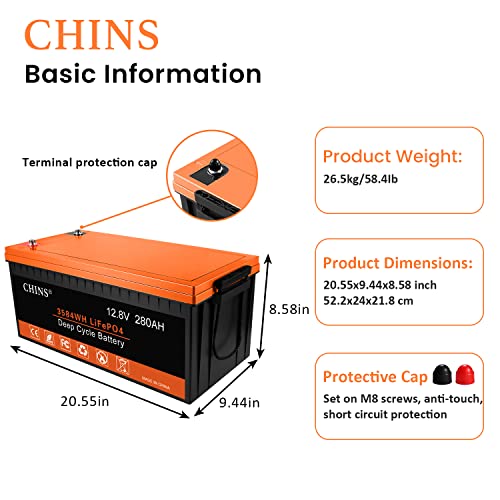

Size: 20.47 x 9.45 x 8.58 inches
Color: Black, Orange.4
EAN: 0755496177889
Part Number: LAF12280
model number: LAF12280
