Description
Brand: CHINS
Color: 1
Features:
- 【Lithium Iron Battery】: The lifespan of LiFePO4 (lithium) batteries is 8 to 10 times longer than that of regular lead-acid batteries (2000~5000 cycles vs 300-500 cycles). The usable capacity also doubles compared to that of a lead-acid battery while the weight is 30% less thanks to its significantly higher energy density.Without any memory effect, the lithium battery can hold a charge better while not in use and will not lose capacity due to the previous discharge state.
- 【Built-In BMS & Convenience & Maintenance Free】: The built-in BMS (Battery Management System) protects the battery from overcharge, over-discharge, over-current, and short circuits with excellent self-discharge rate.Built-in high temp cut-off prevents charging over 122 °F (50 °C). Plus, Li-Ion batteries can be safer than lead Acid batteries, which have no protection against ground faults.This product is your ideal choice for both outdoor and indoor applications.
- 【Capacity Expansion】: CHINS lithium batteries can be connected in parallel and in series for larger capacity and voltage.Max connection in series: Up to two identical batteries for up to 48V.Max connection in parallel: Up to four identical batteries up to 400AH.Batteries can also be connected in parallel and series at the same time for up to 48V 400AH.Only batteries with the exact same voltage and capacity purchased within a six-month window can be used in parallel or series.

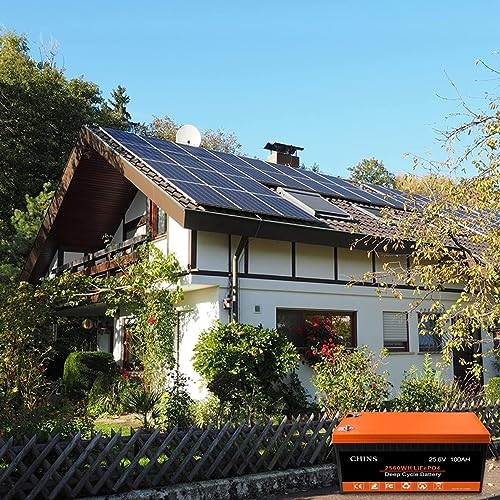

- 【Wide Application】: CHINS lithium batteries can be used in the following areas: Home energy storage systems, UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, electric vehicles, DIY speakers, 12V routers, air pumps, fish finder,motorhome/RV & camper, Houseboat, Travel Trailer, Dump Trailer and more.
- 【Special Note】: If the load you are using contains trolling motor, the maximum continuous output current of our battery must be twice of the motor. Otherwise, our batteries cannot run your device. You can also consult us about this issue before purchasing the product, our engineers will give you the advice. In addition, our batteries cannot be used as a car starter battery. The max parallel connections for 24V 100AH lifepo4 battery is 8 and the maximum series-parallel combination is 2S8P.

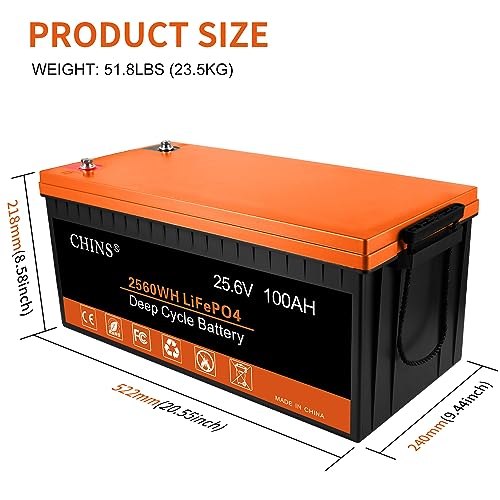

Details: About CHINS Battery CHINS has its own factory, are mainly engaged in LiFePO4 and lithium-ion battery business, which is very suitable for RV, Caravan, Solar, Marine, Home Storage and Off-Grid. CHINS’s team keep strive to maintain a green life on the way of continuing to explore the new energry, in order to provide a better low-carbon life for people. CHINS is equipped with the most advanced R&D team and equipment, and our products have obtained CE, ROHS, WEEE and PSE quality system certification. We also set up our own warehouse in California, USA.Specifications Rated Capacity (0.2C): 100Ah / 2560Wh Cycle life: 2000+ cycles at 80% discharge depth Rated voltage: 25.6V Charge voltage: 28.4V - 29.2V Depth of Discharge (DoD): 100% Standard charge current: 30A Charging time: Approximately 4 hours Max continuous charge current: 50A Max continuous discharge current: 100A Peak discharge current: 300A (Duration: less than 3 seconds) Operating temperatures: Charge 0°C~50°C(32°F~122°F), Discharge -20°C~60°C(-4°F~140°F), Storage -20°C~50°C(-4°F~122°F)Impedance: ≤ 15mΩBrand: CHINSSize: 20.55 x 9.44 x 8.58 inches Color: Black, Orange.
EAN: 0727597861776
Part Number: LiFePO4-1
