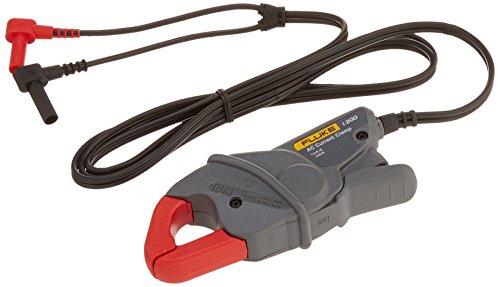

Fluke I200 AC Current Clamp, 600V AC Voltage, 200A AC Current

Brand: Fluke

Color: Black

Features:

• Companion to a digital multimeters to measure up to 200A AC
• 1mA per amp output guarantees easy reading on you meter
• Take accurate current readings without breaking the circuit
• Maximum conductor diameter 20mm, CAT III 600V safety rating
• 1 year warranty

Details: Fluke Current clamps are the ideal tools to extend the current ranges of Multimeters. The i200 is a single range 200A ac current clamp with current output via safety shrouded banana plugs. The i200 is compatible with most Fluke multimeters or any other current measurement device that accepts shrouded banana plugs. Companion to a DMM to measure up to 200A AC. 1mA per Amp output guarantees easy reading on you meter. Take accurate current readings without breaking the circuit. Maximum conductor diameter 20mm. CAT III 600V safety rating. Nominal current range: 200 A. Continuous current range: 0.5 A - 200 A. Maximum non-destructive current: 240 A. Lowest measurable current: 0.5 A. Basic accuracy: 1 percent + 0.5 A, (48-65 Hz), (percent reading + floorspec). Useable frequency: 40 Hz - 10 kHz. Output levels: 1 mA/A. Maximum conductor diameter: 20mm. Maximum conductor size (busbar): 20 x 5mm. Output cable length: 1.5 m. With shrouded banana plugs.

EAN: 0095969063937

Package Dimensions: 12.2 x 10.6 x 5.8 inches

Binding: Tools & Home Improvement

Part Number: I200

model number: I200
