GEYA Mini Circuit Breaker DC,Din Rail 6KA DC MCB (1P 16A 250VDC)

Brand: GEYA

Color: Grey

Features:

• DC-1P circuit breaker is used for DC rated voltage to 250V
• Rated current to 63A line, for overload and short circuit protection.
• Circuit breakers are used in DC applications such as communications and photovoltaic system.
• Transparent cover designed to carry label.
• Maximum connecting ability of 25mm , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger

Details: GYM9-DC circuit breaker is used for DC rated voltage to 250V, rated current to 16A line, for overload and short circuit protection, and can also be used as an infrequent operation of the line.Circuit breakers are used in DC applications such as communications and photovoltaic system.
In complicance with IEC/EN606947-2

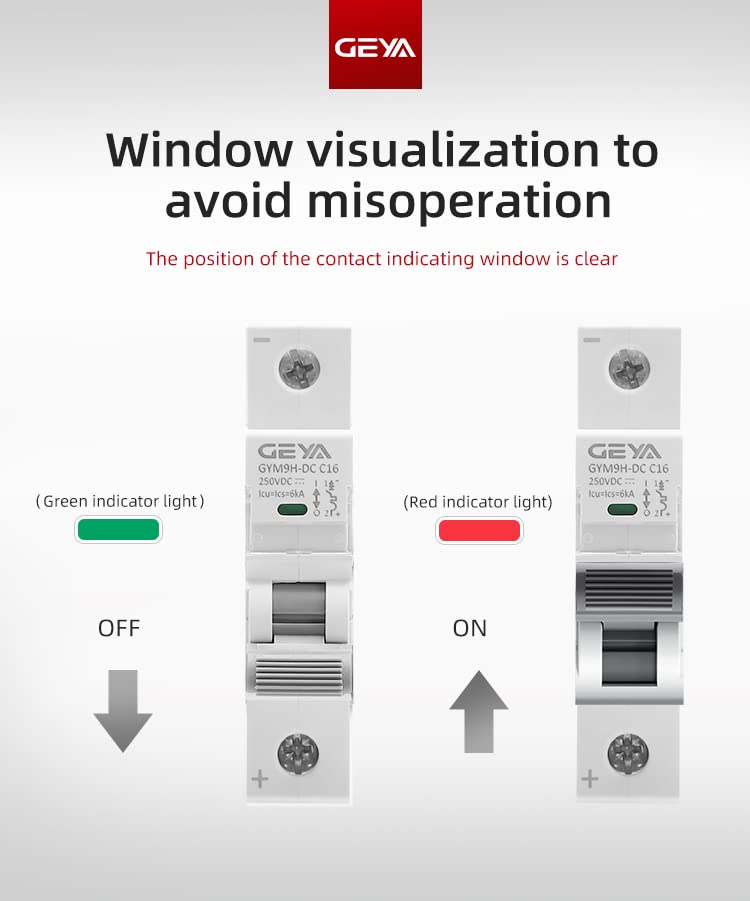

With indicator function in the contact position.
Transparent cover designed to carry label.
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
Maximum connecting ability of 25mm , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger

EAN: 0736961741392

Package Dimensions: 3.6 x 3.0 x 0.9 inches

Part Number: GYM9-DC-1P-16A

model number: GYM9-DC-1P-16A
