Description
Brand: LANCHEZ
Color: Black
Features:
- 【Strong and Reliable Performance】The UL certificated shallow well pump with 1 HP powerful motor of copper coils, which is more stable, durable and quiet than aluminum coil on the market, ensures strong performance in a low energy consumption, can offer maximum flow rate up to 1294 GPH and max lift water up to 147 feet

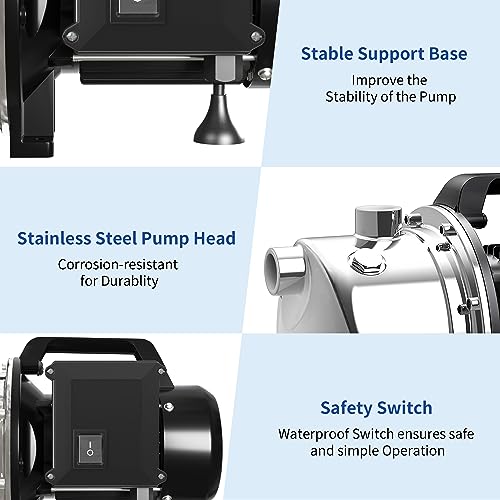

- 【Portable and Durable Design】This Lawn Pump is with a easy-to-carry handle for portability. Corrosion-resistant stainless steel of the portable electric pump head for against corrosition and abrasion extends product life and is easy to clean
- 【Safety Ensure】The draining irrigation pump pay attention to safety. Full corrosion-resistant and reinforced thermoplastic construction with thermal overload protection for continuous duty use in water removal application
- 【Wide Application】The sprinkler pump is a versatile pump for pressure boosting, small underground sprinkler systems, operating lawn sprinklers and a multitude of other general purpose applications. Suitable use in garden, lawn, farm and rural house
- 【Installation Notice】The garden pump should be installed in a dean, dry and ventilated location which provides adequate room for servicing and protection from freezing temperatures. It should be bolted to a good foundation, preferably concrete and provided adequate drainage

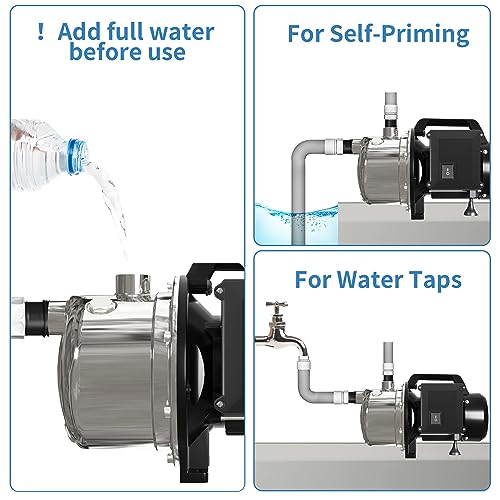

- 【Operation Warnning】Do not run the shallow well jet pump before priming it, since the seal and impeller could be permanently damaged. Remove the plug from the street tee and pour clean water into the unit until casing and suction line are completely filled
Details: Product Details

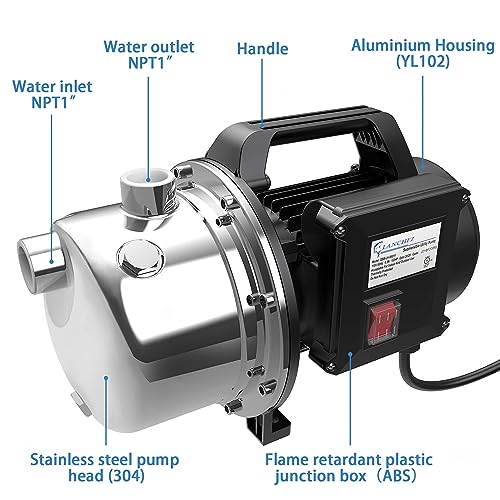

With a corrosion resistant stainless steel construction, the Lanchez 1 HP 1294 GPH shallow well jet pump offers performance to 26 feet depth of water at 65 PSI. This pump is equipped with an easy-to-carry handle, allowing you to carry it around conveniently. Featuring emergy-efficient motor with thermal overload protection, it also makes only a little noise when operating. Includes 420 shaft, heavy duty ball bearings, balanced motor, mechanical shaft seal and insulated motor windings and 6 feet cable. The sprinkler pump is designed for 115V, 60HZ.
Tip:Please add some water to the outlet before operation.
Application Occasions
The Lanchez shallow well jet pump is designed for continuous duty use in watering applications, such as gardens, lawns, irrigation systems, booster services, and other household applications.

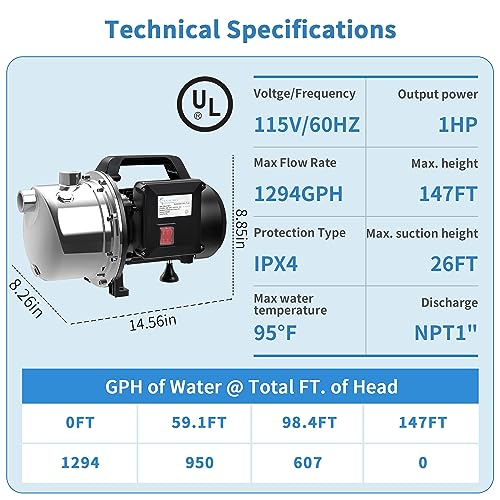

Specification
Nominal voltage: 115V/60HZ
Output power: 1 HP
Motor full load: 9.5 amps
Max.height: 147 feet
Max.suction height: 26 feet
Max.Flow: 1294 GPH
Max.fiuid temperature: 95°F
Max.grain size: 0.04 inch
Max.pressure: 65 PSI
Die. of pipe: NPT 1inch
Length of cable: 6 feet
Package includes:
1 x shallow well jet pump
2 x detailed instruction manual
EAN: 0750076523674
Package Dimensions: 16.0 x 12.0 x 10.2 inches
Binding: Tools & Home Improvement
Part Number: JGP110037U INOX-NEW
model number: JGP110037U INOX-NEW
