Description
Brand: Mophorn
Color: 4 Quart/Single Acting
Features:
- Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.

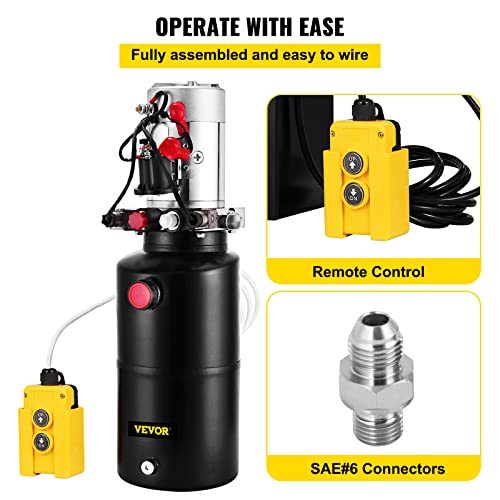

- Easy to Use: This 12V hydraulic power unit has been fully assembled. The wiring is simple and comes with operating instructions. We offer you one 15ft remote for long-distance control and one additional SAE#6 connector for replacement.
- Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it avoids overpressure, safer and reliable.
- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
- Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Details:
Hydraulic Pump 4 Quart Single Acting Plastic
This power unit designed for medium and small lift platform, by the high pressure pump, ac motor, multi-purpose integrated block, hydraulic valve, fuel tanks and other components combined into one. Reduced lift platform controlled by electromagnetic unloading valve, falling speed is controlled by a bulit-in balancing valve. Back-up manual unlaoding valve is used to power down. It's widely used in stacker, small and medium-sized lifting platform and various industrial fields.This unit comes standard in many dump trailers and It is a direct replacement for most power-up/power -down applications. Its high quality starter ensure long life and a fast starting each time. The motor is built to last, and the tank has been specifically designed to not crack & leak under harsh conditions,/p>
Feature:
Perfect for Dump Trailers-Lift Gates
Perfect replacement pump for 12VDC controlled hydraulic systems
Designed for horizontal mounting
Fluid choice determined by operating environment/temperature
Oil tank, oil pump and accumulator power independent airtight oil source system
Petrol stations can be equipped with PLC control system, which controls all internal hydraulic functions and generates a signal and control exchange (DCS)
Supply oil to the system under normal, oil pump, automatic stay system rated pressure, through the control valve atresia, achieve the function of valve in any position
Specifications:
Material of tank: 4 Quart Plastic
Rated speed: 2850R/MIN
Motor voltage: DC12V
Single acting Power-Up/Power Down
1500 PS Max Relief Setting on B port
SAE # 6 Port, Horizontal mount
Package Content:
1×4 Quart Plastic Single Acting Hydraulic Pump
1×Manual
EAN: 0789458186695
Package Dimensions: 21.0 x 11.0 x 11.0 inches
Part Number: 4 Quart Hydraulic Pump
model number: 1
