Rockville RPA5 1000W Peak / 400W RMS 2-Channel Power Amplifier, Rack Mountable - Perfect for Live Sound, Pro Audio, DJs

Brand: Rockville

Features:

• Rockville RPA5 400w RMS (200 x 2) 2 Channel Professional/DJ Rack Mount Amplifier. 2U rack space.
• Bridged and Stereo output switch makes this perfect for (2) subwoofer, (2) speakers, or (4) speakers.
• Built in crossover switch allows make this perfect for speakers, monitors, or subwoofers. Channel A & B Clipping Led Indicators.

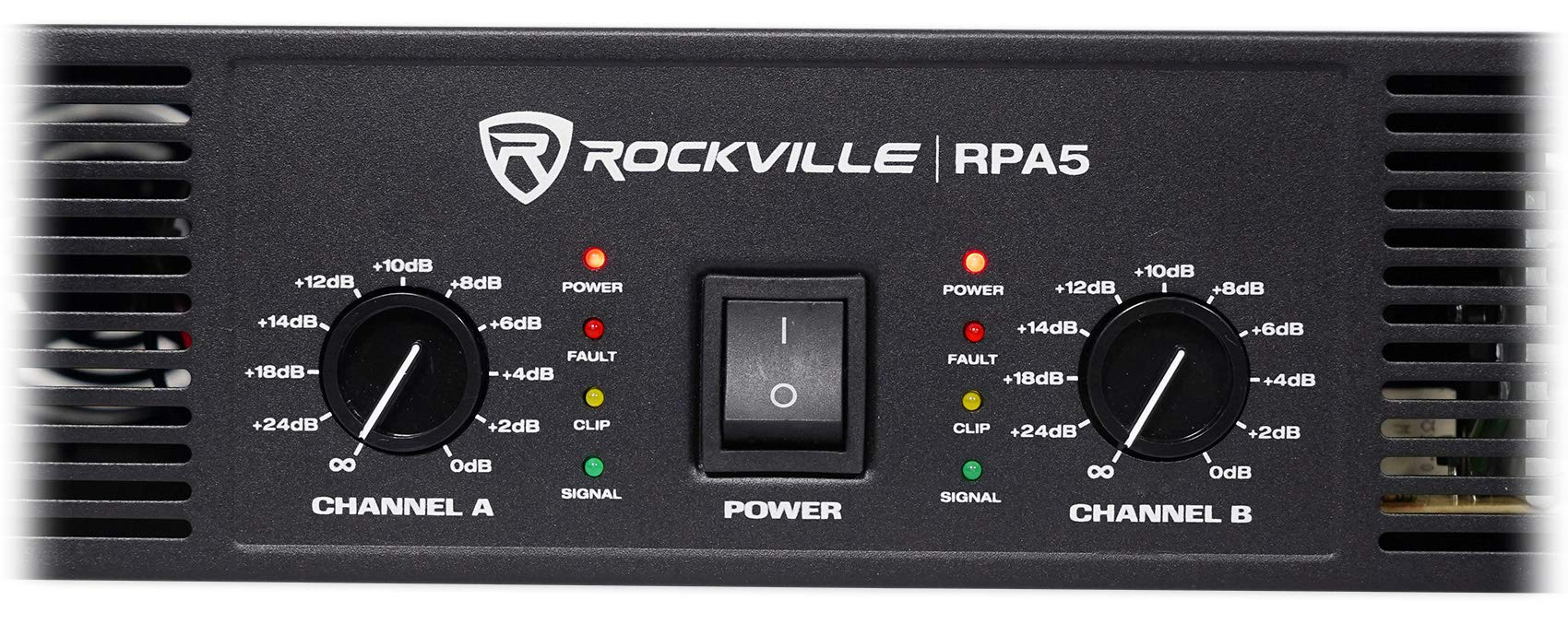

• Channel A & B Separate Level Controls. Power, signal, overload, clipping, and protection LED indicators on front of amp.
• Heavy duty rack mount ears with handles. Built-in dual high velocity quiet cooling fans.
• Maximum headroom for 4-ohm and 8-ohm Speakers. Level controls for precise setting and matching of sensitivity.
• Computer controlled IC protection circuitry against speaker short circuit, thermal over load, DC over load.
• User serviceable fuse (4A, 250V). Frequency Response: 20Hz to 20KHz <+/- 0.5dB. Distortion: <0.03%.
• Input Impedance: 20K Ohm Balanced and 10K Ohm Unbalanced. Signal to Noise Ratio: > 102dB.
• Power Requirements: 120V / 50-60Hz. Weight: 13.4 lbs. Dimensions: 18.97" x 11.02" x 3.54".

Details: Power Ratings:

RMS Power Output:
Stereo 8 Ohm: 2 x 125W
Stereo 4 Ohm: 2 x 200W
Bridged 8 Ohm: 1 x 400W
Peak Power Output:
Stereo 8 Ohm: 2 x 250W Max
Stereo 4 Ohm: 2 x 400W Max
Bridged 8 Ohm: 1 x 1000W Max

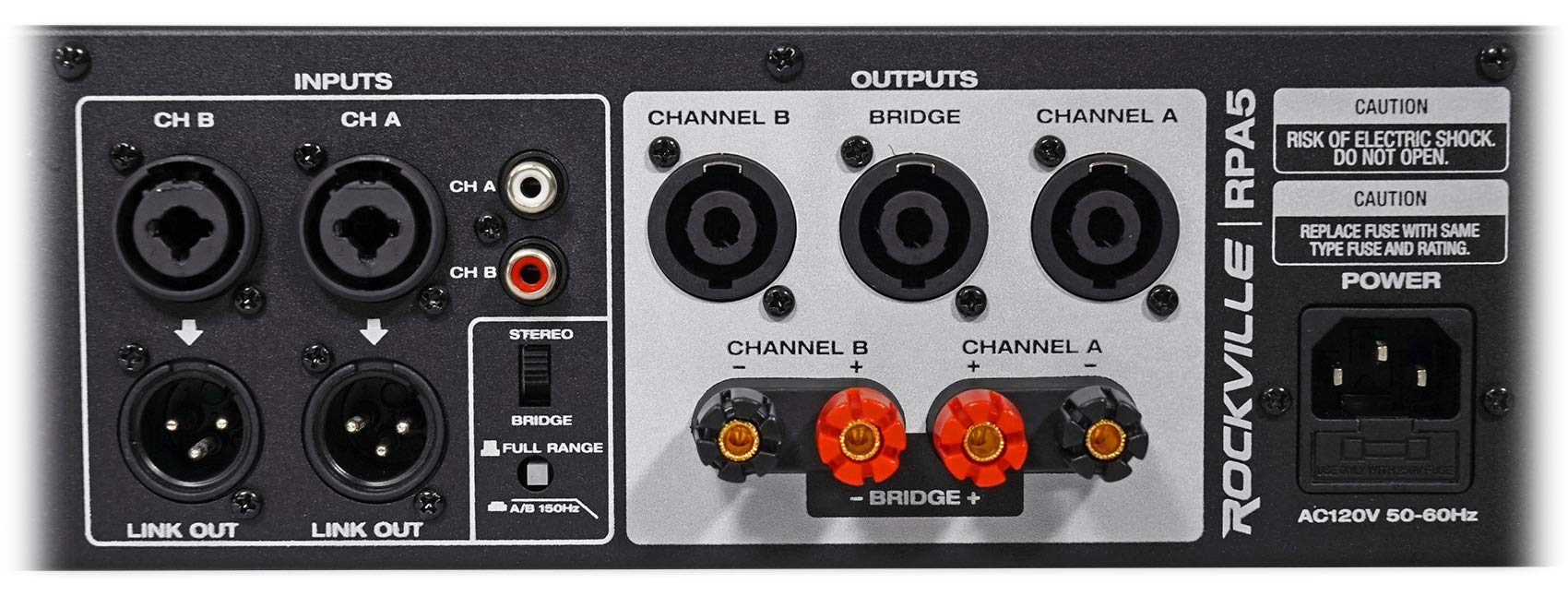

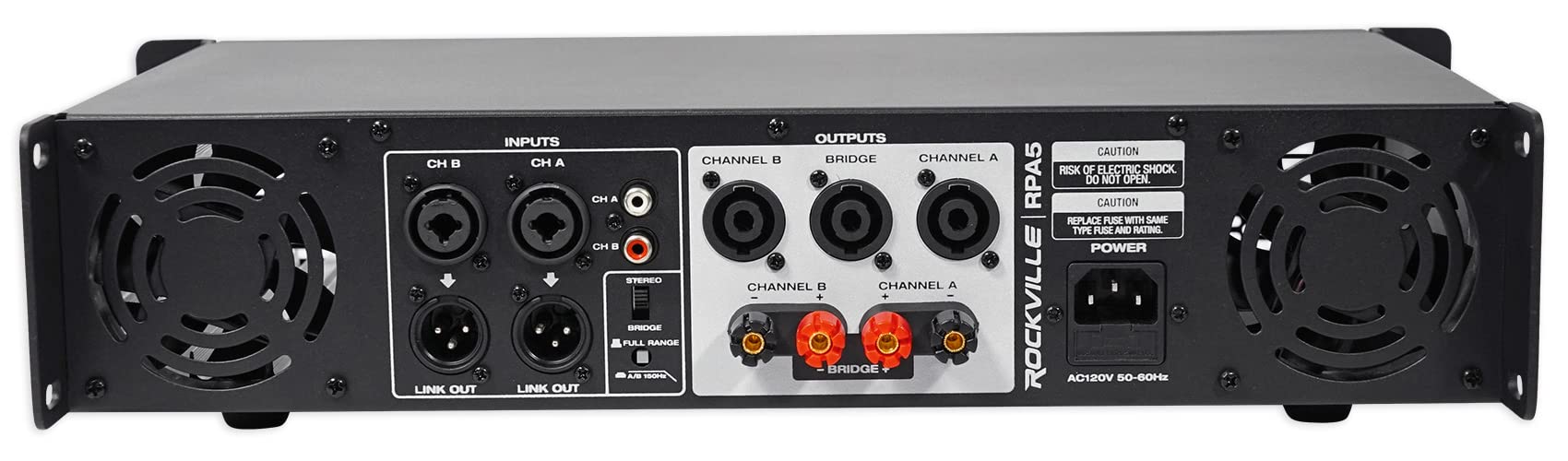

Terminals:

Input Terminals:
Combo jack (XLR and ¼”) A & B inputs
RCA A & B Inputs
Output Terminals:
Banana binding post speaker output
Speakon output
XLR direct output

Features:

Rockville RPA5 400w RMS (200 x 2) 2 Channel Professional/DJ Rack Mount Amplifier
2U rack space
Bridged and Stereo output switch makes this perfect for (2) subwoofer, (2) speakers, or (4) speakers
Built in crossover switch allows make this perfect for speakers, monitors, or subwoofers
Channel A & B Clipping Led Indicators
Channel A & B Separate Level Controls
Power, signal, overload, clipping, and protection LED indicators on front of amp
Heavy duty rack mount ears with handles
Built-in dual high velocity quiet cooling fans
Maximum headroom for 4-ohm and 8-ohm Speakers
Level controls for precise setting and matching of sensitivity
Computer controlled IC protection circuitry against speaker short circuit, thermal over load, DC over load
User serviceable fuse (4A, 250V)
Frequency Response: 20Hz to 20KHz 102dB
Power Requirements: 120V / 50-60Hz
Weight: 13.4 lbs
Dimensions: 18.97 x 11.02 x 3.54 inch

EAN: 0811080028774

Package Dimensions: 21.2 x 14.8 x 7.2 inches

Binding: Electronics

Part Number: RPA5

model number: RPA5
