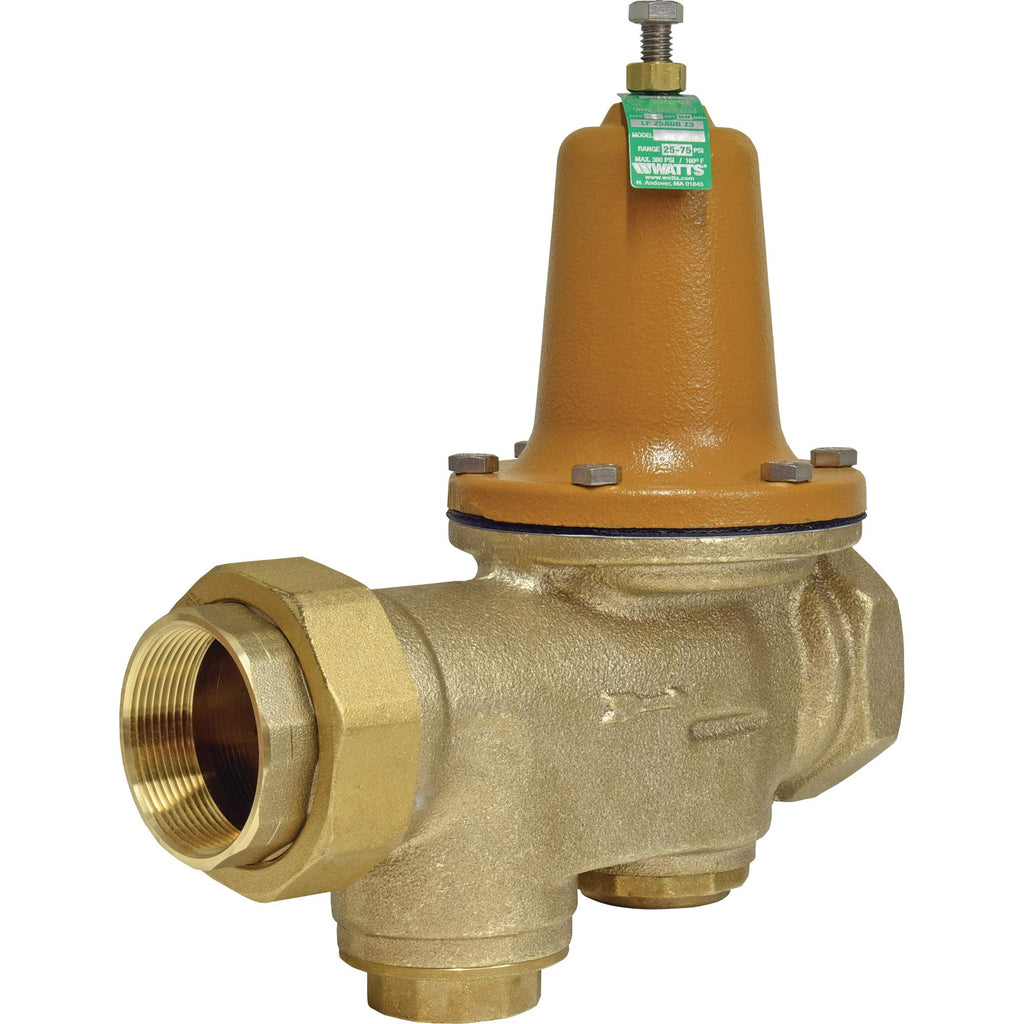

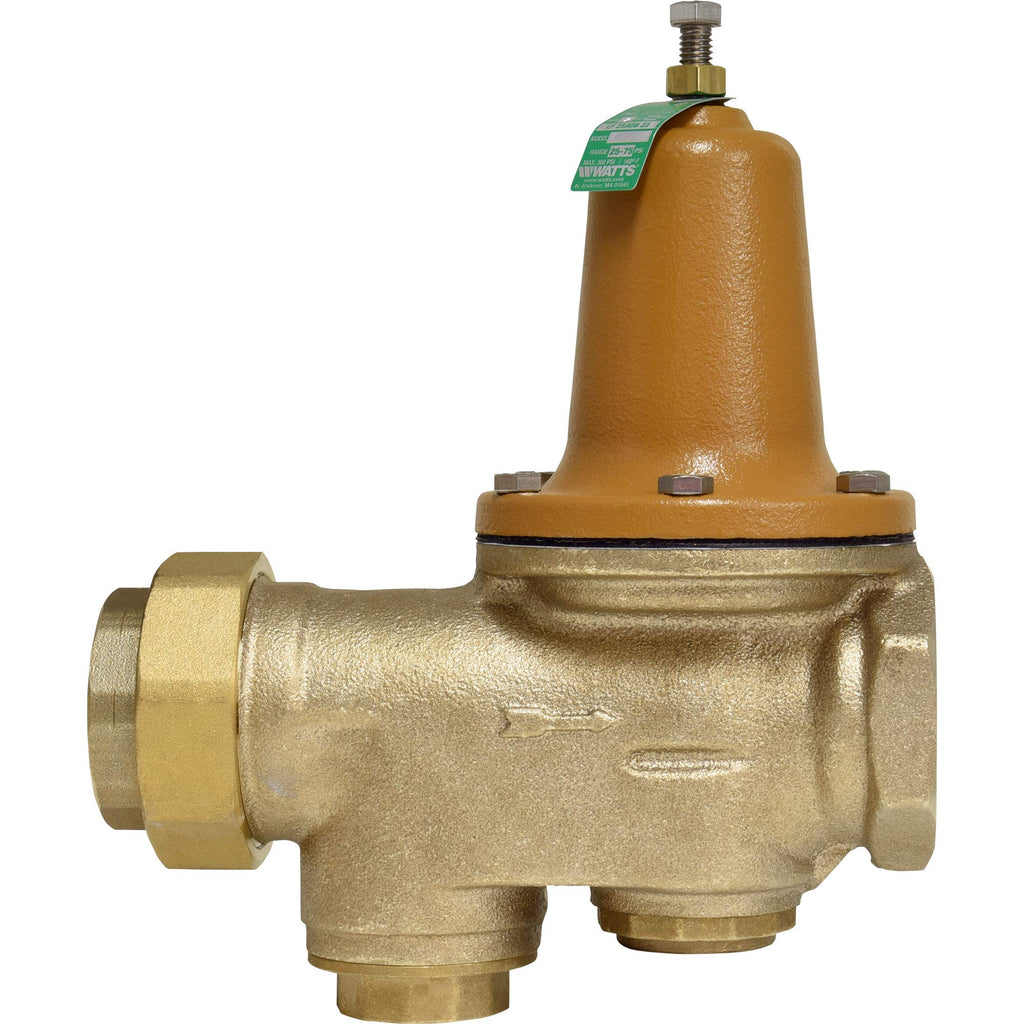

Watts LF25AUB-Z3 Series 2" Lead-Free Cast Copper Silicon Alloy Water Pressure Reducing Valve, NPT Female Union x NPT Female Outlet, SS Seat, Adjustable Pressure 25 to 75 psi, Maximum 300 psi

Brand: Watts

Color: SS Seat

Features:

• LEAD-FREE WATER PRESSURE REDUCTION: The Watts 2" Lead-Free Water Pressure Reducing Valve reduces incoming water pressure to protect plumbing systems and reduce water consumption in commercial, industrial, and residential applications. This assembly includes a removable integral stainless steel strainer, replaceable seat module, thermal expansion bypass, high-temperature diaphragm, and a sealed spring case with stainless steel cage screws for waterwork pit installations.
• EASY INSTALLATION AND MAINTENANCE: With versatile end connection options such as PEX, CPVC, and Quick-Connect, this lead-free water pressure reducing valve is designed for straightforward installation with easy handling and in-line serviceability, featuring an NPT female union inlet by NPT female outlet that simplifies the installation process.
• THERMAL EXPANSION PROTECTION: The valve includes a bypass feature that effectively controls thermal expansion pressure, permitting the flow of water back through the valve into the main when pressures - due to thermal expansion on the outlet side of the valve - exceed the pressure in the main supply. It has an operating temperature range of 33° F (0.5° C) to 180° F (82° C).
• VERSATILE PRESSURE ADJUSTMENT: This valve is suitable for pressures up to 300 psi (20.7 bar) and allows for an adjustable pressure range between 25 to 75 psi (172 to 517 kPa), with a standard setting at 50 psi (345 kPa).
• EVERY DROP COUNTS: Water. It's in our name and close to our hearts. Since 1874, Watts Water Technologies has been delivering innovative technologies that make the world's most precious resource safe and accessible. Everything we design is made to keep the Earth's most precious resource safer, cleaner, and more useful for our customers. Our family of brands offers one of the most varied product lines in the world, with world-class, water-related solutions.

Details: This 2 inch lead free brass water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).

EAN: 0098268332247

Package Dimensions: 11.0 x 9.0 x 8.4 inches

Binding: Tools & Home Improvement

Part Number: LF25AUB-Z3

model number: LF25AUB-Z3
