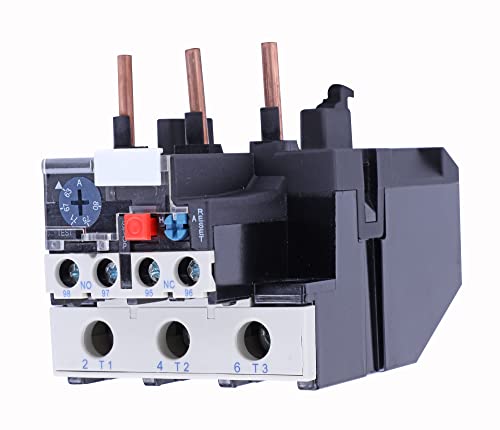

ZGLEDUN Thermal Overload Relay Electric Heat Motor Protect Defender 12-18A

Brand: ZGLEDUN

Color: 12-18A

Features:

• RATED CURRENT：12-16A, SIZE: 3.1" x 3.8" x 2.4".
• RATED RANGE: This thermal relay can be used in the circuit of 50-60hz, the rated insulation voltage is 690V.
• SPECIFIC FUNCTION: The overload protection relay has phase break protection, manual and automatic reset, temperature compensation, trip indication, test button, stop button.
• GOOD PROTECTION: The relay is used for protecting the phase break when the electric motor is overload.
• PACKAGE LIST: 1 * Thermal Overload Relay.

Details: ZGLEDUN Thermal Overload Relay Electric Heat Motor Protect Defender
Specification:
Power frequency: 50-60hz
Rated current: 0.1-93A
Rated insulation voltage: 690V
Phase break protection: yes
Manual and automatic reset: yes
Tripping instructions: yes
Test button: yes
Stop button: yes

Package Dimensions: 3.9 x 2.6 x 2.1 inches

Part Number: JR28-25-03
